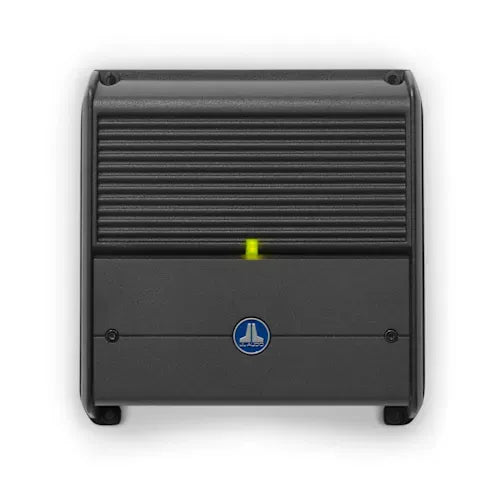

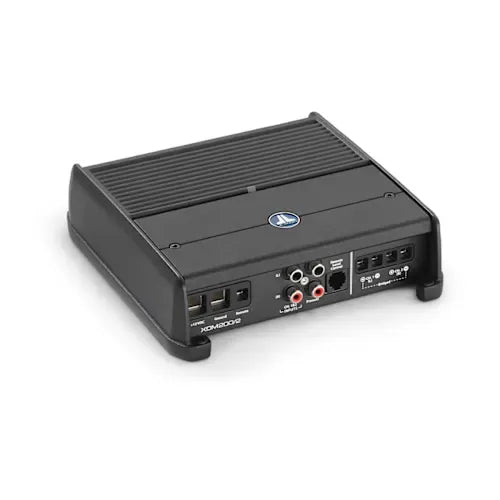

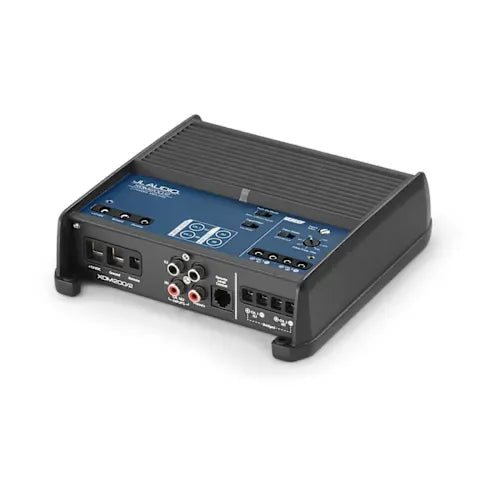

JL Audio XDM200/2 | 2-Channel Amplifier
JL Audio XDM200/2 | 2-Channel Amplifier is backordered and will ship as soon as it is back in stock.
Highlight title
Text to highlight a key feature of your product
Description
Description
Rated Continuous (RMS) Power @ 14.4 V
| @ 4 Ω | 75 W RMS x 2 |
| @ 2 Ω | 100 W RMS x 2 |
| Bridged @ 4Ω | 200 W RMS x 1 |
Rated Continuous (RMS) Power @ 12.5 V
| @ 4 Ω | 60 W RMS x 2 |
| @ 2 Ω | 90 W RMS x 2 |
| Bridged @ 4Ω | 180 W RMS x 1 |
General Specifications
| Frequency Response | 12 Hz - 22 kHz (+0, -1dB) |
| S/N Ratio, referred to highest rated power | >104 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth) |
| S/N Ratio, referred to 1 W | >84 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) |
| Damping Factor @ 4 Ω | >150 / 50 Hz |
| Damping Factor @ 2 Ω | >75 / 50 Hz |
| THD+N @ Rated Power | <1% @ 2 Ω per Ch. |
| Input Voltage Range @ RCA Inputs | 200 mV - 4 V RMS |
| Min.Copper Power / Ground Wire Gauge | 8 AWG wire |
| Fuse Rating | 20 A (AFS, AGU or MaxiFuse™) |
Signal Processing
| Filter Mode(s) | Low-Pass or High-Pass |
| Filter Slope(s) | 12 dB/octave |
| Filter Frequency Range | 50 Hz - 500 Hz |
| Detented, Calibrated Filter Freq. Potentiometer | Yes |
| Filter Defeat Function | Yes |
| Remote Level Control | Optional HD-RLC or MHD-RLC (water-resistant) |
| Security Cover for Controls | Yes |
| Pass-Through Preamp Output | Buffered |
Physical Specifications
| Height (H) | 2.05 in / 52 mm |
| Width (W) | 6.85 in / 174 mm |
| Depth (D) | 7.09 in / 180 mm |
| Net Weight | 3.75 lb / 1.70 kg |
