Water-resistant Audio Controller and Receiver with Bluetooth® Wireless Technology
Engineered for marine, motorsports and outdoor applications, the MBT-CRXv3 wireless receiver is designed to deliver top-quality streaming audio to almost any sound system over land or water.

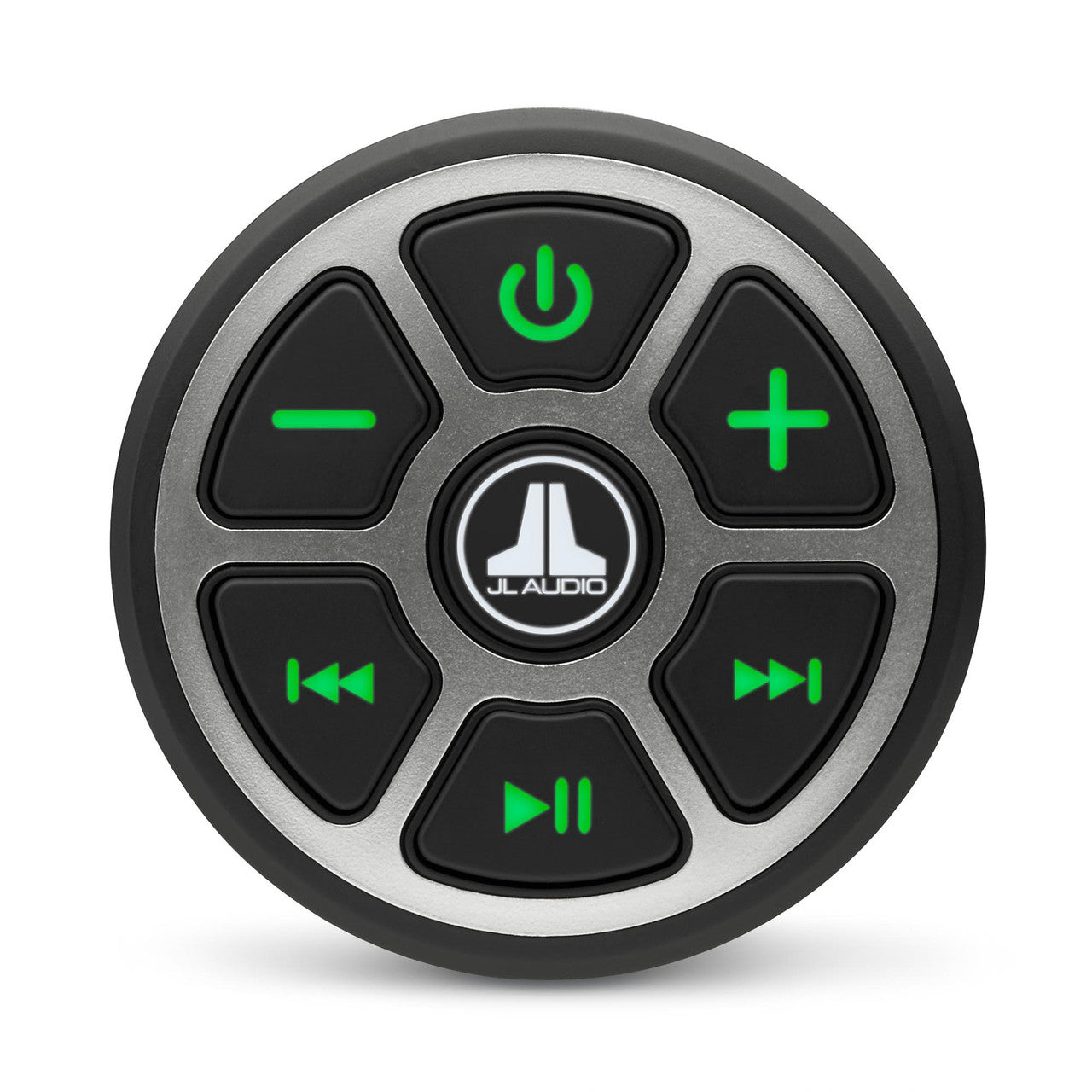

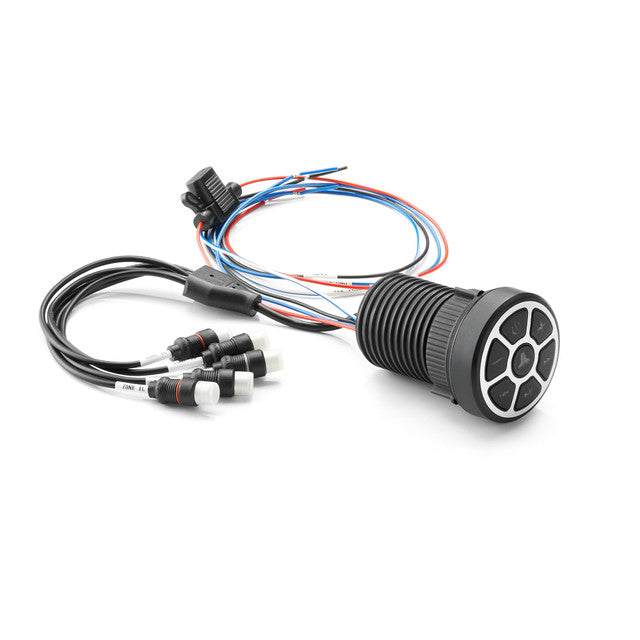

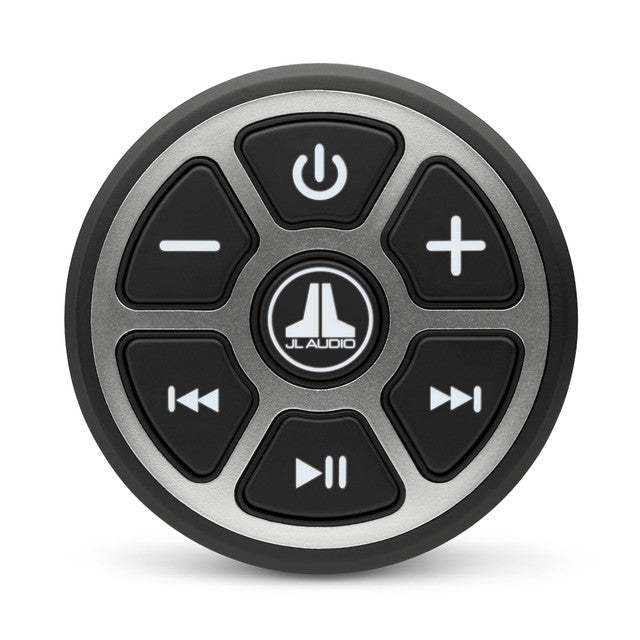

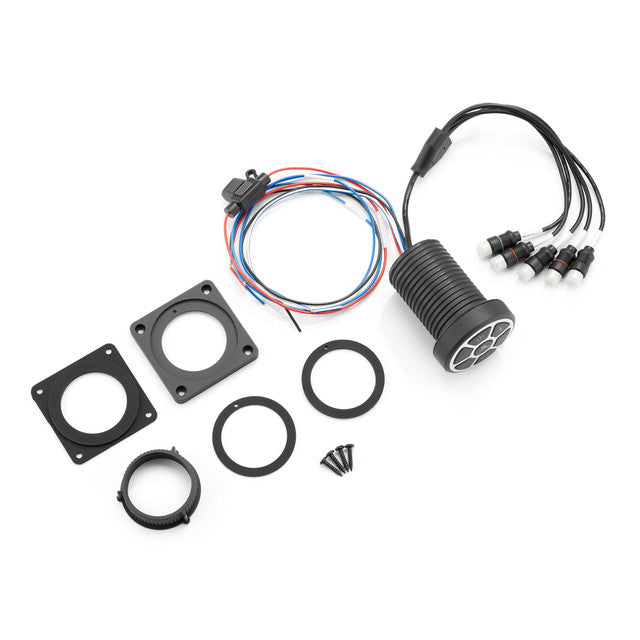

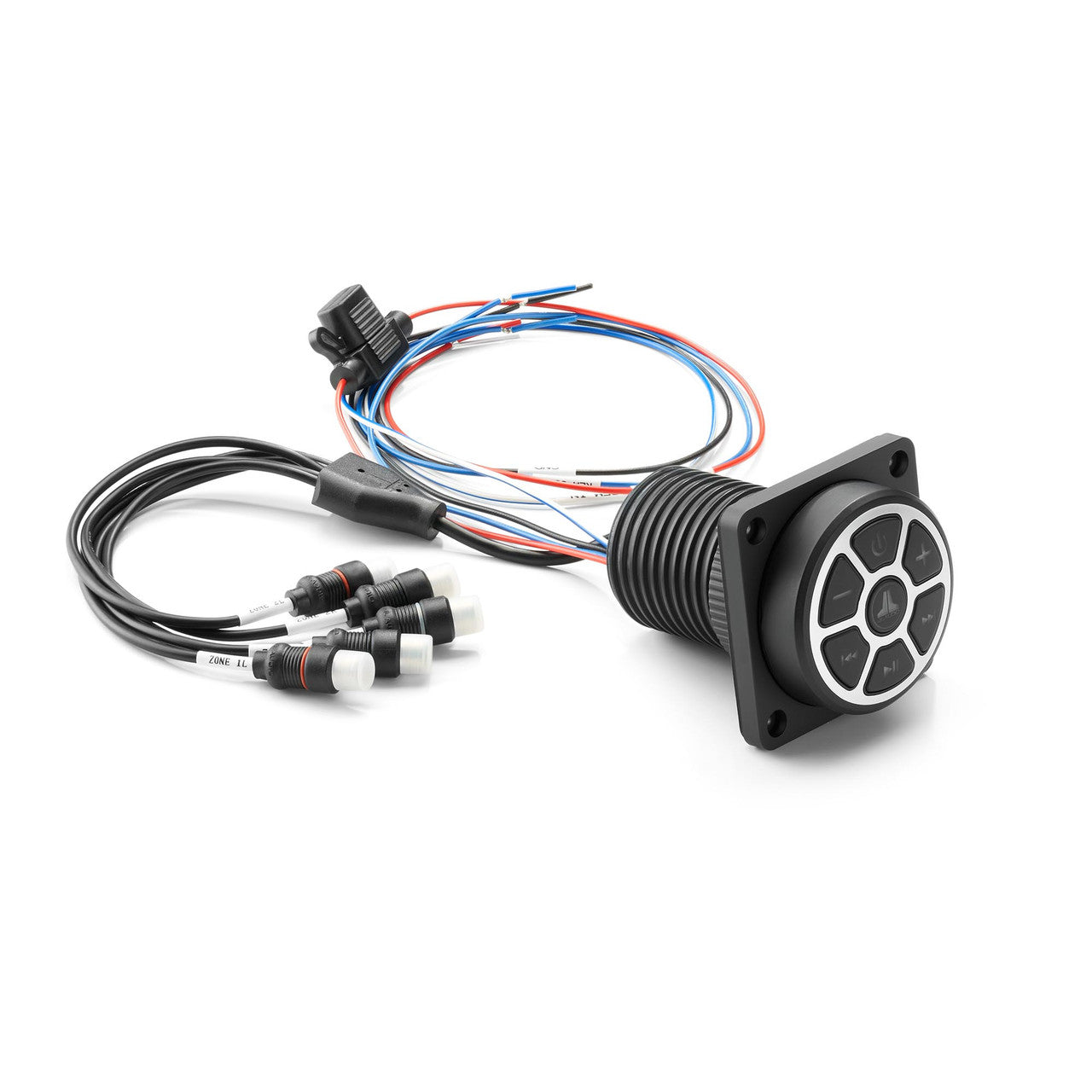

Housed in a compact and water-resistant chassis (IP67-rated), this premium audio receiver is well suited for small watercraft, motorcycles, golf carts and utility vehicles. Needing just a single hole for installation, the MBT-CRXv3 wireless receiver can function as a stand-alone, wireless audio source unit or as an add-on, wireless audio controller and receiver. Large backlit controls permit easy operation day or night, and an adaptor plate is included for front-mount applications or where rear access is limited.
Outfitted with BLUETOOTH wireless technology and the Qualcomm® aptX™ HD audio codec, MBT-CRXv3 delivers dynamic, CD-like sound from your compatible streaming device from up to 35’ (11 meters) away. Two sets of stereo preamp outputs (4-volt RMS) are on hand to feed two main audio zones plus a dedicated subwoofer output. Independent audio zone level controls with LED color indicators ensure effortless command of your sound system while your streaming device is tucked away.
The receiver includes +12-volt (1 amp) remote turn-on output for amplifier control.
General Specifications
Bluetooth® Core Specification Version 5.0 with Qualcomm® aptX™-HD audio
Current Draw 83 mA (at idle) / 108 mA (at full output)
Input Operating Voltage 8 - 16 VDC
Fuse Rating 2A Mini ATC
Output Voltage 4V RMS
Frequency Response 20 Hz - 20 kHz (±1dB)
Connection Range* Up to 35 ft / 11 m
S/N Ratio 101 dB (20 Hz - 20 kHz)
Remote Turn-on Output Capacity 350 mA (max)
Bluetooth® Profile A2DP (High-Quality, Stereo Audio)
Outputs Two Stereo Pairs Per Zone, Plus One Mono Subwoofer (RCA Plugs)
Physical Specifications
Width (W) 2.15 in / 55 mm
Height (H) 2.15 in / 55 mm
Depth (D) 0.74 in / 19 mm
Mounting Depth (A) 2.36 in / 60 mm
Mounting Hole Diameter 1.125 in / 29 mm (minimum diameter for mounting with rear of panel access)
1.875 in / 48 mm (maximum for front mounting with plate)
