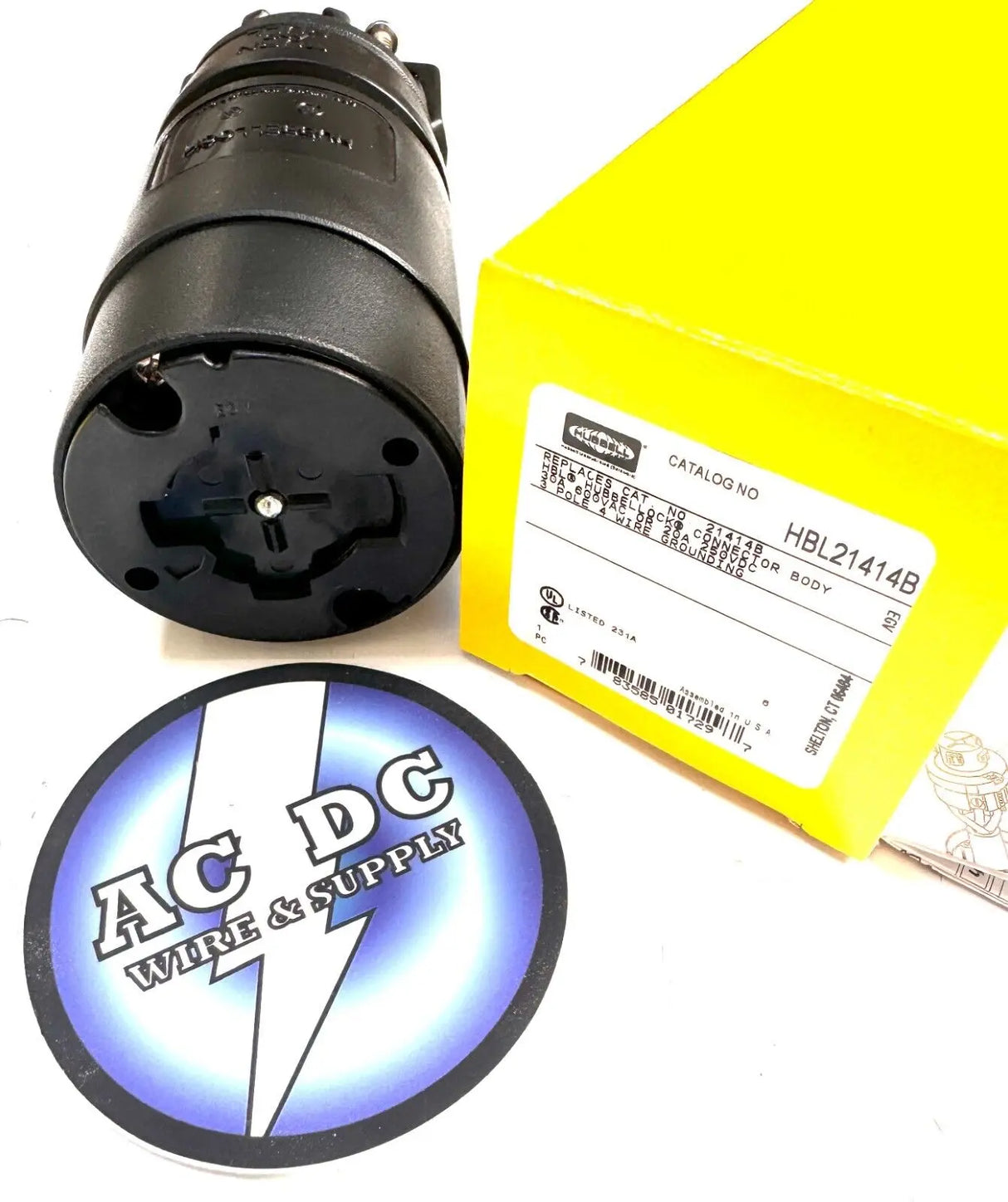

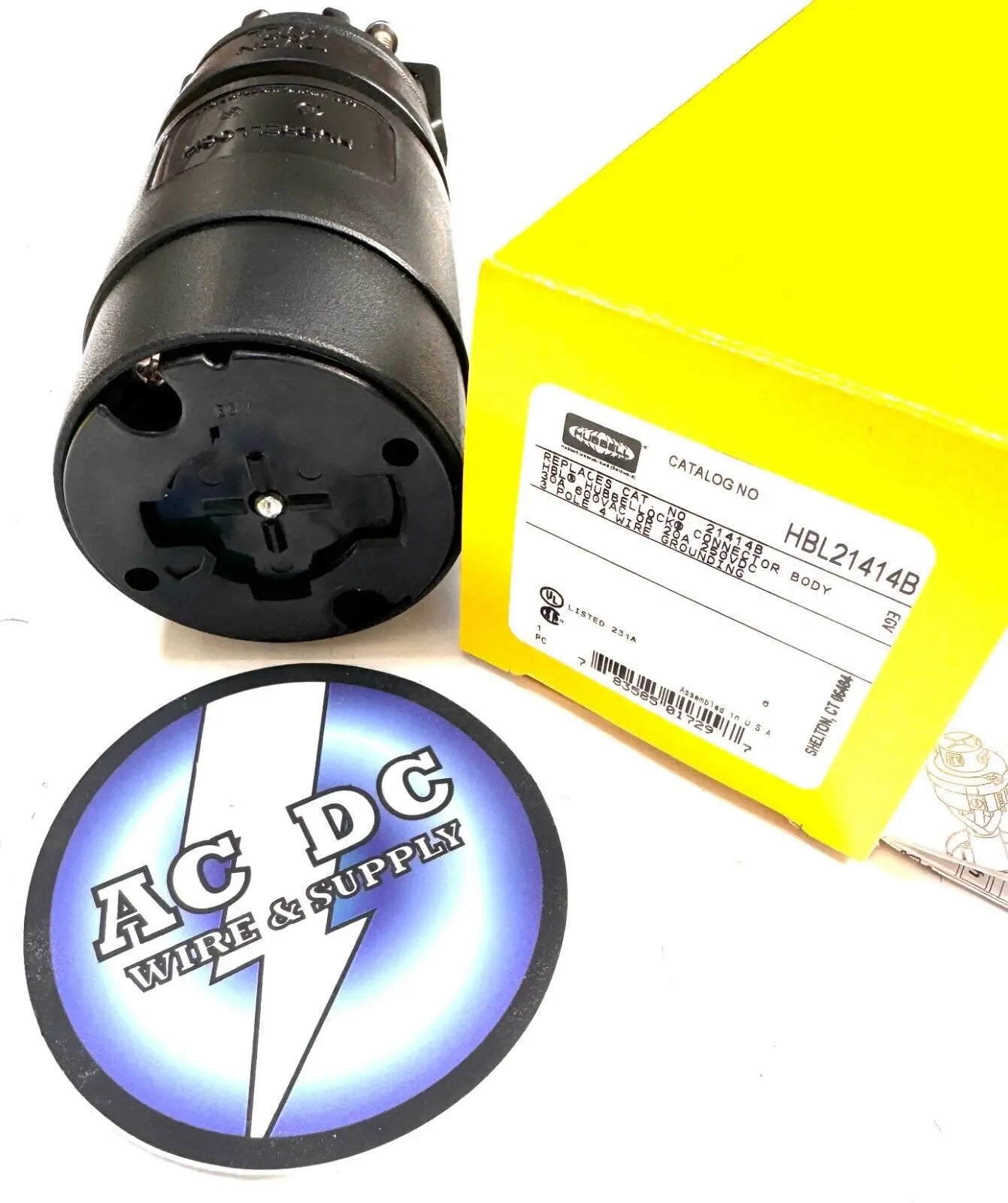

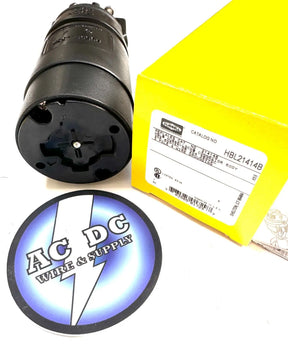

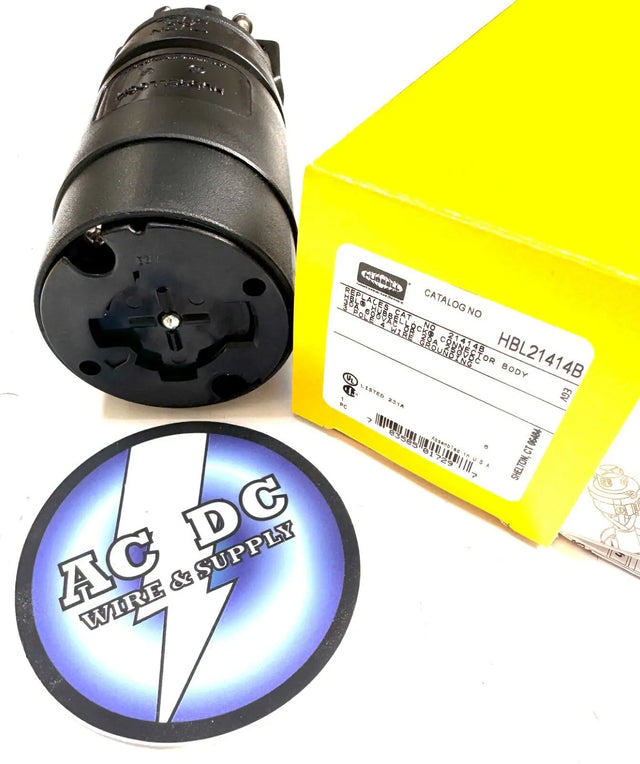

Hubbell Hbl21414b 30/20A Locking Connector 3P 4W 600Vac/250Vdc

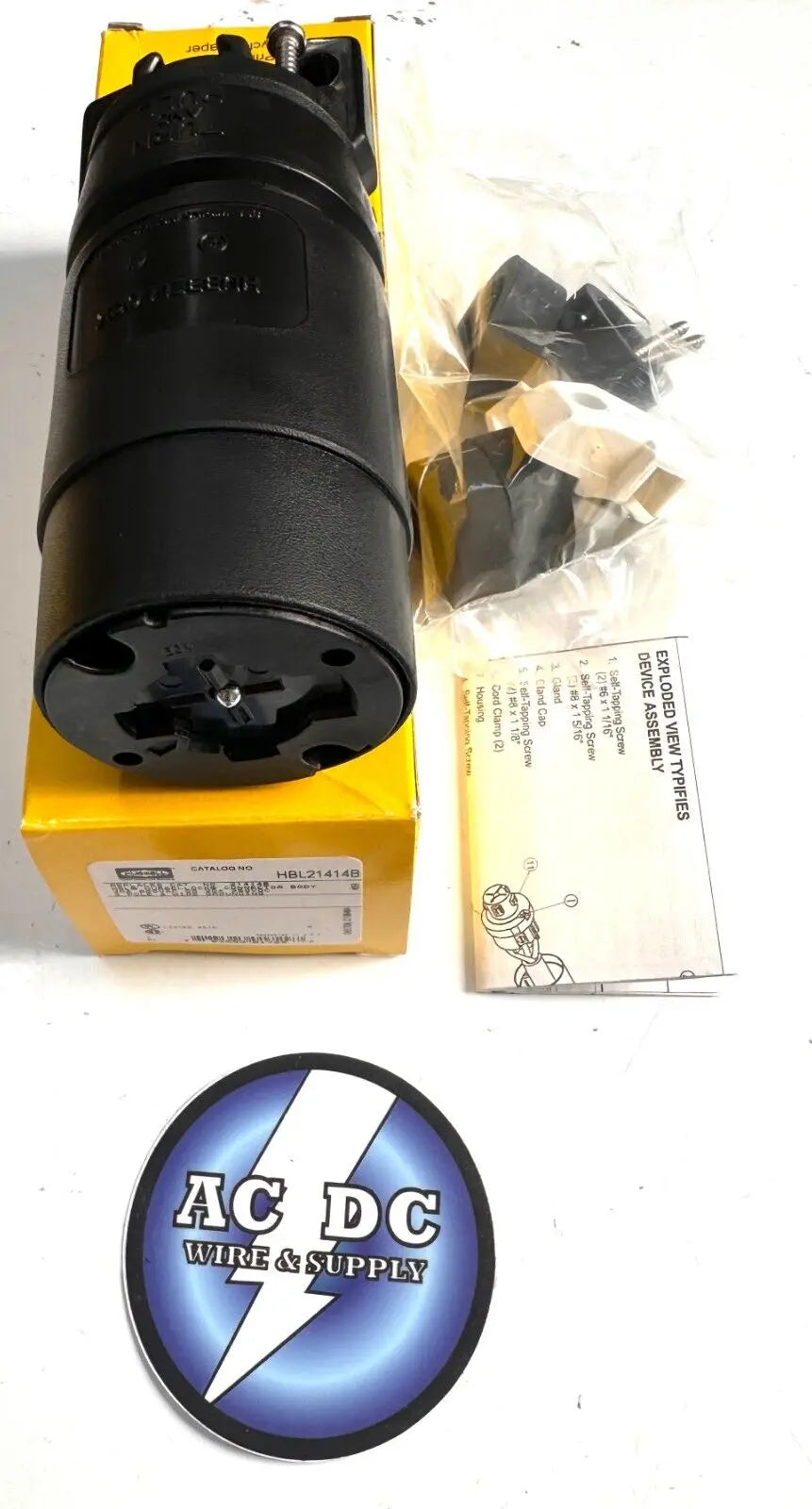

NEW IN THE BOX.
if you need wire and cable for this plug check out our store. soow 6/4
Locking Devices, Hubbell, Industrial, Female Connector Body, 30A 600V AC, 20A 250V DC, 3-Pole 4-Wire Grounding, Black nylon housing, thermoplastic interior, Non-NEMA, Screw Terminal, Black and White
General
Application
Color
Black, White
Cord Range
0.70"-1.20" (17.78-30.5)
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
EU RoHS Indicator
No
Insulation
Insulated Body
Item Type
30A Grounding Hubbell Female Connector
Material
Nylon
Material - Mounting Hardware
Cord Mounted
Number Of Poles
3-Pole
OEM Brand Name
Hubbell Wiring Device-Kellems
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Performance
* Electrical - Current Interrupting - Certified for current interrupting at full rated current
* Electrical - Dielectric Voltage Withstand - 2,000V minimum
* Environmental - Flammability - UL 94 VO for Receptacles and Inlets. HB or better for Plugs and Connectors
* Environmental - Moisture Resistance - IP30 Suitability
* Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact)
* Mechanical - Terminal Accommodation - #10 AWG - #6 AWG stranded copper wire only.
* Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Type
* Connector Body
* Connector Body
UPC
783585017297
Dimensions
Dimensions
6 in x 2.44 in x 2.44 in
Display Size
Standard
Height
2.44 in
Length
6 in
Weight
1.05 lb
Width
2.44 in
Electrical Ratings
Amperage Rating
20/30 A
Connectivity
Pressure Terminal Screws
Current / Amperage Rating
20/30 A
Current Rating
30 A
Dielectric Strength
Withstands 2,000V minimum
Voltage Rating
250 VDC/600 VAC
Voltage Rating Description
250 VDC/600 VAC
Conductor Related
Cable Range
0.700 - 1.200 in
Number Of Wires
4-Wire
Wire Size
#10 AWG to #6 AWG
Certifications And Compliance
Industry Standard(s)
* Certified to CSA C22.2 No.42
* Listed to UL 498
