HUBBELL CAMLOCK SET SERIES 16 300A SET, M/F, COLORS: B/BL/R/G/W 120/208V 10 CAMS
HUBBELL CAMLOCK SET SERIES 16 300A SET, M/F, COLORS: B/BL/R/G/W 120/208V 10 CAMS is backordered and will ship as soon as it is back in stock.
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
HUBBELL CAMLOCK SET SERIES 16 300A SET, M/F, COLORS: B/BL/R/G/W 120...
HUBBELL CAMLOCK SET SERIES 16 300A SET, M/F, COLORS: B/BL/R/G/W 120/208V 10 CAMS is backordered and will ship as soon as it is back in stock.
Highlight title
Text to highlight a key feature of your product
Description
Description

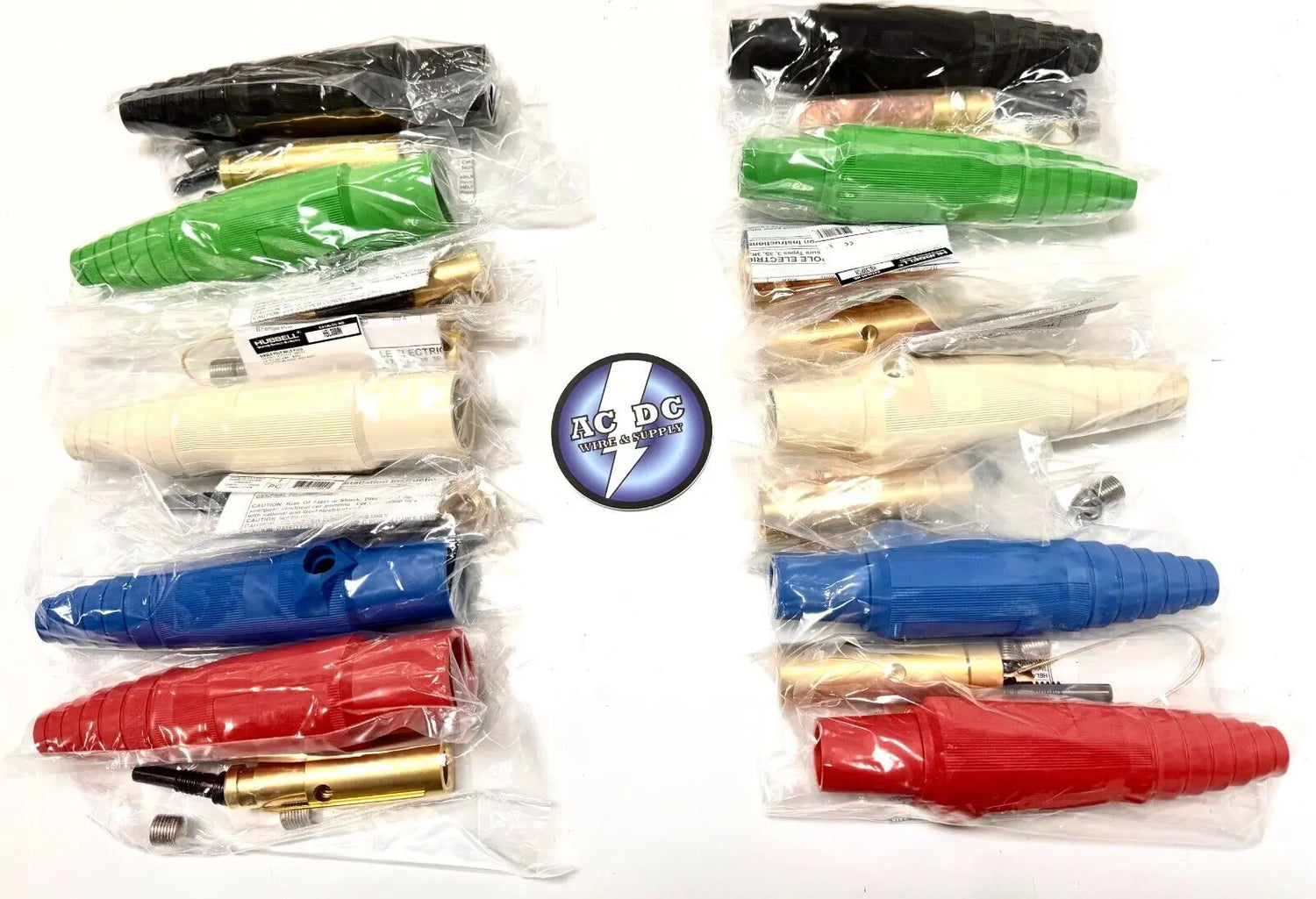

COMPLETE SET OF 10 HUBBELL CAMLOCK SERIES 16 300AMP HBL300
STANDARD USA COLOR-CODING
* Red, Blue, and Black for each Phase (120/208V Wye, 240V Delta).
* Green for Ground.
* White for Neutral.
INCLUDED:
* 1 BLACK MALE. HBL300MBK, HBL300FBK FEMALE
* 1 RED MALE HBL300MRD AND HBL300FRD FEMALE
* 1 BLUE MALE HBL300MBL AND HBL300FBL FEMALE
* 1 GREEN MALE HBL300MGN AND HBL300FGN FEMALE
* 1 WHITE MALE HBL300MW AND HBL300FW FEMALE.
* FITS 6 AWG WIRE UP TO 2/0 WIRE. IF YOU NEED CAMLOCKS FOR 2/0 UP TO 4/0 THEN YOU NEED THE 400A CAMLOCKS.(CHECK OUT OUT OUT OTHER AUCTIONS FOR THOSE CAMLOCKS.)
* THIS AUCTION IS FOR CAMLOCKS ONLY (WIRE IS SOLD SEPERATE)
Performance
* Electrical - Amperage Rating - 400A Maximum
* Electrical - Voltage Ratings - 600V AC Maximum
* 250V DC Maximum
* Environmental - Flammability - HB per UL94 or CSA 22.2. 0.17
* Mechanical - Product Identification - Ratings are a permanent part of device
* Mechanical - Terminal Accommodation - #6 to 2/0 AWG
Electrical Ratings
Amperage Rating
300 A
Current / Amperage Rating
300 A
Voltage Rating Description
600V AC/DC
