Hotchkis 70-81 Camaro/Firebird Tubular Upper A-Arms

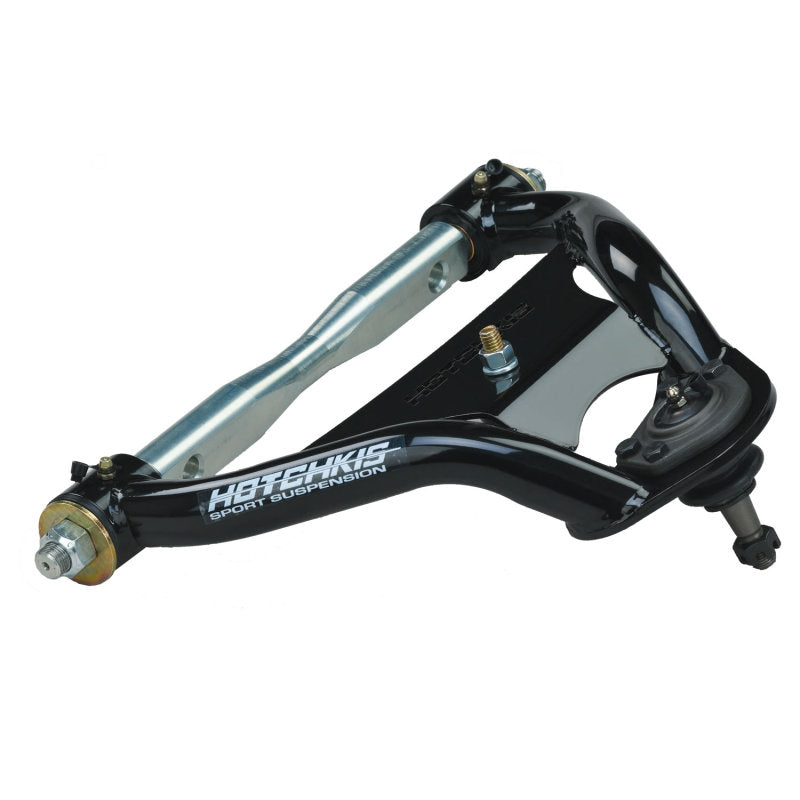

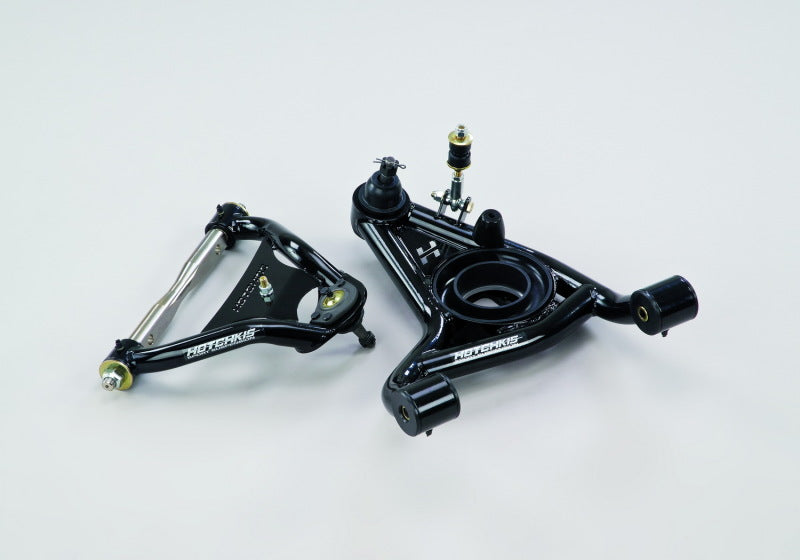

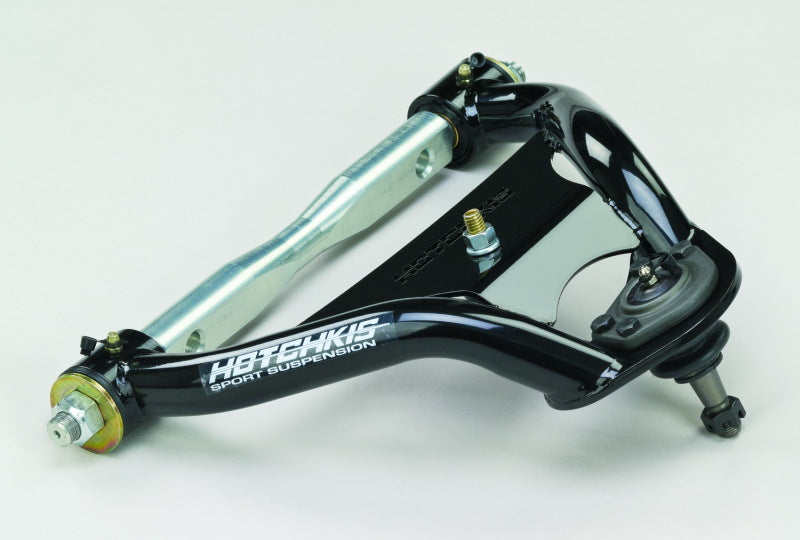

Hotchkis Sport Suspension 1106 1970-1981 Camaro/Firebird Tubular Upper A-Arms. Install the geometry corrected Hotchkis Sport Suspension Tubular Upper A-Arms on your 70-81 Camaro or Firebird and gain vastly increased handling and control. These TIG-welded bolt-on arms offer increased camber and caster adjustment over stock for ultimate driving performance. Finished in gloss black powder coat the Arms are ready to install and are complete with ball joints. Billet cross-shafts and smooth operating Delrin bushings. Exceptional handling performance when combined with the Hotchkis Sport Suspension Tubular Lower A-Arms. Features: Geometry corrected design. Built in - 1.1 deg of Camber 5.2 deg of Caster 100% TIG-welded 1.25 in. tubular steel construction. Silver zinc plated 4130 Chromoly billet cross-shaft. Easy to lubricate Delrin bushings. Upper ball joints and polyurethane droop stops installed. Laser cut Hotchkis logo. Gloss black powder coat finish Benefits: Cross-Shaft allows increased static negative camber without a large alignment shim stack. Great for header clearance issues. Increased Caster improves high speed stability and camber gain during turning thereby increasing front tire traction. Smooth operating Delrin bushings allow minimal deflection through travel range. Achievable specs when using 1106 upper control arm and 1108 lower control arm. MAX Caster with Uppers and Lowers = 9 deg MAX Camber with Uppers and Lowers = - 3.5 deg
Installation Instructions


This Part Fits:

Year	Make	Model	Submodel
1970-1980	Chevrolet	Camaro	Base
1979-1981	Chevrolet	Camaro	Berlinetta
1973-1978	Chevrolet	Camaro	LT
1976-1978	Chevrolet	Camaro	LT Rally Sport
1976-1980	Chevrolet	Camaro	Rally Sport
1970-1973,1975	Chevrolet	Camaro	RS
1981	Chevrolet	Camaro	Sport
1970-1972	Chevrolet	Camaro	SS
1970-1974,1977-1981	Chevrolet	Camaro	Z28
1975-1979	Chevrolet	Nova	Base
1976-1977	Chevrolet	Nova	Concours
1975,1978-1979	Chevrolet	Nova	Custom
1975	Chevrolet	Nova	LN
1975-1978	Chevrolet	Nova	Police
1977-1979	Chevrolet	Nova	Rally
1976	Chevrolet	Nova	SS
1970-1981	Pontiac	Firebird	Base
1970-1981	Pontiac	Firebird	Esprit
1970-1981	Pontiac	Firebird	Formula
1970-1981	Pontiac	Firebird	Trans Am
