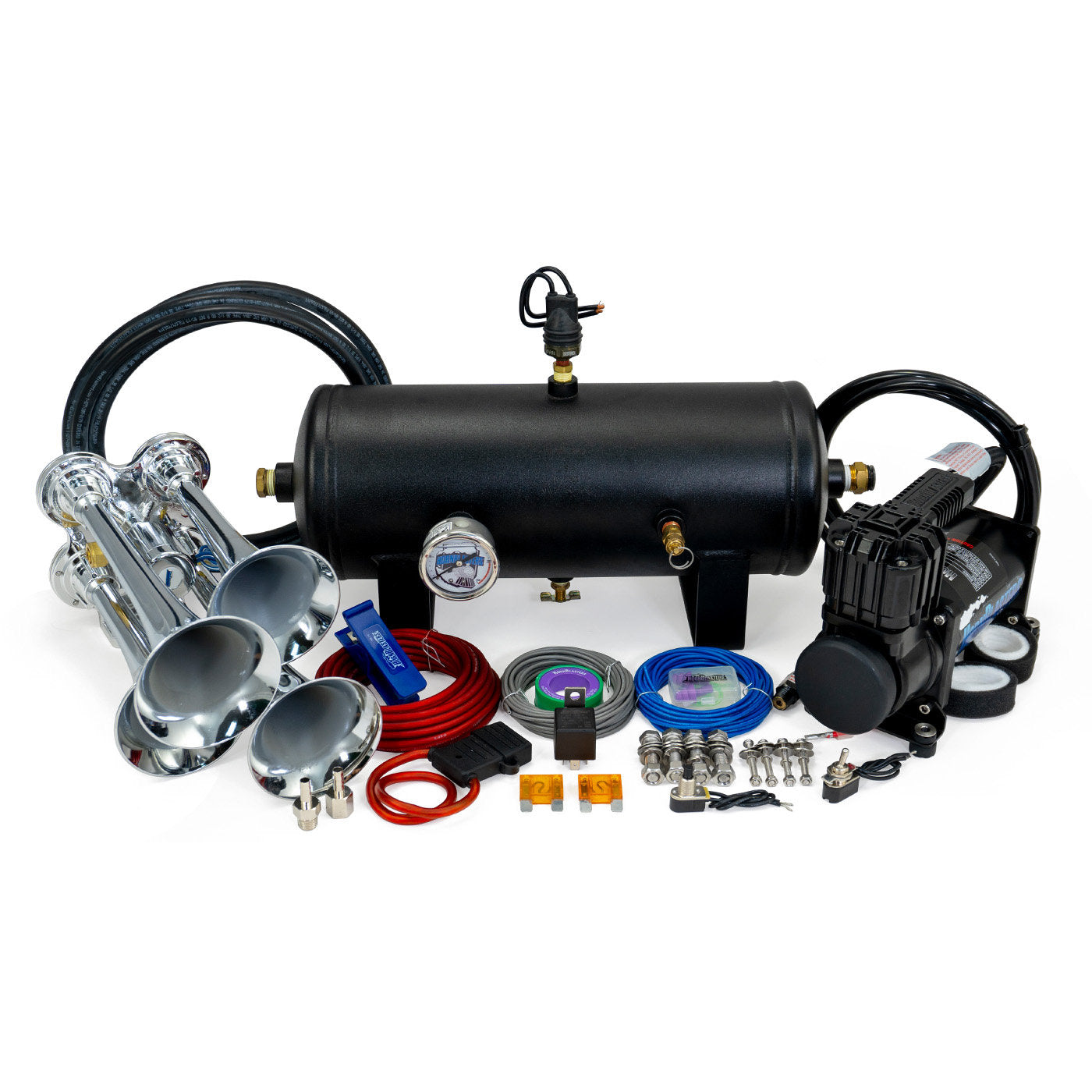

Bullet 232 24-Volt Air Horn Kit
A 24V BULLET FIRED STRAIGHT OUT OF YOUR HORN

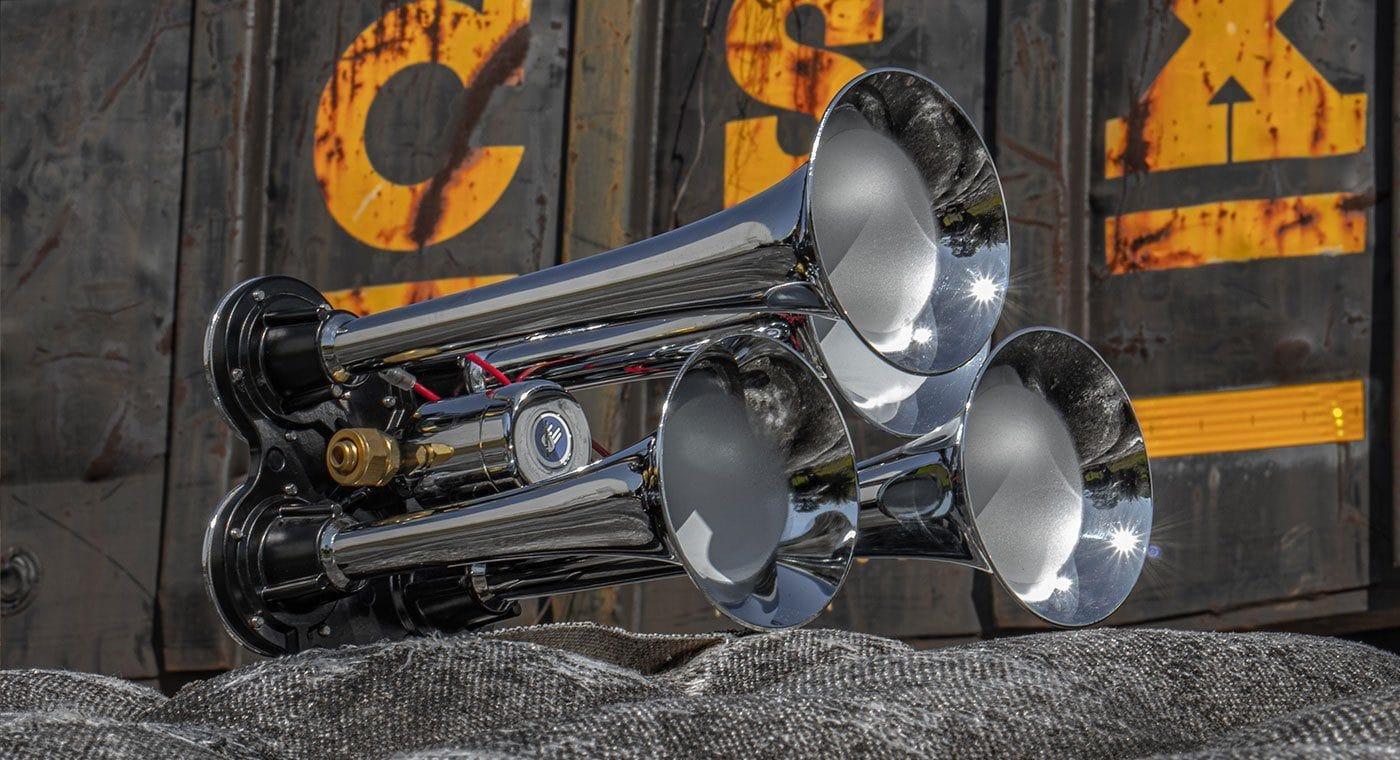

Introducing the Bullet 232 24-Volt Air Horn Kit, one of the loudest air horn solutions available. The kit includes our popular Bullet Air Horn, known for its high-pitched, ear-catching blast that rivals a gunshot. The compact metal quad-chime design allows for easy installation and the 1/4" valve is already pre-installed.
This kit also features our HornAir 232 24-Volt Onboard Air System, designed with the beginner and budget-conscious in mind. The system offers a dependable 2-gallon tank and a air compressor that can recharge the system in just over a minute. With all required components included and detailed instructions, you'll have everything you need for a complete 24-volt air horn setup that can be used for both horn blasting and tire inflation in an emergency.Ā
- Heavy Duty Chrome Finish Air Horns
- 150 PSI Air System
- 24 Volt System
- Max Honk Time: 4 to 6 Seconds
**THIS SYSTEM REQUIRES A 24-VOLT POWER SOURCE! CONNECTING THIS SYSTEM TO A 12-VOLT POWER SOURCE CAN CAUSE SERIOUS DAMAGE TO YOUR VEHICLE AND/OR COMPRESSOR**Ā

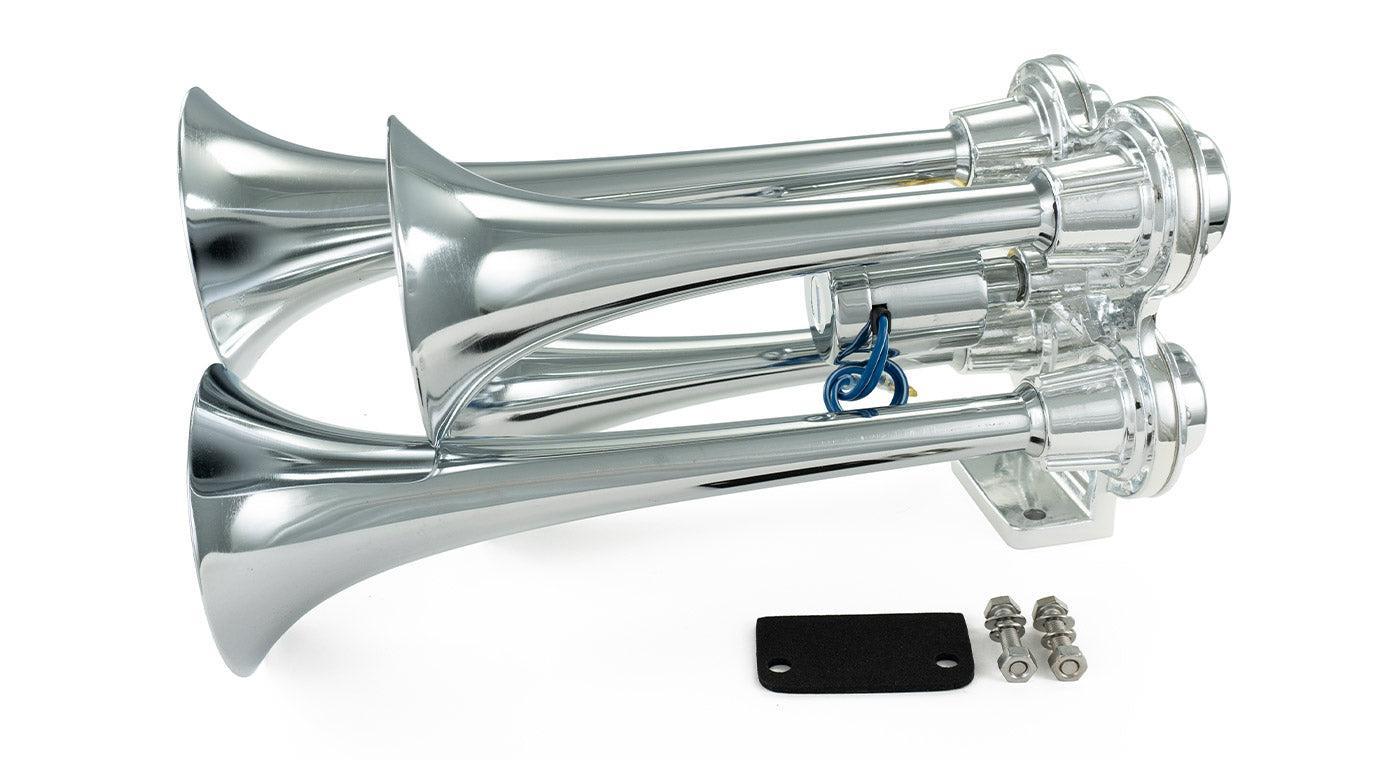

- Bullet Air Horn
- Horn AirĀ 2 Gallon Air Tank

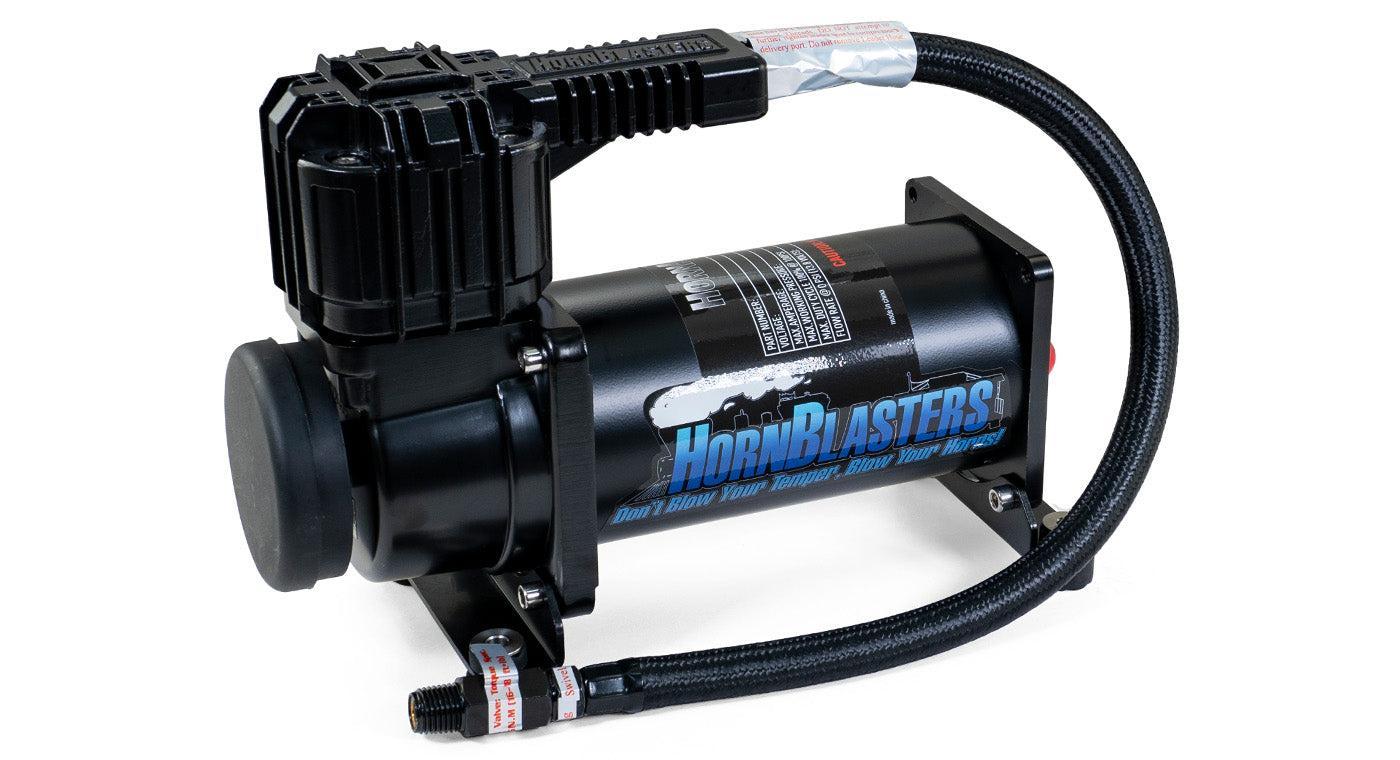

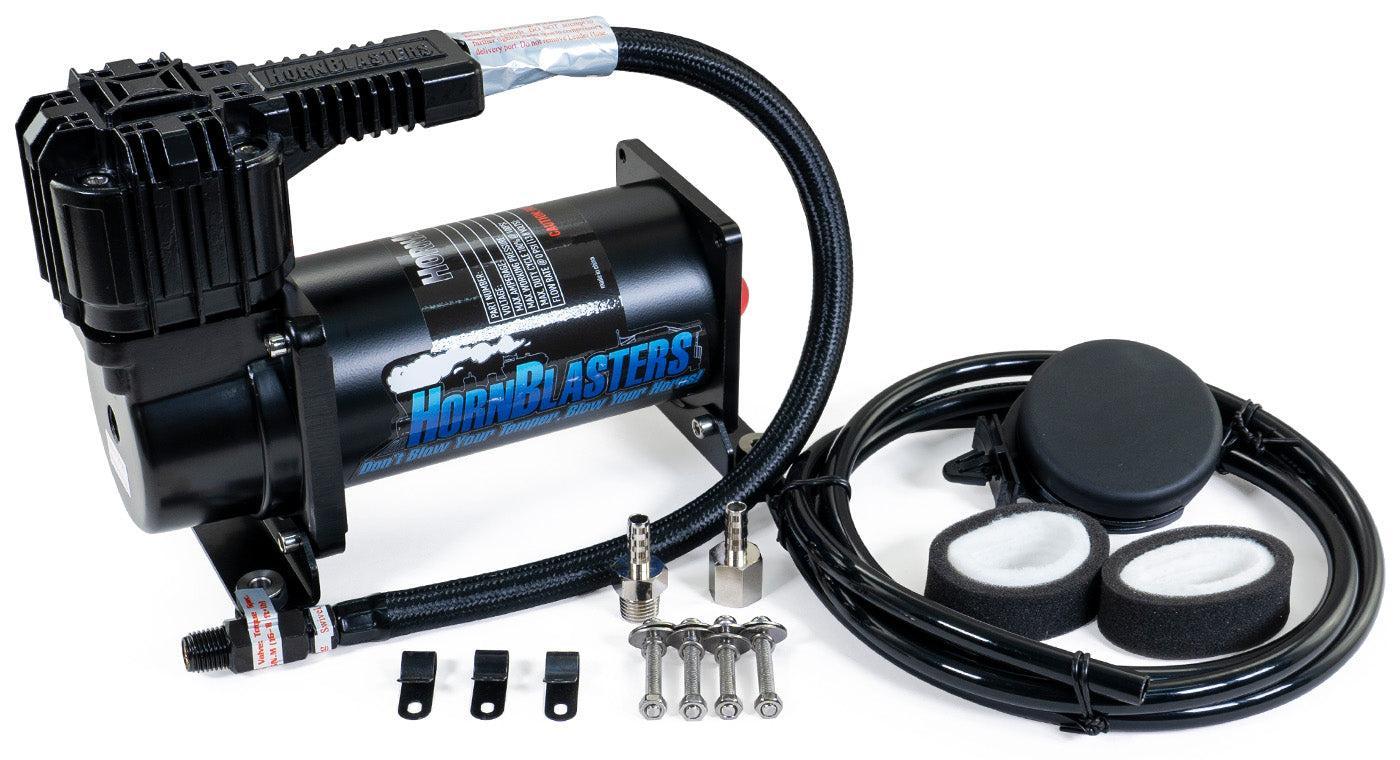

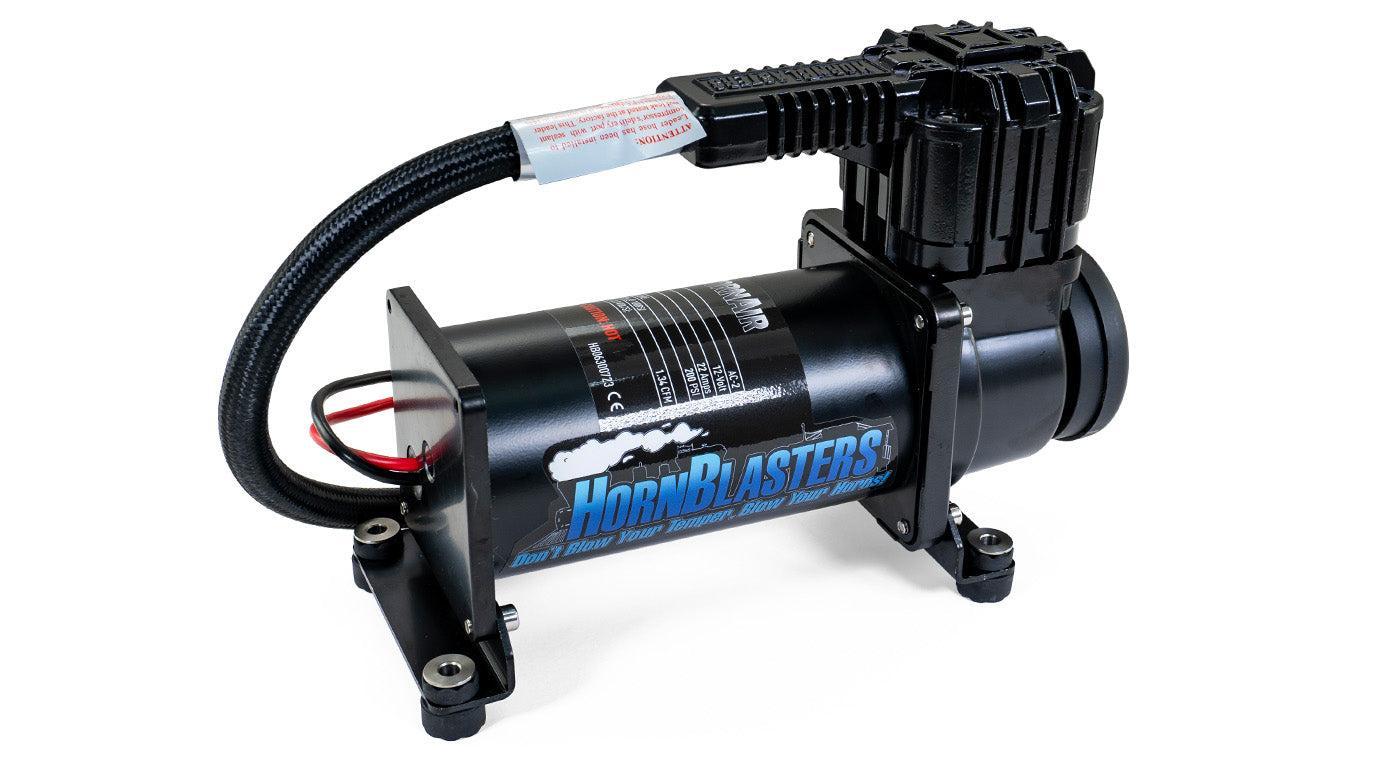

- AC-2 24 Volt Air Compressor
- HornBlasters 110/150 PSI 24 Volt Pressure Switch
- Viair 24 Volt 40 Amp Relay
- Remote Mountable Intake Filter Assembly
- SpareĀ Air Filters
- 6ft ā in Air Line (For Compressor Intake)
- 22 ft of 10ga & 18ga Power Wire
- Electric Solenoid Valve
- HornBlasters 200 PSI Air Gauge
- Brass NPT Fittings Kit Including Safety Valve and Blowoff

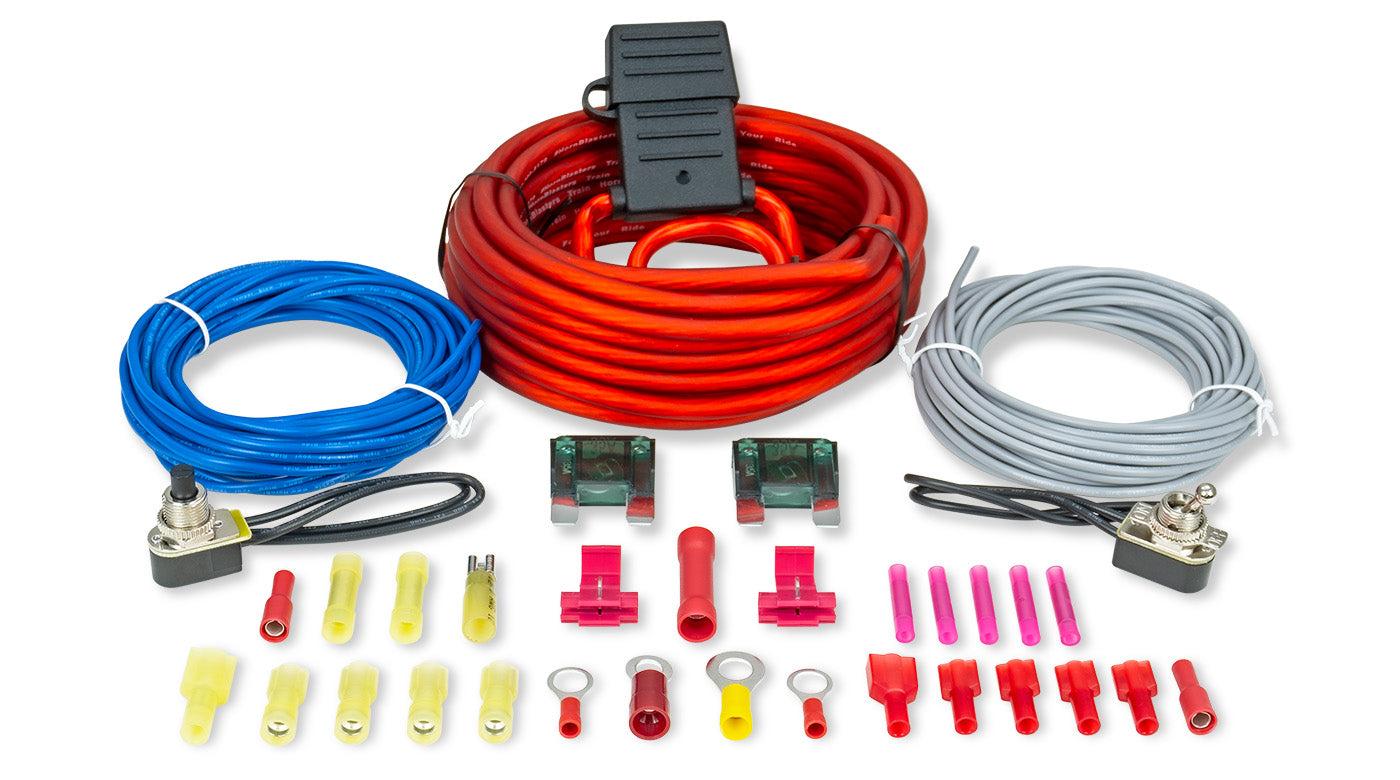

- Wiring & Plumbing Kit
- Compressor Mounting Hardware
- Detailed Instructions
- EarplugsĀ
| Kit Part Number | HK-B4-232-24 |
| Horn | HornBlasters BulletĀ AirĀ Horn |
| Horn Length | 11.15" (283.21 mm) |
| Horn Width | 5.70" (144.78 mm) |
| Horn Height | 6.00" (152.4 mm) |
| Horn Weight | 5 lb (2.27 Kg) |
| Tank Part Number | TA-206H |
| Volume | 2Ā gals (7.57 L) |
| NPT Ports | FourĀ 1/4" Ports &Ā Two 1/2" Ports |
| Burst Pressure | 300 PSI |
| Working Pressure | 150 PSI |
| Length | 17ā³ (431.8 mm) |
| Diameter | 6ā³ (152.4 mm) |
| Height | 8ā³ (203.2 mm) |
| Average Fill Time | 1 Min 30 Sec |
| Voltage | 24 volts DC |
| Air Flow | 1.80Ā CFM at Free Flow |
| Max Amperage | 13 amps |
| Maximum Duty Cycle | 33% @ 150 PSI |
| Maximum Working Pressure | 150 PSI |
| Compressor Length | 8ā³ (203.2 mm) |
| Compressor Width | 4ā³ (101.6 mm) |
| Compressor Height | 6.75ā³ (171.45 mm) |
-
