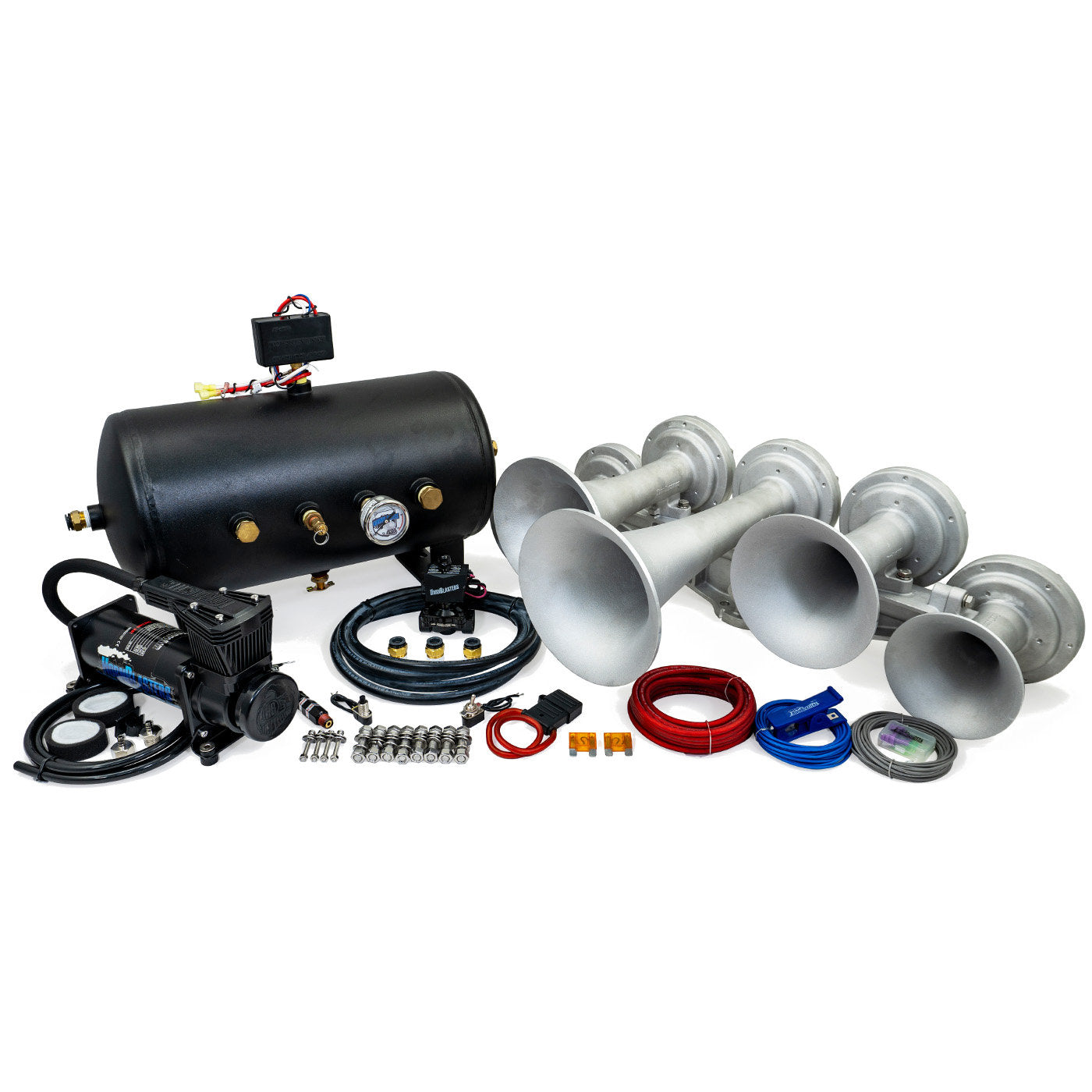

IT'S GOOD TO BE THE KING
The King 5 544K gives you the raw power of our new-generation 5-chime King 5 Train Horn, paired with a reliable onboard air system that delivers consistent performance and strong honk time. Built with die-cast aluminum and stainless steel internals, the horn delivers a deep, aggressive tone modeled after real locomotive horns.
The HornAir 544K onboard air system features a 5-gallon air tank and our stealth black 1NM air compressor, offering up to 5–6 seconds of honk time while still giving you the flexibility to run air tools or air up tires when needed. Whether you're looking for a horn that sounds like it belongs on the rails or a dependable all-in-one kit, the King 5 544K is a solid choice.

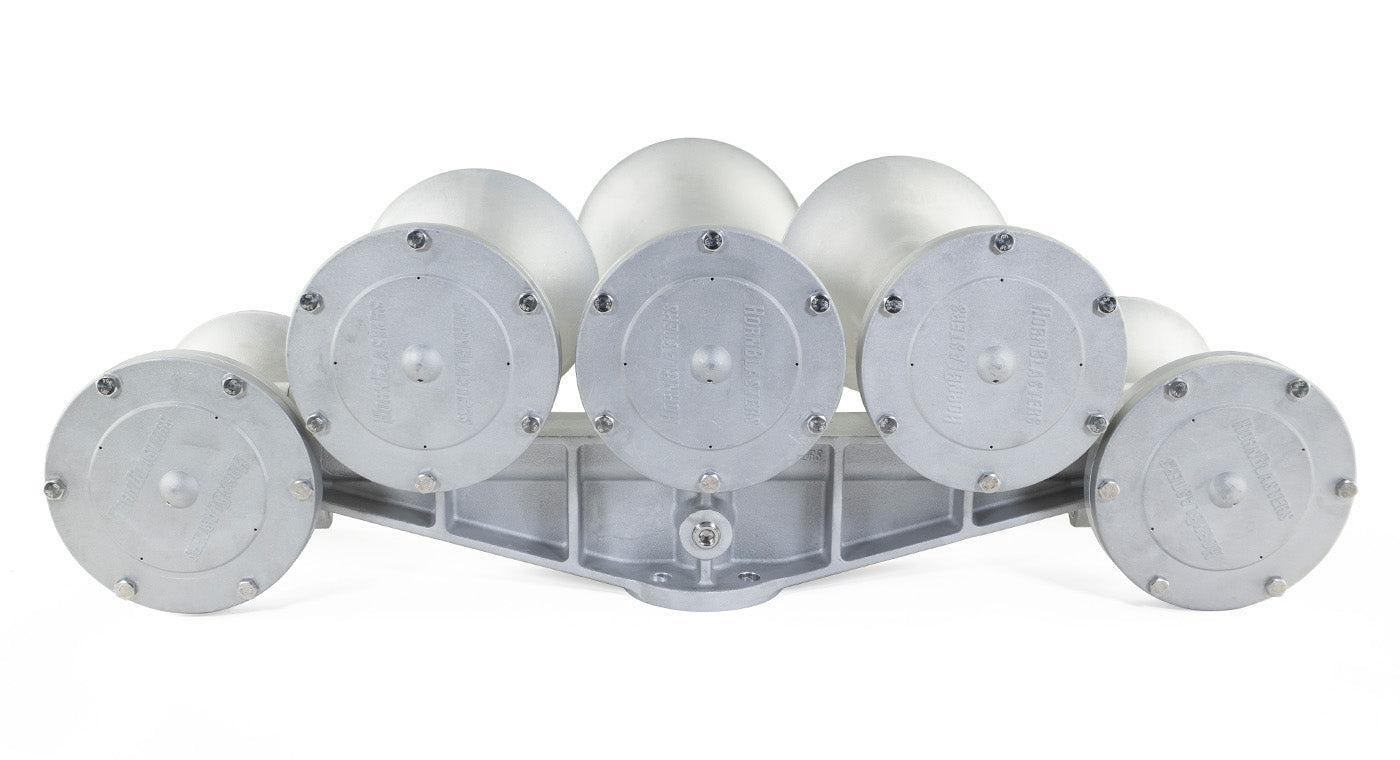

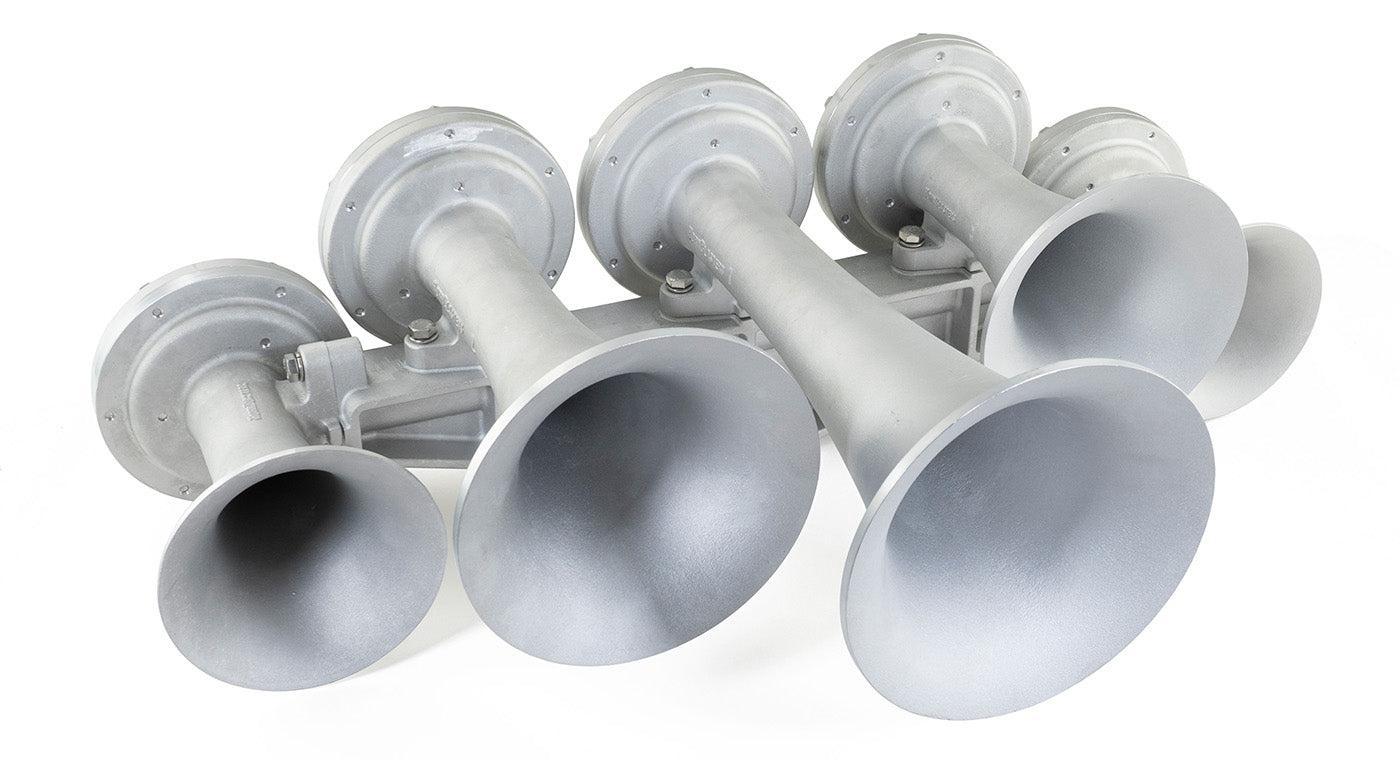

- 5-Chime Train Horn: The King 5 horn is made from die-cast aluminum with stainless steel diaphragms and delivers a loud, deep tone modeled after the US-train chord.

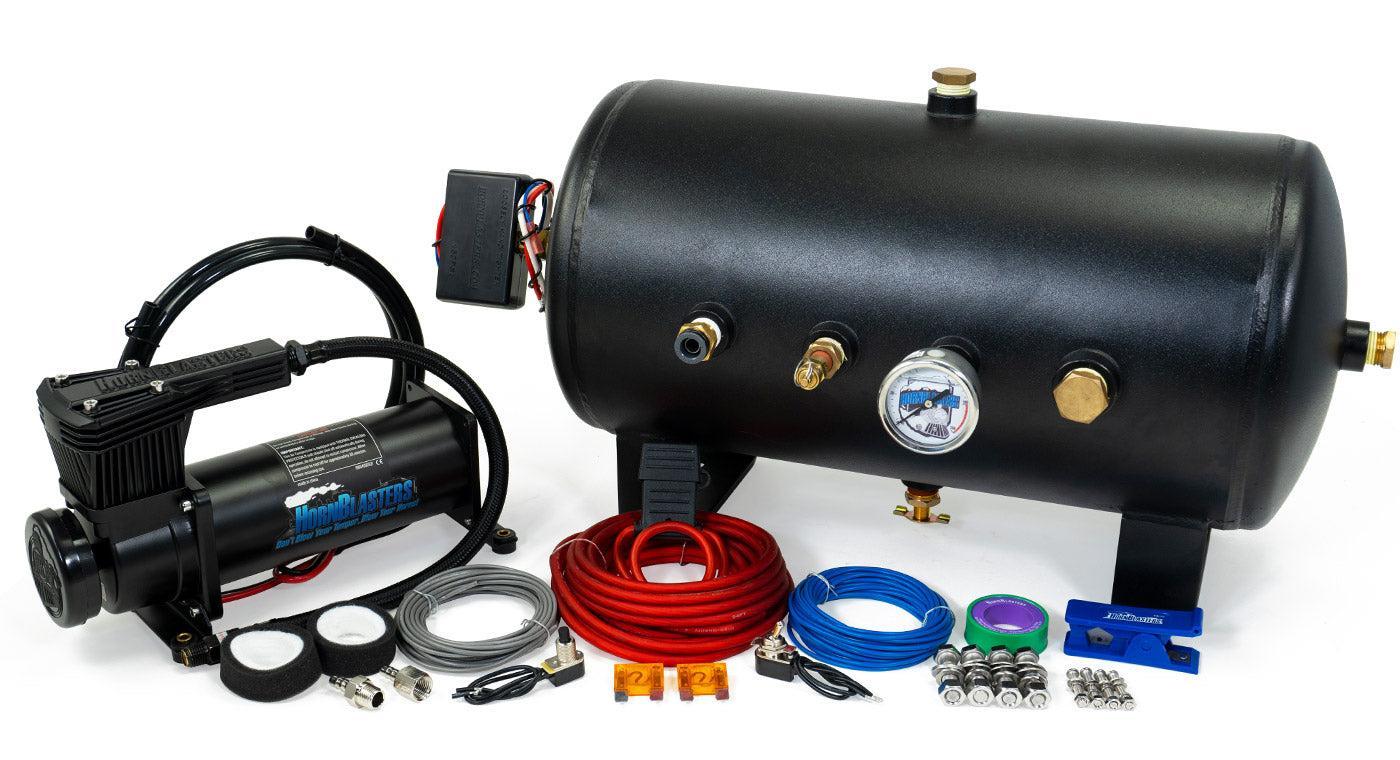

- Heavy-Duty Air System: The HornAir 544K air system features a 5-gallon tank and our heavy-duty HB-1NM compressor. Solid fill rates, reliable pressure, and enough volume for multiple uses.
- Up to 5–6 Seconds of Honk Time: With a properly pressurized system, you’ll get up to 6 seconds of full-volume honk—plenty to make your point on the road.
- Versatile and Complete: This kit gives you more than just a horn. Use the onboard air for tire inflation, small air tools, or other pneumatic needs.
The King 5 544K Train Horn Kit gives you the unmistakable tone of a real locomotive, backed by a complete air system built for everyday use. It’s loud, it’s strong, and it’s one of the best ways to get that full-size train horn experience without breaking the bank.
- King 5 train horn
- 5-gallon black 8 port air tank
-

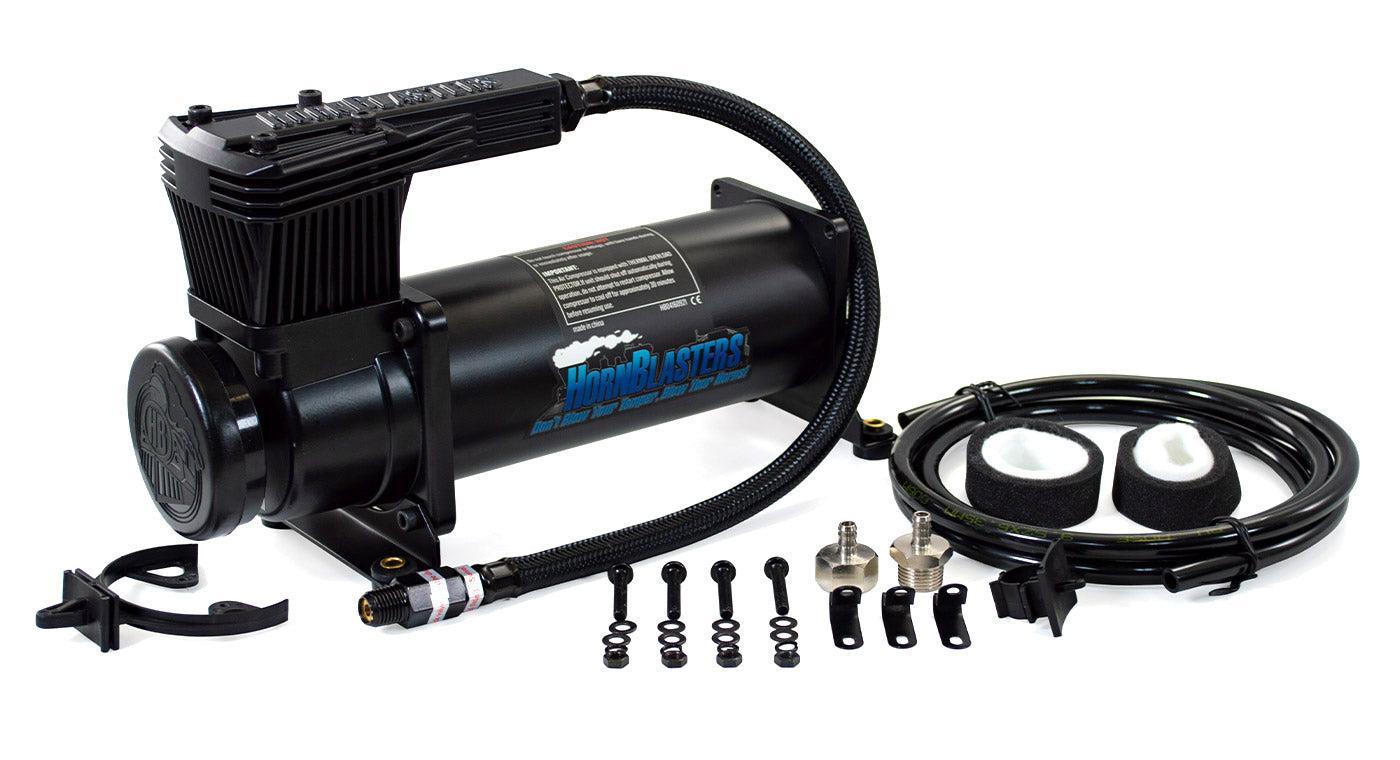

HORNBLASTERS 1NM STEALTH BLACK AIR COMPRESSOR
-
110/150 PSI pressure switch w/ 40 amp relay

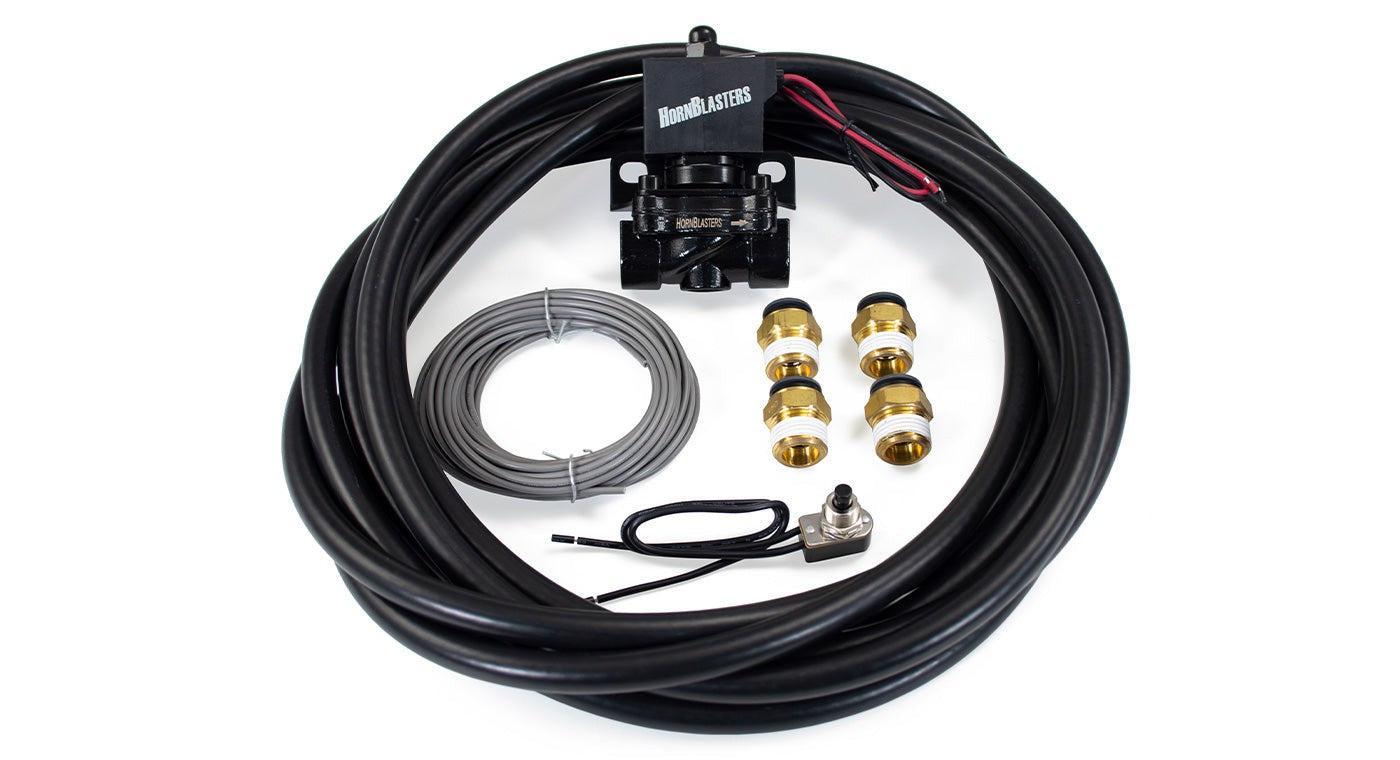

- Black Widow 1/2" NPT stainless steel electric air valve
- 17ft of 1/2" air line
- Spare air filter elements
- Brass NPT fitting kit including a safety blow-off & drain cock
- HornBlasters 200 PSI stainless steel liquid-filled air gauge
- 22ft of 8-gauge red wire
- 22ft of 18-gauge blue wire
- 22ft of 18-gauge grey wire

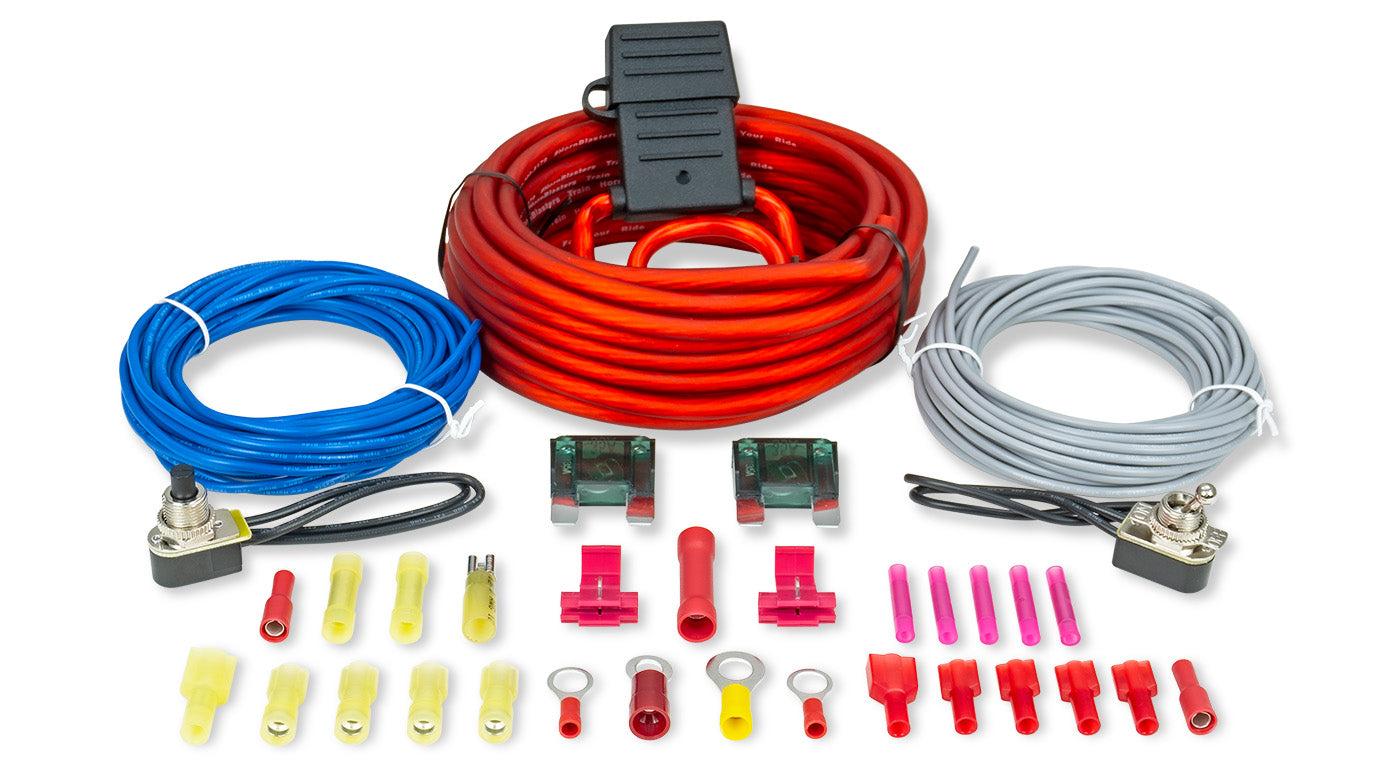

- Complete wiring kit with fuse holder & fuses
- Mounting hardware
- Installation instructions
| Part Number | HK-H5-544K |
| Operating Pressure | 150 PSI |
| Restart Pressure | 110 PSI |
| Voltage | 12-Volt DC |
| Horn | King 5 train horn |
| Horn Length | 19″ (482.6 mm) |
| Horn Width | 29.75″ (755.65 mm) |
| Horn Height | 9.25″ (234.95 mm) |
| Horn Weight | 35 lb (15.8757 Kg) |
| Horn Air Inlet | 1/2" NPT |
| Tank | HornAir 5-gallon 8 port air tank |
| Tank Length | 20.5" (520.7 mm) |
| Tank Diameter | 9.5" (241.3 mm) |
| Tank Height (With Legs) | 11.5" (292.1 mm) |
| Tank Weight | 20 lb (9.07 Kg) |
| Max amperage | 25 Amps |
| Maximum duty cycle | 100% @ 100 PSI |
| Flow Rate @ 0 PSI | 1.75 CFM |
| Compressor length | 10.75″ (273.05 mm) |
| Compressor width | 4″ (101.6 mm) |
| Compressor height | 6.75″ (171.45 mm) |
| 5.0 GALLON TANK | FILL RATE |
|---|---|
| 0 to 150 PSI | 6 min. 45 sec. (± 10 sec.) |
| 110 to 150 PSI | 2 min. (± 05 sec.) |
5-Gallon Air Tank Dimensional Drawing
-
