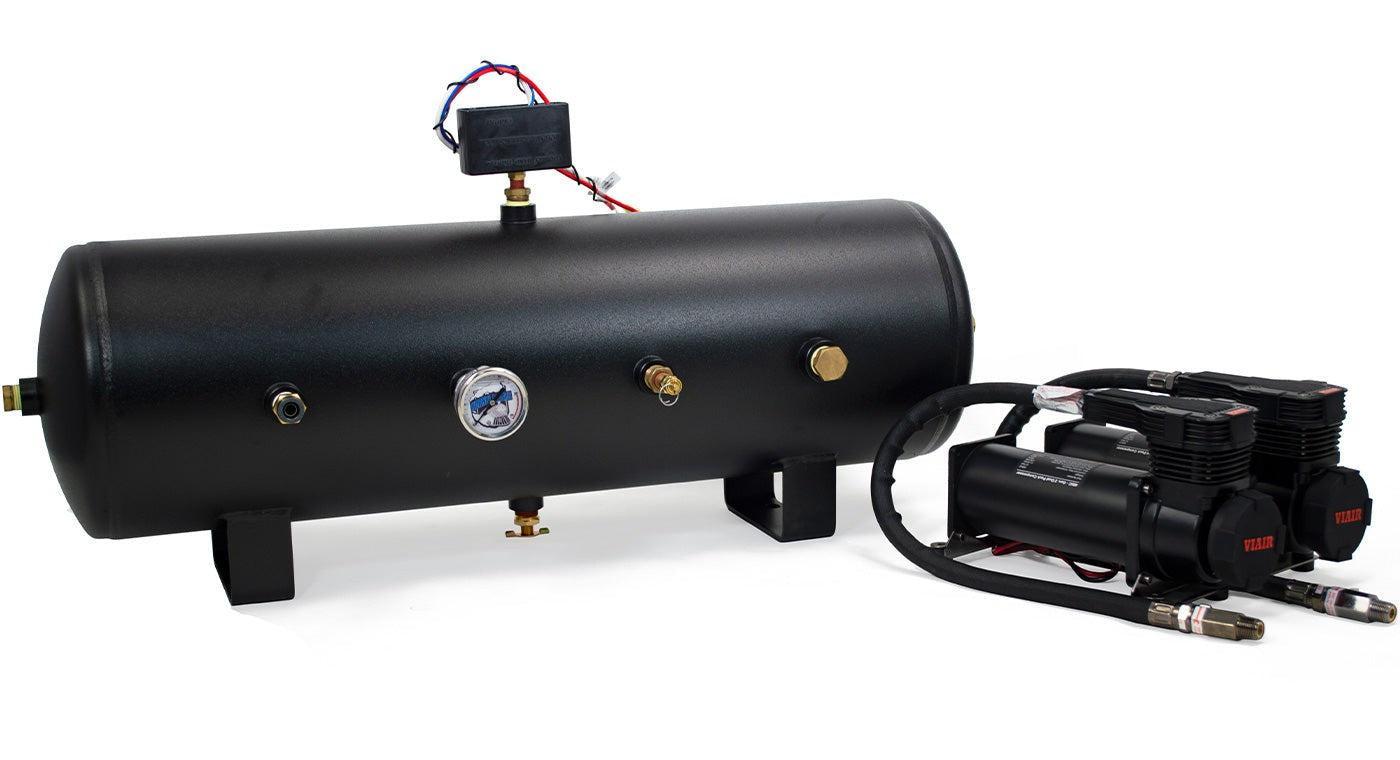

HornAir 8485 Nightmare Edition Onboard Air System
HornAir 8485 Nightmare Edition Onboard Air System is backordered and will ship as soon as it is back in stock.
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
HornAir 8485 Nightmare Edition Onboard Air System
HornAir 8485 Nightmare Edition Onboard Air System is backordered and will ship as soon as it is back in stock.
Highlight title
Text to highlight a key feature of your product
Description
Description
This model has been discontinued. You can find similar models here!
This kit is not to be underestimated. With it being a massive 8-gallon (30.28 liters) reservoir, and including dual Viair 485 heavy-duty air compressors. This air system is more than enough to run air tools or do any heavy-duty pneumatic use as well as using Horns.
This package is perfect for load-leveling air springs or air suspension. Also perfect for airing up tires or any other pneumatic use. Please note that if you use horns, you will still need an air valve kit to connect the system properly.
Unlike some other air systems, HornAir Onboard Air Systems come with 10 and 18 gauge wire, and a complete wiring kit including a fuse holder. This takes out the guesswork on your end and helps ensure your system is installed correctly. Another great feature of HornAir systems is that they come with a standard 1/2in OD push-to-pull fitting. This means the horns you hook up with get all the air they need.
An increasing number of people are using this for more than just blasting horns! With a system like the 8485K, you can also use the air supply to:
- Adjust Tire Pressure
- Remove/Rotate Tires
- Heavy Duty Pneumatic Use
- Inflate Water Toys and Safety Gear
- Supply Air to Load Leveling Bags
- Supply Air to Air Suspension
- Supply Air for Differential Lockers
- Blow up Kids Toys
- And lots more!
RECOMMENDED FOR USE WITH THE FOLLOWING:
| PSI | CFM | A | BAR | LPM | A |
|---|---|---|---|---|---|
| 0 | 3.82 | 23 | 0 | 110.0 | 23 |
| 10 | 3.51 | 26 | 1.0 | 93.0 | 27 |
| 20 | 3.27 | 30 | 2.0 | 84.0 | 31 |
| 30 | 3.05 | 32 | 3.0 | 75.0 | 35 |
| 40 | 2.90 | 35 | 4.0 | 71.0 | 37 |
| 50 | 2.73 | 37 | 5.0 | 65.0 | 39 |
| 60 | 2.61 | 38 | 6.0 | 61.0 | 41 |
| 70 | 2.45 | 40 | 7.0 | 55.0 | 41 |
| 80 | 2.34 | 41 | 8.0 | 50.0 | 42 |
| 90 | 2.24 | 41 | 9.0 | 45.0 | 42 |
| 100 | 2.09 | 41 | 10.0 | 41.0 | 42 |
| 110 | 1.94 | 42 | 11.0 | 39.0 | 41 |
| 120 | 1.87 | 42 | 12.0 | 34.0 | 40 |
| 130 | 1.72 | 42 | 13.0 | 32.0 | 40 |
| 140 | 1.64 | 42 | 14.0 | 29.0 | 39 |
| 150 | 1.55 | 42 | |||
| 160 | 1.48 | 41 | |||
| 170 | 1.37 | 41 | |||
| 180 | 1.29 | 41 | |||
| 190 | 1.22 | 40 | |||
| 200 | 1.13 | 39 |
* Supply Voltage: 13.8 Volts
| 8.0 GALLON TANK | FILL RATE |
|---|---|
| 0 to 150 PSI | 7 min. 15 sec. (± 15 sec.) |
| 110 to 150 PSI | 1 min. 45 sec. (± 05 sec.) |
* Supply Voltage: 13.8 Volts

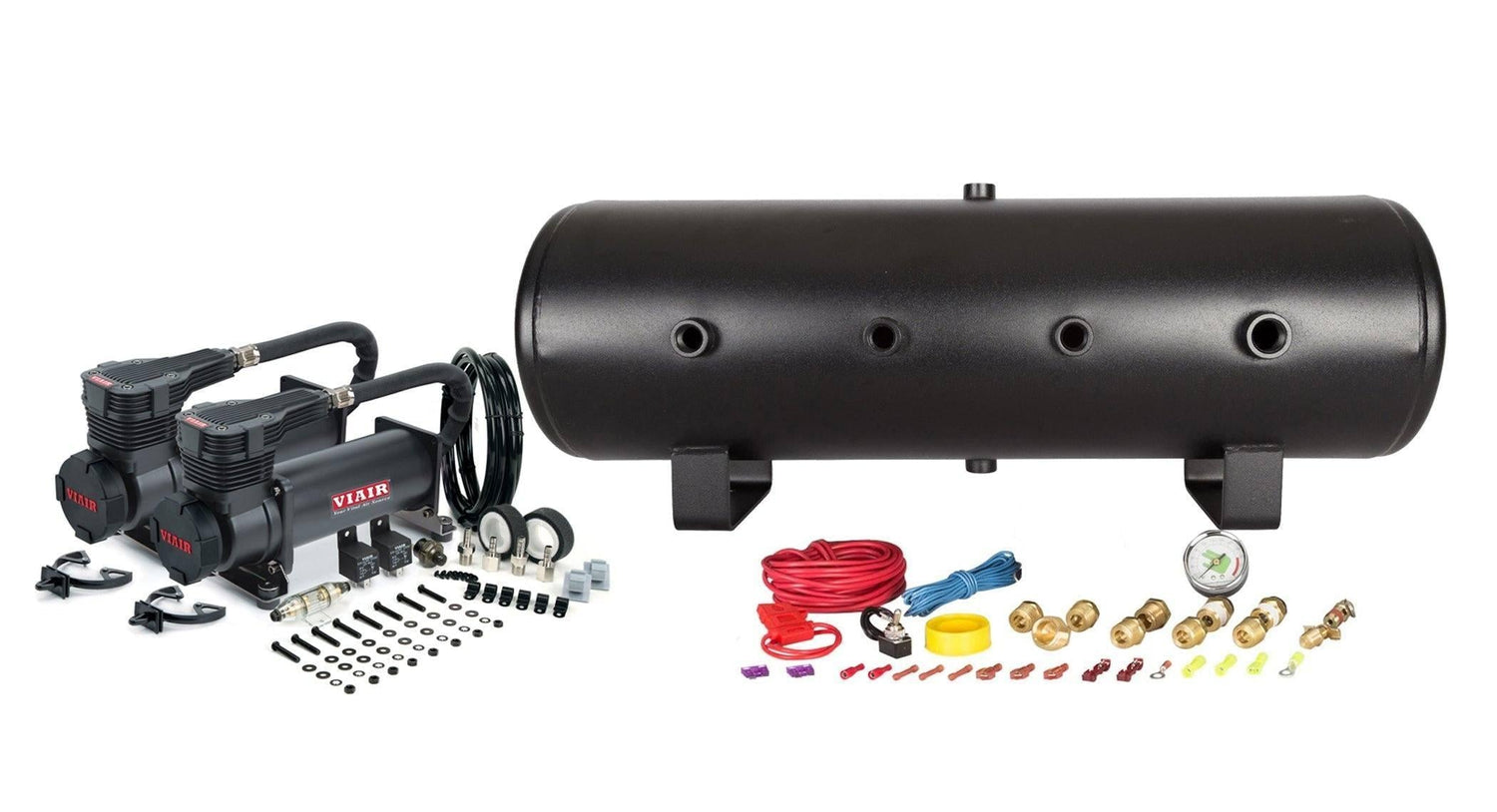

- Designed For Extreme Train Horns
- All-inclusive Train Horn Air Solution!
- Top-End 200 PSI Compressor Perfect For Train Horns
- Comes With a Standard 1/2" Push-to-Pull Fitting
- Complete Fitting Kit With Safety Valve & Drain Cock
- All Standard Mounting Hardware
- Horn Air 8 Gallon Air Tank
- Viair Dual 485C Stealth Black Air Compressors
- HornBlasters 110/150 PSI Pressure Switch
- Dual Viair 40 Amp Relays
- Remote Mountable Intake Filter Assembly
- Spare Air Filter Elements
- 6ft 3/8" Air Line (For Air Compressors Air Intake)
- 22ft of 10-Gauge Red Wire
- 22ft of 18-Gauge Blue Wire
- 22ft of 18-Gauge Grey Wire
- HornBlasters 200 PSI Stainless Steel Liquid-Filled Air Gauge
- Brass NPT Fittings Kit Including Safety Valve and Blowoff
- Complete Wiring Kit
- Mounting Hardware
- Air Line Cutter
- Detailed Instructions
- Earplugs
- Tank: HornAir 8 Gallon Tank
- Tank Length: 32.5″ (825.5 mm)
- Tank Diameter: 10.5″ (241.3 mm)
- Tank Height: 12.5″ (317.5 mm) (With Legs)
- Tank Weight: 20 lb (9.07 Kg)
- Operating Pressure: 150 PSI
- Restart Pressure: 110 PSI
- Air Compressor: Viair Dual 485c Stealth Black Air Compressors
- Average Fill Time: 1 Min 30 Sec
- Voltage: 12 volts DC
- Air Flow: 2.24 CFM at Free Flow
-
Max Amperage: 23 amps
- Maximum Duty Cycle: 100% @ 200 PSI
- Compressor Length: 10.63″ (270 mm)
- Compressor Width: 4.1″ (104.14 mm)
- Compressor Height: 6.44″ (163.57 mm)
8-Gallon Air Tank Dimensional Drawing
-
