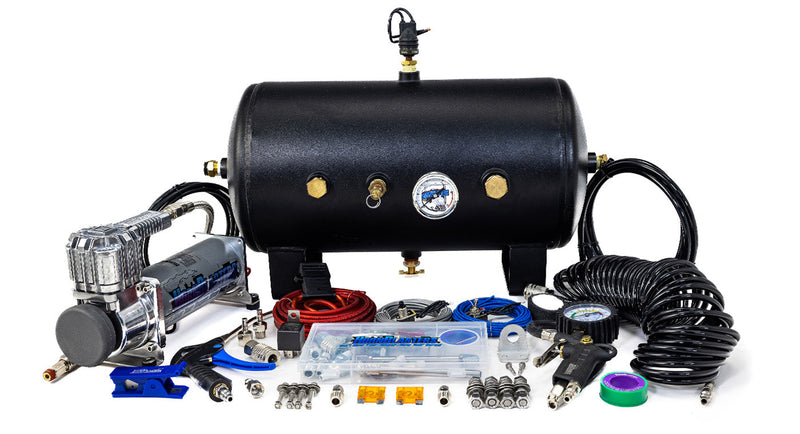

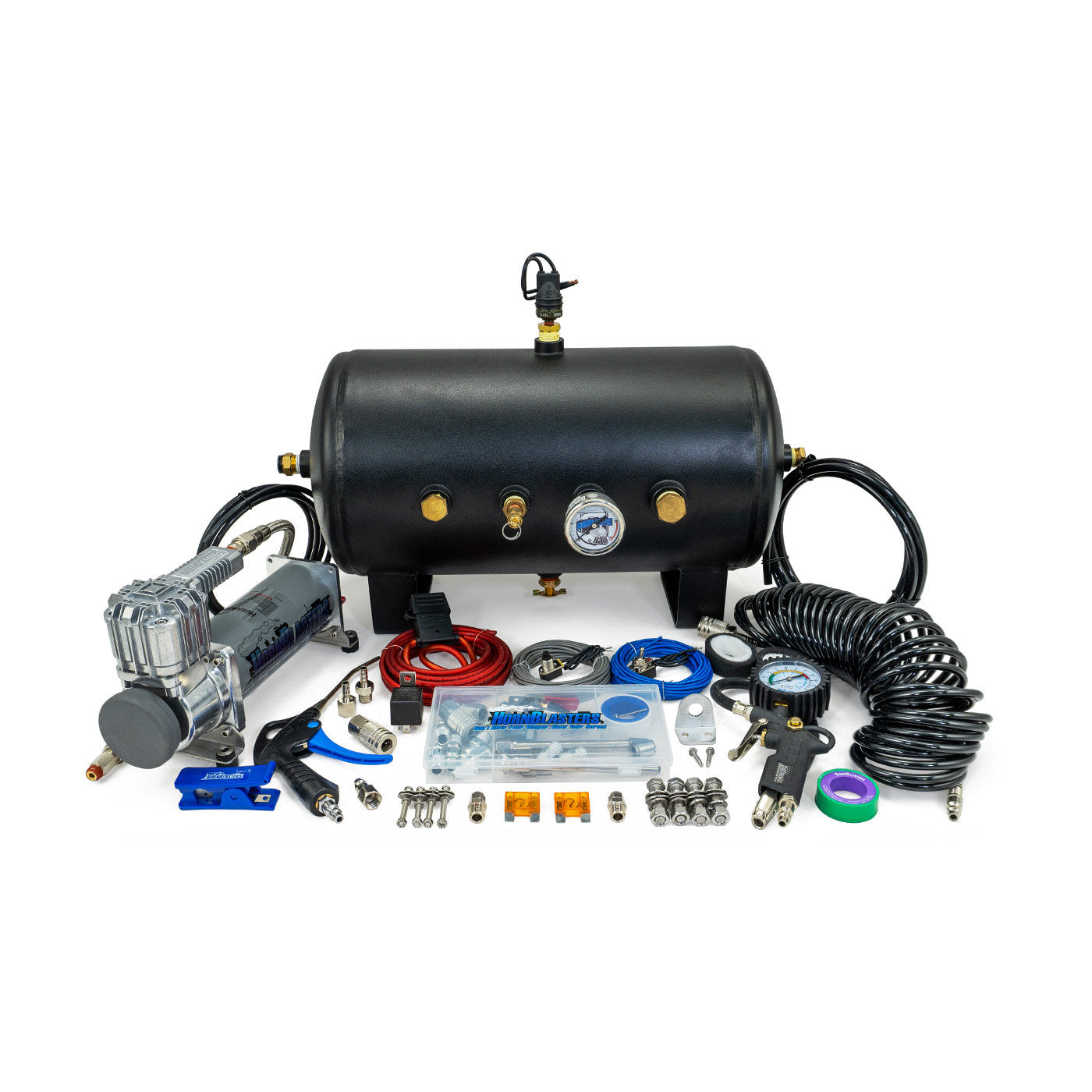

HornAir 545 24-Volt Onboard Air System
HornAir 545 24-Volt Onboard Air System - With Tire Inflation Kit is backordered and will ship as soon as it is back in stock.
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
HornAir 545 24-Volt Onboard Air System
HornAir 545 24-Volt Onboard Air System - With Tire Inflation Kit is backordered and will ship as soon as it is back in stock.
Highlight title
Text to highlight a key feature of your product
Description
Description
ARE YOU FEELING HORNAIR?
This HornAir 545 24V Onboard Air System is just what you need for topping off load leveling air springs. If your truck has air springs but lacks a compressor setup, this is the perfect match. It's also great for air tools and other pneumatic uses. Just remember, if you use horns, you'll still need an air valve kit to hook up the system correctly.
Our HornAir Onboard Air Systems come with everything you need, including 10 and 18 gauge wire, plus a full wiring kit with a fuse holder. That means no more guessing on your part and a properly installed system. Another cool thing about our HornAir systems is they have a standard 1/2in OD push-to-pull fitting, so your horns get all the air they need and then some.
- Designed For Extreme Train Horns
- 24 Volt System
- All-inclusive Train Horn Air Solution!
- Top-End 150 PSI Compressor Perfect For Train Horns
- Comes With Standard 1/2" Push-to-Pull Fitting
- Complete Fitting Kit With Safety Valve & Drain Cock
- All Standard Mounting Hardware
**This unit requires a 24 Volt Electrical System!!**

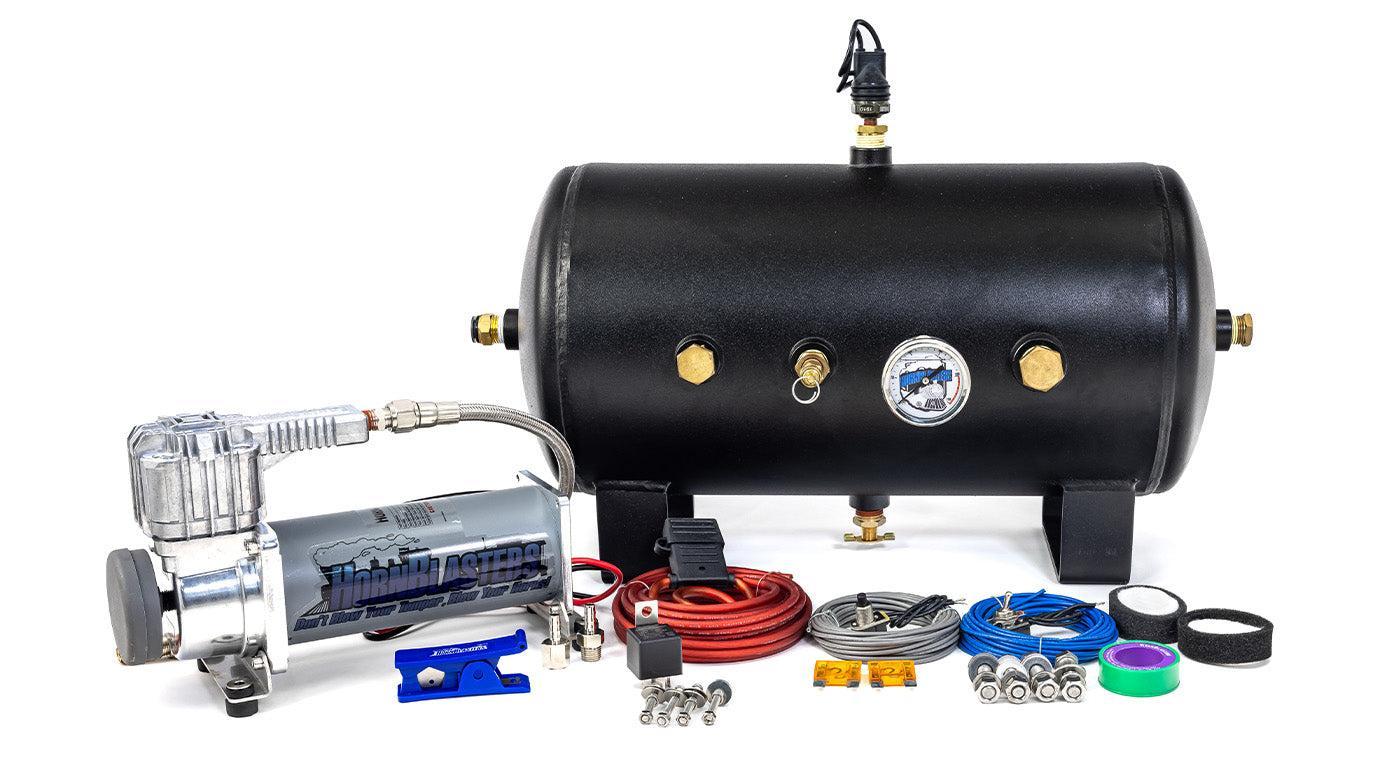

- Horn Air 5 Gallon Air Tank

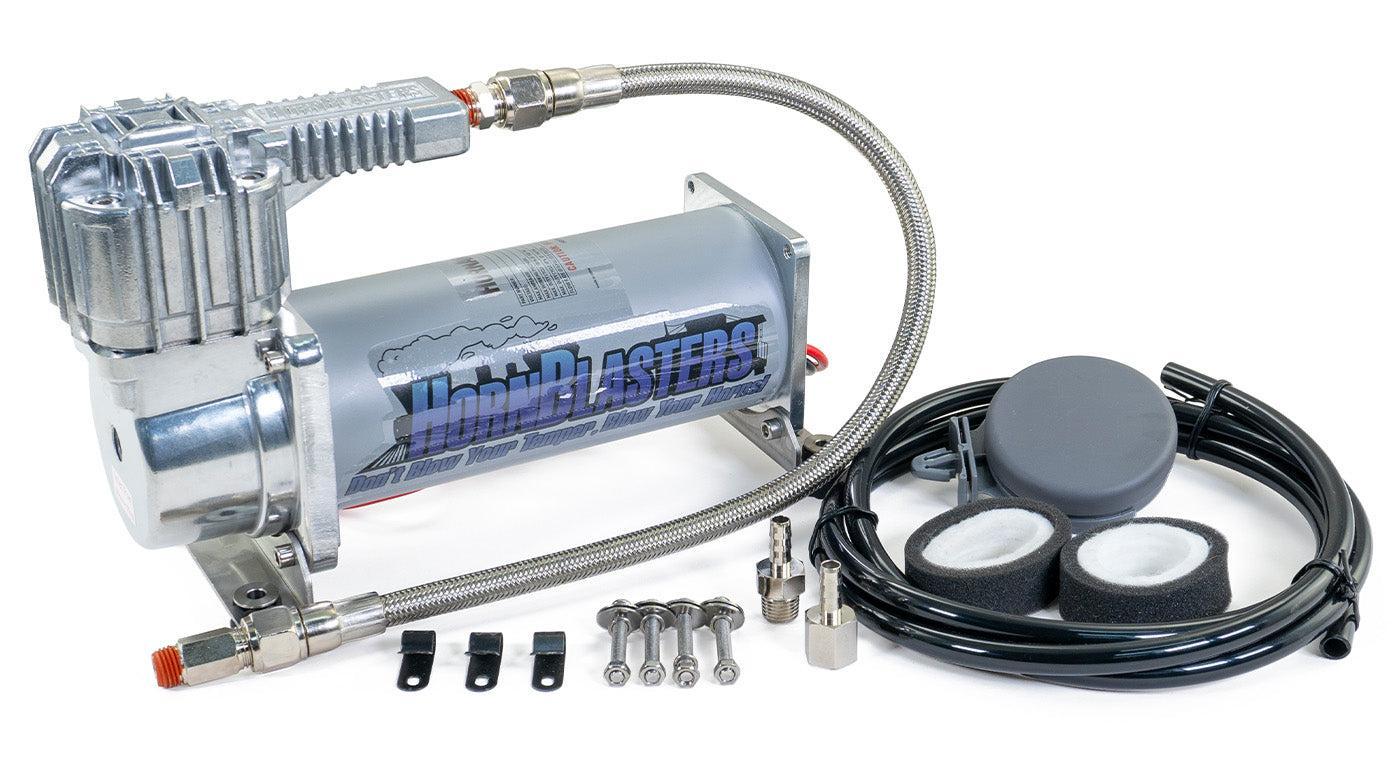

- hornblasters 1hd 24 Volt Air Compressor

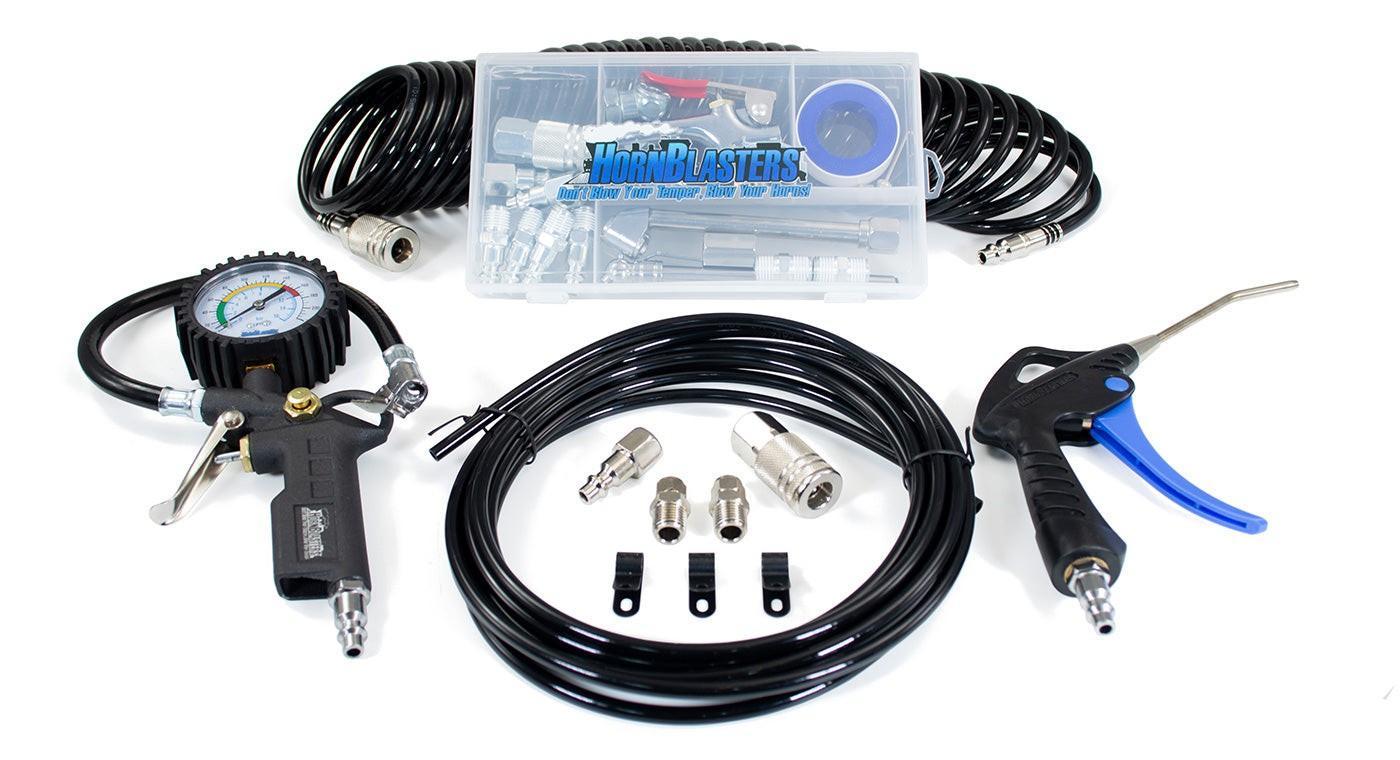

- HornBlasters tire inflation kit
- HornBlasters 110/150 PSI 24 Volt Pressure Switch
- 24 Volt 40 Amp Relay
- Remote Mountable Intake Filter Assembly
- Air Filter Cartridges
- 6ft ⅜in Air Line (For Intake)
- 17 ft of 10ga & 18ga Gauge Power Wire
-
HornBlasters 200 PSI Air Gauge
- Brass NPT Fittings Kit Including Safety Valve and Blowoff

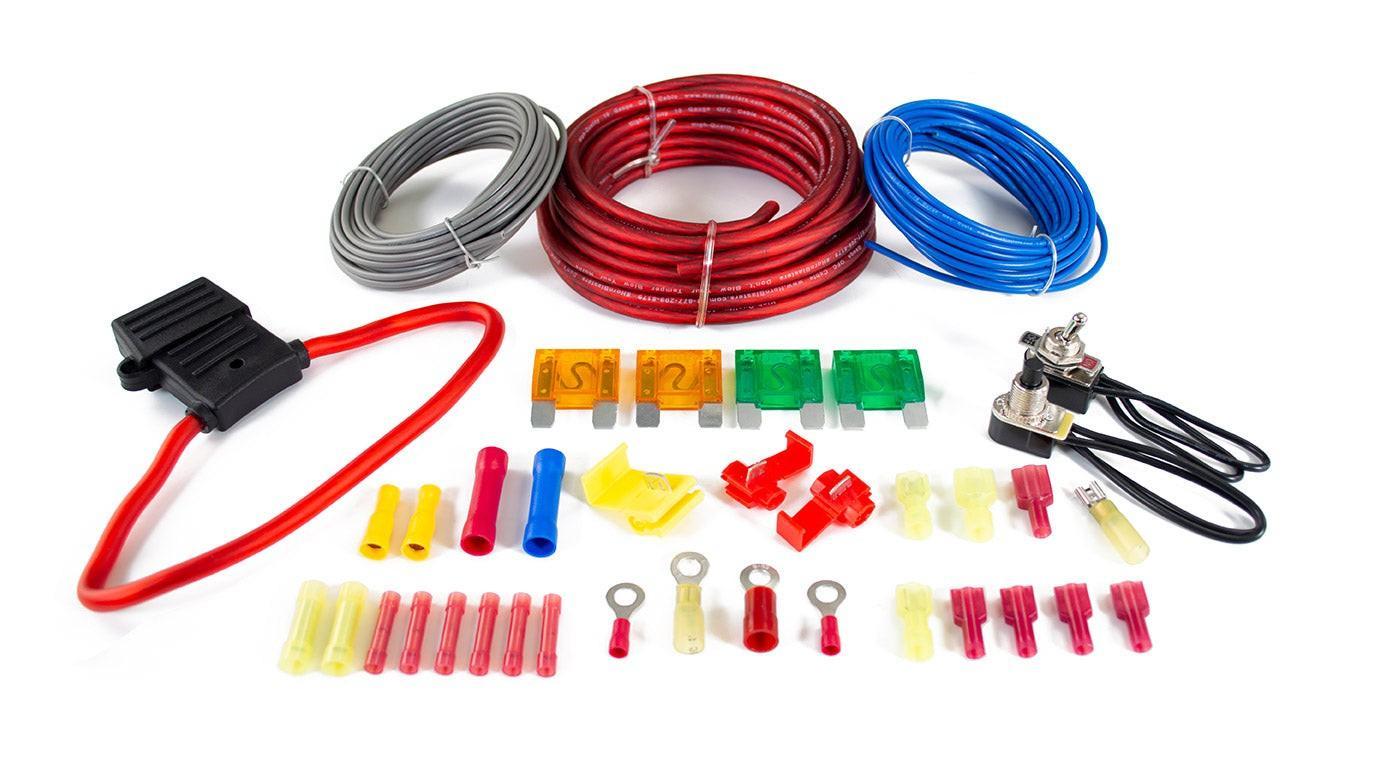

- Wiring & Plumbing Kit
- Mounting Hardware
- Detailed Instructions
- Earplugs
| Tank | HornAir 5 Gallon Tank |
| Tank Length | 20.5″ (520.7 mm) |
| Tank Diameter | 9.5″ (241.3 mm) |
| Tank Height | 11.5″ (292.1 mm) (With Legs) |
| Tank Weight | 20 lb (9.07 Kg) |

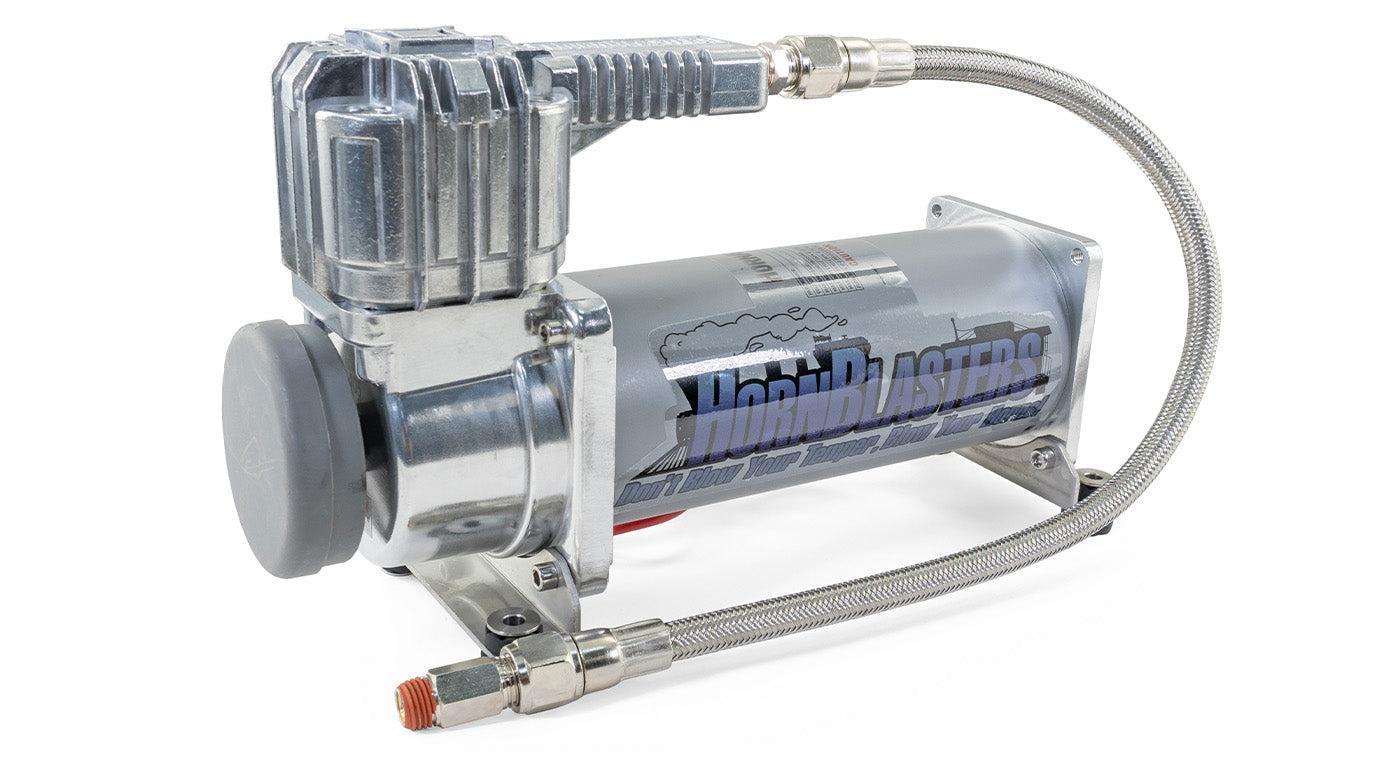

| Compressor | HornBlasters 1HD 24 Volt Air Compressor |
| Average Fill Time | 1 Min 45 Sec |
| Voltage | 24 volts DC |
| Air Flow | 2.20 CFM at Free Flow |
| Max Amperage | 13 amps |
| Maximum Duty Cycle | 100% @ 100 PSI |
| Maximum Working Pressure | 150 PSI |
| Compressor Length | 11.25″ (285.75 mm) |
| Compressor Width | 4″ (101.6 mm) |
| Compressor Height | 6.75″ (171.45 mm) |
5-Gallon Air Tank Dimensional Drawing
-
