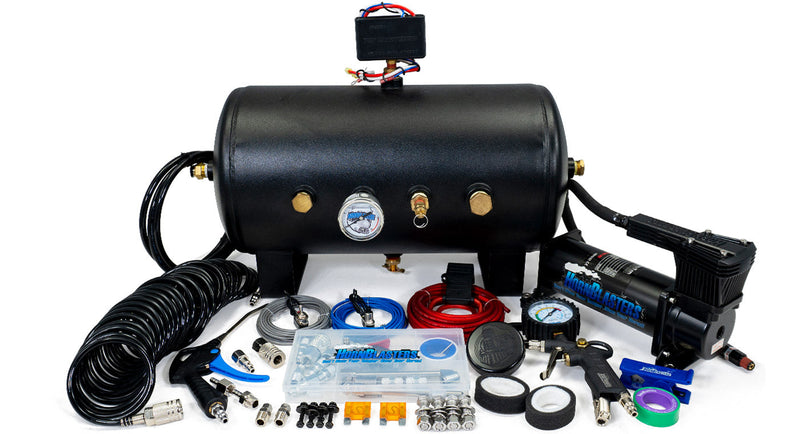

HornAir 544K Onboard Air System
HornAir 544K Onboard Air System - With Tire Inflation Kit is backordered and will ship as soon as it is back in stock.
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
HornAir 544K Onboard Air System
HornAir 544K Onboard Air System - With Tire Inflation Kit is backordered and will ship as soon as it is back in stock.
Highlight title
Text to highlight a key feature of your product
Description
Description
5 GALLONS OF AIR POWER.
Discover the HornAir 544K, the ideal onboard air system tailored for those who demand reliability without breaking the bank. From train horn enthusiasts to those needing a quick tire top-off, this system promises uncompromised performance.
-
Air Supply Excellence: A 5-gallon tank boasts seven ½-inch ports and an additional ¾ port, crafted for optimal airflow and fuss-free draining.
- Unyielding Work Ethic: The stealthy black 1NM compressor doesn't just look good—it's built for the long haul. Expect unparalleled durability, a 100% duty cycle, and ultra-fast recharge times.
- Versatility at Its Peak: Whether you're making a statement with train horns or simply inflating tires, the HornAir 544K won't let you down.
- Complete Air Mastery: Dive into the world of onboard air effortlessly. Our package ensures you have everything at your fingertips, creating a seamless air experience.
Choose the HornAir 544K for a potent mix of power, versatility, and trustworthy performance. It's not just an air system—it's a commitment to excellence!
RECOMMENDED FOR USE WITH THE FOLLOWING:

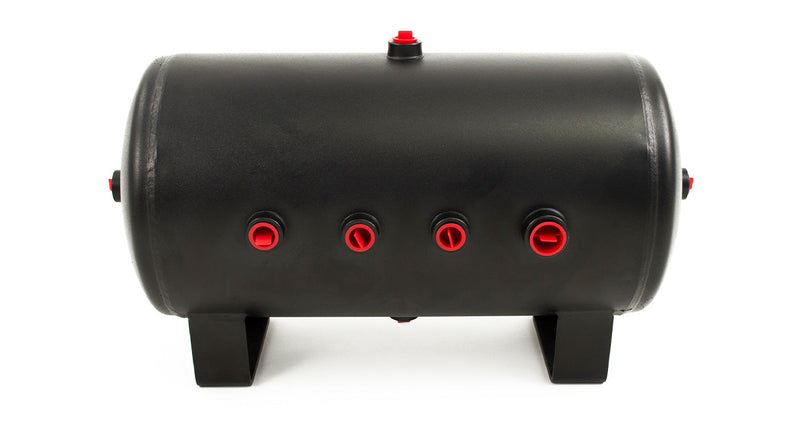

- HORNBLASTERS 5-gallon 8 port air tank

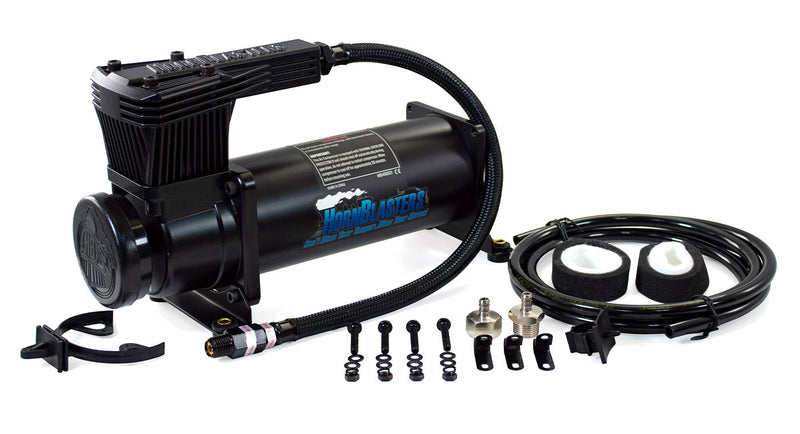

- HORNBLASTERS 1NM STEALTH BLACK AIR COMPRESSOR
- 110/150 PSI pressure switch WITH 40 AMP RELAY

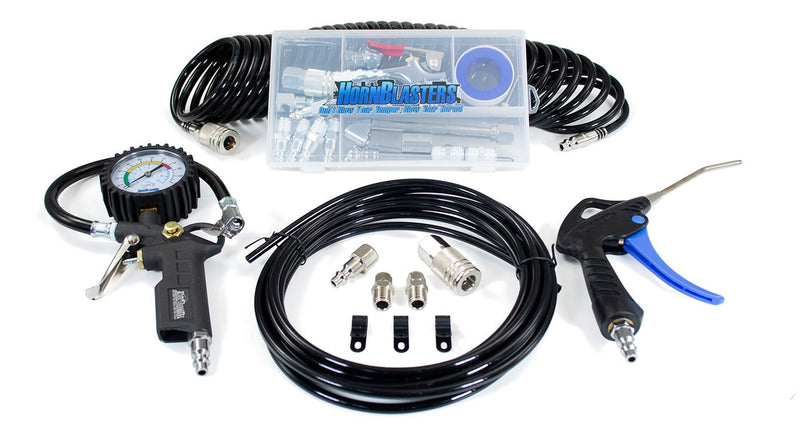

- HORNBLASTERS TIRE INFLATION KIT
- Remote mountable intake filter assembly
- Spare air filter elements
- 6ft of 3/8" air line (for air compressors air intake)
- 22ft of red 8-gauge wire
- 22ft of blue 18-gauge wire
- 22ft of grey 18-gauge wire
- HornBlasters 200 PSI stainless steel liquid-filled air gauge
- Brass NPT fitting kit with safety blow-off & drain cock

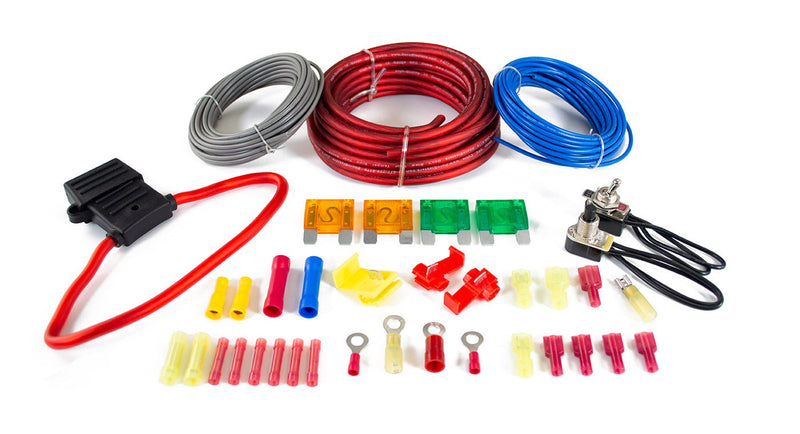

- Complete wiring kit with fuse holder & fuses
- Mounting hardware
- Air line cutters
- Detailed instructions
- Earplugs
| Part Number | HA-544K |
| Operating Pressure | 150 PSI |
| Restart Pressure | 110 PSI |
| Voltage | 12-Volt DC |
| Air Tank | HornAir 5-gallon 8 port air tank |
| Tank Length | 20.5" (520.7 mm) |
| Tank Diameter | 9.5" (241.3 mm) |
| Tank Height (With Legs) | 11.5" (292.1 mm) |
| Tank Weight | 20 lb (9.07 Kg) |
| Leader Hose/Check Valve | 1/4" NPT |
| Max amperage | 25 Amps |
| Maximum duty cycle | 100% @ 100 PSI |
| Flow Rate @ 0 PSI | 1.75 CFM |
| Compressor length | 10.75″ (273.05 mm) |
| Compressor width | 4″ (101.6 mm) |
| Compressor height | 6.75″ (171.45 mm) |
| Weight | 10.1 lb (4.58 Kg) |
| 5.0 GALLON TANK | FILL RATE |
|---|---|
| 0 to 150 PSI | 6 min. 45 sec. (± 10 sec.) |
| 110 to 150 PSI | 2 min. (± 05 sec.) |
5-Gallon Air Tank Dimensional Drawing
-
