YOUR AIR POWERPLANT.

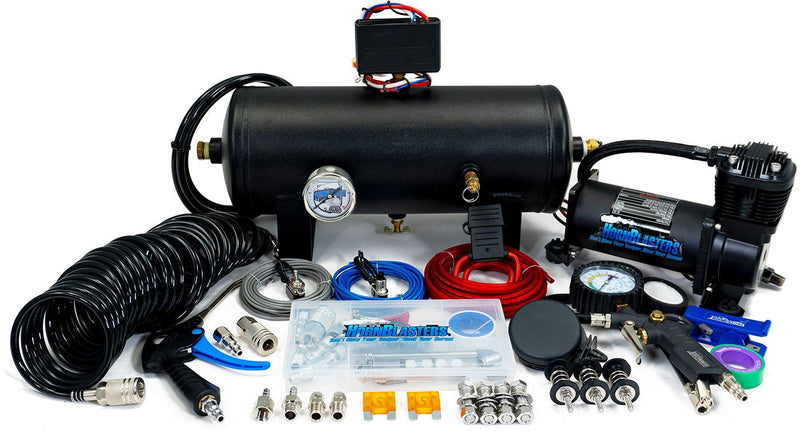

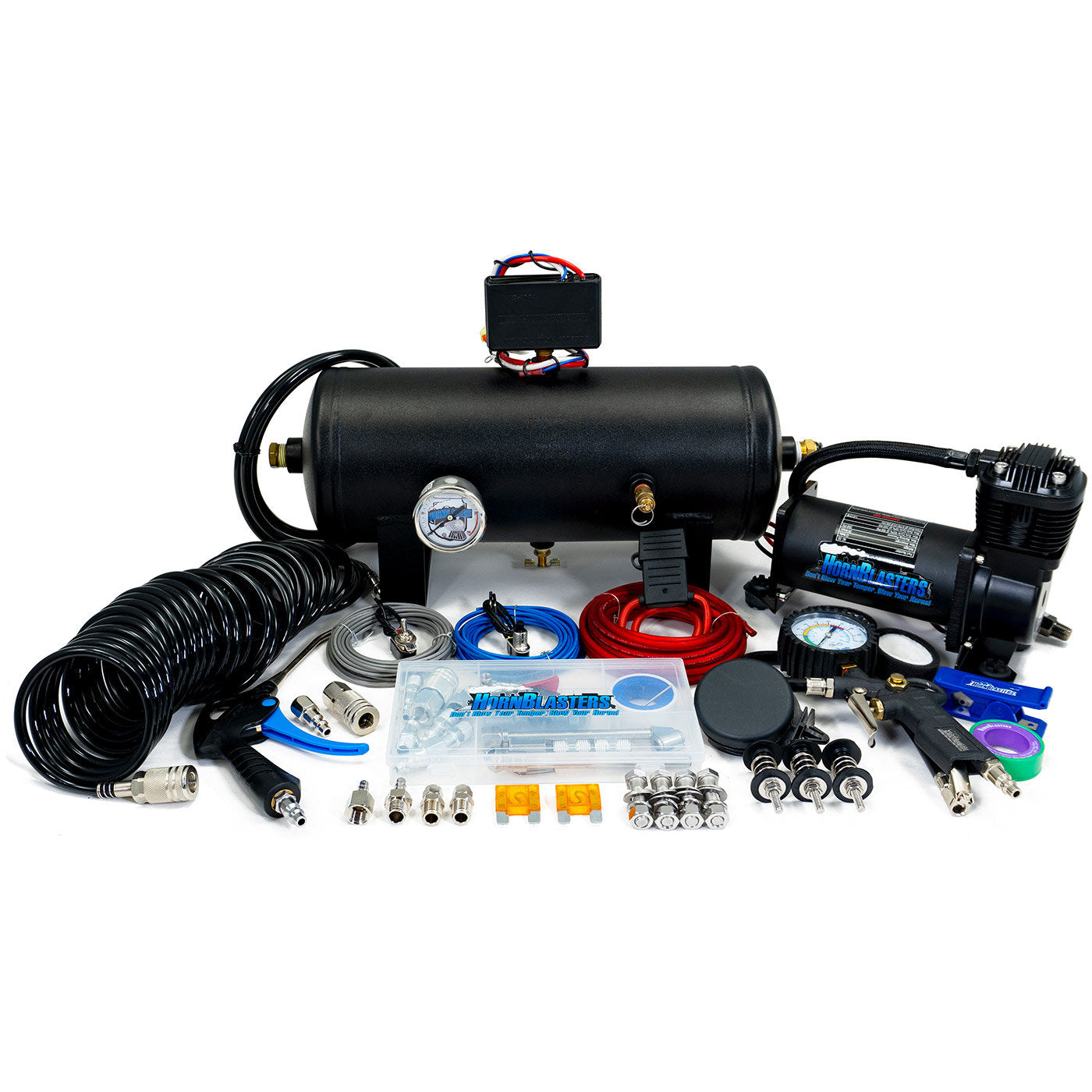

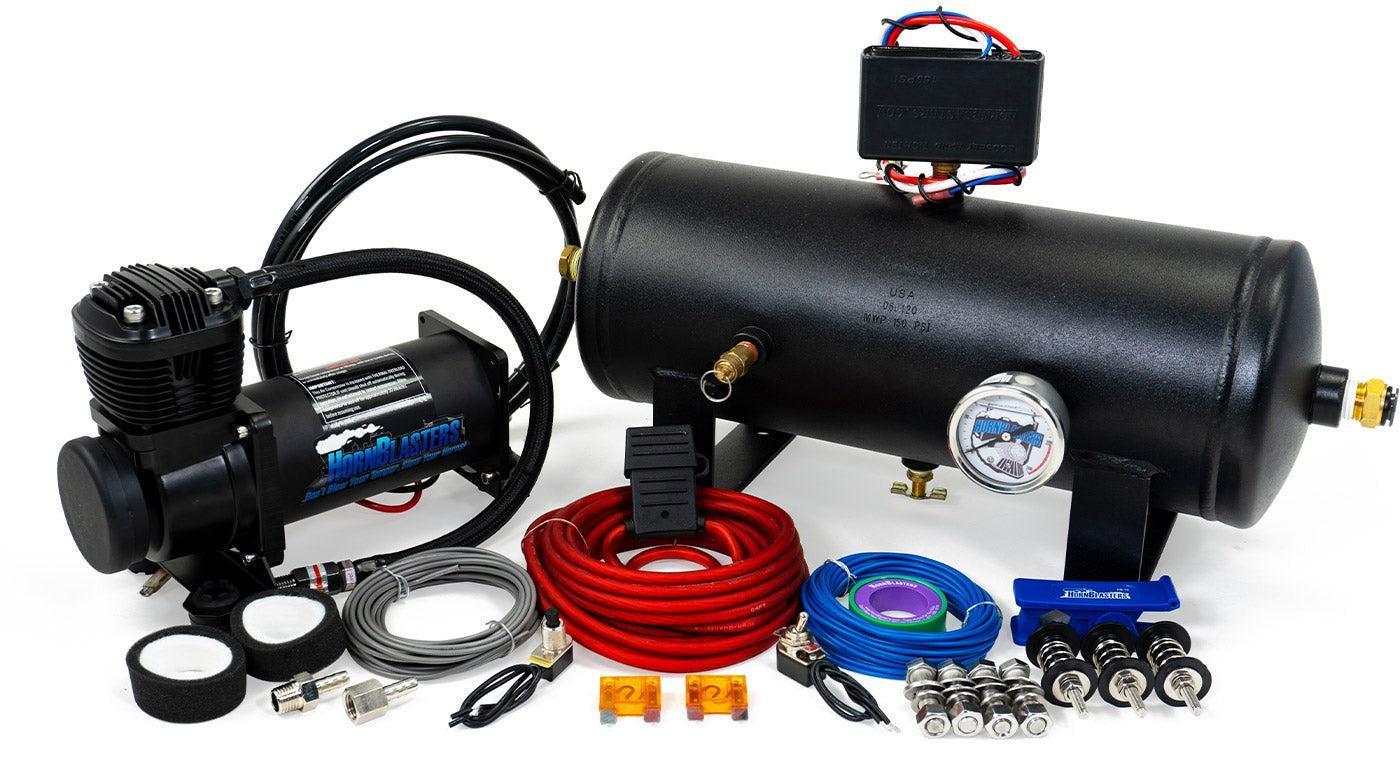

Enter a new dimension of pneumatic prowess with the HornAir 232 system. Expertly crafted to be a one-stop air solution, this 150 PSI powerhouse ensures your vehicle is always equipped with the blast and support it deserves.
- Precision-Engineered: Specifically designed for the iconic HornBlasters Shocker horns, experience sound like never before.
- All-In-One System: No more piecemeal solutions. With our onboard system, you receive a 2-gallon 6-port air tank, the formidable 3Q air compressor, and all essential fittings.
- Multipurpose Magic: Beyond just horns, it's apt for light pneumatic applications, tire inflations, small air tool operations, and supporting air suspensions.
- Quick & Effortless Installation: Everything you need is in the box. Benefit from a standard 1/2" push-to-pull fitting, a comprehensive brass NPT fitting kit, and all required mounting hardware.
- Unyielding Durability: Fully sealed and resistant to the elements, it's mountable indoors or out, assuring longevity and peak performance.
When performance, longevity, and efficiency matter, the HornAir 232 stands unparalleled. Let every journey resonate with unmatched power and precision!
RECOMMENDED FOR USE WITH THE FOLLOWING:
Please Note: This HornAir system is not recommended for AirChime horns. We recommend using at least a 4-gallon tank with larger-scale train horns like the P3, P5, K3, and K5; however, this kit is perfect for HornBlasters Shocker horns and Outlaw and Bandit series horns.

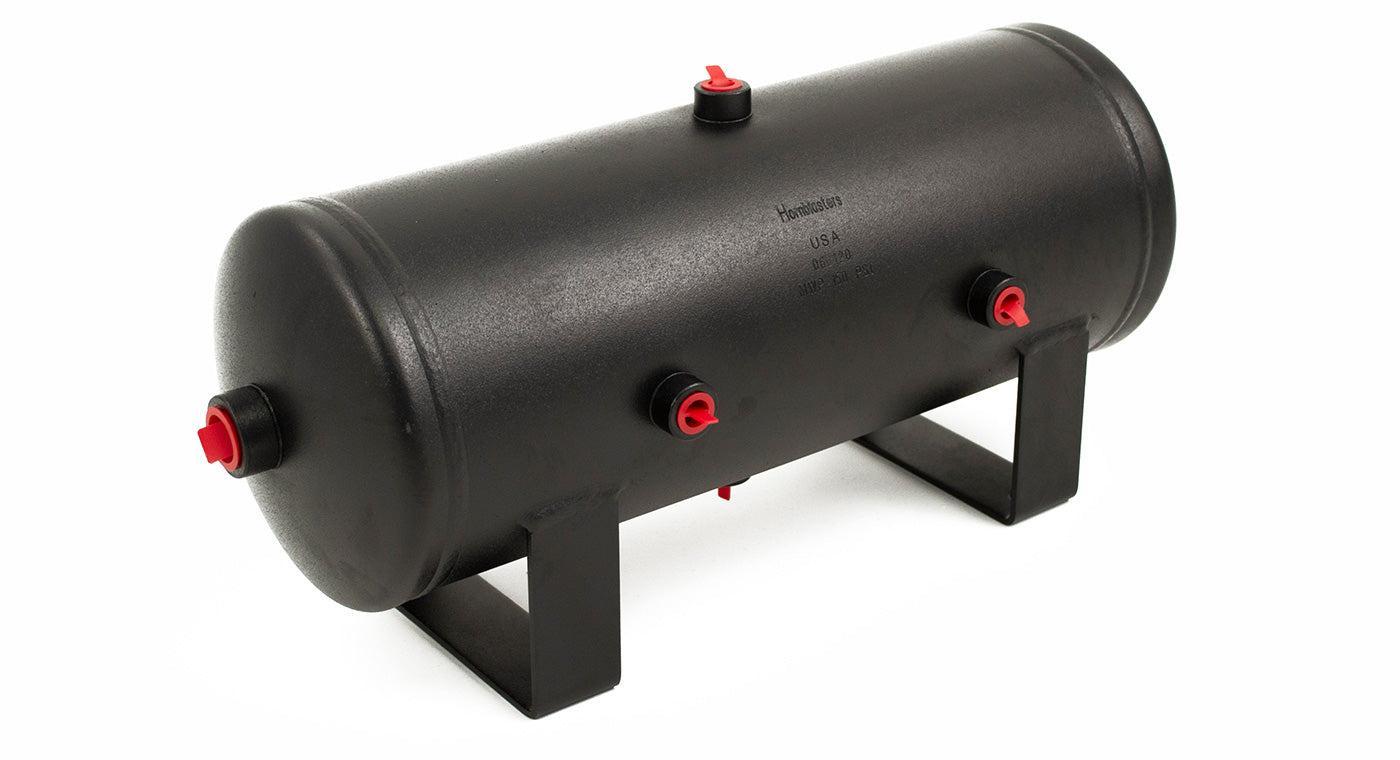

- HornAir 2-gallon 6 port air tank
-

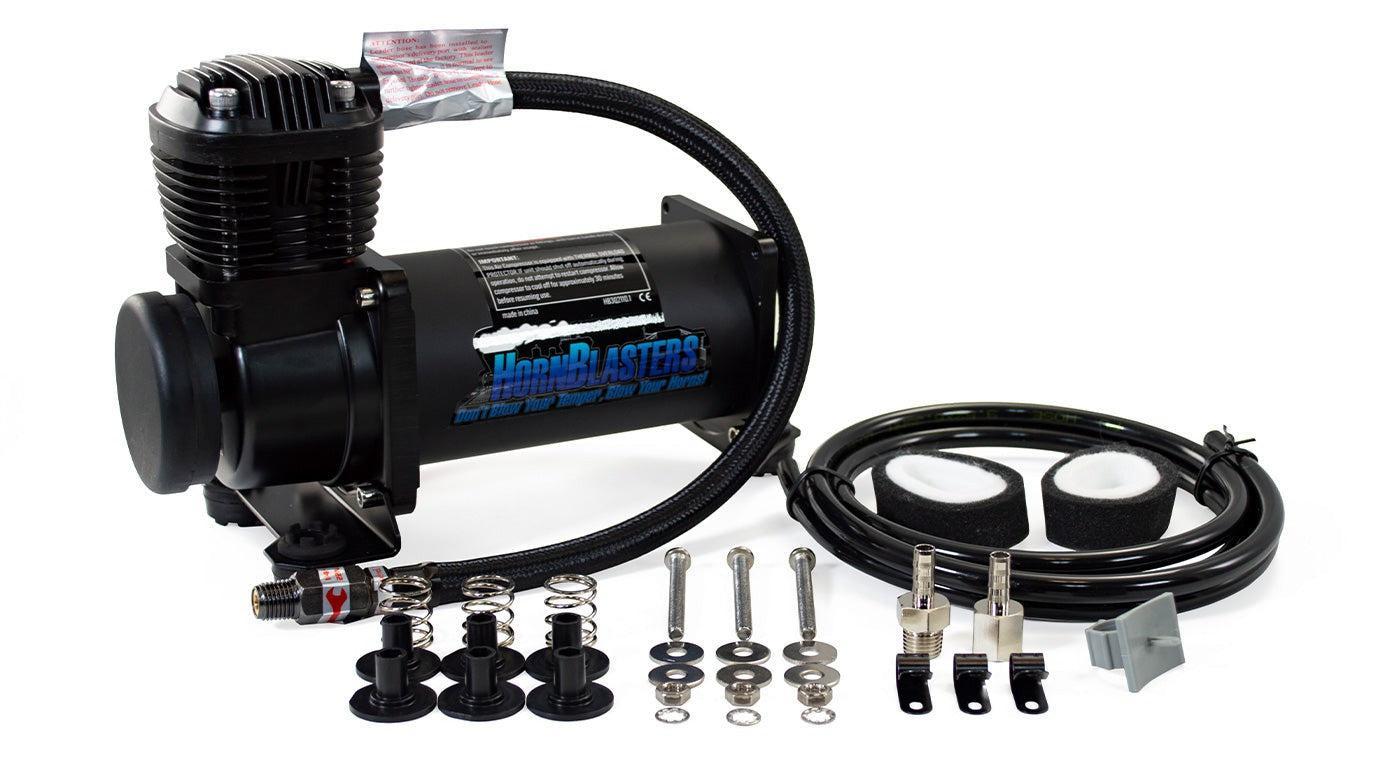

HORNBLASTERS 3Q AIR COMPRESSOR

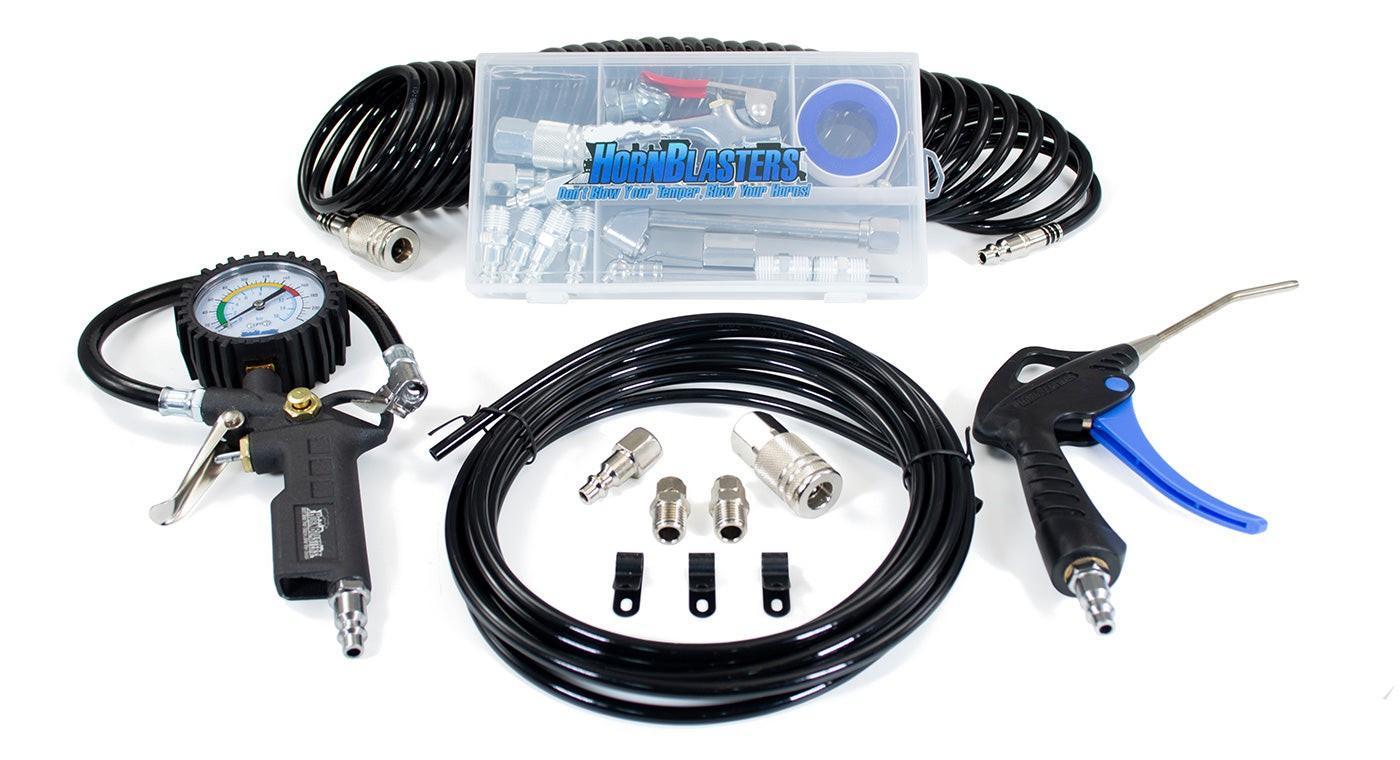

- HORNBLASTERS TIRE INFLATION KIT
- 110/150 PSI pressure switch w/ 40 amp relay
- Remote mountable intake filter assembly
- Spare air filter elements
- 6ft ⅜" air line (for air compressors air intake)
-
22ft of 10-gauge red wire
- 22ft of 18-gauge blue wire
- 22ft of 18-gauge grey wire
- HornBlasters 200 PSI stainless steel liquid-filled air gauge
- Brass NPT fittings kit including a safety blow-off & drain cock
-

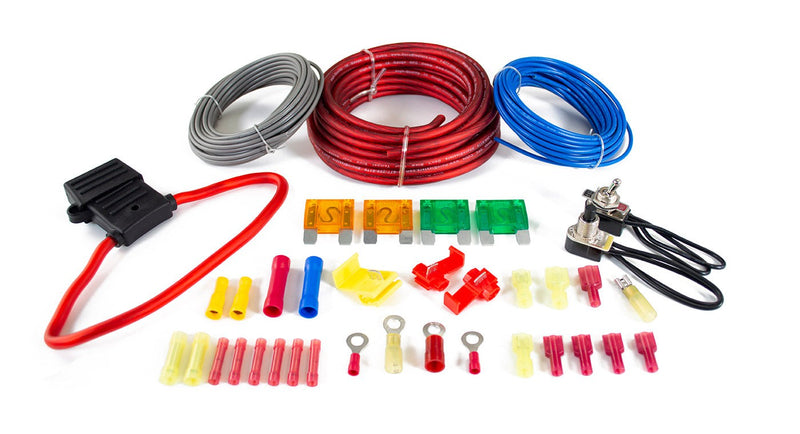

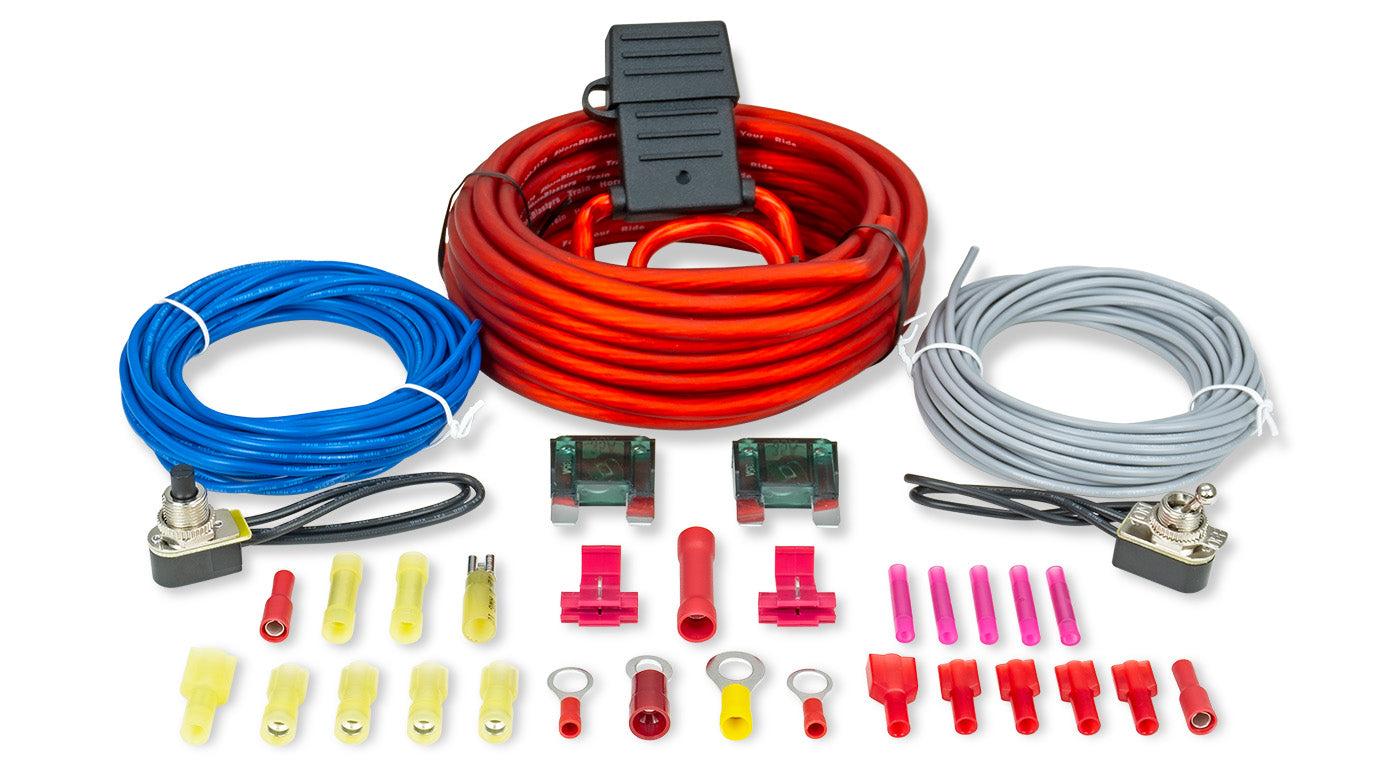

Complete wiring kit with fuse holder & fuses
- Mounting hardware
- Air line cutter
- Detailed instructions
- Earplugs
| Air Tank | 2-gallon 6 port air tank |
| Tank Length | 17" (431.8 mm) |
| Tank Diameter | 6" (152.4 mm) |
| Tank Height | 8" (203.2 mm) |
| Tank Weight | 10 lb (4.54 Kg) |
| Operating Pressure | 150 PSI |
| Restart Pressure | 110 PSI |
| Tank Ports | x2 1/2" NPT, x4 1/4" NPT |
| Air Compressor | HornBlasters 3Q Air Compressor |
| Voltage | 12 volts DC |
| Max amperage | 20 Amps |
| Maximum duty cycle | 100% @ 100 PSI / 50% @ 200 PSI |
| Flow Rate @ 0 PSI | 1.41 CFM |
| Compressor length | 10.1″ (256.54 mm) |
| Compressor width | 4.5″ (114.3 mm) |
| Compressor height | 7″ (177.8 mm) |
| Weight | 12.1 lb (5.48 Kg) |
| 12-VOLT COMPRESSOR | |
|---|---|
| 2.0 GALLON TANK | FILL RATE |
| 0 to 150 PSI | 3 min. 59 sec. (± 10 sec.) |
| 110 to 150 PSI | 1 min. 33 sec. (± 05 sec.) |
* Supply Voltage: 13.8 Volts
2-Gallon Air Tank Dimensional Drawing
-
