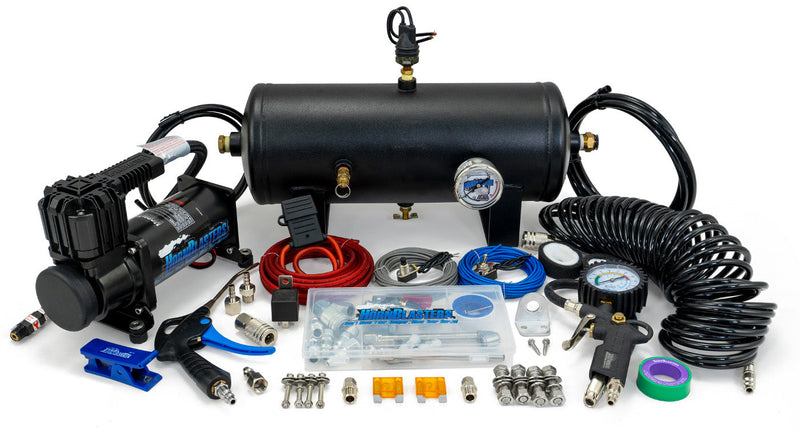

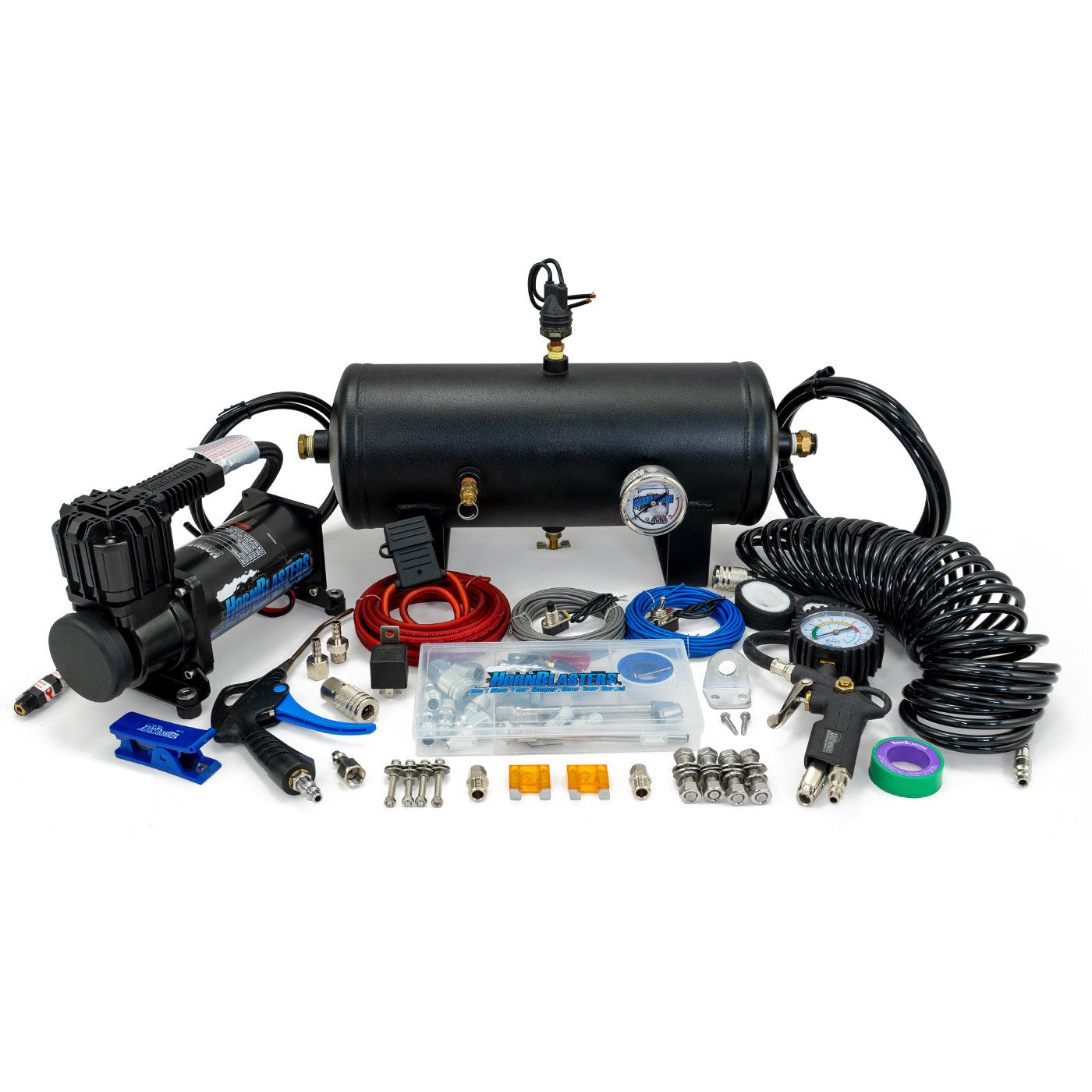

HornAir 232 24-Volt Onboard Air System
HornAir 232 24-Volt Onboard Air System - With Tire Inflation Kit is backordered and will ship as soon as it is back in stock.
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
HornAir 232 24-Volt Onboard Air System
HornAir 232 24-Volt Onboard Air System - With Tire Inflation Kit is backordered and will ship as soon as it is back in stock.
Highlight title
Text to highlight a key feature of your product
Description
Description
THE BEST ALL-AROUND 24V AIR SOURCE.
Kick off your HornBlasters experience with the HornAir 232 24 Volt Onboard Air System, a lightweight and efficient solution providing 2 gallons of 150 PSI air. The quick-filling 24 Volt air compressor recharges the tank in under 50 seconds, while the fitting kit allows for easy accessory installation. Ideal for load-leveling air springs and 24 Volt train/air horns, this affordable package enhances your truck's capabilities. Note that an air valve kit is required for horn connections.
- 24 Volt Air System
- Designed For HornBlasters Shocker Horns
- All-inclusive Train Horn Air Solution!
- Fast Filling Compressor Perfect For Train Horns
- Comes With Standard 1/2" Push-to-Pull Fitting
- Complete Fitting Kit With Safety Valve & Drain Cock
- All Standard Mounting Hardware
Please Note: This HornAir system is not recommended for AirChime horns. We recommend using at least a 4-gallon tank with larger-scale train horns like the P3, P5, K3, and K5; however, this kit is perfect for HornBlasters Shocker horns and Outlaw and Bandit series horns.
**This unit requires a 24 Volt Electrical System!!**
- ac-2 24 Volt Air Compressor
- Horn Air 2 Gallon US Made Air Tank

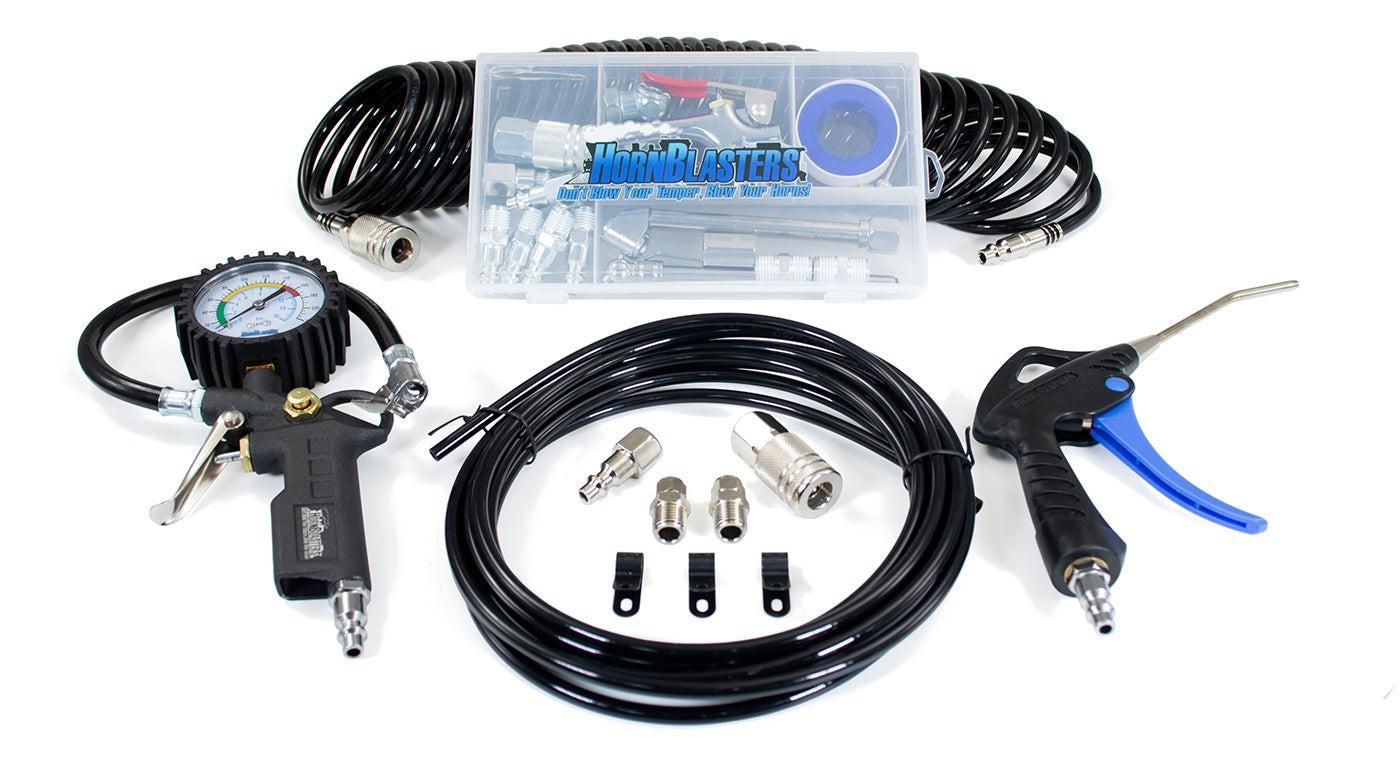

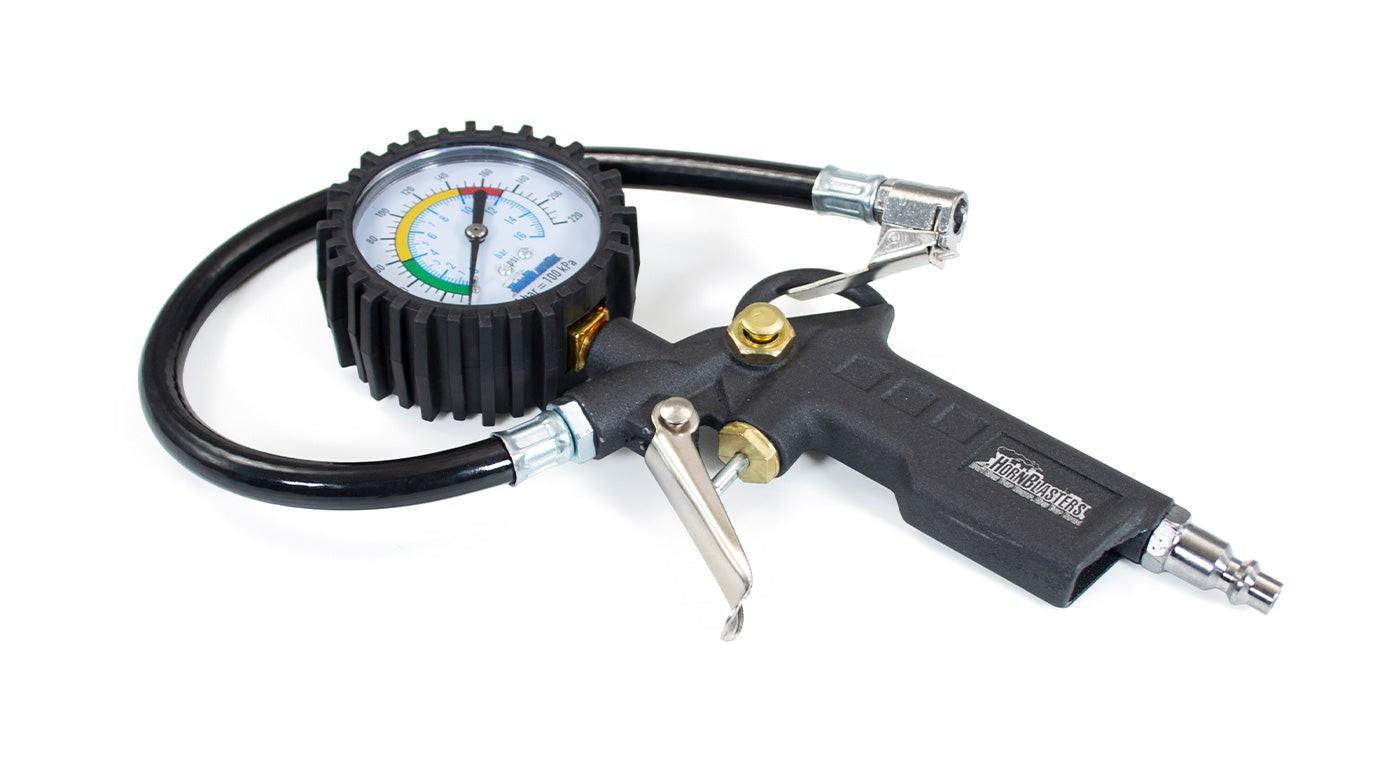

- HornBlasters Tire Inflation Kit
- 110/150 PSI Pressure Switch
- 24-Volt 40 Amp Relay
- 1/2in Push-to-Pull Air Line Fitting
- Safety Blow-Off
- Drain Cock

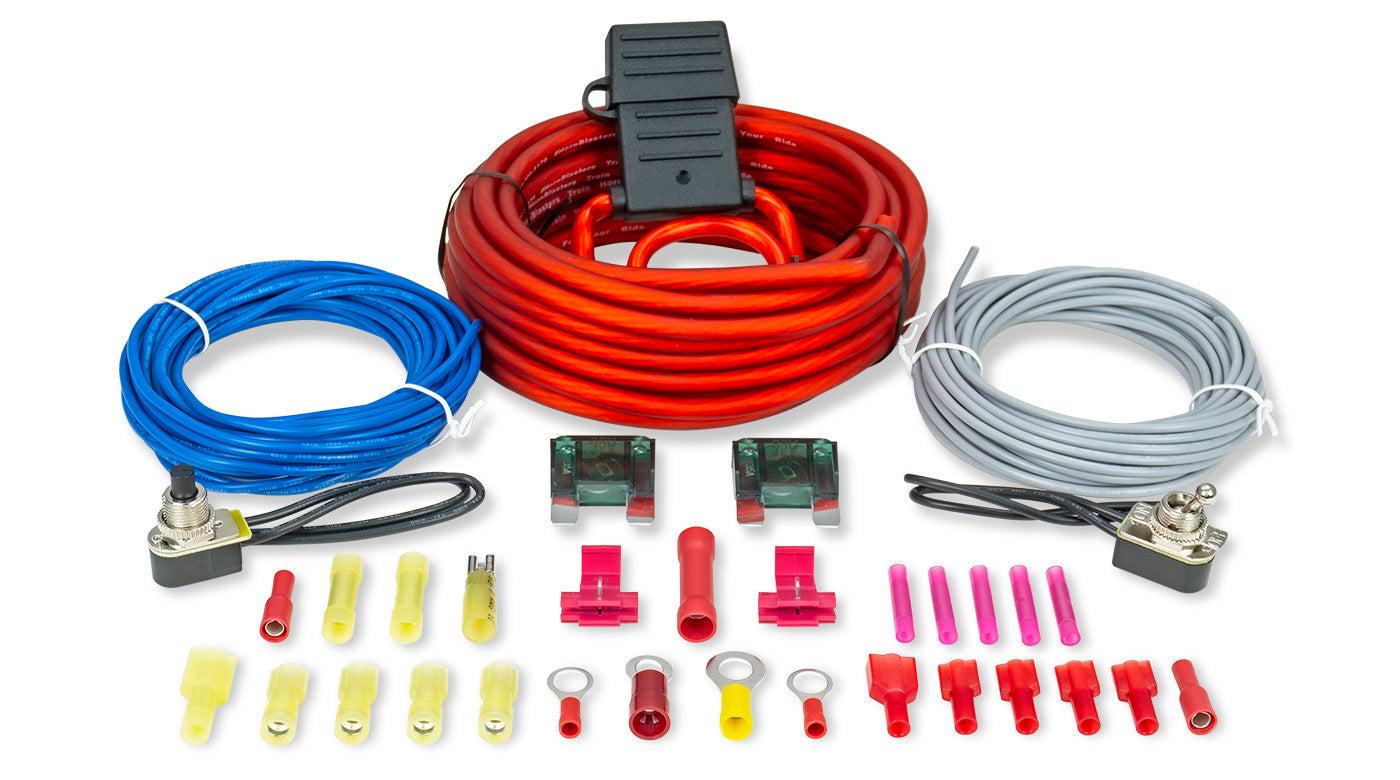

- 17ft 10ga Wire
- 17ft 18ga Wire
- Inline Fuse Holder
- Terminal Kit
- Detailed Instructions
| Tank | 2 Gallon Tank |
| Tank Length | 17" (431.8 mm) |
| Tank Diameter | 6" (152.4 mm) |
| Tank Height | 8″ (203.2 mm)(With Legs) |
| Weight | 10 lb (4.54 Kg) |
| Voltage | 24 volts DC |
| Air Flow | 1.80 CFM at Free Flow |
| Average Fill Time | 1 Min 10 Sec |
| Max Amperage | 13 amps |
| Maximum Duty Cycle | 33% @ 100 PSI |
| Maximum Working Pressure | 150 PSI |
| Compressor Length | 8.54″ (217 mm) |
| Compressor Width | 3.93″ (100 mm) |
| Compressor Height | 6.75″ (171.5 mm) |
| Compressor Weight | 4.30 lb (2.4 Kg) |
| Pressure Switch | 24 Volt 110/150 PSI Pressure Switch |
| Voltage | 24 volts DC |
2-Gallon Air Tank Dimensional Drawing
-
