High Clearance Front Sway Bar - for 2.5" to 16" lifted 2011-2026 Ford F250/350/450 4x4s

Name: High Clearance Front Sway Bar - for 2.5" to 16" lifted 2011-2026 Ford F250/350/450 4x4s
Brand: Stryker Off Road Design
Price: 1704.00 CAD
Availability: InStock

$1,704.00

Shipping calculated at checkout.

Care information

Display general product information or specific product information using metafields.

Delivery and Shipping

Add some general information about your delivery and shipping policies.

Add a stand out message for your customers

Highlight title

Text to highlight a key feature of your product

Description

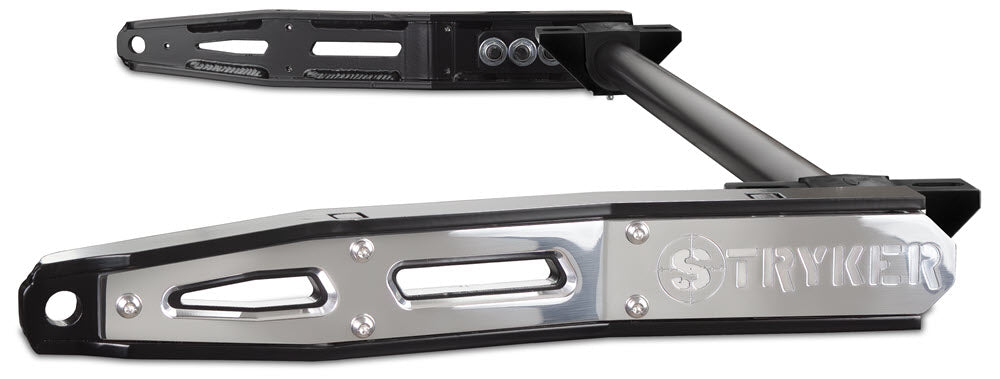

Introducing our new High Clearance Front Sway Bar for the 2011-2026 Ford F250/350/450 4x4

At the heart is 1.25" 4140 cold rolled steel, excellent for tensile strength and fatigue resistance. We pair this with billet aluminum mounting brackets which are greaseable, and a 1/4" steel constructed drop/relocation bracket to ensure your sway bar stays clear of your front coils.

More than just RUGGED BUILD and GOOD LOOKS!

F450 customers will ESPECIALLY appreciate the high clearance feature if they have upgraded their tire size.

Shown below installed with the optional Stryker Endlinks specifically for this kit.

The arms are made from 1/2" thick, laser cut steel with 1/4" thick x 1.5" wide steel gussets welded on top and bottom. This is a modular design, meant to be bolted and assembled. Simply attach the arms to the 1/2" thick weldments on the bar using the Grade 8 welded in studs.

In keeping with our sleek and "high clearance" design, we recessed the aluminum and machined faceplates to be flush with the arms. These provide more tire clearance than the OEM sway bar, especially on F450's! We feel our sway bar provides the perfect balance of control and comfort, ideal the many uses these Superduty trucks are meant for.

Available with either polished or black identity faceplates.

Black identity faceplates shown above.

Frame Brackets

Meant for lift heights ranging from 2.5" - 16" (must select lift height).

Optional Sway Bar Endlinks (Specific to this kit)

The optional endlinks are made from 1" solid aluminum round stock. These are threaded in each end to accept our 5/8" teflon lined heim joints. Excellent ability to pivot and twist as necessary.

CANNOT BE USED WITH THE FACTORY ENDLINKS!! You must add in our endlinks or use an endlink that has a side mount bolt like ours.

NOTES: If you already have our endlinks, then you do not need to add these at checkout. Requires at least 2.5" of front lift.

1.25" 4140 cold rolled steel
1/2" and 1/4" thick steel construction
Grade 8 welded in studs
Excellent torsional strength while providing on road comfort
Billet aluminum frame mounts
Drop brackets with slotted holes to position the sway bar perfectly and stay clear of the front coils
High Clearance design
Requires at least 2.5" of front lift
Endlinks are made from 1" solid aluminum and uses 5/8" teflon lined heims

Lift Height Ranges

2.5" - 5"
6" - 8"
9" -12"
13" - 16"

Features:

1.25" 4140 cold rolled steel
1/2" and 1/4" thick steel construction
Grade 8 welded in studs
Excellent torsional strength while providing on road comfort
Billet aluminum frame mounts
Drop brackets with slotted holes to position the sway bar perfectly and stay clear of the front coils
High Clearance design
Requires at least 2.5" of front lift
Endlinks are made from 1" solid aluminum and uses 5/8" teflon lined heims

Includes:
