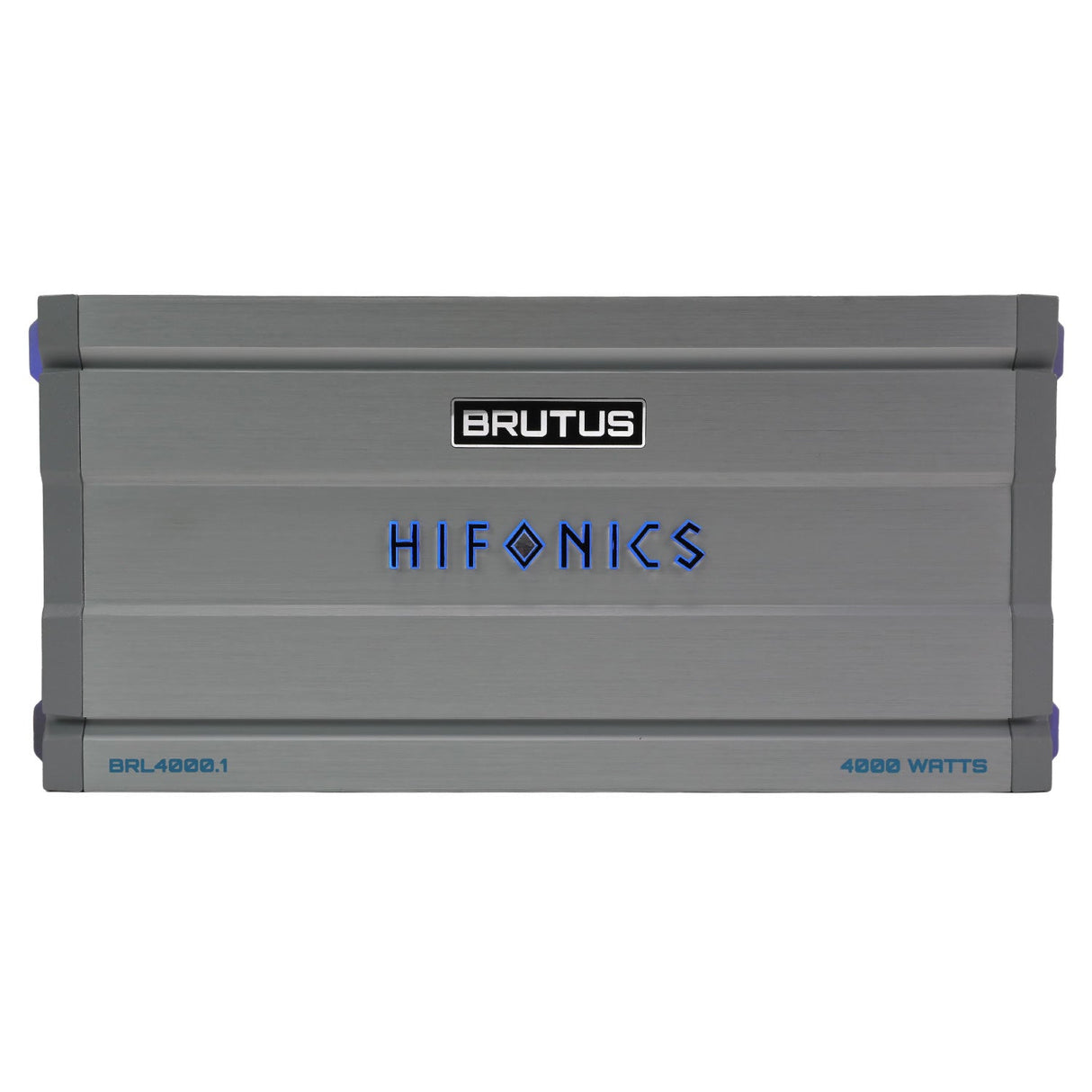

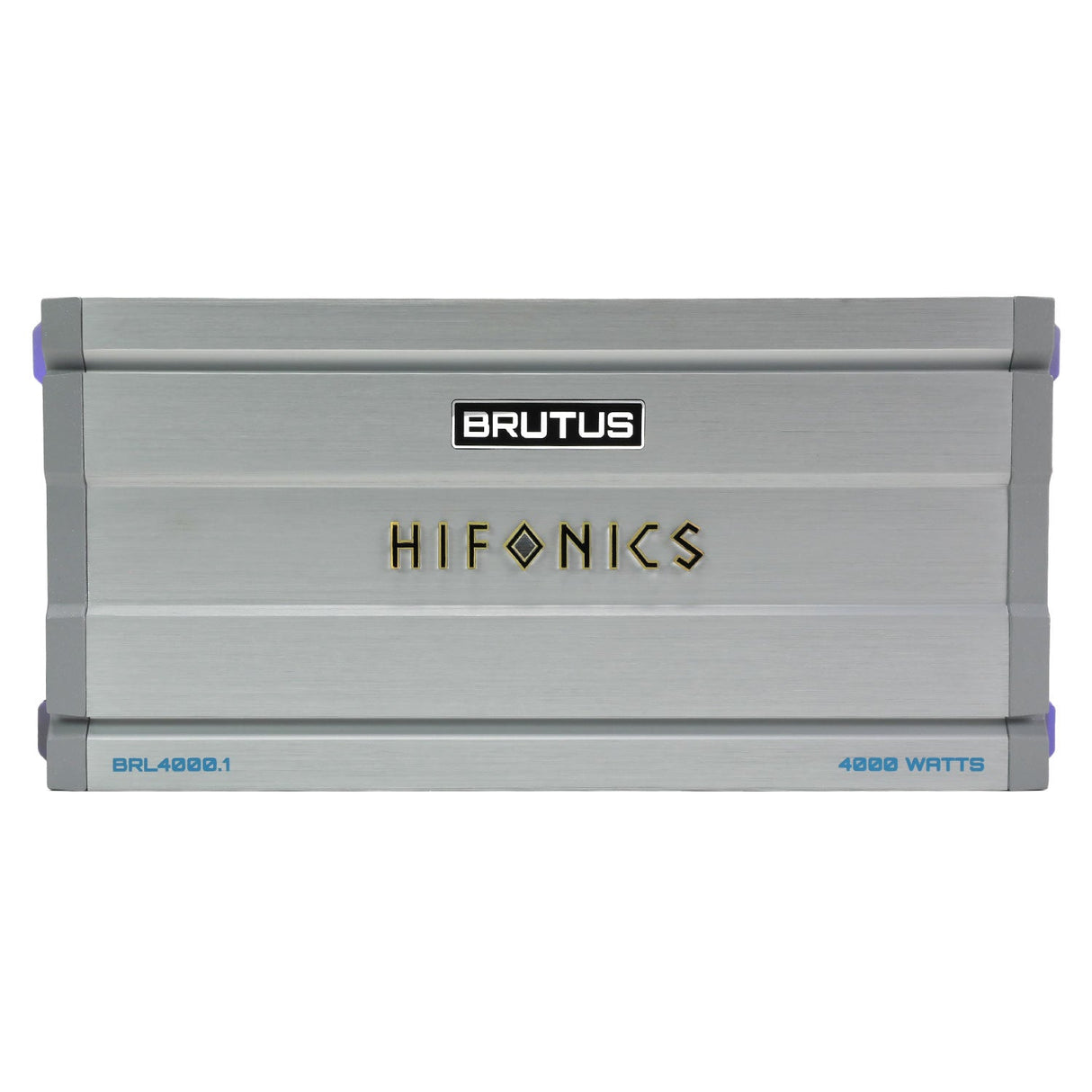

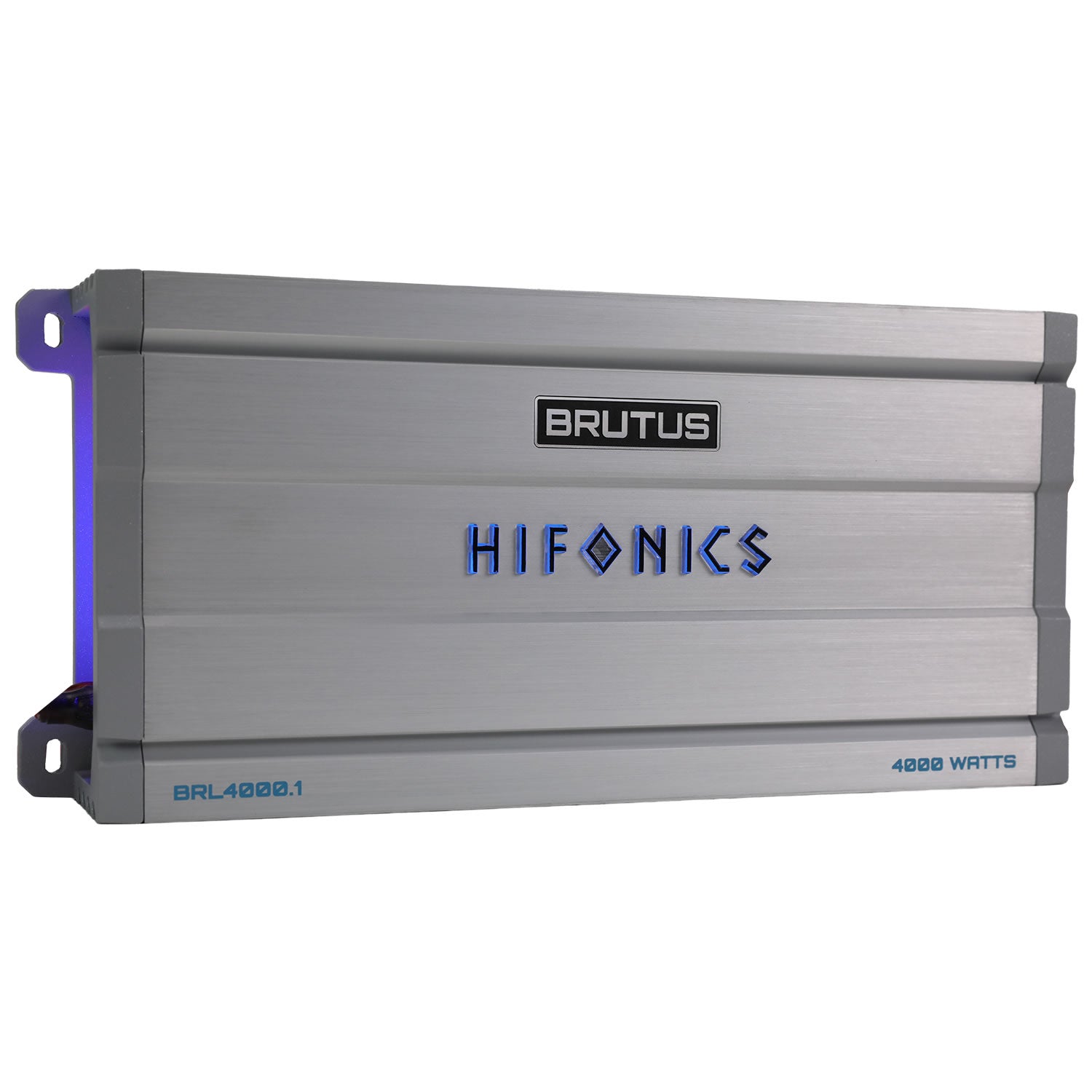

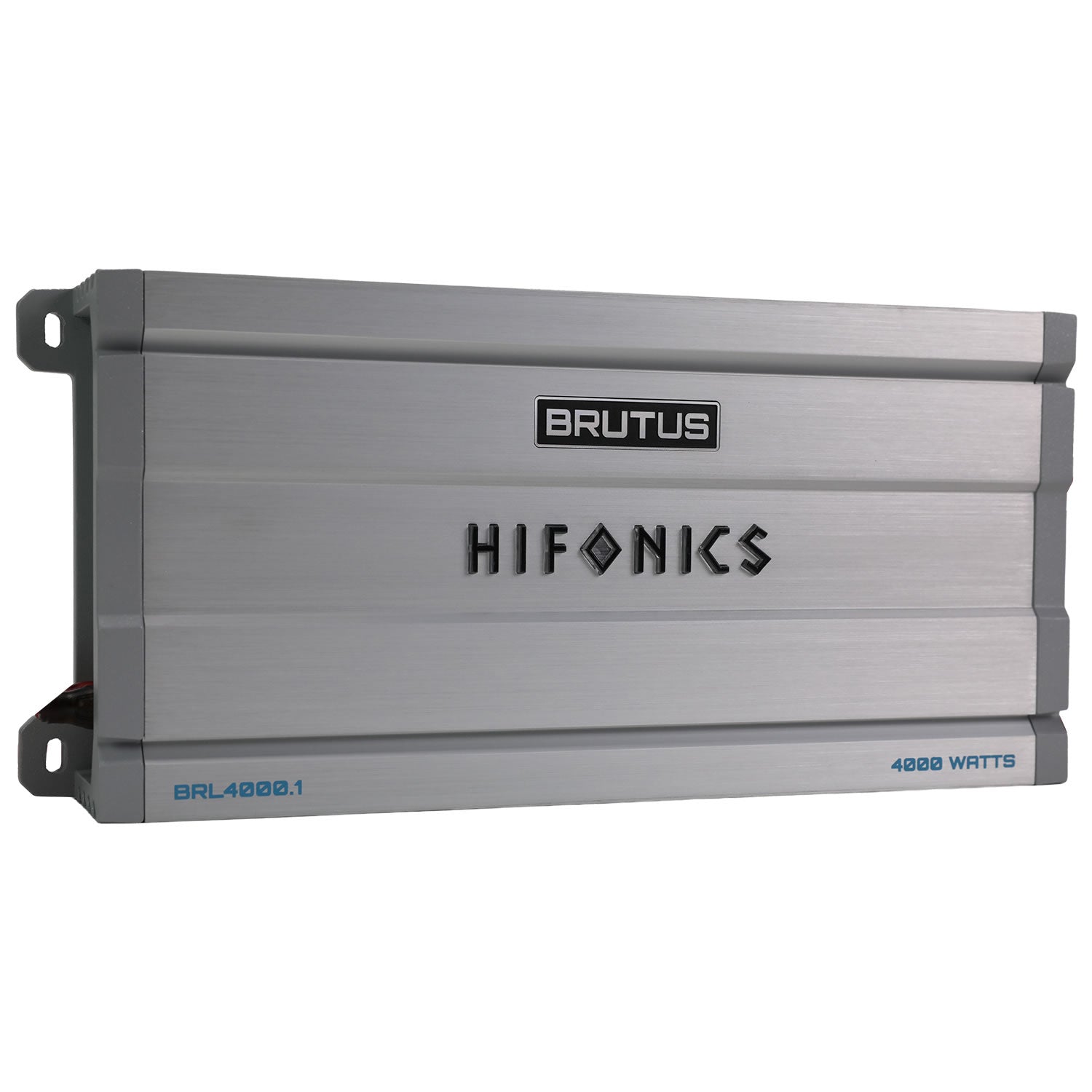

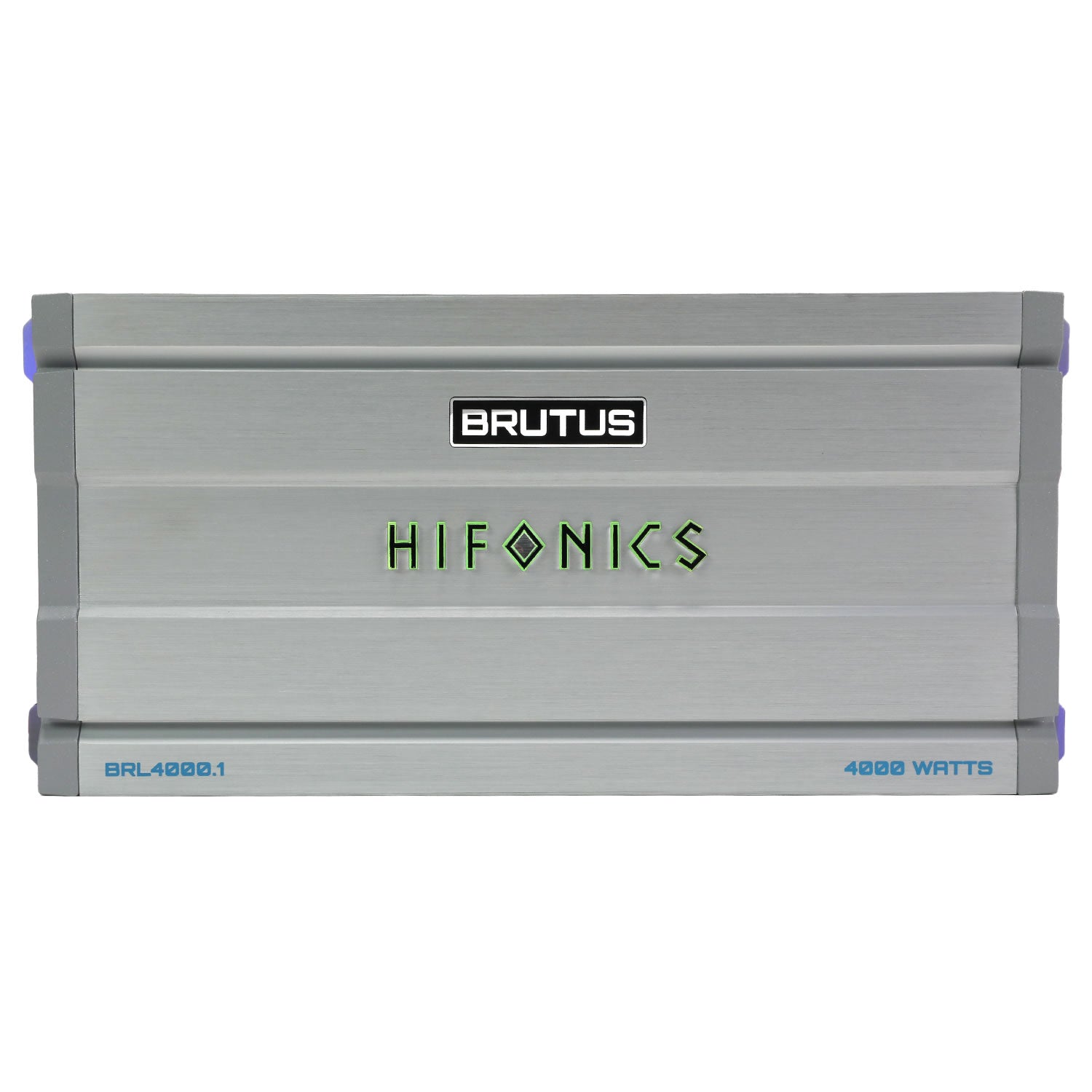

Hifonics BRUTUS BRL4000.1 mono block amplifier delivering 4000 watts RMS with a built-in UV meter and Intelligent Power Management System.
Details & Specs
| Type |
Amplifier |
|---|---|
| Brand |
Hifonics |
| Series |
BRUTUS BRL |
| Category |
Mobile |
| Condition |
New |
| Color |
Black |
| Warranty |
1 Year |
| Compatible Vehicles |
Universal |
| Amp Class |
Super D Class™ |
| Amp Total Channels |
1 |
| Amp Max Power (watts) |
4000 |
| Amp Power @ 1 Ohm (ch x watts) |
1 x 4000 |
| Amp Power @ 2 Ohms (ch x watts) |
1 x 2800 |
| Amp Power @ 4 Ohms (ch x watts) |
1 x 1500 |

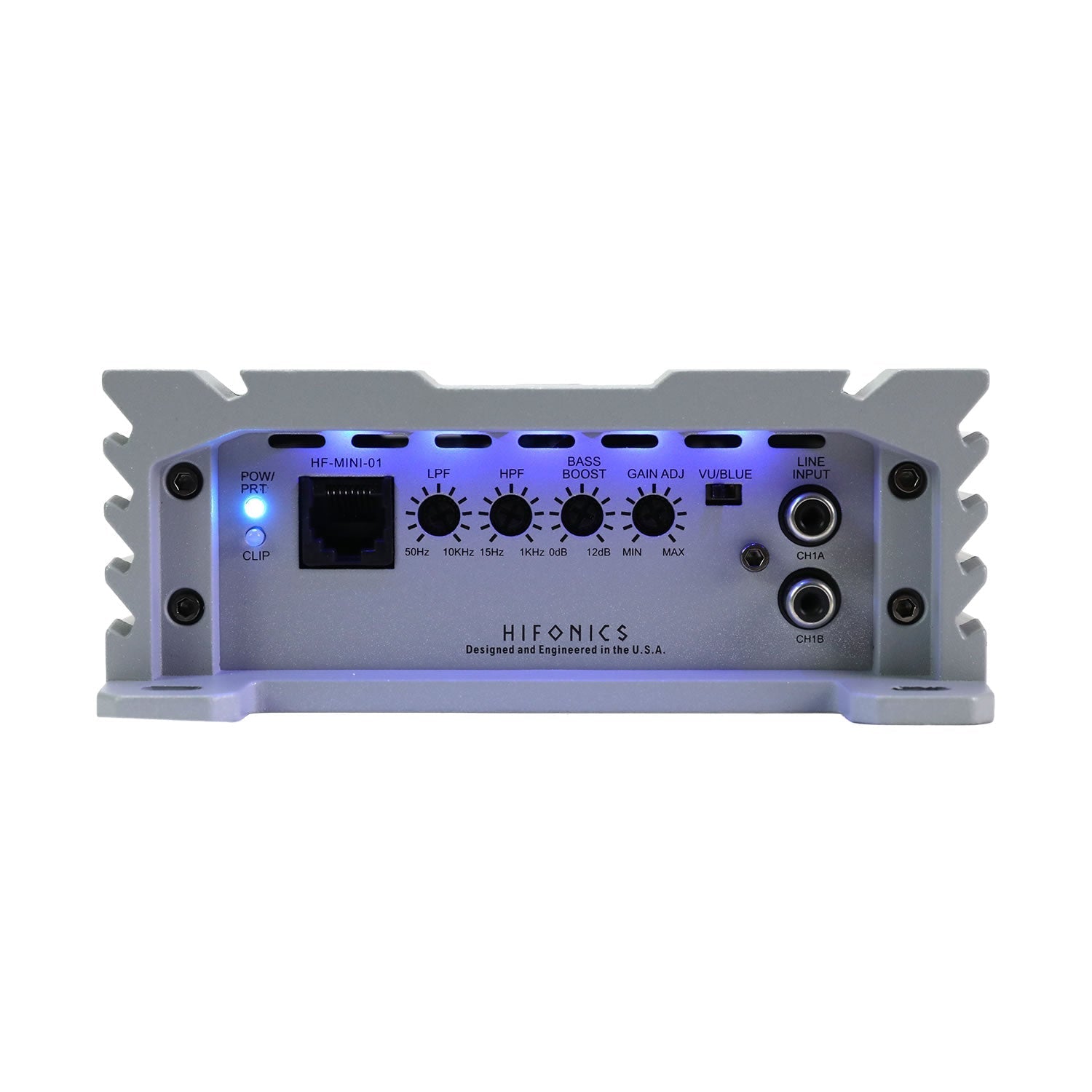

| Amp Crossover |
Variable Electronic 12dB Per Octave |
| Amp Variable High Pass Crossover 12dB per Octave |
15Hz-1KHz |
| Amp Variable Low Pass Crossover 12dB per Octave |
50Hz-10KHz |
| Amp Tone Control / Parametric EQ |
Built-in Bass Control |
| Amp Bass Boost |
0-12dB |
| Amp Variable Voltage |
0.2-9V |
| Amp Signal to Noise |
101dB |
| Amp Frequency Response |
10Hz-10kHz |
| Amp Total Harmonic Distortion (THD) |
< 0.5% |
| Amp Power Terminal 12v/GND |
0 AWG |
| Amp Speaker Terminal Wire Gauge |
12 AWG |
| Amp Fusing |
External 350A |
| Proposition 65 Notice | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
Features & Benefits
| Ultra-High Efficient Design |
A thoughtful power supply design coupled with carefully selected parts results in ultra-high efficient amplifier. |
|---|---|
| Half Bridge Design |
A more efficient design with fewer components results in higher power output. |
| Ultra-Low EMI Design |
Minimal interface with other vehicle electronic systems. |
| Mass-Loaded Heat Sink |
The mass-loaded extruded aluminum heat sink results in better thermal management and output performance. |
| High-End Preamplifier Circuit |
Accepts a wider range of input signals. |
| RCA Inputs |
Nickel-plated RCA jacks create an efficient connection that is corrosion-resistant. |
| High Tolerance Output Device |
Ultra-Fi MOSFETS are designed for high output power and thermal dissipation through a proprietary coupling method. |
| Operation Mode |
Mono only |
| Clean Board Construction |
Multi-layer printed circuit boards (PCB) with surface mount components require fewer parts and result in a cleaner design. |
| Class / Topology |
BRL amplifiers feature a Class-D chipset, making them more efficient and allowing for a wide frequency range. |
| Power Supply |
Iron core transformer assists in the ultra-low EMI design while providing high power at an unmatched value. |
| Delayed Turn-On Function |
Ensures compatibility with a wide range of source units to eliminate any unwanted turn-on/off noises like hisses and pops. |

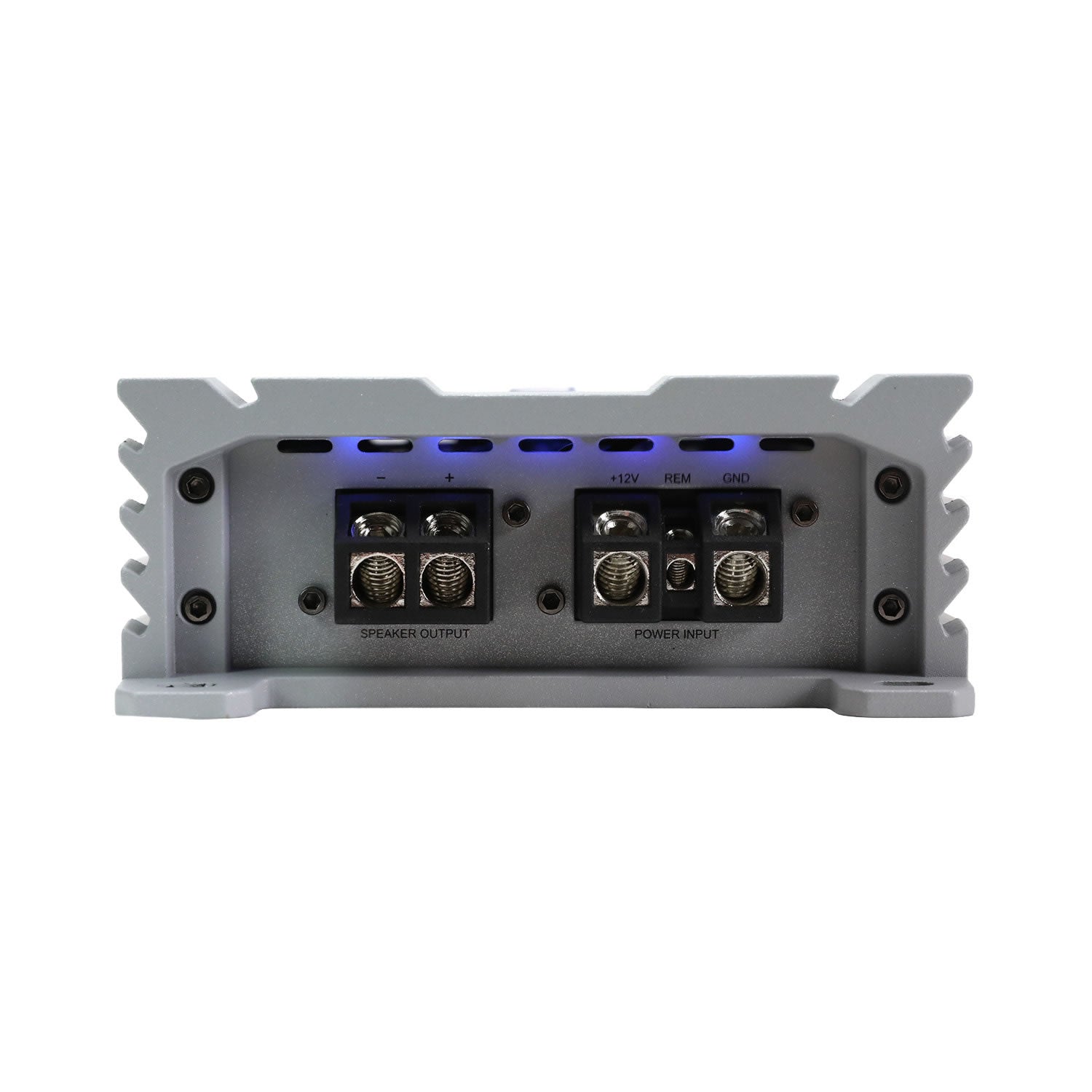

| Connection Type |
Secure molded connection terminal for all Power, Ground and Speaker connections. Angled for ease of access while creating a clean wire mangement profile. |

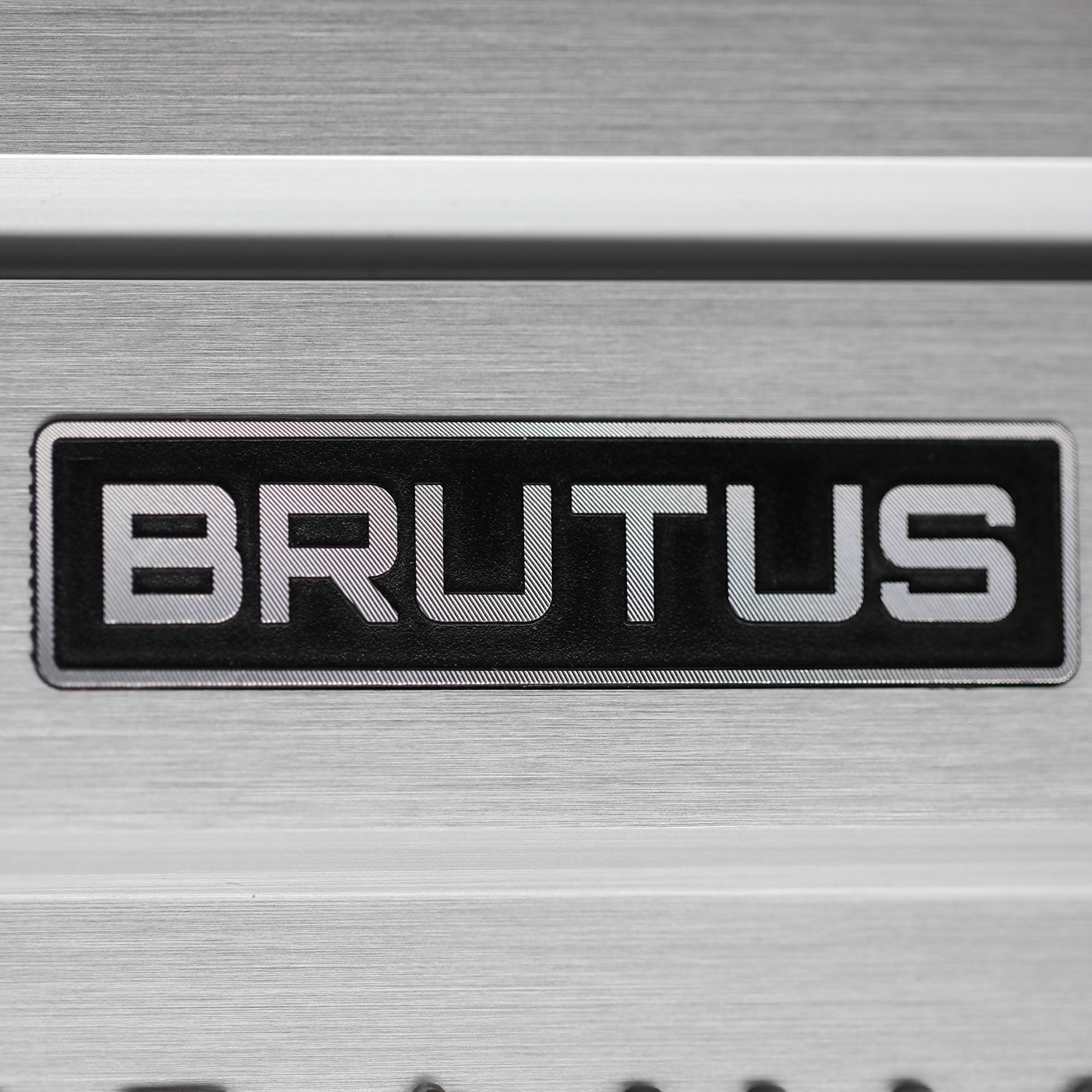

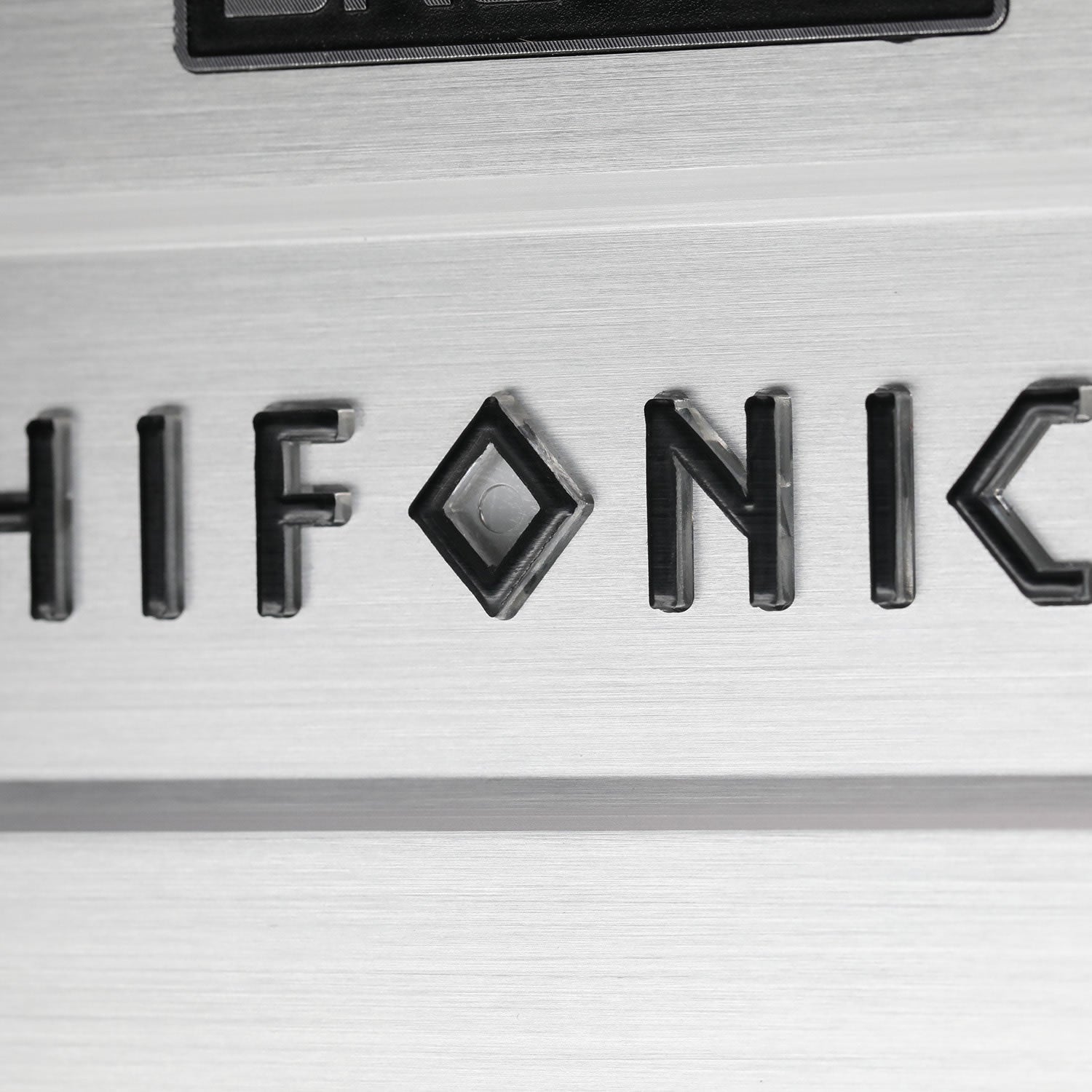

| Stylized Badging |

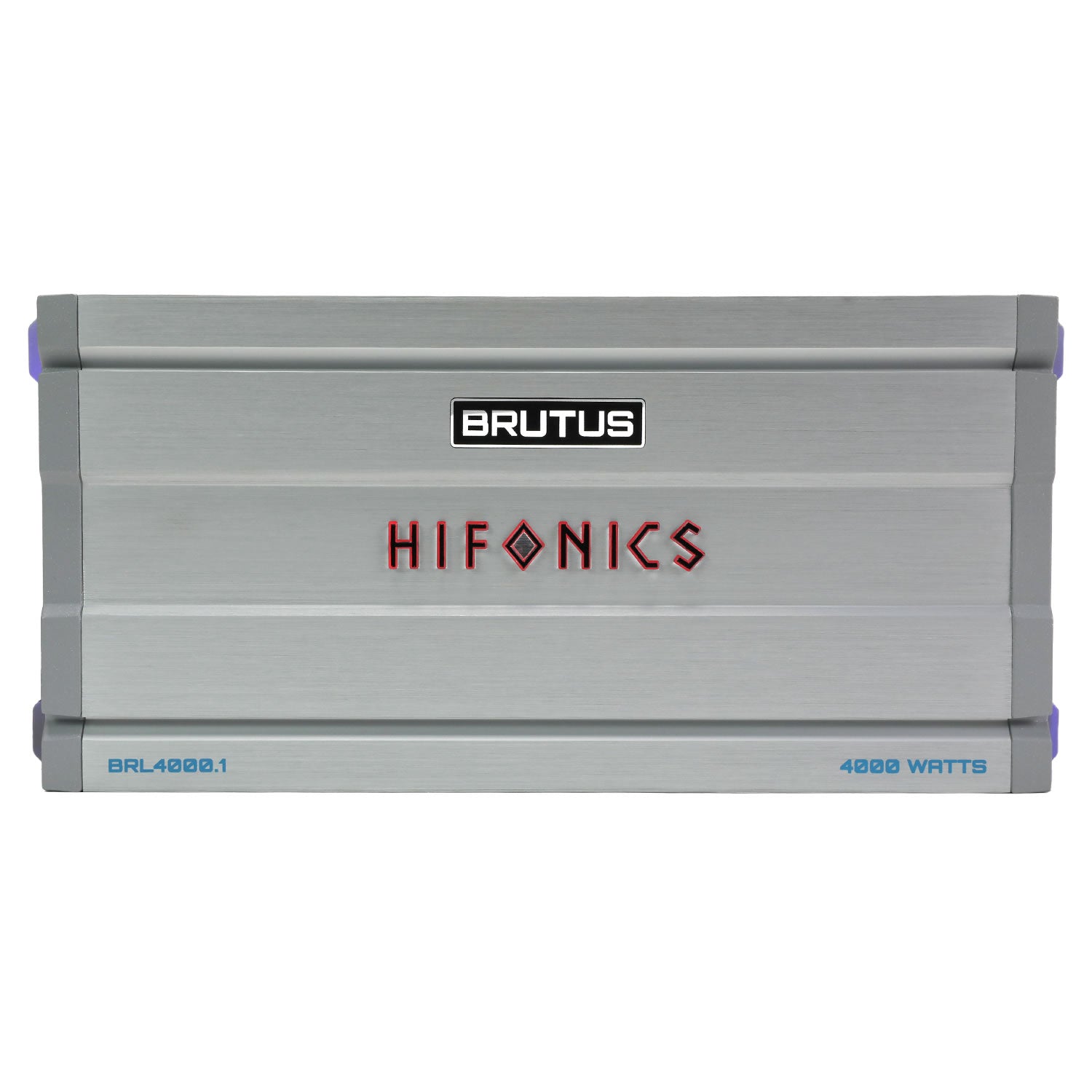

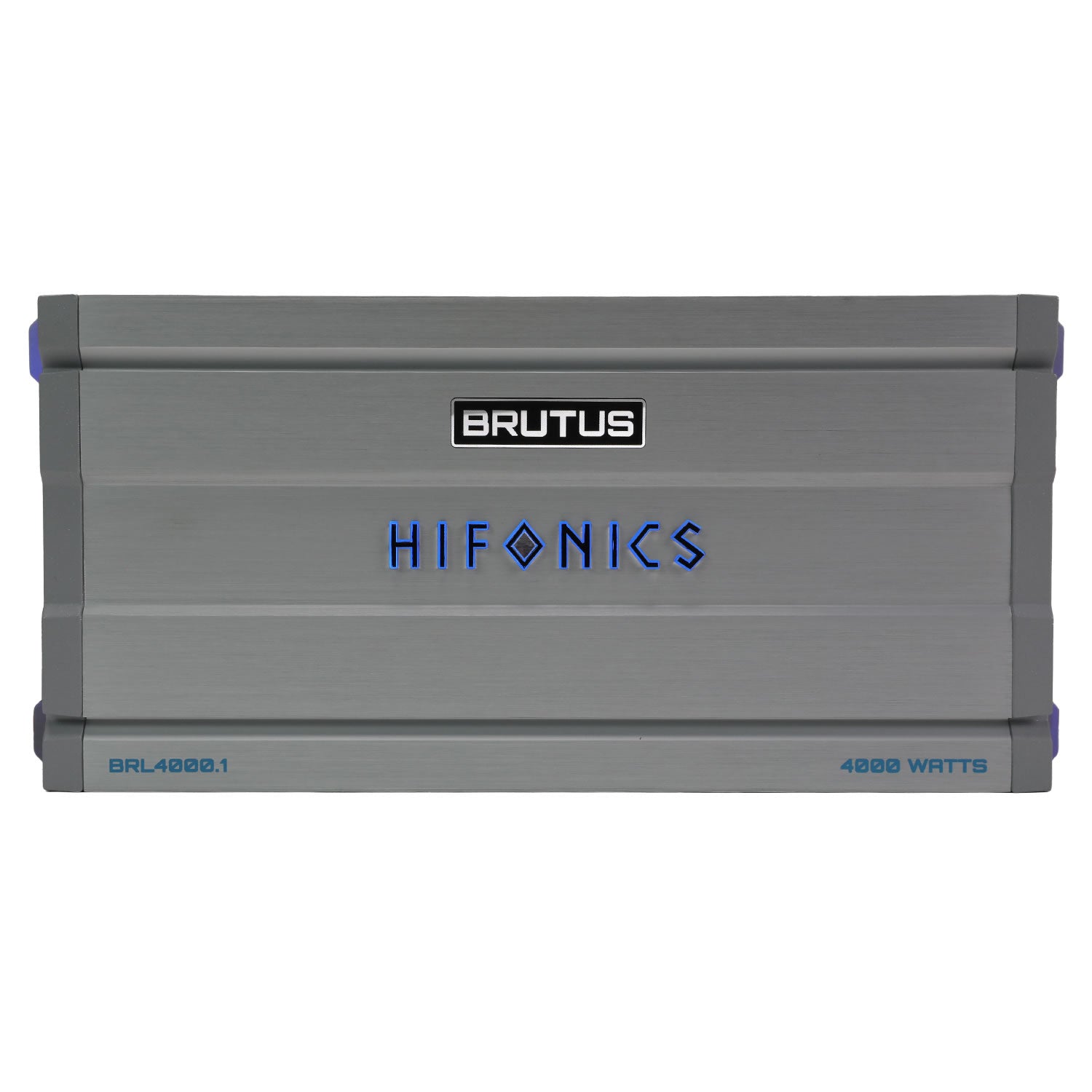

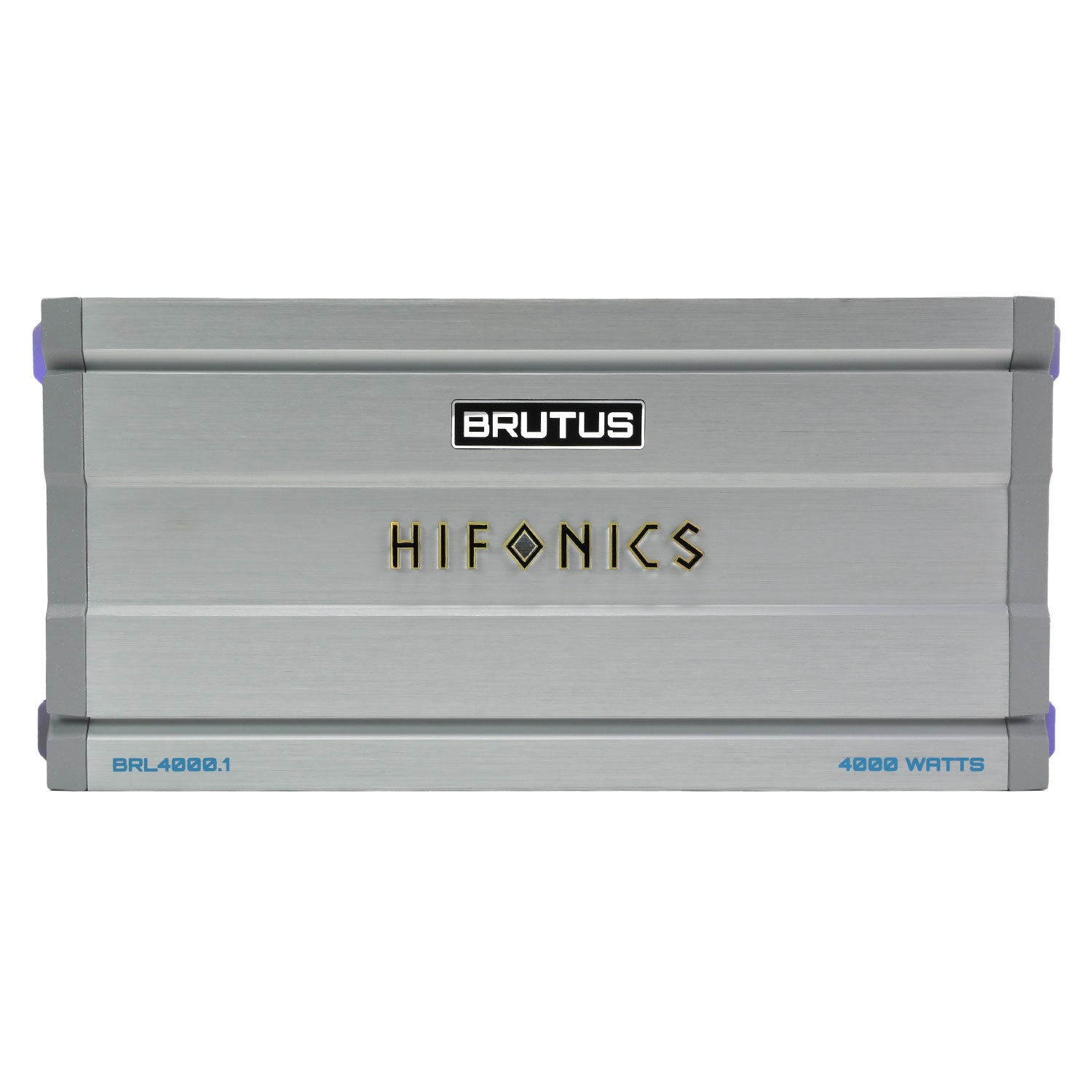

Switch between full constant blue LED lights, VU Meter mode, or full off. When switched to VU Meter mode, the amplifier’s logo reflects the audio level, making it useful for gain adjustment. |
| Triple Protection Circuits |
Over/under voltage, short circuit, overcurrent, and thermal protection circuits are built-in safe guards to protect your audio system and vehicle under most circumstances. |

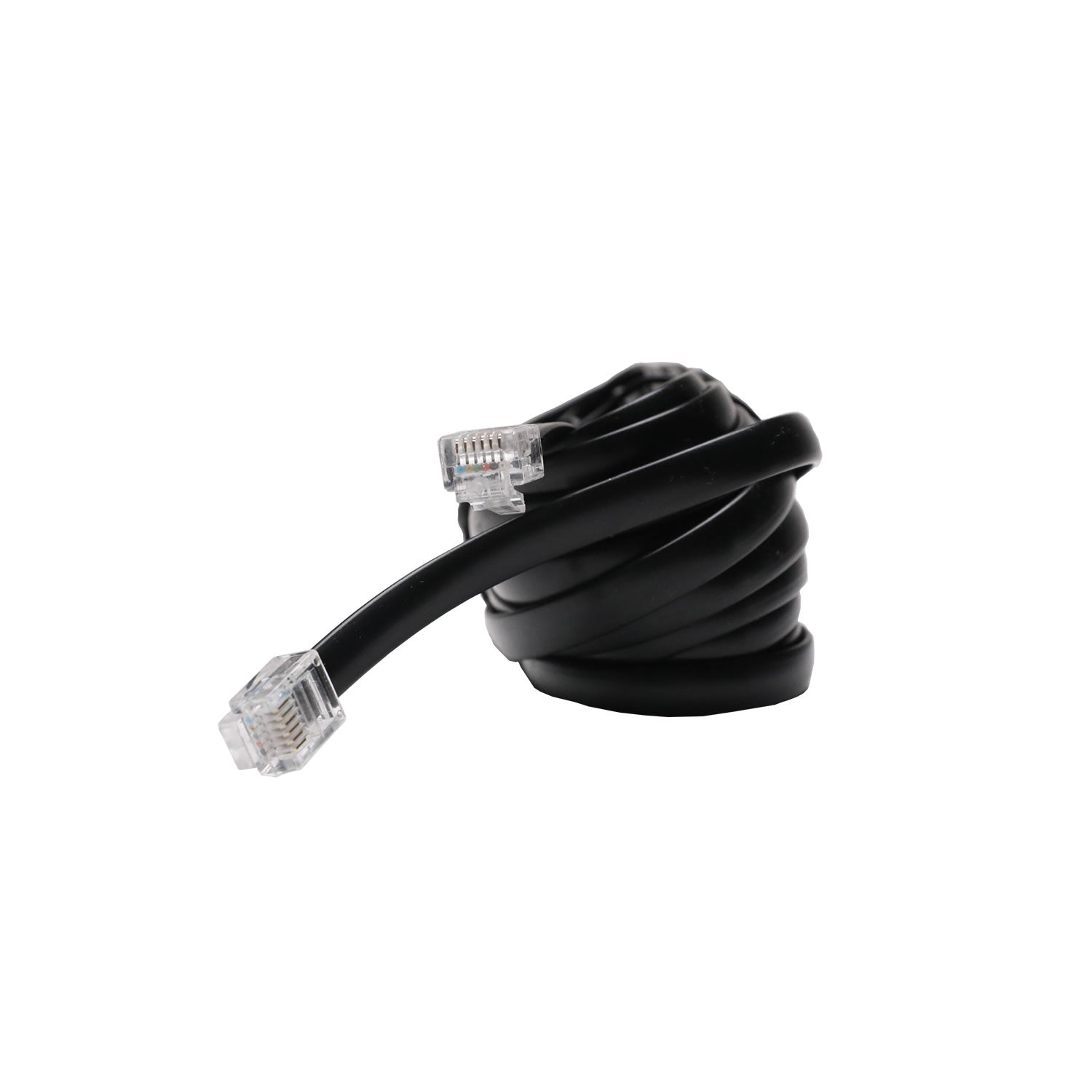

| Bass Remote Included |
The included bass remote on mono models allows you to adjust the bass level relative to the setting on the amplifier’s end panel. The LED indicator light displays green when the amplifier is powered on and red if the amplifier enters protect. |
