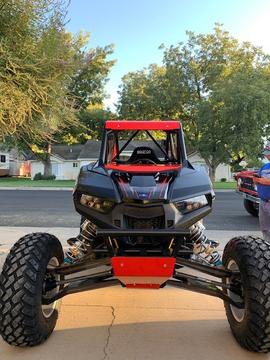

HCR Racing Polaris RZR RS1 Dual Sport OEM Replacement Front A-Arms

Part #: RS1-05300-1

HCR's proprietary billet, slot and tab design and honeycomb boxed arms are built to withstand the beatings of rigorous off-road riding which achieving the optimal combination of strength and appeal. Every external weld is an internal plate structured into the design. While the cost-effective approach is to run tube ends for ball joints , all HCR kits run a 4130 heat treated billet end allowing all internal and external plating to be attached to this billet eliminating a potential weak point. Billets are available in both balljoint and spherical applications. The custom alloy used to manufacture every HCR kit is 30% stronger in tensile and yield strength compared to 4130 Series chromoly. This HCR custom material endures several processes and is hardened for better wear resistance and overall strength.

FEATURES

• Laser Cut construction for precise fit and finish
• CNC'd Chromoly mounting points for increased integrity
• High Clearance Boxed Front A-Arm Design 1.250 added ground clearance
• Each piece is Tig Welded by hand for strength and aesthetics
• Reuse of OEM ball joints to maximize low speed steering ease & smooth travel with less maintenance
• 100% Proudly Made in the U.S.A
• 100% Bolt-on installation using factory mounting points
• 1.75" longer wheelbase for better high speed stability, hill climbing, and descents
• Larger front tube mounts are 1.25” in diameter with Delrin bushings for increased strength and durability. Factory Crush Sleeves Reused

Kit Contains:
- 4 Front A-arms
- Hardware
- Install Guide
