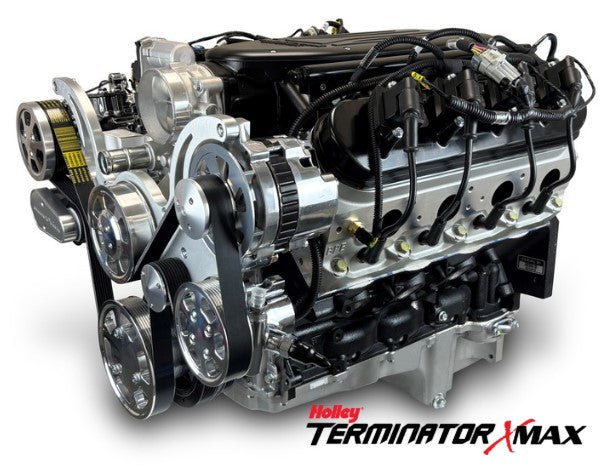

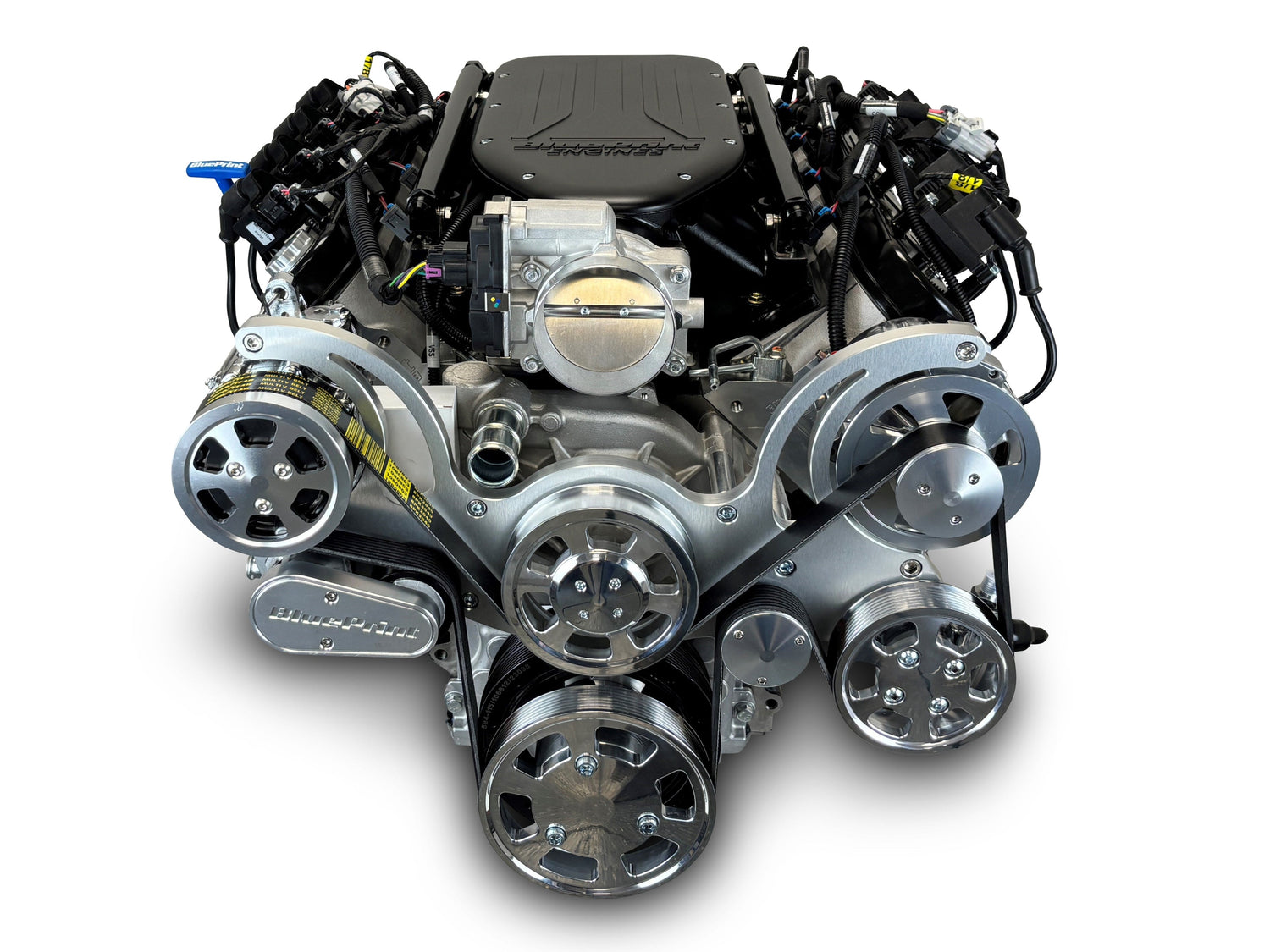

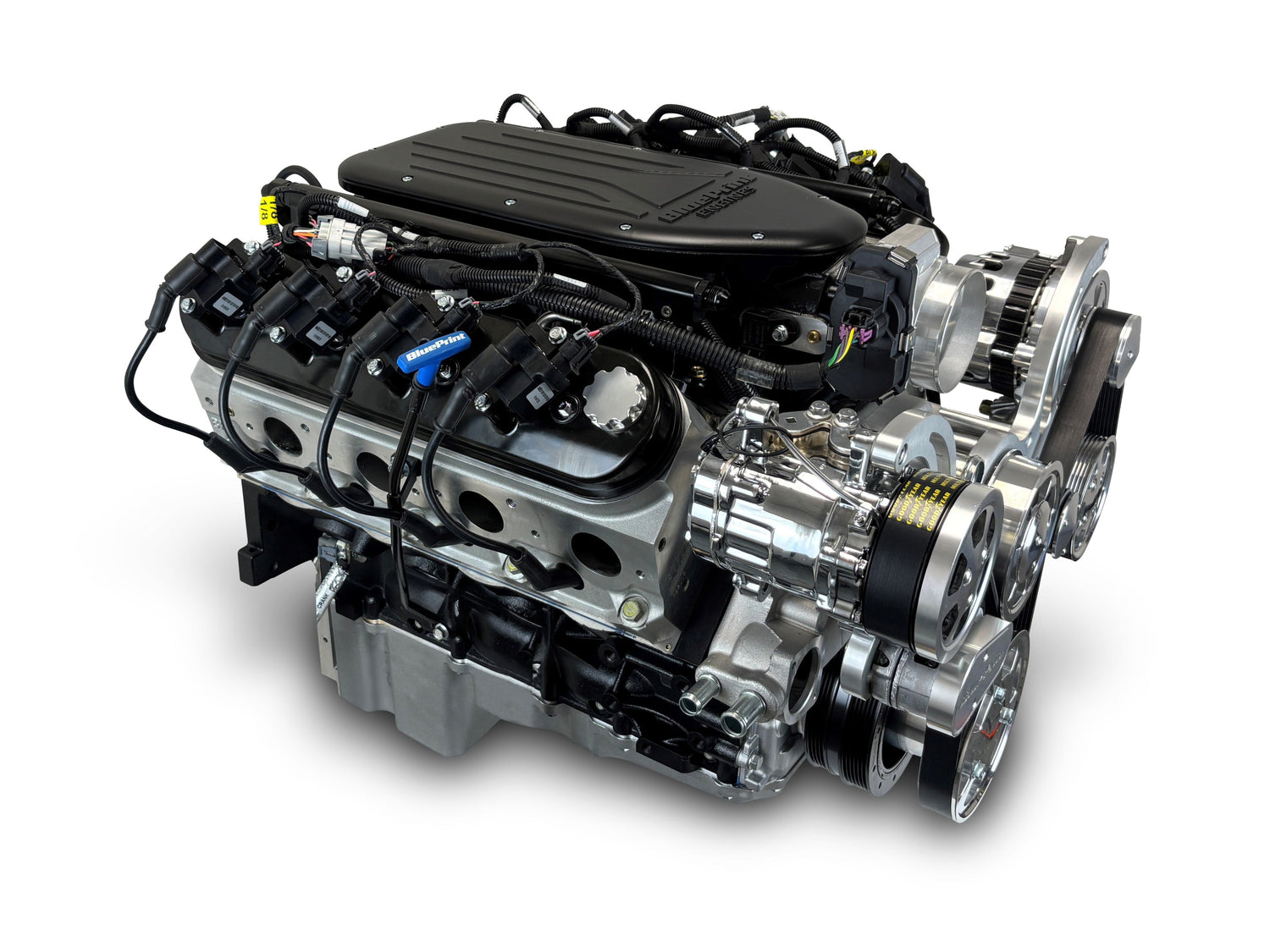

GM LS Compatible 427 c.i. Pro Series Engine - 585 Horsepower - Deluxe Dressed - Polished Pulley Kit - Holley Terminator X EFI System

Overview:

This powerhouse of an engine build is a testament to precision engineering and raw performance. Delivering a formidable 585 horsepower and 520 ft. lbs. of torque, it’s driven by a BluePrint Engines LSX-style high-strength cast iron block, paired with forged crank and pistons for uncompromising durability. The 11:1 compression ratio ensures optimal combustion efficiency, while LS3 aluminum heads and a hydraulic roller cam (featured twice for emphasis on valvetrain performance) bring refined airflow and aggressive cam timing. Feeding this beast is a drive-by-wire throttle body and LS3 cast aluminum intake manifold, supported by a complete injector and fuel rail kit for consistent fuel delivery. The LS swap oil pan, water pump, and gas pedal round out the essentials, while the Holley Terminator X Max ECU provides cutting-edge engine management. A polished pulley kit featuring an LS2-style water pump, 140-amp alternator, peanut-style A/C compressor, and Type II power steering pump with remote reservoir ensures accessory systems run smoothly and reliably. Altogether, this setup blends brute force with modern control, making it ideal for high-performance street applications.

Description:

• Horsepower & Torque: 585 Horsepower / 520 ft. lbs. Torque
• Compression Ratio: 11:1
• BluePrint Engines LS3 Aluminum Heads
• BluePrint Engines Hydraulic Roller Cam

• BluePrint Engines Forged Crank
• BluePrint Engines Forged Pistons


Block:

• BluePrint Engines High Strength Cast Iron (LSX Style) Block
• Increased Deck Thickness and Strength Webbing
• Utilizes OEM LS3 Front and Rear Covers
• Improved Water Jacket Design
• Extended Cylinder Skirt
• 1-Piece Rear Main Seal
• Priority Main Oiling
• 4.0695" Bore

• 6-Bolt Main


Rotating Assembly:

• Forged Crankshaft
• 4.125" Stroke
• Forged 6.125" Connecting Rods
• Forged Pistons
• Internally Balanced Front and Rear

Cylinder Heads:

• BluePrint Aluminum Cylinder Heads - PS8015
• 69cc Chamber
• 2.165" Intake / 1.590" Exhaust Valves
• 259cc Intake /102cc Exhaust Runners


Cam Specs:

• Hydraulic Roller
• .624 Intake / .624 Exhaust Lift
• 239 Intake / 255 Exhaust Duration
• @.050-114 Degree Lobe Separation

Holley Terminator X Max Specific Features and Benefits:

• Real Time Fuel Map Learning Simplifies Tuning by Dynamically Adjusting the Base Fuel Rate
• On Board Bosch LSU 4.9 Wideband Control, Enabling Accurate AFR Readings and Closed Loop Tuning
• Eight High Impedance Injector Drivers, Ideal for Stock LS Injectors and Holley EFI Injectors
• Integrated 1-Bar MAP Sensor for Naturally Aspirated or Nitrous Setups, with Harness Support for External Higher Bar Sensors if needed
• 4 Configurable Inputs (12V, Ground, 5V, Frequency) and 2 Outputs (Ground, PWM) - Ideal for Electric Fans, Boost Control Solenoids, Nitrous Control and more
• Free PC Tuning Software via USB/CAN Interface for Full Laptop Control and Advance Setup
• Integrated 3.5" Touchscreen Handheld with Setup Wizard, Internal Data Logging, and Real Time Gauge Displays
• Terminator X Max ECU will Include a Base Timing Map Pre-Configured for this engine

Also Includes:

• Drive by Wire Throttle Body - BPP12191019

• LS3 Cast Aluminum Intake Manifold

• LS Swap Oil Pan - BPP81074

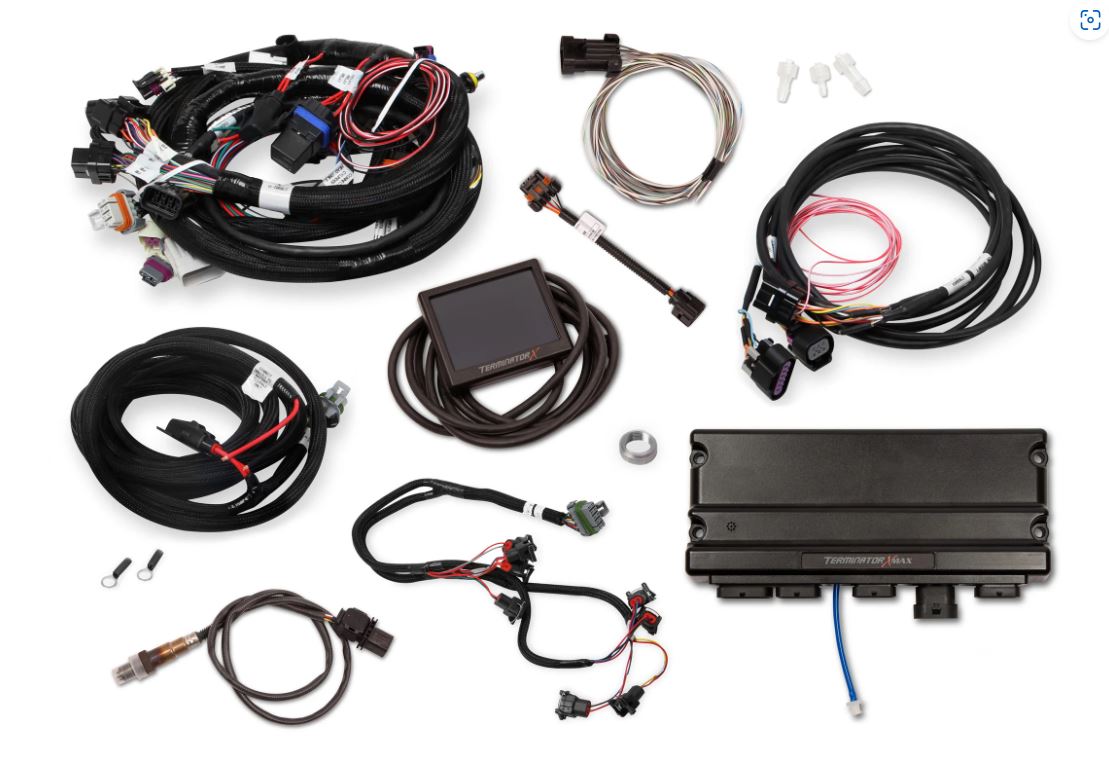

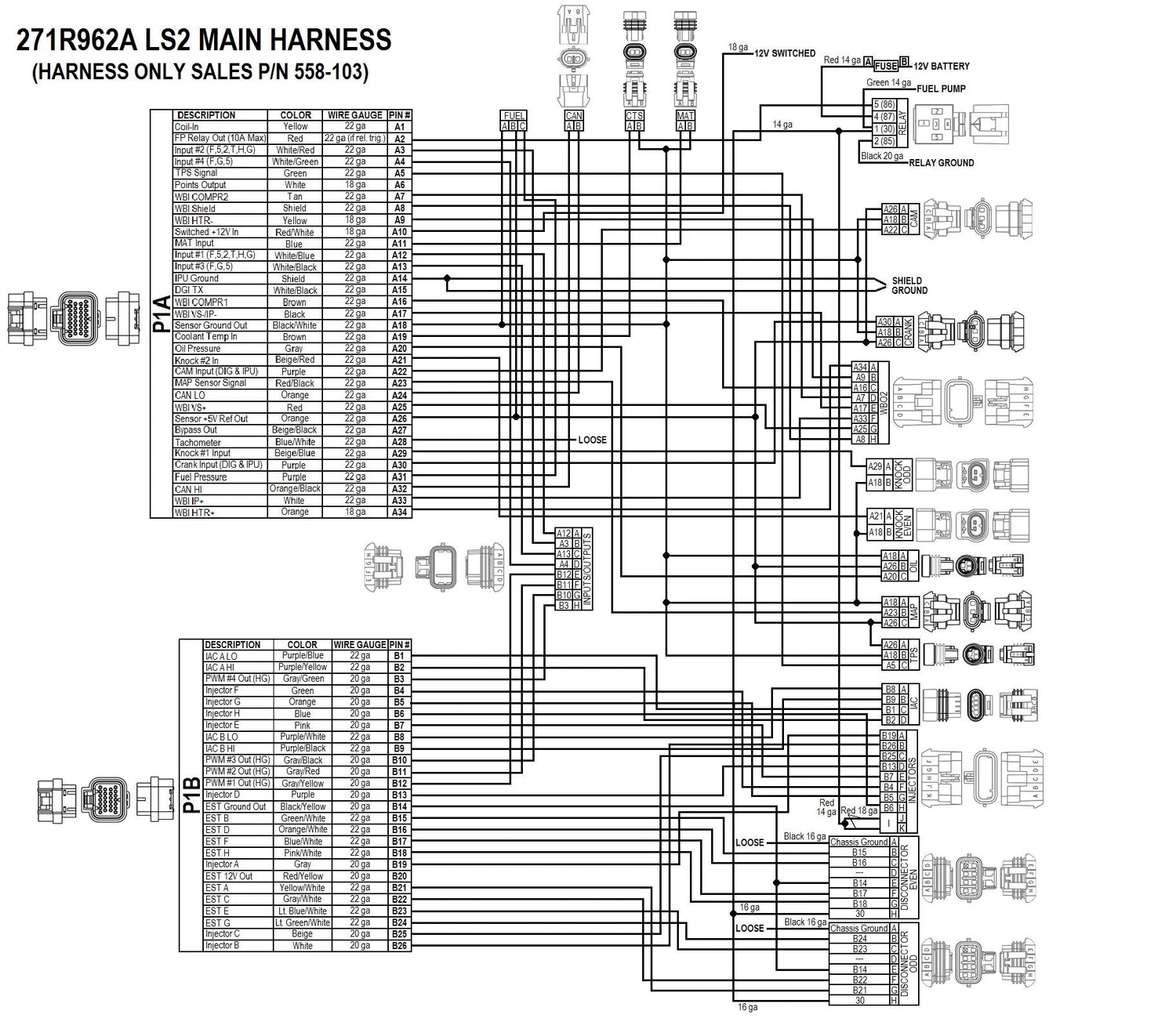

• Engine Harness and ECU Kit

• Injectors and Fuel Rail Kit

• Spark Plugs & Wiring

• Harmonic Balancer

• Timing Cover
• Valve Covers

• Coil Packs
• Gas Pedal

• Polished Pulley Kit

  • LS2 Style Water Pump
  • 1- Wire 140amp Alternator
  • Peanut Style Air Conditioning Compressor
  • Type II Power Steering Pump with Remote Reservoir

Notes:

• This Holley EFI Equipped engine has a fully calibrated ECU by BluePrint Engines. Please DO NOT follow the Holley EFI manual for the calibration of the ECU.

• The front accessory drive on this engine fits many vehicles, however it is the customer responsibility to accurately measure and confirm fitment.  Note this is a low-profile design, but things such as power steering hoses, alternator wiring, and additional fittings/fabrication may be required on some vehicles.

• Retro fit oil pan will fit most 1955-1995 GM front engine, RWD, V8 cars.
• Not for use in pollution-controlled vehicles or in dry sump applications.

• BluePrint Engines Recommends Air Intake Kit BPPLS01013 to ensure correct MAF calculations and Dyno calibration are maintained with the provided ECU / tuning.
