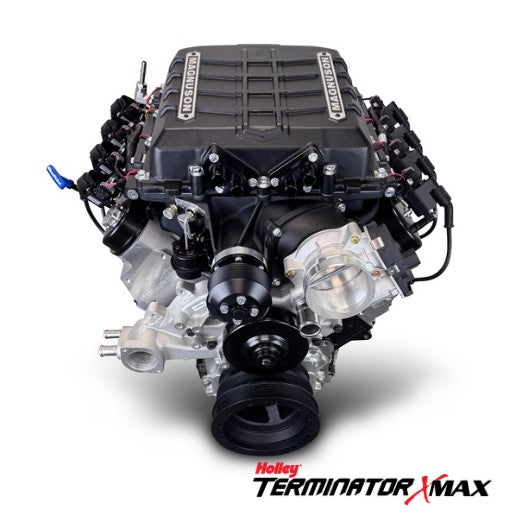

GM LS Compatible 427 c.i. Engine and 4L80E Automatic Transmission - 830 Horsepower - Standard Edition Builder Series - Holley Terminator X EFI System

Overview:

Description:

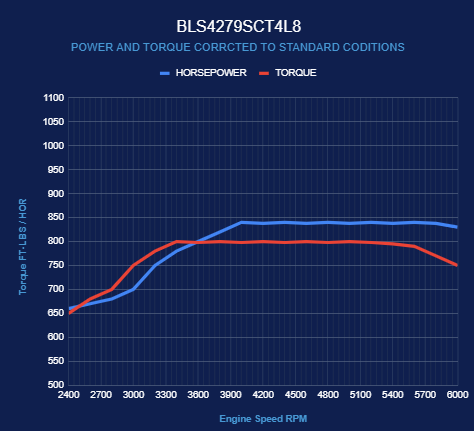

• Horsepower & Torque: 830 Horsepower / 800 ft. lbs. Torque
• Compression Ratio: 9.5:1
• BluePrint Engines Aluminum Heads
• BluePrint Engines Hydraulic Roller Cam
• BluePrint Engines Forged Crank
• BluePrint Engines Forged Pistons

Block:

• BluePrint Engines High Strength Cast Iron Block
• Increased Deck Thickness and Strength Webbing
• Extended Cylinder Skirt
• Priority Main Oiling
• 6-Bolt Main
• 1-Piece Rear Main Seal
• Improved Water Jacket Design
• Utilizes OEM LS3 Front and Rear Covers

Rotating Assembly:

• New Forged Crankshaft
• 4.125" Stroke
• Forged 6.125" Connecting Rods
• Forged Pistons
• Front and Rear Internally Balanced

Cylinder Heads:

• BluePrint Aluminum Cylinder Heads - PS8015
• 70cc Chamber
• 2.165" Intake / 1.590" Exhaust Valves
• 259cc Intake / 102cc Exhaust Runners

Cam Specs:

• Hydraulic Roller
• .624 Intake / .624 Exhaust Lift
• 239 Intake / 255 Exhaust Duration
• @.050-114 Degree Lobe Separation

Ignition Timing:

• ECM Supplied with Calibration

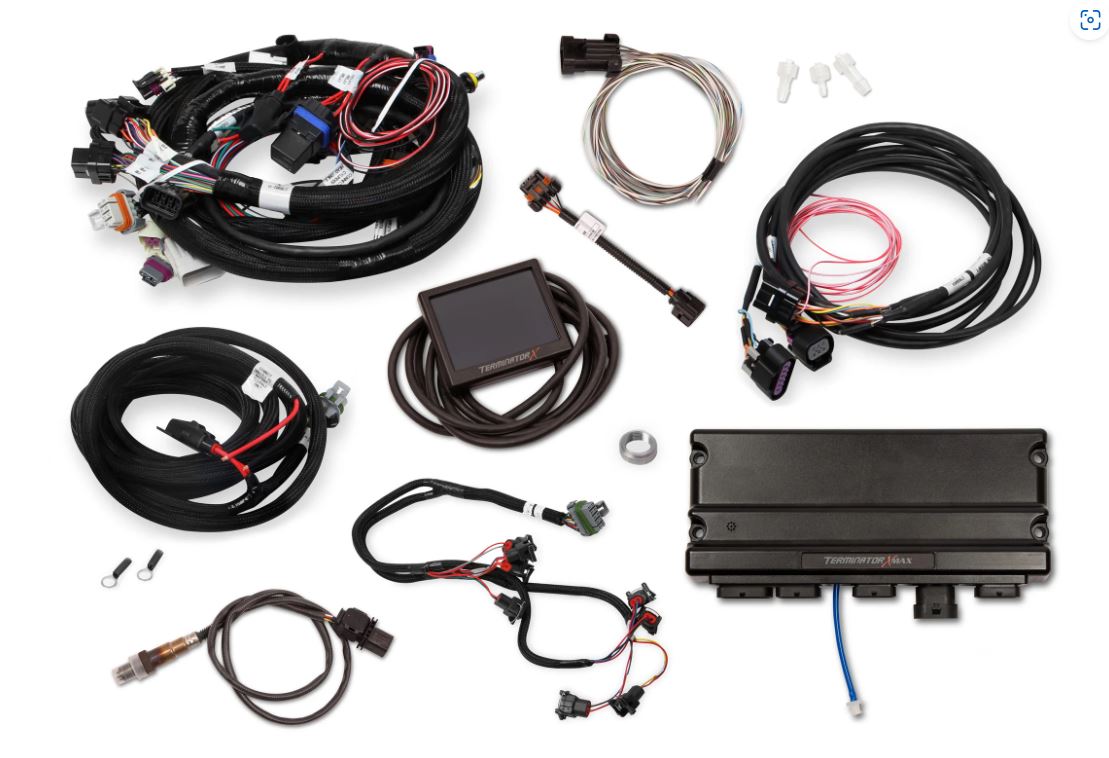

Holley Terminator X Max Specific Features and Benefits:

• Real Time Fuel Map Learning Simplifies Tuning by Dynamically Adjusting the Base Fuel Rate
• On Board Bosch LSU 4.9 Wideband Control, Enabling Accurate AFR Readings and Closed Loop Tuning
• Eight High Impedance Injector Drivers, Ideal for Stock LS Injectors and Holley EFI Injectors
• Integrated 1-Bar MAP Sensor for Naturally Aspirated or Nitrous Setups, with Harness Support for External Higher Bar Sensors if needed
• 4 Configurable Inputs (12V, Ground, 5V, Frequency) and 2 Outputs (Ground, PWM) - Ideal for Electric Fans, Boost Control Solenoids, Nitrous Control and more
• Free PC Tuning Software via USB/CAN Interface for Full Laptop Control and Advance Setup
• Integrated 3.5" Touchscreen Handheld with Setup Wizard, Internal Data Logging, and Real Time Gauge Displays
• Terminator X Max ECU will Include a Base Timing Map Pre-Configured for this engine.

Also Includes:

• Low Profile Rear Sump Oil Pan - BPP81074
• All Sensors Required for Engine to Run
• DBW Throttle Body - BPP12191019
• Magnuson TVS2650 Supercharger
• Spark Plugs & Wires
• Harmonic Balancer
• Timing Cover

• Valve Covers

• Coil Packs

Assembled with Complete HD 4l80e Transmission Package:

• 4L80E Complete Package
• Electronic Transmission Controller Included
• 3200+ Stall Torque Converter
• Flex Plate
• Starter

4L80E Gear Ratios:

• 1: 2.482
• 2: 1.482
• 3: 1.00
• 4: 0.750
• R: 2.077

Notes:

• This Holley EFI Equipped engine has a fully calibrated ECU by BluePrint Engines. Please DO NOT follow the Holley EFI manual for the calibration of the ECU.
• Retro fit oil pan will fit most 1955-1995 GM front engine, RWD, V8 cars
  Not for use in pollution-controlled vehicles or in dry sump applications.

• BluePrint Engines Recommends Air Intake Kit BPPLS01013 to ensure correct MAF calculations and Dyno calibration are maintained with the provided ECU / tuning.
• Engine/Trans Package Ships assembled
