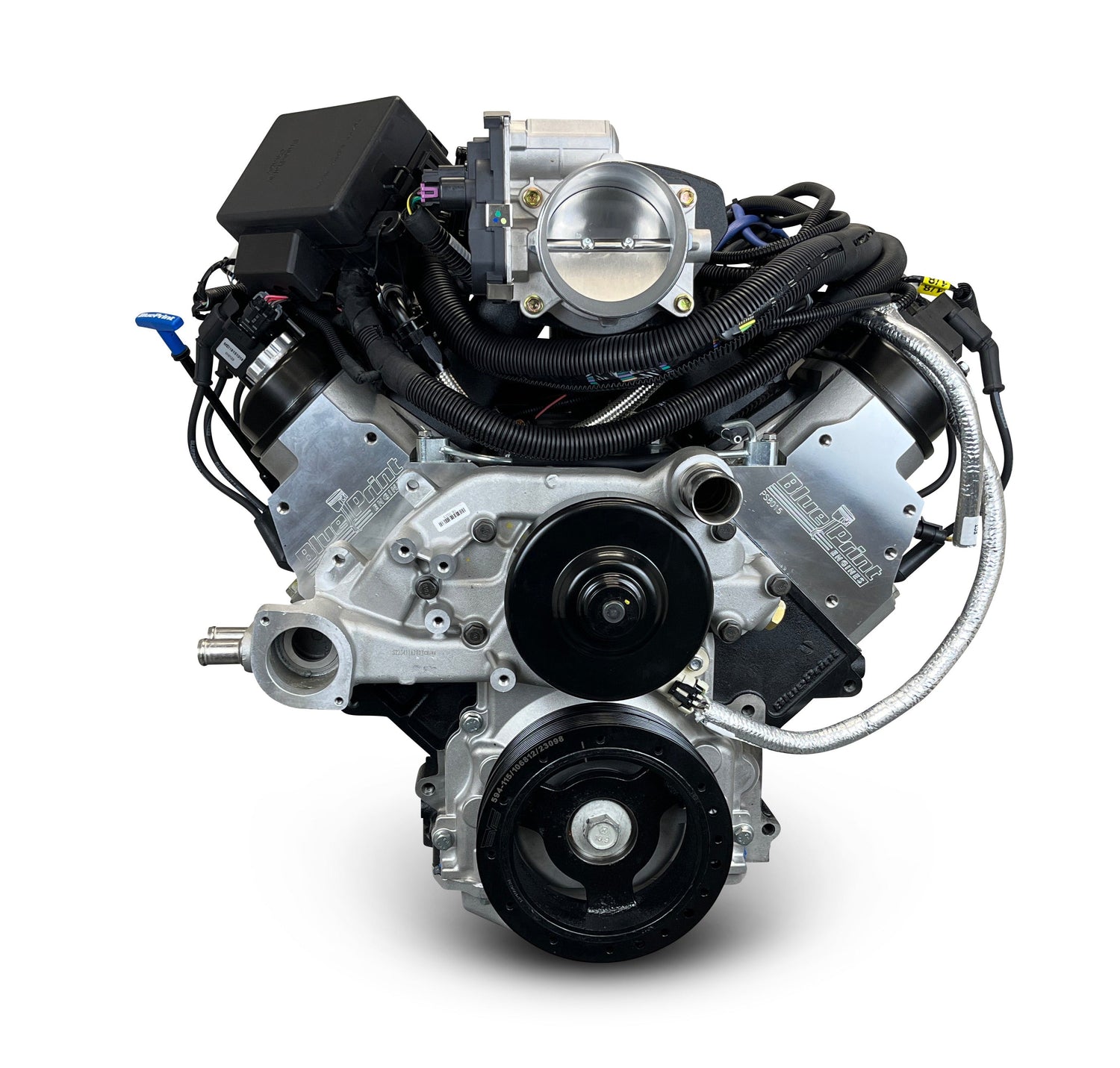

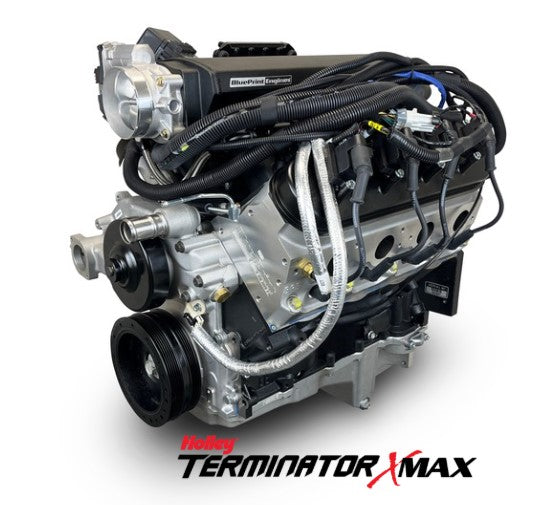

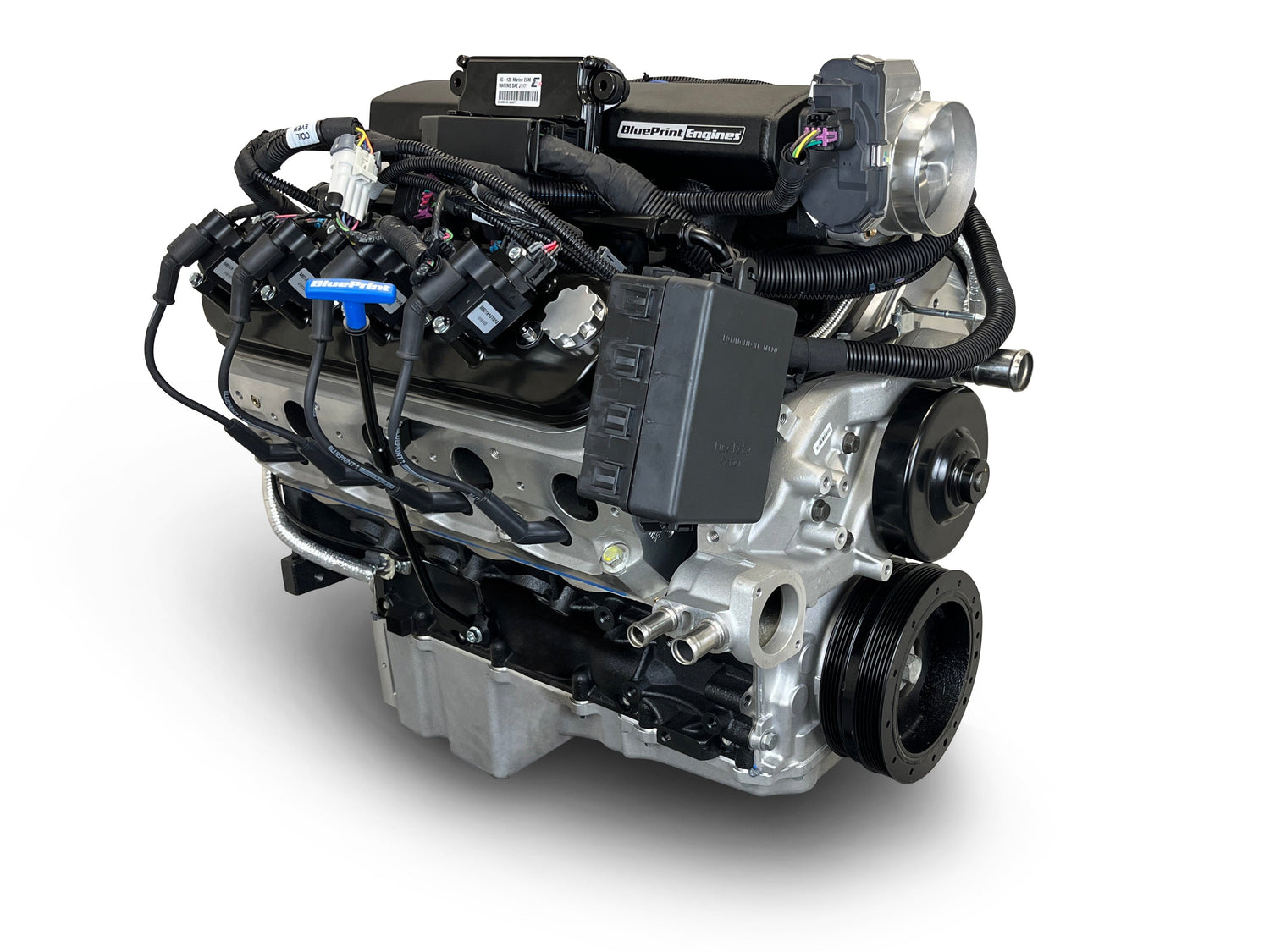

GM LS Compatible 376 c.i. Pro Series Engine - 525 Horsepower - Base Dressed - Holley Terminator X EFI System
GM LS Compatible 376 c.i. Pro Series Engine - 525 Horsepower - Base Dressed - Holley Terminator X EFI System is backordered and will ship as soon as it is back in stock.
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
GM LS Compatible 376 c.i. Pro Series Engine - 525 Horsepower - Base...
GM LS Compatible 376 c.i. Pro Series Engine - 525 Horsepower - Base Dressed - Holley Terminator X EFI System is backordered and will ship as soon as it is back in stock.
Highlight title
Text to highlight a key feature of your product
Description
Description
Overview:
This LS3 compatible engine build is a formidable fusion of strength, precision, and performance, anchored by BluePrint Engines’ high-strength cast iron LSX-style block. It churns out a commanding 525 horsepower and 460 ft. lbs. of torque, with a 10.7:1 compression ratio that ensures both power and efficiency. The setup features BluePrint’s aluminum heads, hydraulic roller cam, and hypereutectic pistons, all working in concert with a nodular iron crankshaft for durability under high-stress conditions. Air and fuel delivery are optimized through a Holley Terminator X Max system, LS3 fabricated aluminum intake manifold, and a matched injector and fuel rail kit. The LS Swap oil pan ensures seamless integration, while the drive-by-wire throttle body adds modern responsiveness. Altogether, this engine is engineered to deliver relentless performance with rock-solid reliability—perfect for enthusiasts who demand power without compromise.
Description:
- Horsepower & Torque: 525 Horsepower / 460 ft. lbs. Torque
- Compression Ratio: 10.7:1
- BluePrint Engines LS3 Aluminum Heads
- BluePrint Engines Hydraulic Roller Cam
- BluePrint Engines Hypereutectic Pistons
- Nodular Iron Crankshaft
Block:
- BluePrint Engines High Strength Cast Iron (LSX Style) Block
- Increased Deck Thickness and Strength Webbing
- Utilizes OEM LS3 Front and Rear Covers
- Improved Water Jacket Design
- Extended Cylinder Skirt
- 1-Piece Rear Main Seal
- Priority Main Oiling
- 4.0622" Bore
- 6-Bolt Main
Rotating Assembly:
- Nodular Iron Crankshaft
- 3.622" Stroke
- 6.098" Connecting Rods w/ 150,000 PSI Bolts
- Hypereutectic Pistons
- Internally Balanced Front and Rear
Cylinder Heads:
- BluePrint LS3 Aluminum Cylinder Heads - PS8015
- 69cc Chamber
- 2.165" Intake / 1.590" Exhaust Valves
- 259cc Intake / 102cc Exhaust Runners
Cam Specs:
- Hydraulic Roller Cam
- .612 Intake / .585 Exhaust Lift
- 225 Intake / 238 Exhaust Duration
- @.050-113 Degree Lobe Separation

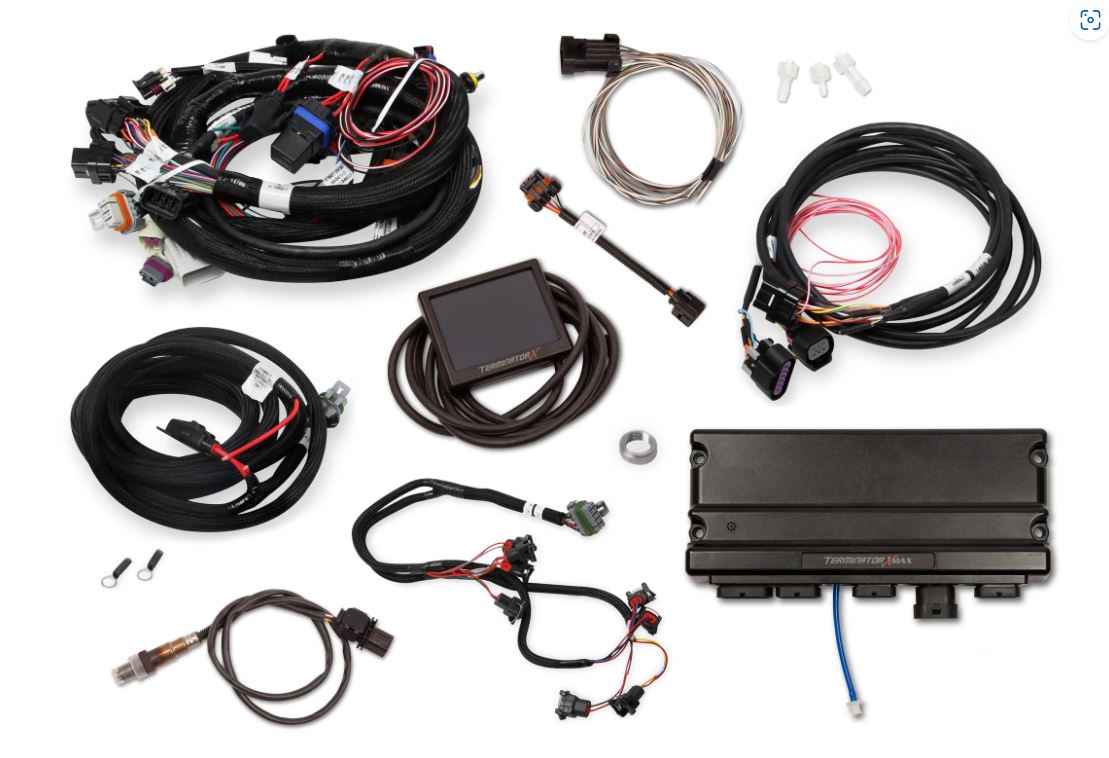

Holley Terminator X Max Specific Features and Benefits:
- Real Time Fuel Map Learning Simplifies Tuning by Dynamically Adjusting the Base Fuel Rate
- On Board Bosch LSU 4.9 Wideband Control, Enabling Accurate AFR Readings and Closed Loop Tuning
- Eight High Impedance Injector Drivers, Ideal for Stock LS Injectors and Holley EFI Injectors
- Integrated 1-Bar MAP Sensor for Naturally Aspirated or Nitrous Setups, with Harness Support for External Higher Bar Sensors if needed
- 4 Configurable Inputs (12V, Ground, 5V, Frequency) and 2 Outputs (Ground, PWM) - Ideal for Electric Fans, Boost Control Solenoids, Nitrous Control and more
- Free PC Tuning Software via USB/CAN Interface for Full Laptop Control and Advance Setup
- Integrated 3.5" Touchscreen Handheld with Setup Wizard, Internal Data Logging, and Real Time Gauge Displays
- Terminator X Max ECU will Include a Base Timing Map Pre-Configured for this engine
Also Includes:

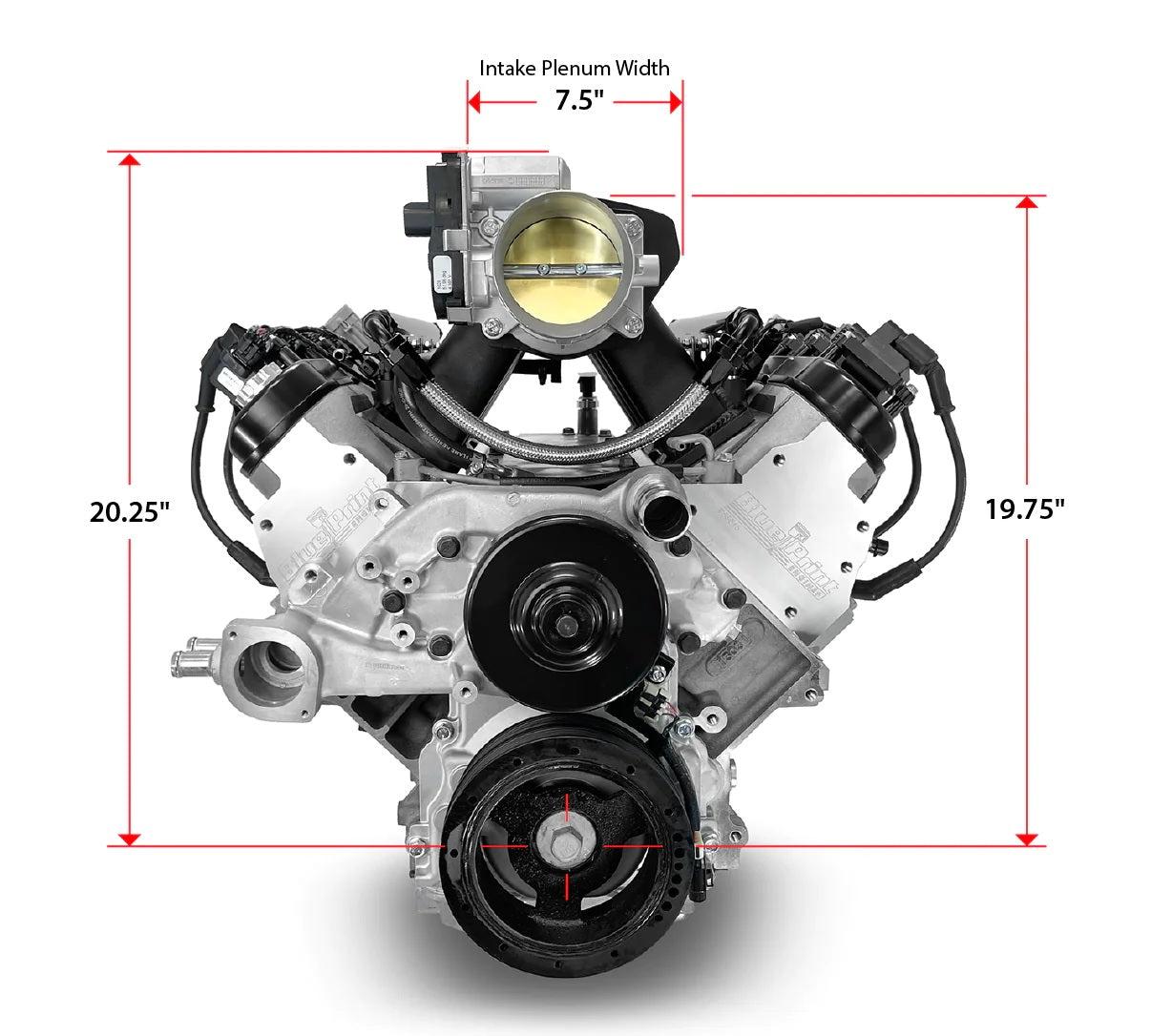

- LS3 Fabricated Aluminum Intake Manifold - BPP822112
- Drive by Wire Throttle Body - BPP12191019
- LS Swap Oil Pan - BPP81073
- Water Pump - BPPLS126WP
- Injectors and Fuel Rail Kit
- Spark Plugs and Wires
- Harmonic Balancer
- Throttle Pedal
- Timing Cover
- Valve Covers
- Coil Packs
Notes:
- This Holley EFI Equipped engine has a fully calibrated ECU by BluePrint Engines. Please DO NOT follow the Holley EFI manual for the calibration of the ECU.
- This engine requires a non-weighted flex plate/flywheel.
- Retro fit oil pan will fit most 1955-1995 GM front engine, RWD, V8 cars.
- Not for use in pollution-controlled vehicles or in dry sump applications.
