Garrett PowerMax Stage 2
Features & Details:
- Direct-fit Stage 2 upgrade
- Compressor housing inlet (2.75”) is larger than stock to allow for increased flow and optimized surge port
- Adapter for stock inlet tube included with turbo kit
- 700+ BHP capability*
-
Compressor Info:
•Inducer: 45mm
•Exducer: 60mm
•Trim: 57
•A/R: 0.45 -
Turbine Info:
•Inducer: 50mm
•Exducer: 46mm
•Trim: 84 - Complete assembly with calibrated electric actuator
- Billet compressor wheel with 54% increased flow
- Inconel turbine wheel with 52% increased flow
- Modern compressor and turbine wheel aero
- Tuned ported shroud for optimal compressor surge and choke performance
Description:

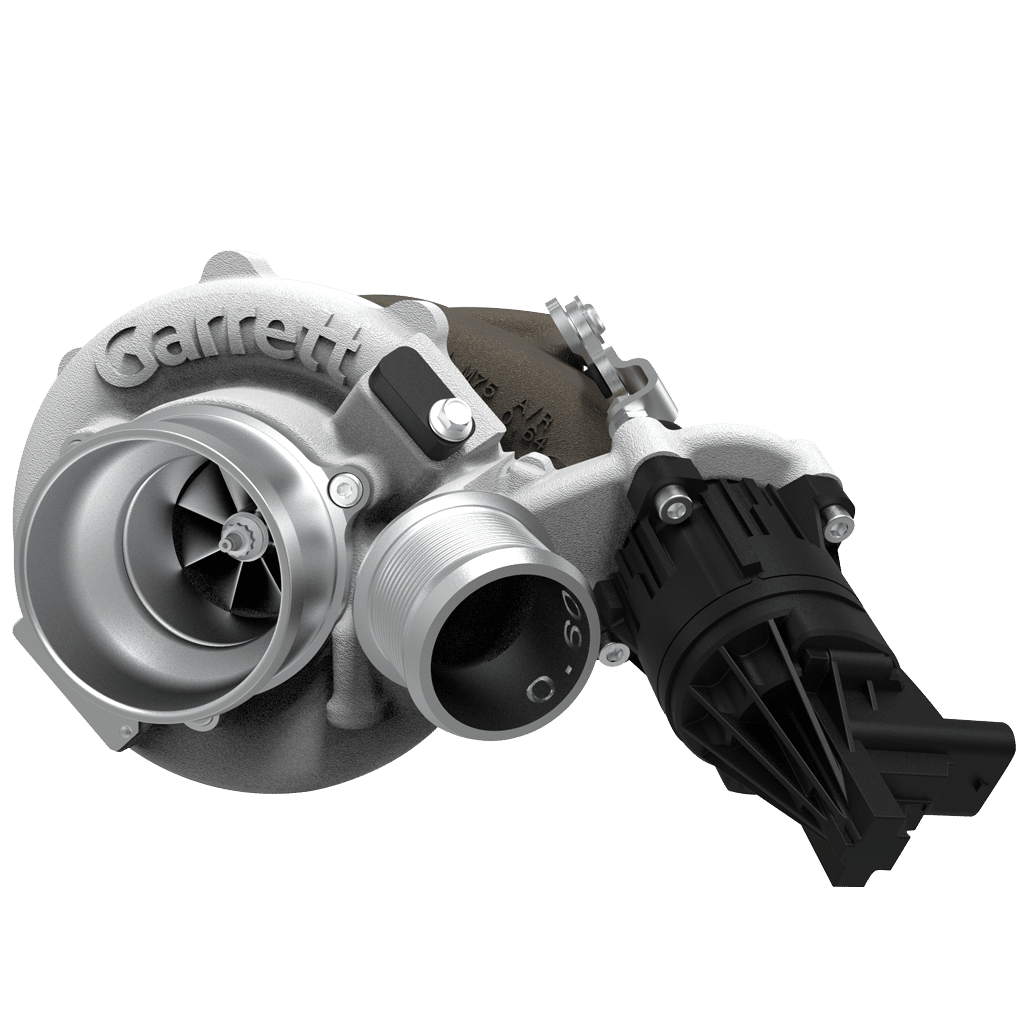

The Garrett PowerMax Stage 2 turbocharger upgrade for the 2017, 2018, 2019, and 2020 F-150 and Raptor 3.5L Ecoboost platform is engineered to increase engine performance capability while maintaining OEM installation specifications. This direct drop-in Stage 2 upgrade provides 54% more flow than OEM and will support up to 700+ BHP *. Improvements in compressor efficiency and flow can be attributed to the 60mm fully-machined compressor wheel. Turbine flow is increased by 52% compared to OEM with a 50mm Inconel turbine wheel and larger 0.60 A/R turbine housing. This turbocharger kit comes fully assembled, calibrated, and is outline interchangeable with the OE hardware to ensure a perfect fit every time.
