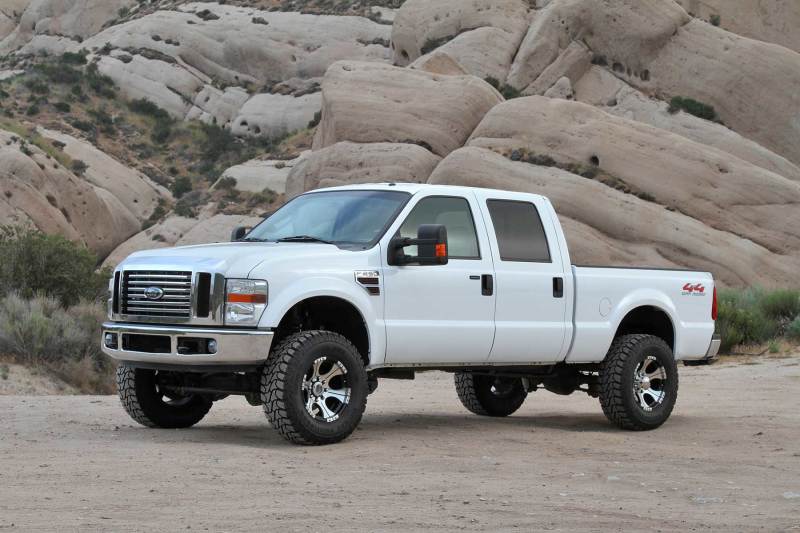

Fabtech 08-16 Ford F250/350/450 4WD 8 Lug 4in Budget Sys w/Perf Shks

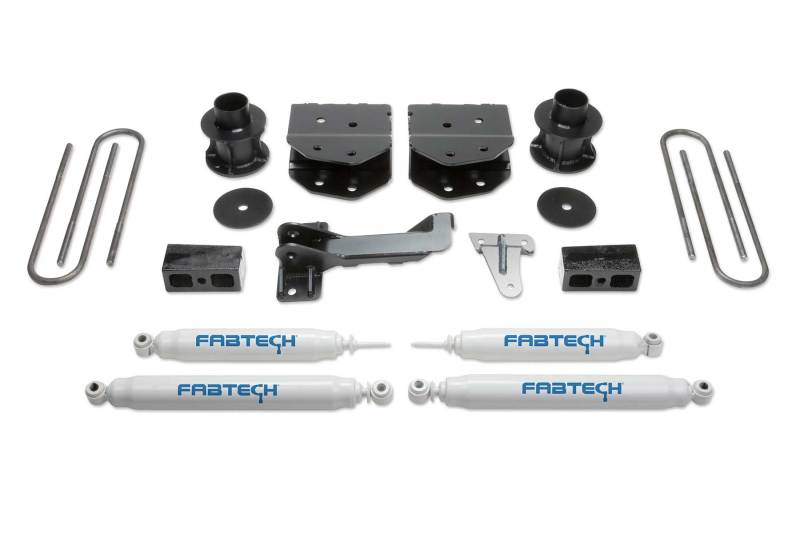

To enhance our extensive line of Super Duty suspension systems we have developed an entry level 4'' Budget System. The 4'' Budget System utilizes the factory front coil springs with a steel upper spacer providing 4'' of lift. Radius Arm drop brackets retain the factory arms with correct caster setting for the increase ride height. System includes a Trac Bar relocation bracket that has been designed to center the axle under the vehicle and still works properly with the factory Pitman Arm. This eliminates the need to replace the Pitman Arm resulting in a lower cost and faster installation time. Rear lift is accomplished with lift blocks and extended length u-bolts. System allows installation of 35'' tall tires with required inner fenderwell trimming for adequate tire clearance for street driving and light offroad use.

This Part Fits:

Year	Make	Model	Submodel
2009-2010	Ford	F-250 Super Duty	Cabela's
2008-2009	Ford	F-250 Super Duty	FX4
2008-2010	Ford	F-250 Super Duty	Harley-Davidson Edition
2008-2016	Ford	F-250 Super Duty	King Ranch
2008-2016	Ford	F-250 Super Duty	Lariat
2013-2016	Ford	F-250 Super Duty	Platinum
2008-2016	Ford	F-250 Super Duty	XL
2008-2016	Ford	F-250 Super Duty	XLT
2009-2010	Ford	F-350 Super Duty	Cabela's
2008-2009	Ford	F-350 Super Duty	FX4
2008-2010	Ford	F-350 Super Duty	Harley-Davidson Edition
2008-2016	Ford	F-350 Super Duty	King Ranch
2008-2016	Ford	F-350 Super Duty	Lariat
2013-2016	Ford	F-350 Super Duty	Platinum
2008-2016	Ford	F-350 Super Duty	XL
2008-2016	Ford	F-350 Super Duty	XLT
