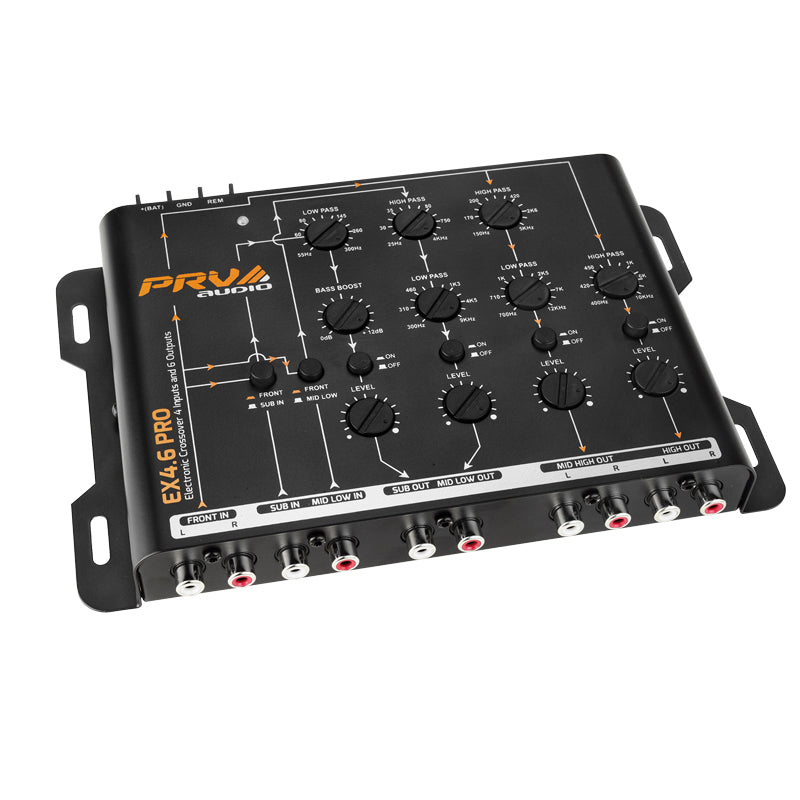

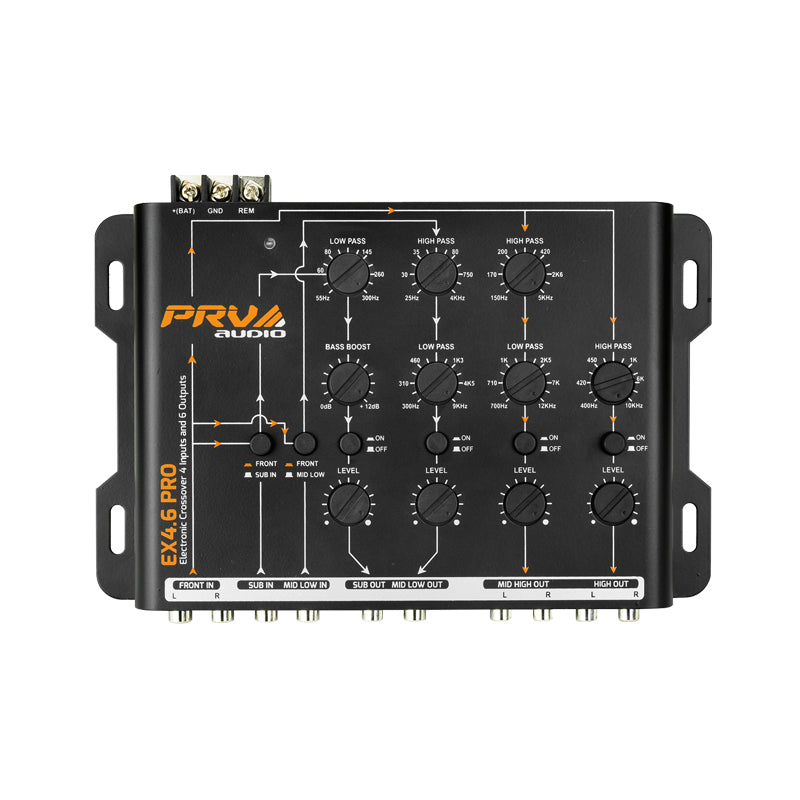

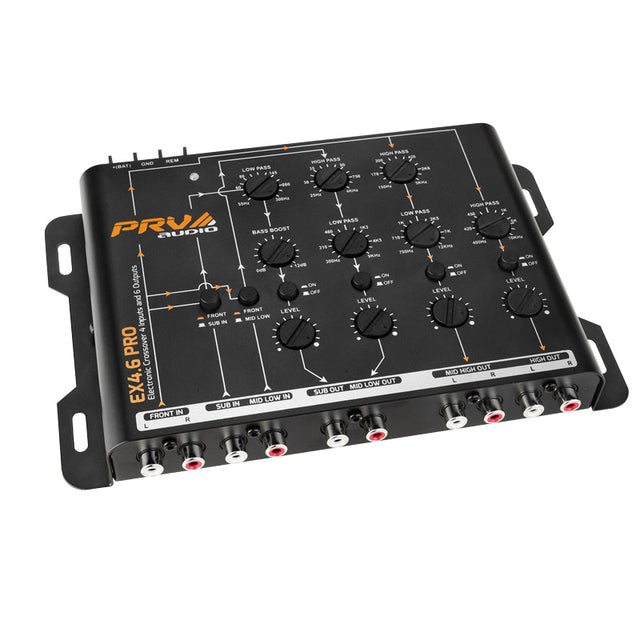

PRV Audio EX4.6 PRO 4-Way Crossover
PRV Audio EX4.6 PRO 4-Way Crossover is backordered and will ship as soon as it is back in stock.
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
PRV Audio EX4.6 PRO 4-Way Crossover
PRV Audio EX4.6 PRO 4-Way Crossover is backordered and will ship as soon as it is back in stock.
Highlight title
Text to highlight a key feature of your product
Description
Description
Description
Bringing innovation and technology to the automotive sound market, PRV Audio launches the EX4.6 PRO electronic crossover, giving you the power to customize your sound with a wide frequency of filter adjustments. Featuring 4-way adjustable HIGH PASS and LOW PASS filters and also output level control on each channel, plus adjustable BASS-BOOST option on the Sub Out channel. Enhancing Your Audio System!
Highlights
- 2/3/4 RCA Input Signal Options
- 9 Volts RMS maximum output
- Bass Boost 0 to 12dB set at 45Hz
- Quick On/Off button for each channel
- Crossover slope rate: Butterworth 12 db/Octave
Input and output Functions:

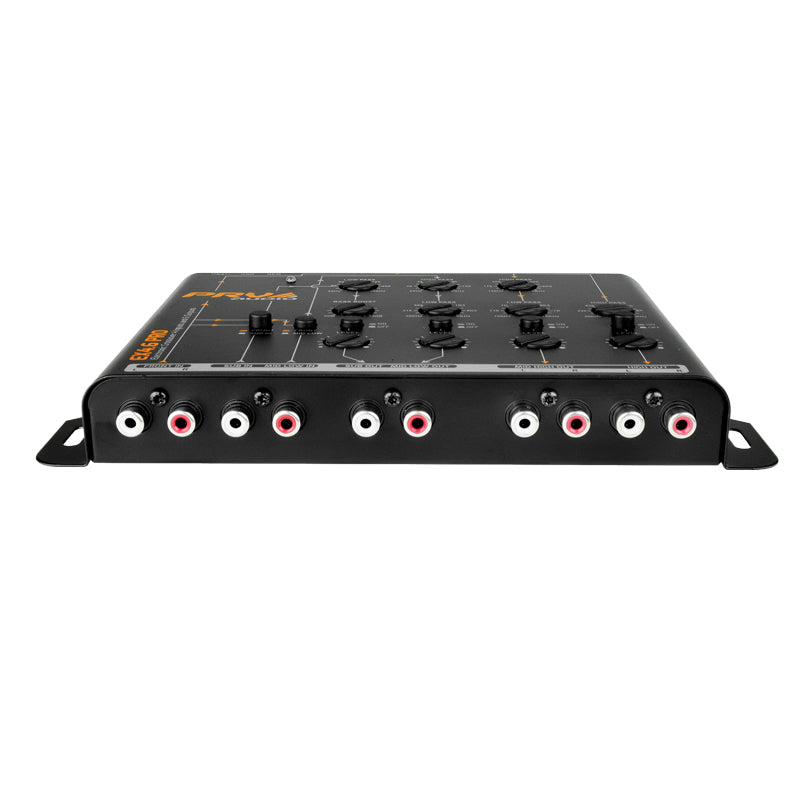

– 2/3/4 RCA inputs for 3 Channels – 1 Stereo and 2 Mono
– 6 RCA outputs for 4 Channels – 2 Stereo and 2 Mono
GENERAL SPECIFICATIONS
| High Out Channel | High Pass – 400Hz – 10KHz (12dB/8a) |
| Mid High Out Channel | High Pass – 150Hz – 5KHz (12dB/8a) |
| Mid Low Out Channel | High Pass – 25Hz – 3KHz (12dB/8a) |
| Sub Out Channel | Low Pass – 50Hz – 250KHz (12dB/8a) Bass Boost – 25Hz – 110Hz (0 – +12dB; 45Hz) |
| Maximum Output Voltage | 9V RMS |
| Maximum Input Voltage | 4V RMS |
| Signal to Noise | >90dB |
| Input Impedance | 10K Ohms |
| Harmonic Distortion | < 0.02% THD |
| Channel Separation | > 80dB |
| Frequency Response | 20Hz-200KHz |
| Supply Voltage | 10V – 16V DC |
| Current Consumption | 200mA |
| Impedance Output | 470 Ohms |
| Dimensions (H x W x L) | 1.30″ x 9″ x 6.30″ |
| Weight | 1.45 Lbs |
