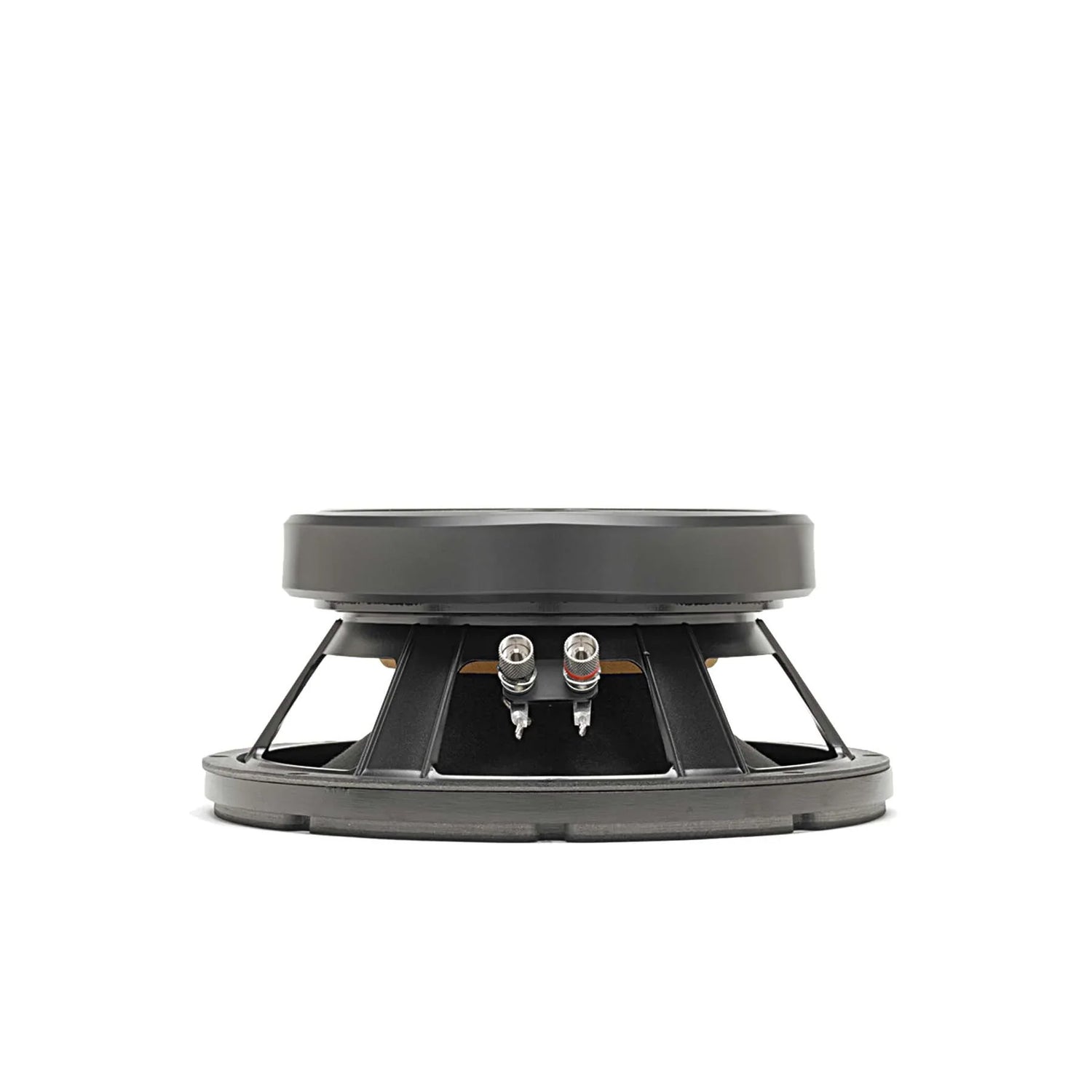

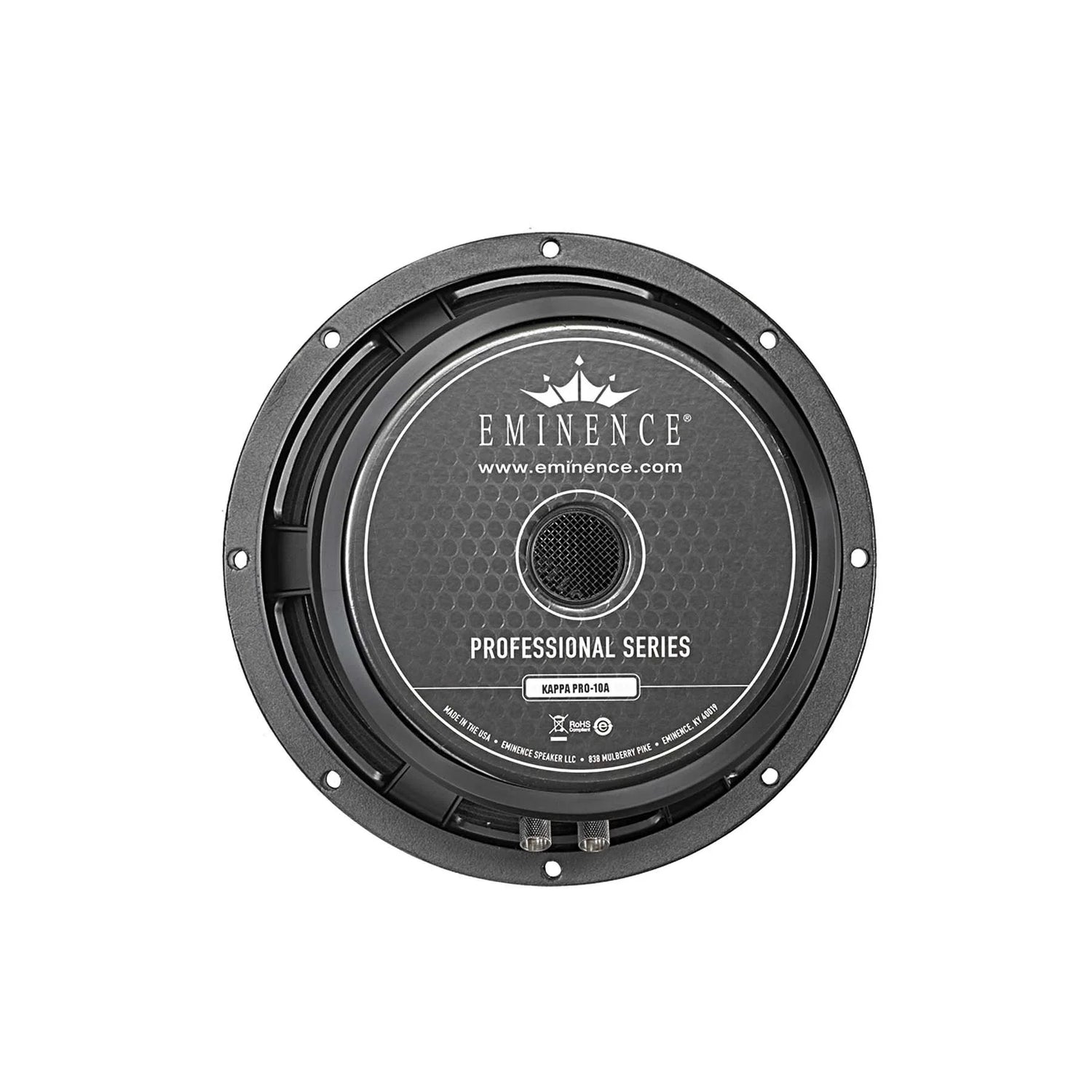

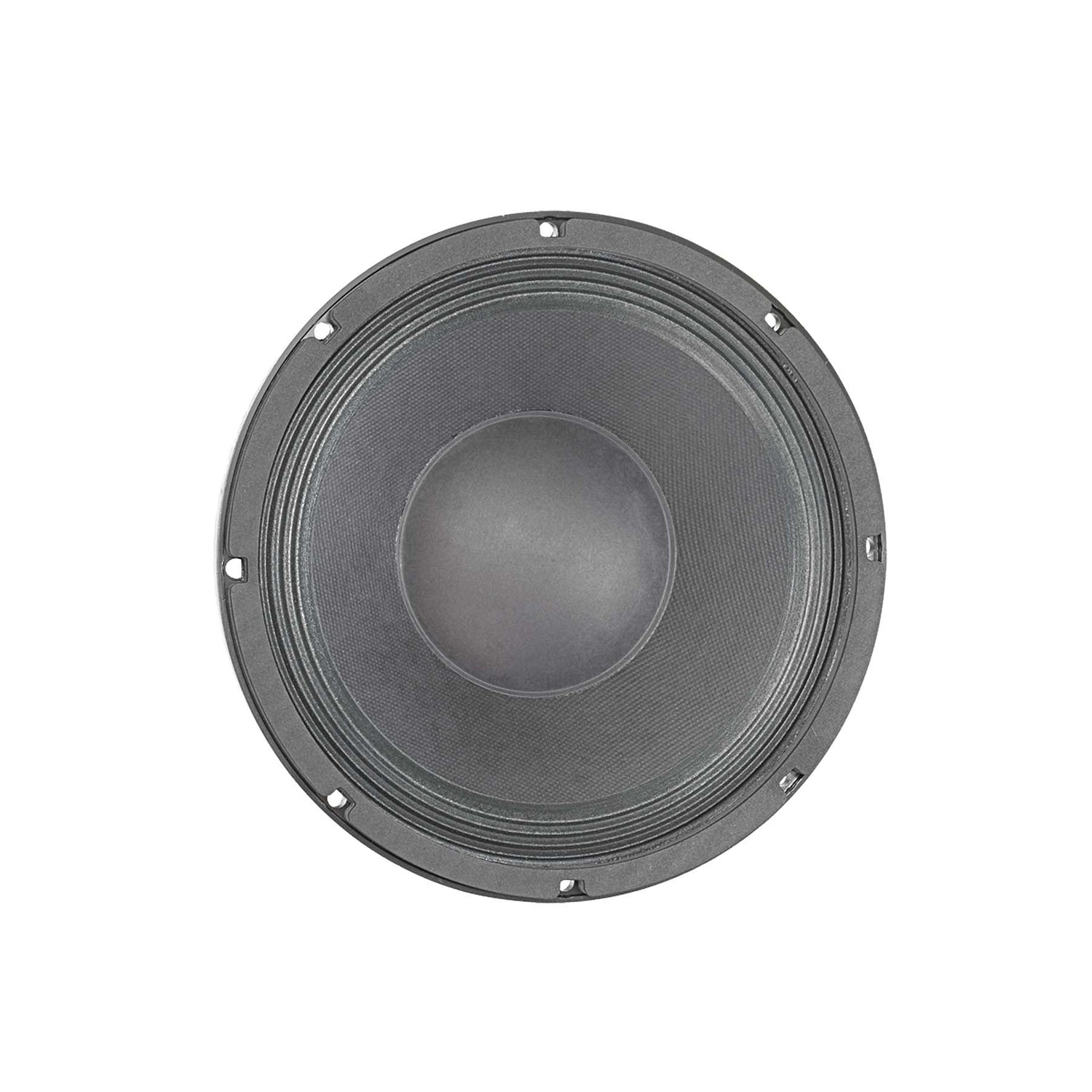

Eminence Kappa Pro-10A 10" Professional Series Speaker
Eminence Kappa Pro-10A 10" Professional Series Speaker is backordered and will ship as soon as it is back in stock.
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
Eminence Kappa Pro-10A 10" Professional Series Speaker
Eminence Kappa Pro-10A 10" Professional Series Speaker is backordered and will ship as soon as it is back in stock.
Highlight title
Text to highlight a key feature of your product
Description
Description
| SPECIFICATION | |
| Nominal Basket Diameter | 10", 254 mm |
| Nominal Impedance* | 8 Ω |
| Power Rating* | |
| Program Power | 1000 W |
| Watts | 500 W |
| Resonance | 46 Hz |
| Usable Frequency Range | 102 Hz - 2 kHz |
| Sensitivity* | 97 dB |
| Magnet Weight | 80 oz. |
| Gap Height | 0.375", 9.5 mm |
| Voice Coil Diameter | 3", 76 mm |
| THIELE & SMALL PARAMETERS | |
| Resonant Frequency (fs) | 46 Hz |
| DC Resistance (Re) | 6.5 Ω |
| Coil Inductance (Le) | 1.15m H |
| Mechanical Q (Qms) | 10.1 |
| Electromagnetic Q (Qes) | 0.2 |
| Total Q (Qts) | 0.2 |
| Compliance Equivalent Volume (Vas) | 52.2 liters / 1.84 cu.ft. |
| Peak Diaphragm Displacement Volume (Vd) | 110 cc |
| Mechanical Compliance of Suspension (Cms) | 0.31 mm/N |
| BL Product (BL) | 18.8 T-M |
| Diaphragm Mass Inc. Airload (MMs) | 38 grams |
| Efficiency Bandwidth Product (EBP) | 230 |
| Maximum Linear Excursion (Xmax) | 3.2 mm |
| Surface Area of Cone (Sd) | 344.9 cm2 |
| Maximum Mechanical Limit (Xlim) | 10.9 mm |
| MOUNTING INFORMATION | |
| Recommended Enclosure Volume | |
| Sealed | 7-9.9 liters / 0.25-0.35 cu.ft. |
| Vented | 12-28 liters / 0.43-1 cu.ft. |
| Driver Volume Displaced | 0.061 cu.ft. / 1.72 liters |
| Overall Diameter | 10.25", 260.4 mm |
| Baffle Hole Diameter | 9.13", 231.9 mm |
| Front Sealing Gasket | Yes |
| Rear Sealing Gasket | Yes |
| Mounting Holes Diameter | 0.27", 6.9mm |
| Mounting Holes B.C.D. | 9.75", 247.7mm |
| Depth | 4.33", 110 mm |
| Net Weight | 15.3 lbs, 6.94 kg |
| Shipping Weight | 16.4 lbs, 7.44 kgs |
| MATERIALS OF CONSTRUCTION | |
| Coil Construction | Copper voice coil |
| Coil Former | Polyimide former |
| Magnet Composition | Ferrite magnet |
| Core Details | Vented core |
| Basket Materials | Die-cast aluminum basket |
| Cone Composition | Paper cone |
| Cone Edge Composition | Cloth cone edge |
| Dust Cap Composition | Solid composition paper dust cap |
