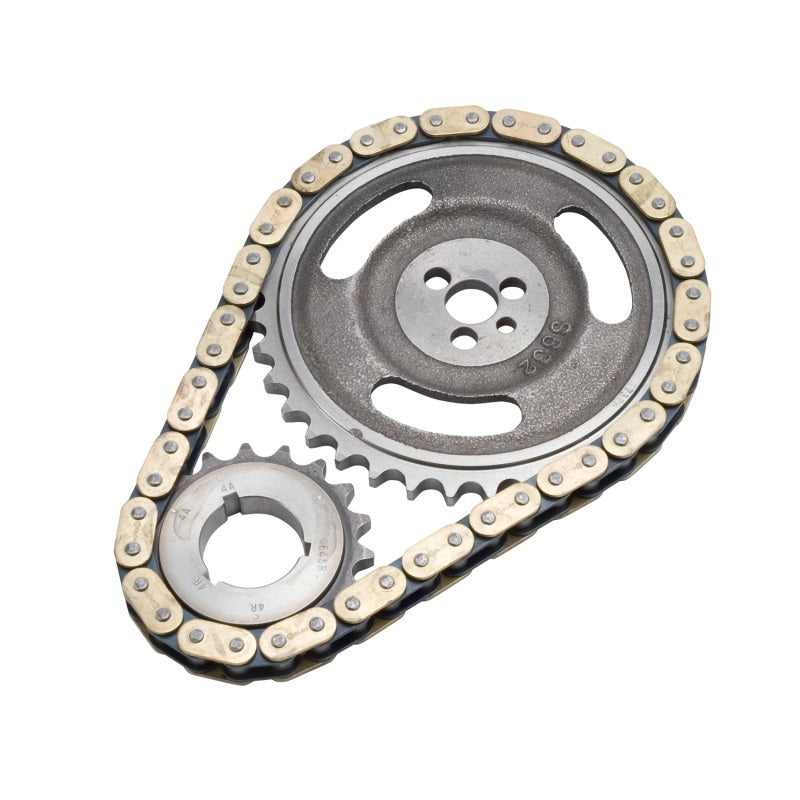

Edelbrock Timing Chain And Gear Set Late SB Chevy

Edelbrock part #7801 Performer-Link timing chain is for use with Edelbrock or stock cams. They have a solid-bushing chain for a true bearing surface that rolls with the sprockets, eliminating chain stretch. Cam sprockets are made from 35,000 psi tensile strength cast iron. Crank sprockets are made from billet SAE-1144 steel and induction heat treated. Four Performer-Link sets are stock replacement parts and 50-state legal (see listings in bold type). All other sets have three keyway setting points to ensure accurate timing selection for early or late-model vehicles. Performer-Link timing sets are not for use above 6500 rpm- ? Performer roller chain sets are engineered to operate up to 6500 rpm.- ? Never hammer directly on chain or sprockets. You can crack the hardened links and pins and cause early failures. - ? Use a sleeve for installations that require hammering, a brass drift punch may be used if you carefully alternate blows on either side of the sprocket to avoid cocking. - ? Never stretch the chain with a screwdriver. - ? Check for clearance between the timing chain and block and between the chain and front cover before reassembly. - ? Be sure that both cam and crank sprockets are exactly in line with each other. Misalignment can cause chain to break
Warranty


This Part Fits:

Year	Make	Model	Submodel
1987-1994	Chevrolet	Astro	Base
1987-1994	Chevrolet	Astro	CL
1987-1994	Chevrolet	Astro	CS
1987-1994	Chevrolet	Astro	LT
1992	Chevrolet	Blazer	Cheyenne
1987	Chevrolet	Blazer	Custom Deluxe
1988-1991	Chevrolet	Blazer	Scottsdale
1987-1992	Chevrolet	Blazer	Silverado
1994-1995	Chevrolet	C1500	Base
1988-1995	Chevrolet	C1500	Cheyenne
1988-1992	Chevrolet	C1500	Scottsdale
1988-1995	Chevrolet	C1500	Silverado
1990-1995	Chevrolet	C1500	WT
1992	Chevrolet	C1500 Suburban	Base
1992	Chevrolet	C1500 Suburban	Silverado
1994-1995	Chevrolet	C2500	Base
1988-1995	Chevrolet	C2500	Cheyenne
1988-1992	Chevrolet	C2500	Scottsdale
1988-1995	Chevrolet	C2500	Silverado
1994-1995	Chevrolet	C2500	WT
1992	Chevrolet	C2500 Suburban	Base
1992	Chevrolet	C2500 Suburban	Silverado
1988-1992	Chevrolet	C3500	Cheyenne
1988-1992	Chevrolet	C3500	Scottsdale
1988-1992	Chevrolet	C3500	Silverado
1988	Chevrolet	Camaro	Base
1987-1990	Chevrolet	Camaro	Iroc-Z
1987	Chevrolet	Camaro	LT
1989-1992	Chevrolet	Camaro	RS
1992	Chevrolet	Camaro	RS Heritage Edition
1987	Chevrolet	Camaro	Sport
1987,1991-1992	Chevrolet	Camaro	Z28
1992	Chevrolet	Camaro	Z28 Heritage Edition
1987-1992	Chevrolet	Caprice	Base
1987-1993	Chevrolet	Caprice	Classic
1987-1990	Chevrolet	Caprice	Classic Brougham
1987-1990	Chevrolet	Caprice	Classic LS Brougham
1991-1992	Chevrolet	Caprice	Classic LTZ
1988	Chevrolet	Corvette	35th Anniversary Edition
1987-1991	Chevrolet	Corvette	Base
1987	Chevrolet	El Camino	Base
1987	Chevrolet	El Camino	SS
1987-1995	Chevrolet	G10	Beauville
1987	Chevrolet	G10	Bonaventure
1987-1995	Chevrolet	G10	Chevy Van
1987-1995	Chevrolet	G10	Sportvan
1987-1995	Chevrolet	G20	Beauville
1987-1995	Chevrolet	G20	Chevy Van
1987-1995	Chevrolet	G20	Sportvan
1987-1993	Chevrolet	G30	Beauville
1987-1995	Chevrolet	G30	Chevy Van
1987-1995	Chevrolet	G30	Hi-Cube
1987-1992	Chevrolet	G30	Sportvan
1994-1995	Chevrolet	K1500	Base
1988-1995	Chevrolet	K1500	Cheyenne
1988-1992	Chevrolet	K1500	Scottsdale
1988-1995	Chevrolet	K1500	Silverado
1991	Chevrolet	K1500	Sport
1990-1995	Chevrolet	K1500	WT
1992	Chevrolet	K1500 Suburban	Base
1992	Chevrolet	K1500 Suburban	Silverado
1994-1995	Chevrolet	K2500	Base
1988-1995	Chevrolet	K2500	Cheyenne
1988-1992	Chevrolet	K2500	Scottsdale
1988-1995	Chevrolet	K2500	Silverado
1994-1995	Chevrolet	K2500	WT
1992	Chevrolet	K2500 Suburban	Base
1992	Chevrolet	K2500 Suburban	Silverado
1988-1992	Chevrolet	K3500	Cheyenne
1988-1992	Chevrolet	K3500	Scottsdale
1988-1992	Chevrolet	K3500	Silverado
1987-1988	Chevrolet	Monte Carlo	Base
1987-1988	Chevrolet	Monte Carlo	LS
1987-1988	Chevrolet	Monte Carlo	SS
1987	Chevrolet	R10	Custom Deluxe
1987	Chevrolet	R10	Scottsdale
1987	Chevrolet	R10	Silverado
1987	Chevrolet	R10 Suburban	Custom Deluxe
1987-1988	Chevrolet	R10 Suburban	Scottsdale
1987-1988	Chevrolet	R10 Suburban	Silverado
1989-1991	Chevrolet	R1500 Suburban	Scottsdale
1989-1991	Chevrolet	R1500 Suburban	Silverado
1988	Chevrolet	R20	Cheyenne
1987-1988	Chevrolet	R20	Custom Deluxe
1987-1988	Chevrolet	R20	Scottsdale
1987-1988	Chevrolet	R20	Silverado
1987	Chevrolet	R20 Suburban	Custom Deluxe
1987-1988	Chevrolet	R20 Suburban	Scottsdale
1987-1988	Chevrolet	R20 Suburban	Silverado
1989	Chevrolet	R2500	Silverado
1989-1991	Chevrolet	R2500 Suburban	Scottsdale
1989-1991	Chevrolet	R2500 Suburban	Silverado
1988	Chevrolet	R30	Cheyenne
1987-1988	Chevrolet	R30	Custom Deluxe
1987-1988	Chevrolet	R30	Scottsdale
1987-1988	Chevrolet	R30	Silverado
1989-1991	Chevrolet	R3500	Cheyenne
1989-1990	Chevrolet	R3500	Scottsdale
1989-1991	Chevrolet	R3500	Silverado
1991	Chevrolet	S10	Baja
1988-1995	Chevrolet	S10	Base
1988-1990	Chevrolet	S10	Durango
1992-1993	Chevrolet	S10	EL
1994-1995	Chevrolet	S10	LS
1988-1989	Chevrolet	S10	Sport
1994-1995	Chevrolet	S10	SS
1988-1992	Chevrolet	S10	Tahoe
1994-1995	Chevrolet	S10	ZR2
1988-1994	Chevrolet	S10 Blazer	Base
1988-1989	Chevrolet	S10 Blazer	High Country
1994	Chevrolet	S10 Blazer	LT
1988-1990,1992	Chevrolet	S10 Blazer	Sport
1988,1990-1994	Chevrolet	S10 Blazer	Tahoe
1991-1994	Chevrolet	S10 Blazer	Tahoe LT
1987	Chevrolet	V10	Custom Deluxe
1987	Chevrolet	V10	Scottsdale
1987	Chevrolet	V10	Silverado
1987	Chevrolet	V10 Suburban	Custom Deluxe
1987-1988	Chevrolet	V10 Suburban	Scottsdale
1987-1988	Chevrolet	V10 Suburban	Silverado
1989-1991	Chevrolet	V1500 Suburban	Scottsdale
1989-1991	Chevrolet	V1500 Suburban	Silverado
1987	Chevrolet	V20	Custom Deluxe
1987	Chevrolet	V20	Scottsdale
1987	Chevrolet	V20	Silverado
1987	Chevrolet	V20 Suburban	Custom Deluxe
1987-1988	Chevrolet	V20 Suburban	Scottsdale
1987-1988	Chevrolet	V20 Suburban	Silverado
1989-1991	Chevrolet	V2500 Suburban	Scottsdale
1989-1991	Chevrolet	V2500 Suburban	Silverado
1988	Chevrolet	V30	Cheyenne
1987-1988	Chevrolet	V30	Custom Deluxe
1987-1988	Chevrolet	V30	Scottsdale
1987-1988	Chevrolet	V30	Silverado
1989-1991	Chevrolet	V3500	Cheyenne
1989-1990	Chevrolet	V3500	Scottsdale
1989-1991	Chevrolet	V3500	Silverado
1988-1992	GMC	C1500	Sierra
1988-1992	GMC	C1500	Sierra SLE
1988-1992	GMC	C1500	Sierra SLX
1992	GMC	C1500 Suburban	Base
1992	GMC	C1500 Suburban	SLE
1988-1992	GMC	C2500	Sierra
1988-1992	GMC	C2500	Sierra SLE
1988-1992	GMC	C2500	Sierra SLX
1992	GMC	C2500 Suburban	Base
1992	GMC	C2500 Suburban	SLE
1988-1992	GMC	C3500	Sierra
1988-1992	GMC	C3500	Sierra SLE
1988-1992	GMC	C3500	Sierra SLX
1987-1992	GMC	G1500	Rally
1987-1992	GMC	G1500	Rally STX
1988-1992	GMC	G1500	Vandura
1987-1992	GMC	G2500	Rally
1987-1992	GMC	G2500	Rally STX
1987-1992	GMC	G2500	Vandura
1987-1992	GMC	G3500	Magnavan
1987-1992	GMC	G3500	Rally
1987-1992	GMC	G3500	Rally Camper Special
1987-1988	GMC	G3500	Rally Custom
1987-1992	GMC	G3500	Rally STX
1987-1992	GMC	G3500	Vandura
1987-1992	GMC	G3500	Vandura Special
1987-1991	GMC	Jimmy	Base
1987-1990	GMC	Jimmy	Sierra Classic
1988-1992	GMC	K1500	Sierra
1988-1992	GMC	K1500	Sierra SLE
1988-1992	GMC	K1500	Sierra SLX
1992	GMC	K1500 Suburban	Base
1992	GMC	K1500 Suburban	SLE
1988-1992	GMC	K2500	Sierra
1988-1992	GMC	K2500	Sierra SLE
1988-1992	GMC	K2500	Sierra SLX
1992	GMC	K2500 Suburban	Base
1992	GMC	K2500 Suburban	SLE
1988-1992	GMC	K3500	Sierra
1988-1992	GMC	K3500	Sierra SLE
1988-1992	GMC	K3500	Sierra SLX
1987	GMC	R1500	Base
1987	GMC	R1500	High Sierra
1987	GMC	R1500	Sierra Classic
1987-1991	GMC	R1500 Suburban	Base
1987	GMC	R1500 Suburban	High Sierra
1987-1989	GMC	R1500 Suburban	Sierra Classic
1990	GMC	R1500 Suburban	SLE
1987-1989	GMC	R2500	Base
1987-1989	GMC	R2500	High Sierra
1987-1989	GMC	R2500	Sierra Classic
1987-1991	GMC	R2500 Suburban	Base
1987	GMC	R2500 Suburban	High Sierra
1987-1989	GMC	R2500 Suburban	Sierra Classic
1990	GMC	R2500 Suburban	SLE
1987-1991	GMC	R3500	Base
1987-1989	GMC	R3500	High Sierra
1987-1989	GMC	R3500	Sierra Classic
1990-1991	GMC	R3500	SLE
1987	GMC	V1500	Base
1987	GMC	V1500	High Sierra
1987	GMC	V1500	Sierra Classic
1987-1991	GMC	V1500 Suburban	Base
