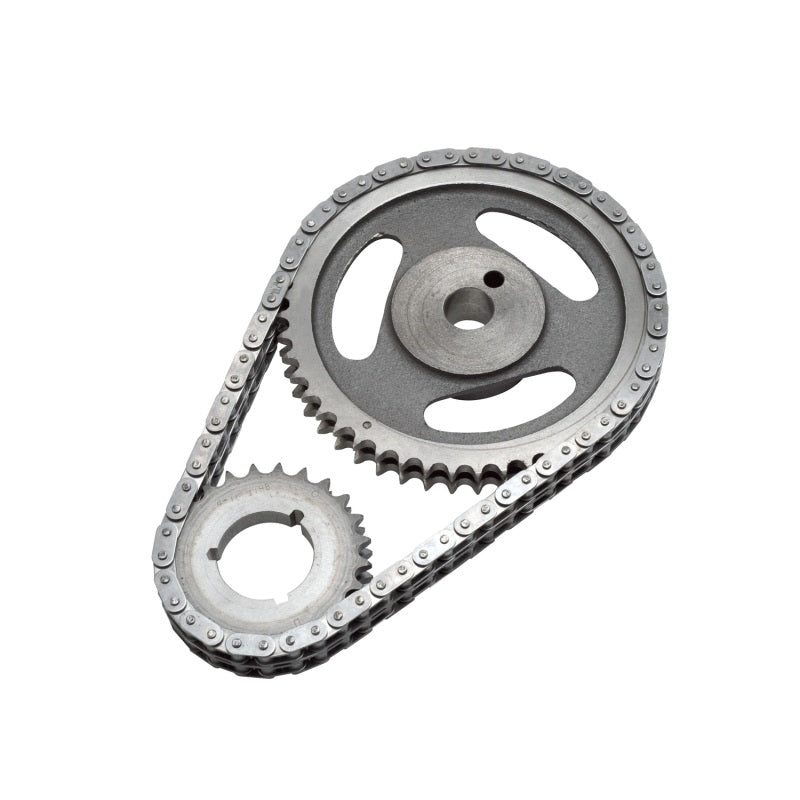

Edelbrock Timing Chain And Gear Set Ford 352-428

Edelbrock part #7808 Performer-Link timing chain is for use with Edelbrock or stock cams. They have a solid-bushing chain for a true bearing surface that rolls with the sprockets, eliminating chain stretch. Cam sprockets are made from 35,000 psi tensile strength cast iron. Crank sprockets are made from billet SAE-1144 steel and induction heat treated. Four Performer-Link sets are stock replacement parts and 50-state legal (see listings in bold type). All other sets have three keyway setting points to ensure accurate timing selection for early or late-model vehicles. Performer-Link timing sets are not for use above 6500 rpm- ? Performer roller chain sets are engineered to operate up to 6500 rpm.- ? Never hammer directly on chain or sprockets. You can crack the hardened links and pins and cause early failures. - ? Use a sleeve for installations that require hammering, a brass drift punch may be used if you carefully alternate blows on either side of the sprocket to avoid cocking. - ? Never stretch the chain with a screwdriver. - ? Check for clearance between the timing chain and block and between the chain and front cover before reassembly. - ? Be sure that both cam and crank sprockets are exactly in line with each other. Misalignment can cause chain to break
Warranty


This Part Fits:

Year	Make	Model	Submodel
1963	Ford	300	Base
1963-1972	Ford	Country Sedan	Base
1963-1971	Ford	Country Squire	Base
1964-1966,1968-1971	Ford	Custom	Base
1964-1966,1968-1971	Ford	Custom 500	Base
1965-1974,1976	Ford	F-100	Base
1975-1976	Ford	F-100	Custom
1975-1976	Ford	F-100	Northland
1975-1976	Ford	F-100	Ranger
1975-1976	Ford	F-100	Ranger XLT
1976	Ford	F-150	Base
1975-1976	Ford	F-150	Custom
1975-1976	Ford	F-150	Northland
1975-1976	Ford	F-150	Ranger
1975-1976	Ford	F-150	Ranger XLT
1965-1974,1976	Ford	F-250	Base
1975-1976	Ford	F-250	Custom
1975-1976	Ford	F-250	Northland
1975-1976	Ford	F-250	Ranger
1975-1976	Ford	F-250	Ranger XLT
1964-1974,1976	Ford	F-350	Base
1975-1976	Ford	F-350	Custom
1975-1976	Ford	F-350	Northland
1975-1976	Ford	F-350	Ranger
1975-1976	Ford	F-350	Ranger XLT
1964-1970	Ford	Fairlane	500
1966-1967	Ford	Fairlane	500XL
1964-1969	Ford	Fairlane	Base
1963-1966	Ford	Galaxie	Base
1963-1971	Ford	Galaxie 500	Base
1963-1964	Ford	Galaxie 500	Sunliner
1963-1964	Ford	Galaxie 500	Victoria
1963-1970	Ford	Galaxie 500	XL
1965-1966,1968-1971	Ford	LTD	Base
1970-1971	Ford	LTD	Brougham
1967-1970	Ford	Mustang	Base
1969-1970	Ford	Mustang	Boss 429
1970	Ford	Mustang	Grande
1970	Ford	Mustang	Mach 1
1968-1970	Ford	Mustang	Shelby GT-500
1968	Ford	Mustang	Shelby GT-500KR
1963-1971	Ford	Ranch Wagon	Base
1970	Ford	Ranch Wagon	Police Cruiser
1967-1969	Ford	Ranchero	500
1967	Ford	Ranchero	500 XL
1967-1969	Ford	Ranchero	Base
1968-1969	Ford	Ranchero	GT
1963-1968	Ford	Thunderbird	Base
1968-1969	Ford	Torino	Base
1969	Ford	Torino	Cobra
1968-1969	Ford	Torino	GT
1969	Ford	Torino	Squire
1963-1970	Mercury	Colony Park	Base
1965	Mercury	Comet	202
1965-1969	Mercury	Comet	Base
1964-1968	Mercury	Commuter	Base
1967-1970	Mercury	Cougar	Base
1969-1970	Mercury	Cougar	Cobra Jet
1967-1970	Mercury	Cougar	XR-7
1963-1967,1969-1970	Mercury	Marauder	Base
1969-1970	Mercury	Marauder	X-100
1967-1970	Mercury	Marquis	Base
1969-1970	Mercury	Marquis	Brougham
1964-1968	Mercury	Montclair	Base
1968-1969	Mercury	Montego	Base
1968-1969	Mercury	Montego	MX
1963-1970	Mercury	Monterey	Base
1963,1969-1970	Mercury	Monterey	Custom
1963,1966-1967	Mercury	Monterey	S-55
1964-1968	Mercury	Park Lane	Base
1965-1967	Mercury	Villager	Base
1966-1967	Mercury	Voyager	Base
