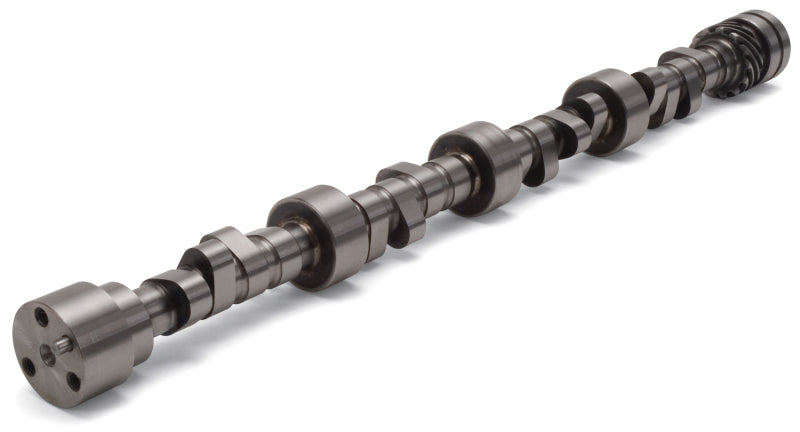

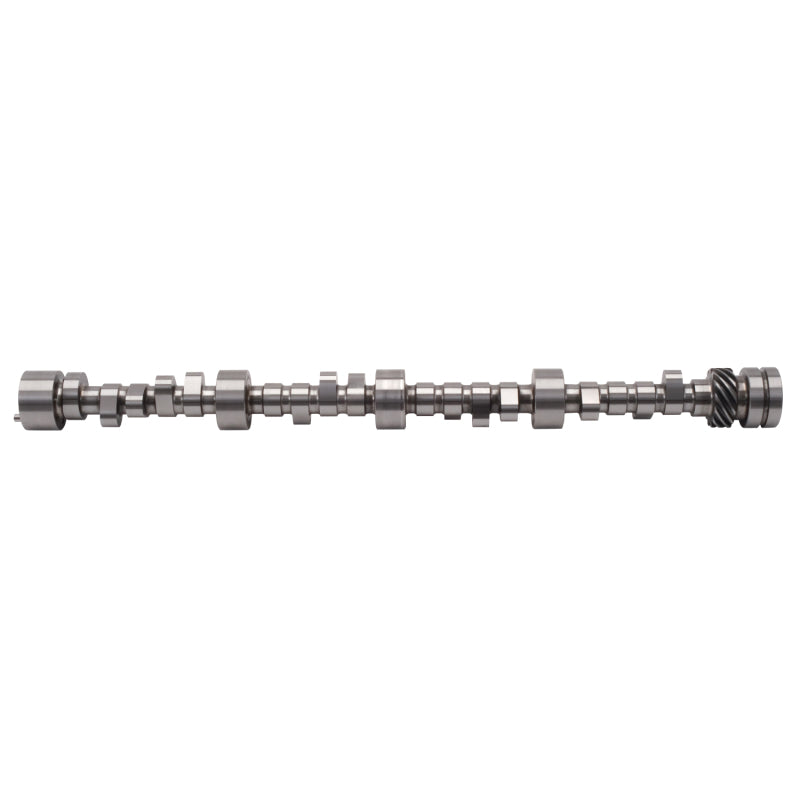

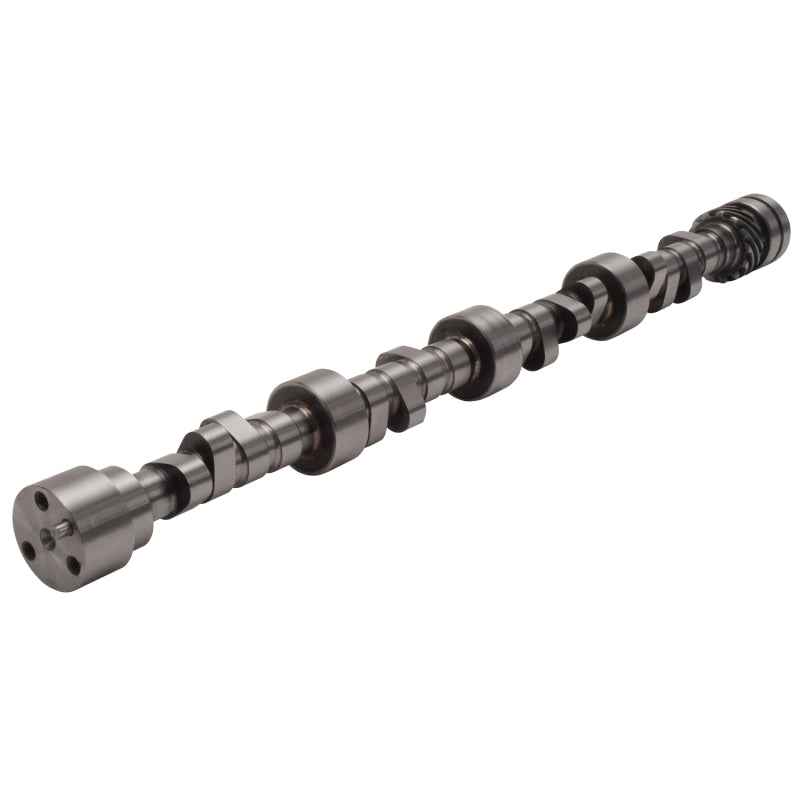

Edelbrock Rollinthunder Camshaft Hydraulic Roller for Chevy 348/409

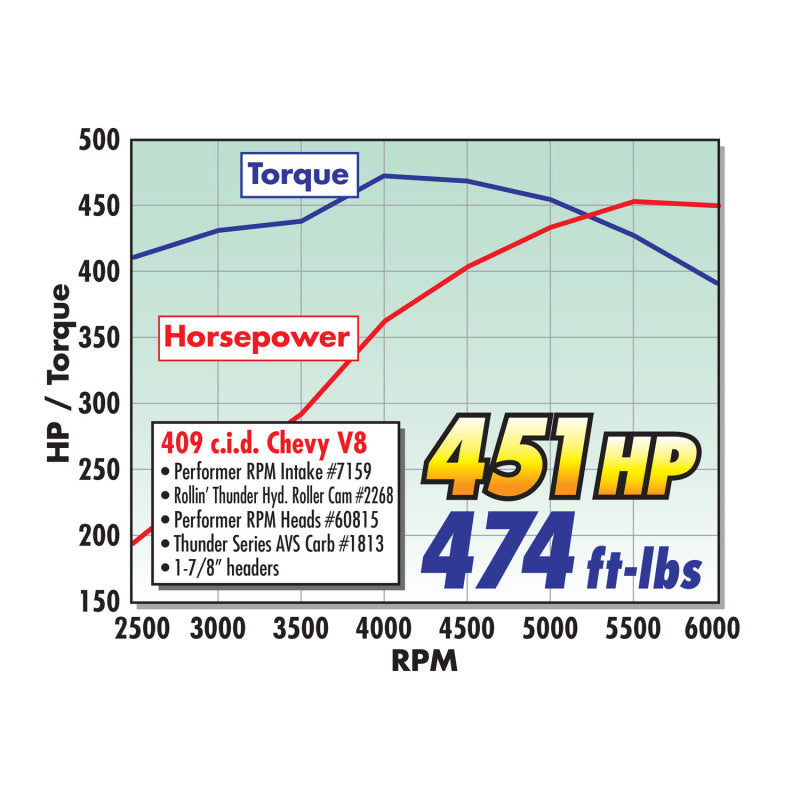

Edelbrock Rollin' Thunder Camshaft #2268 is designed for 348/409 (W Series) engines from 1958-65 and produce optimum torque from the low-end to the mid-range. Rollin' Thunder camshafts match with Performer manifolds for vehicles operating from off-idle to 5500 rpm. They are smooth idling cams for daily drivers, trucks, vans, RVs and 4x4s. You can expect a major improvement in throttle response and torque. In the manifold section you'll find torque graphs showing the power gains from Performer manifolds and Performer-Plus cams. All camshafts include flat tappet lifters (except for cams designed for use with stock roller lifters), assembly lube and instructions. This cam produced 451HP and 470 Ft Lbs of Torque when paired with Performer RPM intake manifold #7159, Performer Series Carbs #1412, Performer RPM cylinder heads #60815 and Edelbrock roller tappet lifter set #97423. Must use a high stall torque converter. Camshaft specifications: - Intake duration: 230 Degrees - Exhaust duration: 234 Degrees - Intake lift: .616" - Exhaust lift: .628" - Lobe separation: 112 Degree - Intake Center Line: 107 - Vacuum: 10"
Installation Instructions
Installation Instructions
Technical Bulletin
Installation Instructions


This Part Fits:

Year	Make	Model	Submodel
1961-1965	Chevrolet	Bel Air	Base
1961-1965	Chevrolet	Biscayne	Base
1961	Chevrolet	Brookwood	Base
1961	Chevrolet	C10 Pickup	Base
1961	Chevrolet	C20 Pickup	Base
1961	Chevrolet	C30 Pickup	Base
1961-1965	Chevrolet	Impala	Base
1964-1965	Chevrolet	Impala	SS
1961	Chevrolet	K10 Pickup	Base
1961	Chevrolet	K20 Pickup	Base
1961	Chevrolet	Kingswood	Base
1961	Chevrolet	Nomad	Base
1961	Chevrolet	Parkwood	Base
1961	Chevrolet	Suburban	Base
