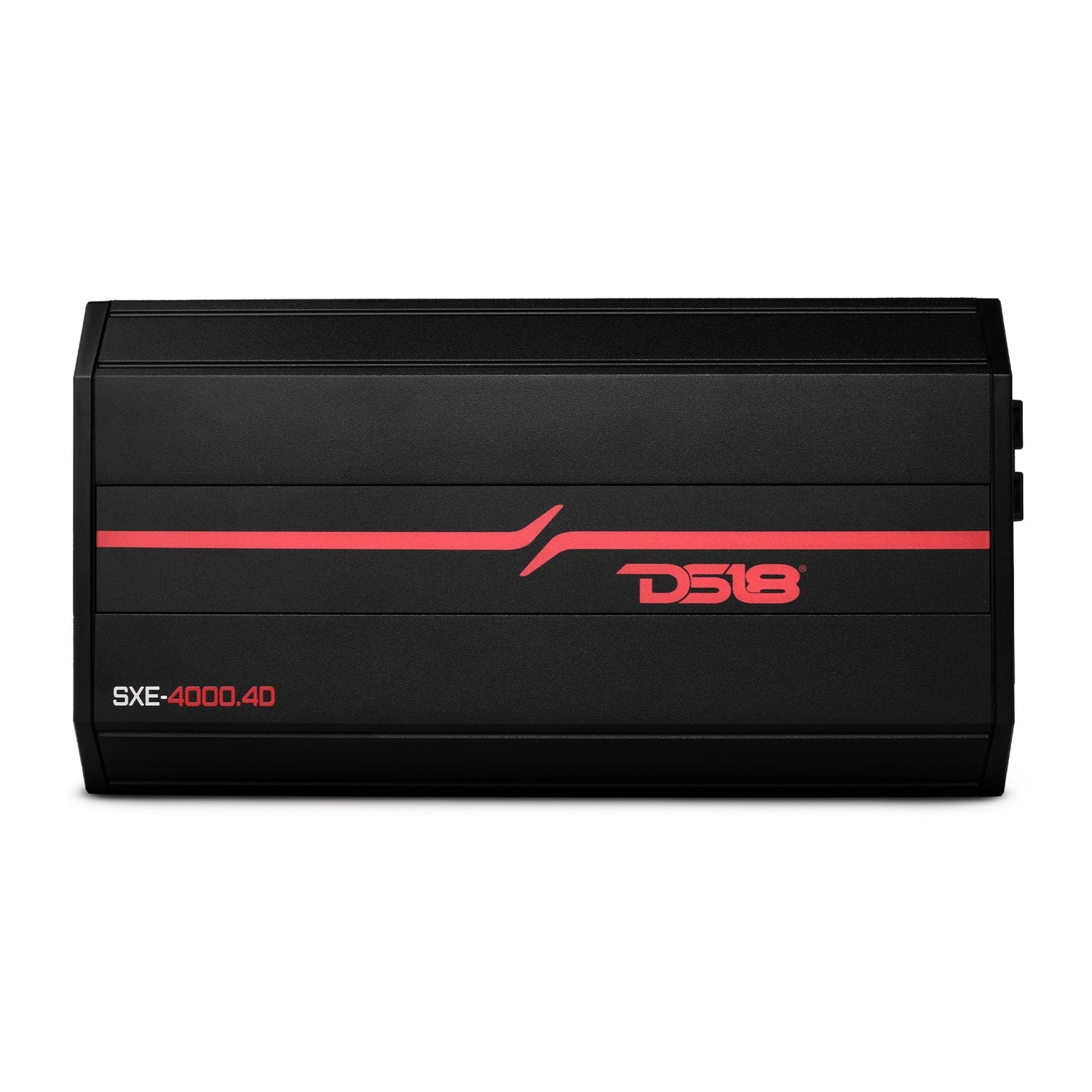

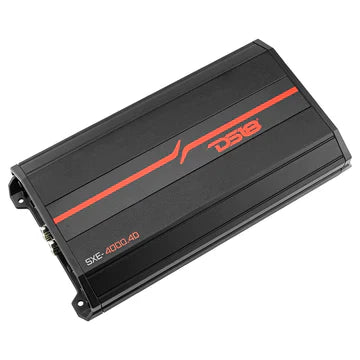

DS18 SXE-4000.4D SXE Class D 4-Channel Full-Range Car Amplifier 4 x 275 RMS @4 Ohm 4000 Watts
DS18 SXE-4000.4D SXE Class D 4-Channel Full-Range Car Amplifier 4 x 275 RMS @4 Ohm 4000 Watts - Black is backordered and will ship as soon as it is back in stock.
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
DS18 SXE-4000.4D SXE Class D 4-Channel Full-Range Car Amplifier 4 x...
DS18 SXE-4000.4D SXE Class D 4-Channel Full-Range Car Amplifier 4 x 275 RMS @4 Ohm 4000 Watts - Black is backordered and will ship as soon as it is back in stock.
Highlight title
Text to highlight a key feature of your product
Description
Description
| Specifications | |
| POWER | |
| Total Watts (Peak) | 4000W |
| RMS Power @ 4 ohms | 4 x 275W |
| RMS Power @ 2 ohms | 4 x 430W |
| RMS Power @ 1 ohm | / |
| RMS Power @ 4 ohms Bridge | 2 x 750W |
| AUDIO | |
| Frequency Response | 10Hz-20KHz |
| Signal to Noise Ratio | 90dB |
| Efficiency @ 4 ohms | 86% |
| Damping Factor | 140 |
| Input Impedance | 20kΩ |
| Channel Separation | 45dB |
| Total Harmonic Distortion (THD) | 0.05% |
| Low Level Input Range | 200mV-5V |
| High Level Input | / |
| Selectable X-Over | HPF/FULL/LPF |
| X-Over Filter Range | 40Hz-2KHz |
| Bass Boost Range | / |
| Bass Boost Frequency | / |
| Infrasonic Filter | / |
| Phase Selector | / |
| FEATURES | |
| Amplifier Class | Digital (D) |
| Amplifier Type | Stereo Full Range |
| Number of Channels | 4 |
| Minimum Impedance | 2 Ohms Stereo / 4 Ohms Bridge |
| Led Indicator | Power/Protect/Clip |
| Power Input Terminal Size | 4 Ga |
| Fuse Size | External fuse |
| Remote Level Control | / |
| Cooling Fan | / |
| Voltmeter | / |
| Thermal Protection | Yes (80℃) |
| Over-Load Protection | Yes |
| DC Output Protection | Yes |
| Short Circuit Output Protection | Yes |
| Voltage Input Protection | Yes (16.5v) |
| Clipping Protection | Yes |

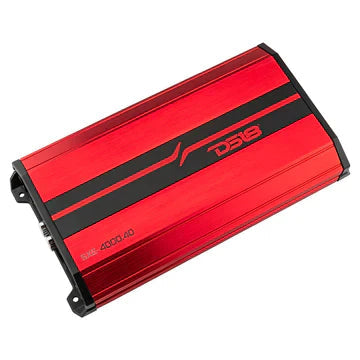

| Body Color / Finish | Red / Black Brushed Aluminum |
| MEASUREMENT | |
| Overall Length | 10.6" / 269mm |
| Overall Wide | 5.5" / 140mm |
| Overall Height | 1.8" / 48mm |
| Heatsink Length | 9.1" / 232mm |
| Gross Single Unit Weight | 2.05Kg |
