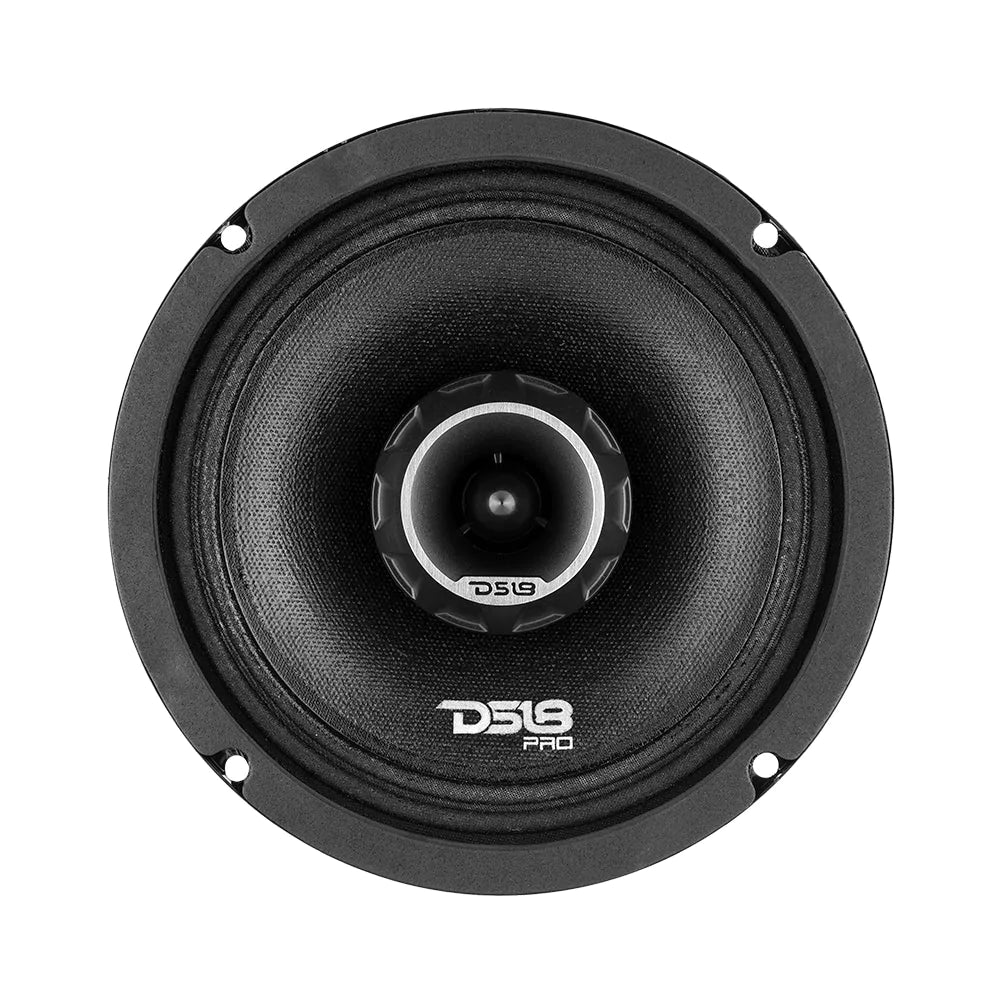

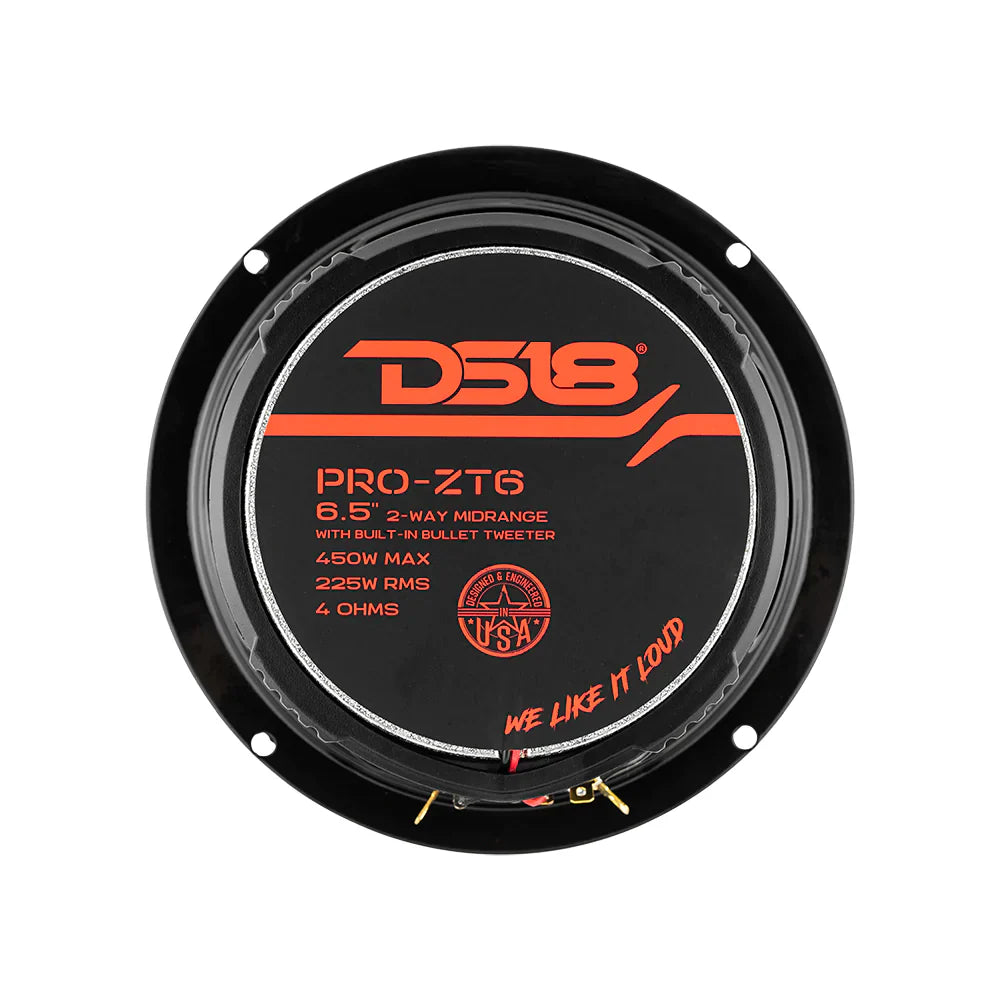

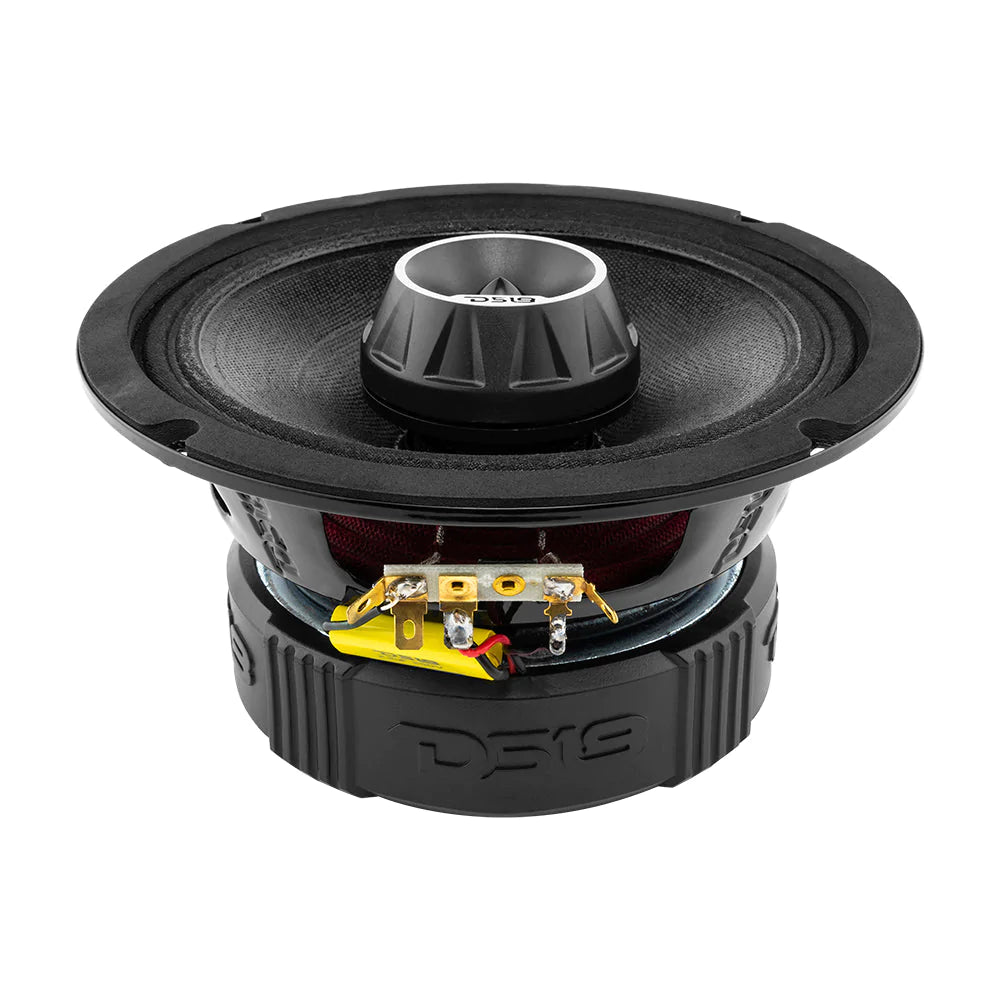

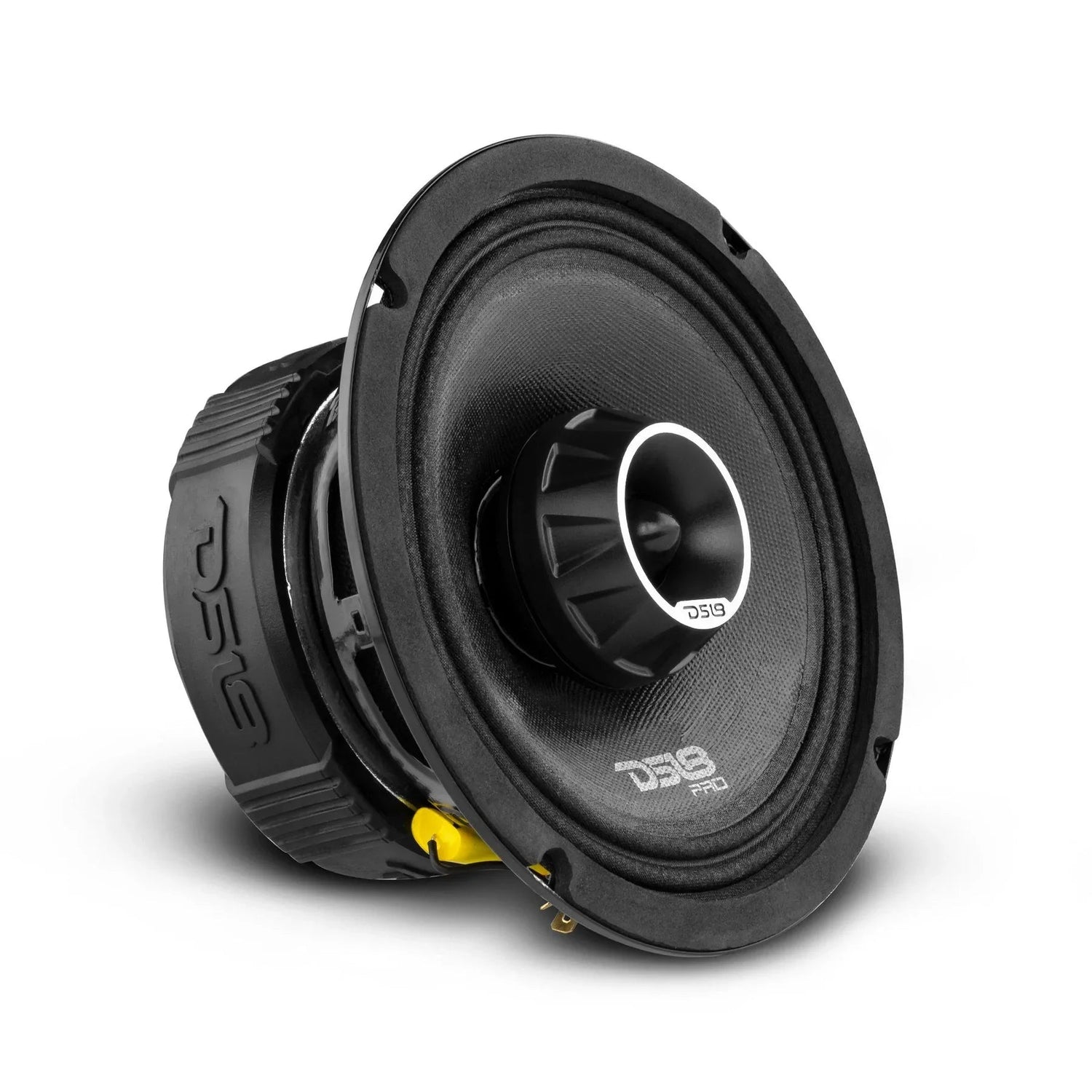

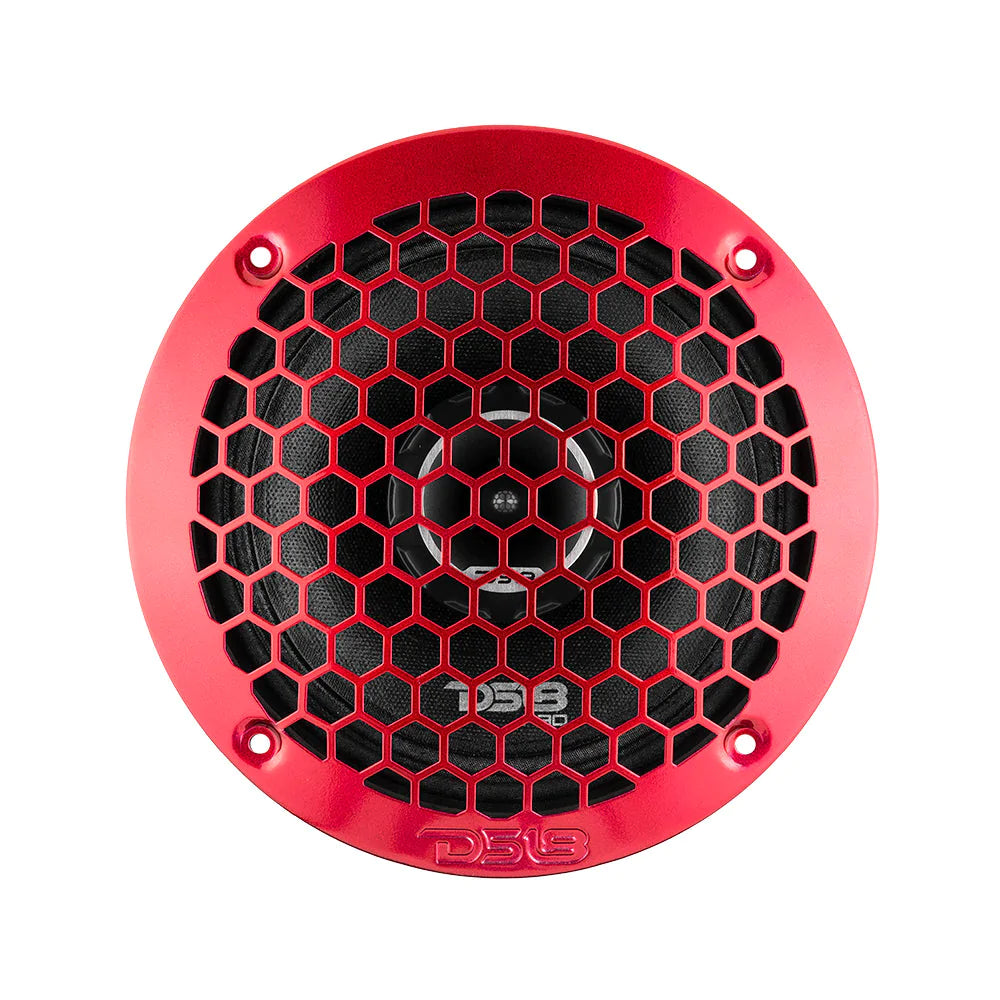

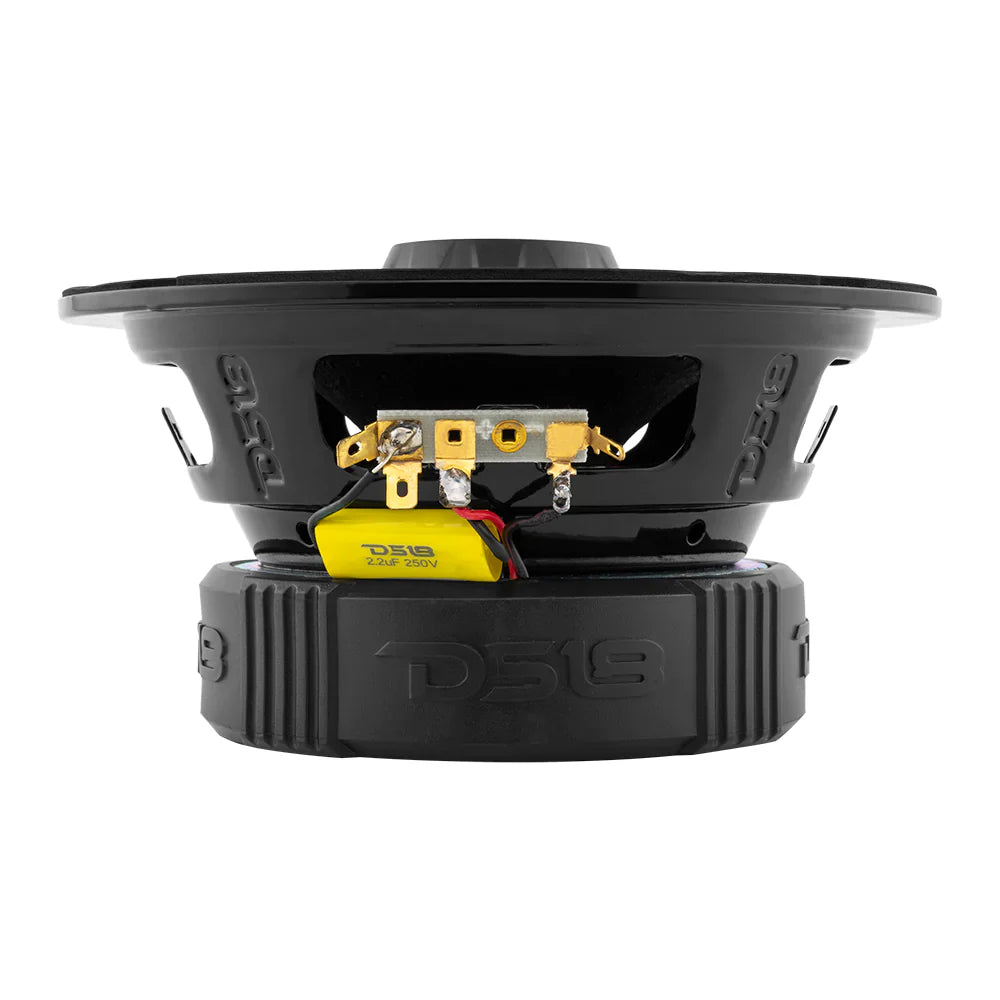

DS18 PRO-ZT6 6.5" 225W RMS Midrange Speaker w/ Built-in Bullet Tweeter 4-Ohm (Single)
DS18 PRO-ZT6 6.5" 225W RMS Midrange Speaker w/ Built-in Bullet Tweeter 4-Ohm (Single) is backordered and will ship as soon as it is back in stock.
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
DS18 PRO-ZT6 6.5" 225W RMS Midrange Speaker w/ Built-in Bullet...
DS18 PRO-ZT6 6.5" 225W RMS Midrange Speaker w/ Built-in Bullet Tweeter 4-Ohm (Single) is backordered and will ship as soon as it is back in stock.
Highlight title
Text to highlight a key feature of your product
Description
Description
| Nominal Diameter: | 6.5" (1651.1mm) |
| Nominal Impedance: | 4 Ohms |
| RMS Power Handing: | 225 Watts |
| MAX Power Handing: | 450 Watts |
| Sensitivity (1w/1m): | 96dB |
| Frequency Response: | 65Hz - 22KHz |
| Recommended Hi Pass Crossover | 120Hz |
| Midrange | |
| Voice Coil Diameter: | 1.5" (38.1mm) |
| Voice Coil Former Material: | Kapton |
| Winding Material: | CCAW |
| Basket Material: | Steel |
| Magnet Weight: | 27 oz. |
| Tweeter | |
| Voice Coil Diameter: | 1" |
| Voice Coil Material: | Kapton |
| Winding Material: | CCAW |
| Diaphragm Material: | Aluminum Alloy |
| Magnet Weight: | 0.44 oz. |
| Magnet Material: | Neodymium |
| Thiele & Small Parameters | |
| Equivalent Volume / Vas | 2.917 L |
| Excursion / Xmax | 16mm |
| Free Air Resonance / Fs | 150Hz |
| Mechanical Factor / Qms | 3.906 |
| Electrical Factor / Qes | 0.747 |
| Total Factor / Qts | 0.627 |
| DC Resistance / Re | 3.2 |
| Measurements | |
| Overall Diameter: | 178mm (7") |
| Front Mount Baffle Cutout: | 144mm (5.67") |
| Mounting Depth: | 77mm (3.03") |
| Overall Depth: | 97mm (3.81) |
