High Volume Fuel Supply Kit
Features & Details:
- Option to Delete Fuel Pump If Desired
- Kit Also Works with Aeromotive A1000 Fuel Pumps!

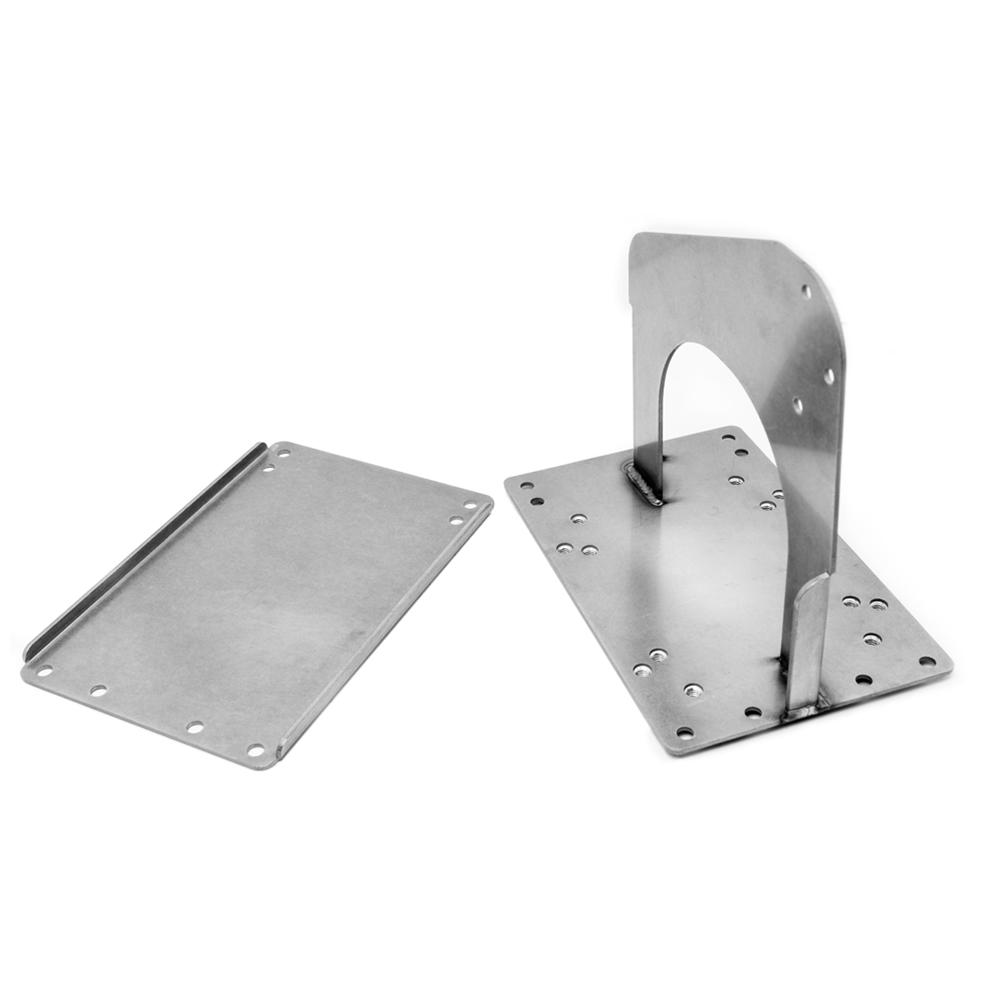

- Driven Diesel T-304 Stainless Steel "No-Drill" Mounting Bracket
- Rubber Isolator Mounts to Reduce Pump Noise / Vibration

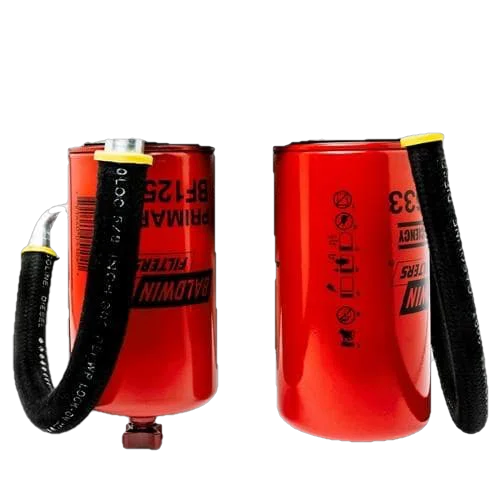

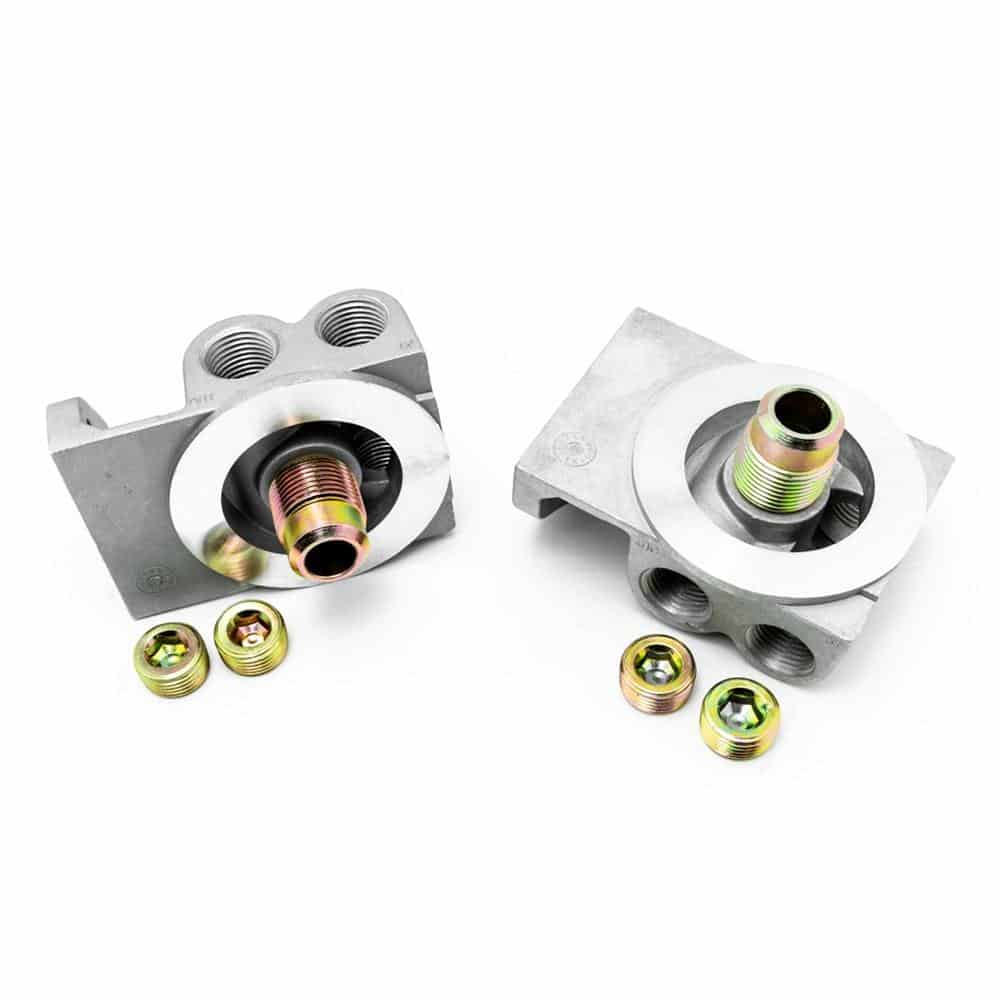

- High Quality Filter Heads with Baldwin Fuel Filters
- Driven Diesel 5/8" Drawstraw -or- Fuel Tank Sump Hardware
- FUEL TANK SUMP SOLD SEPARATELY

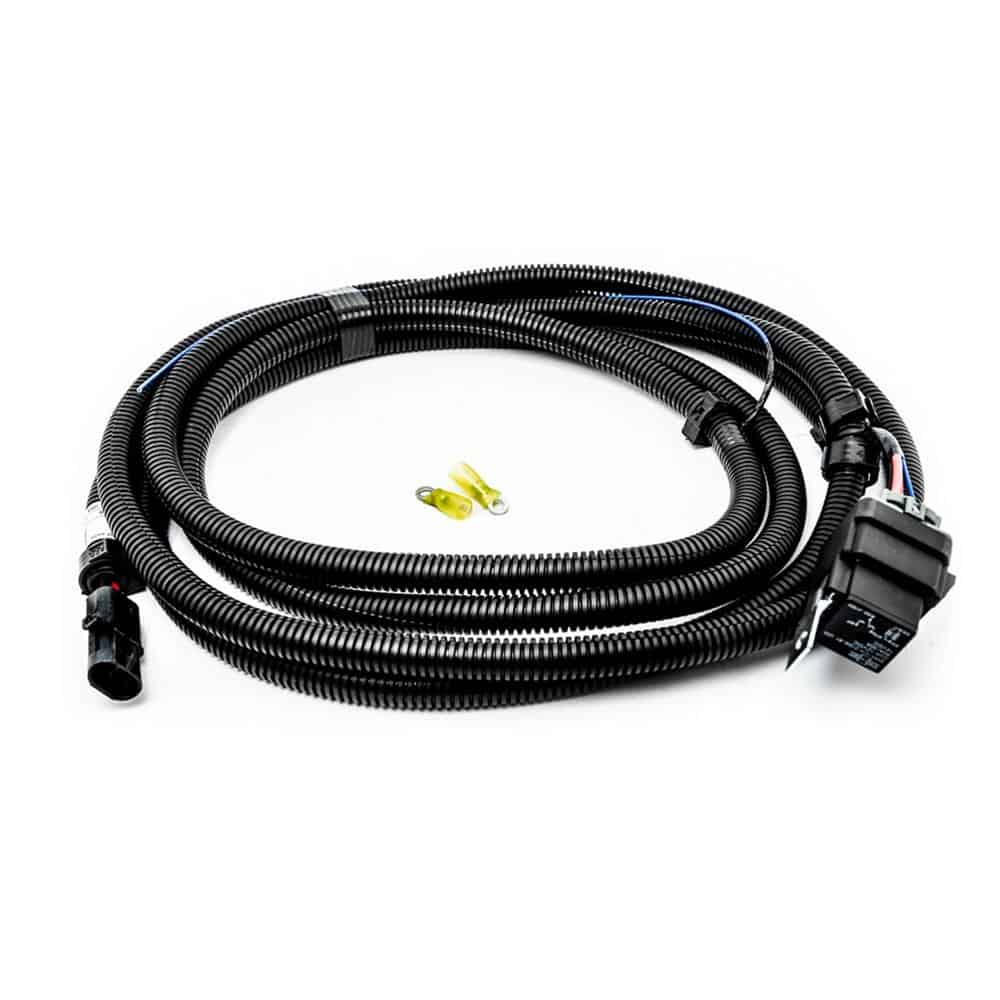

- Driven Diesel Fuel Pump Wiring Harness

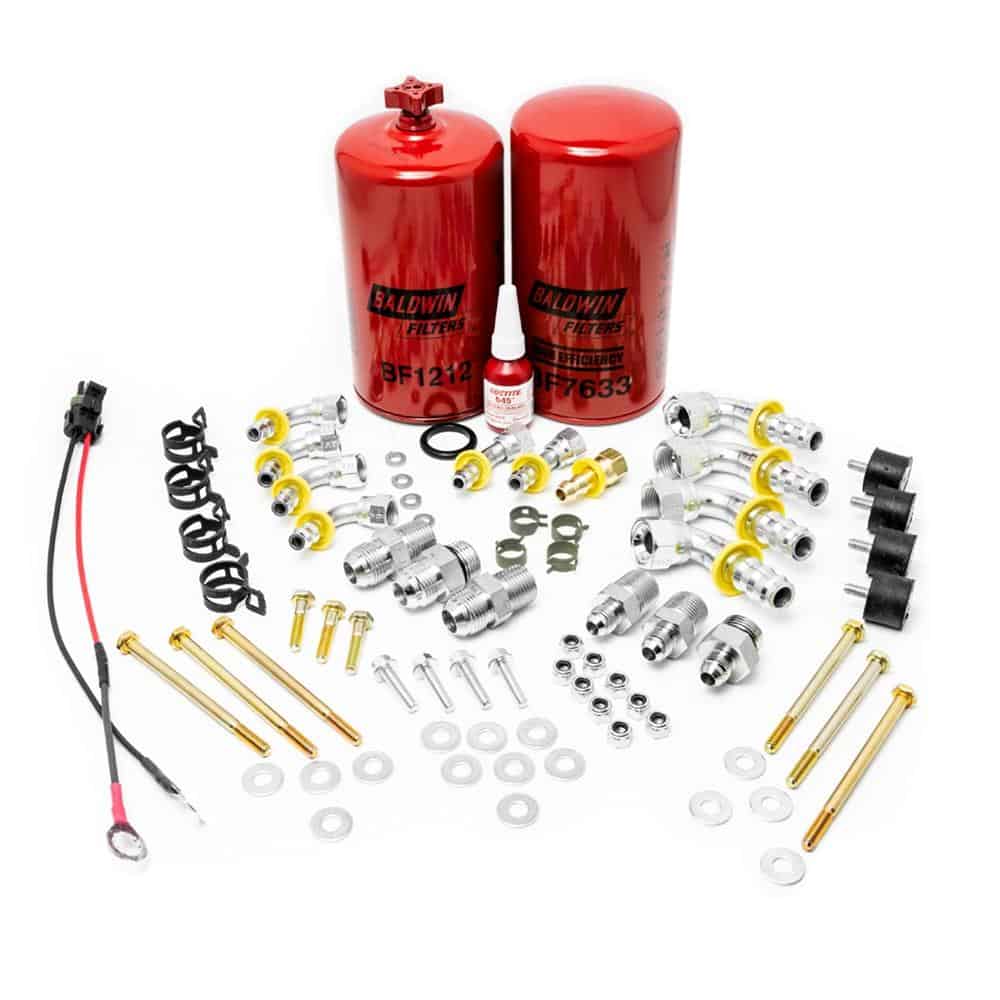

- ALL Necessary Hose / Fittings / Clamps / Hardware
- Full Color Installation Instructions
Description:
This Driven Diesel High Volume Fuel Delivery Kit is designed to work with our FUEL BOWL DELETE Regulated Return Systems to support whatever horsepower you are trying to reach. Using the same Tried and True Fuelab Prodigy fuel pump we have been running for years, along with our new Compact Fuel Pump & Filter Mounting Bracket and either our 5/8" Drawstraw or our new Billet Sump, this kit provides everything you need to feed your hungry 7.3L or 6.0L Powerstroke truck.
This kit was designed to mount INSIDE the frame rail, forward of the stock fuel tank. The fully assembled pump bracket requires about 13-15" of straight frame space to allow for the inlet and outlet hoses to route cleanly. If you have a short wheelbase truck or you have other equipment already mounted in the area forward of the fuel tank, you may want to measure and verify that you have room before ordering, or plan on installing the kit on the OUTSIDE of the frame rail. In these cases, care will need to be taken with regard to the parking brake cable and fuel line routing, and some trucks may require slight dimpling of the underbody to prevent rubbing. All of the pictures in the instructions show a system plumbed for INSIDE the frame mounting.
** 99-03 7.3L NOTE : This kit was designed to work with our very popular "7.3L Fuel Bowl Delete" Regulated Return Kit. As such, it does NOT include the proper fittings to supply fuel to the factory fuel filter bowl. We supply standard #6AN fittings for making the connection to the fuel inlet at the engine which will mate up perfectly with our 7.3L Fuel Bowl Delete Regulated Return Kit.**
** 03-07 6.0L NOTE : Although this kit was designed to work with our new "6.0L Fuel Bowl Delete" Regulated Return Kit (in "pre-production" now, scheduled to be released in 2Q-2015), it is also possible to use it with our standard 6.0L Regulated Return Kit by utilizing the stock fuel supply line from stock fuel pump to the engine and removing the stock fuel filter cartridge and standpipe assembly from the secondary fuel filter bowl. See the instructions for more detailed information.**
**These are built to order and will have a 3-5 business day lead time.**
