The Dreadnought KM-165 Horn Kit
The Dreadnought KM-165 Horn Kit is backordered and will ship as soon as it is back in stock.
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
The Dreadnought KM-165 Horn Kit
The Dreadnought KM-165 Horn Kit is backordered and will ship as soon as it is back in stock.
Highlight title
Text to highlight a key feature of your product
Description
Description

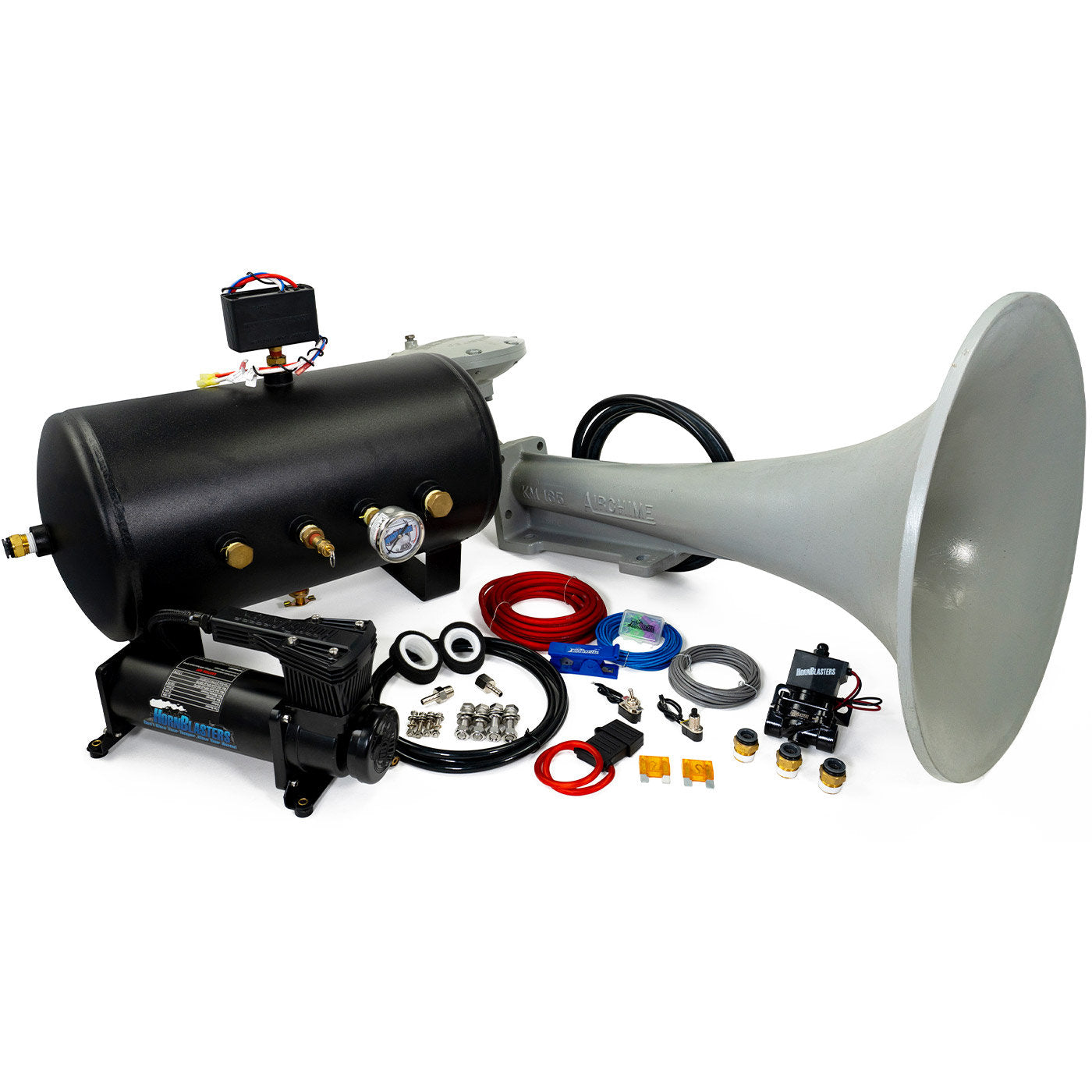

AIR SUPERIORITY IN KIT FORM
Experience the raw power of a genuine battleship horn with HornBlasters' Dreadnought Horn. Designed for humongous sea vessels, this horn delivers a commanding sound that's truly unmatched. Powered by the HornBlasters 1NM air compressor and paired with a 5-gallon 8-port air tank, make a bold statement with this unparalleled sound experience.
-
Unrivaled Power: Experience the authentic roar of a battleship horn, designed originally for massive sea vessels, ensuring a dominant presence on the road.
- Built to Last: Crafted from super rugged cast aluminum, this USA-made horn stands as a testament to top-tier quality durability.
- Remarkable Range: With its powerful sound, the Dreadnought horn can command attention from distances up to 2-3 miles away.
- Versatile Kit Superiority: Fueled by the HornBlasters 1NM air compressor and a generous 5-gallon 8-port air tank, this kit not only promises up to 5 seconds of commanding honk time but also the capability to air up tires and operate small air tools.

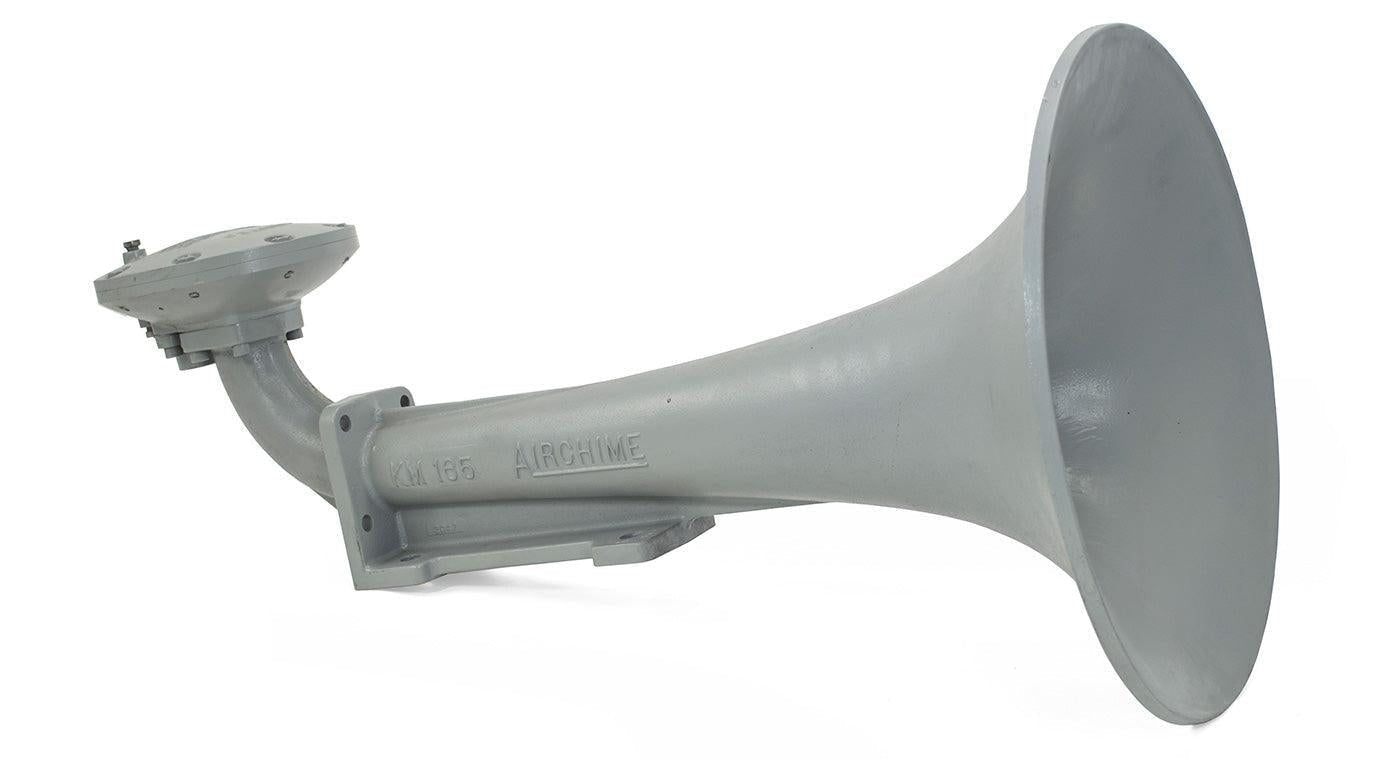

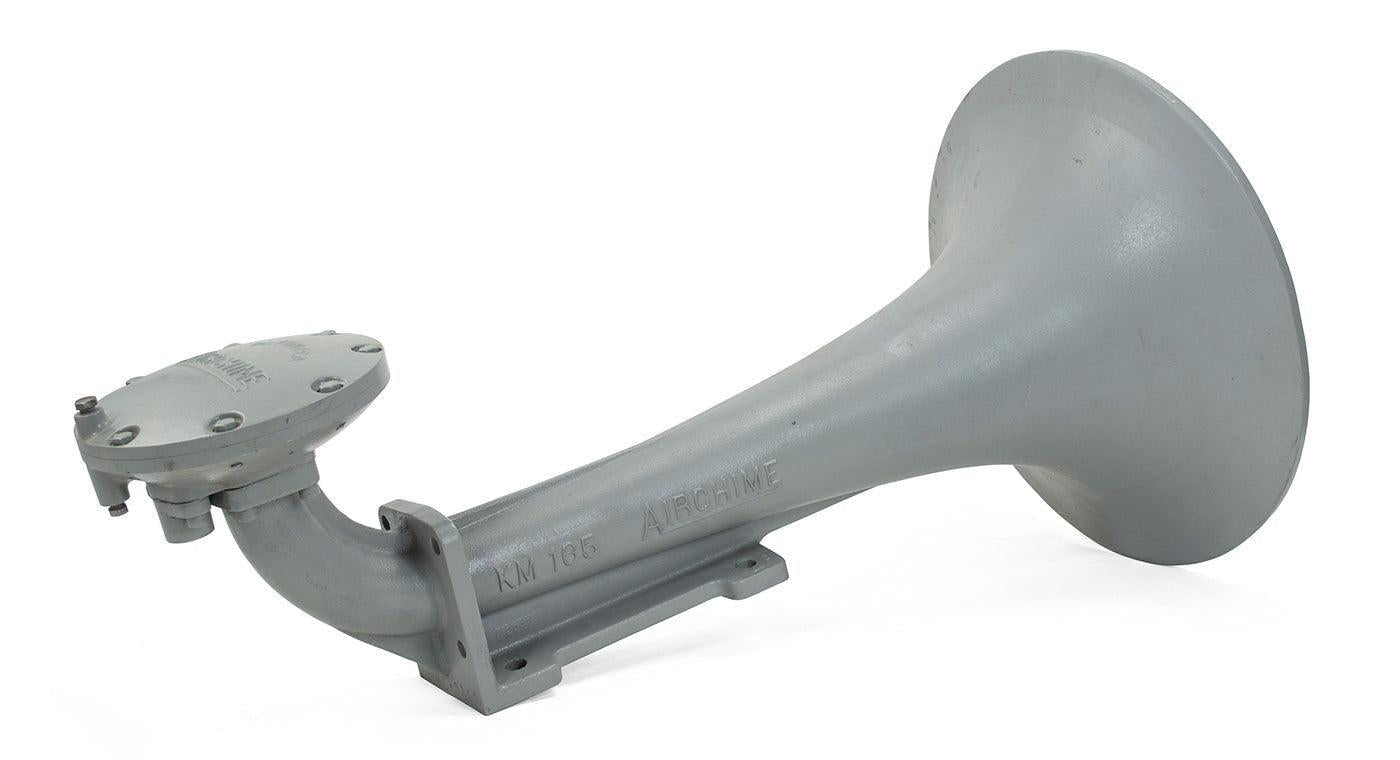

- Dreadnought Horn (KM165)
- 1/2" NPT Black Widow stainless steel electric air valve
- 5-gallon 8 port air tank
-

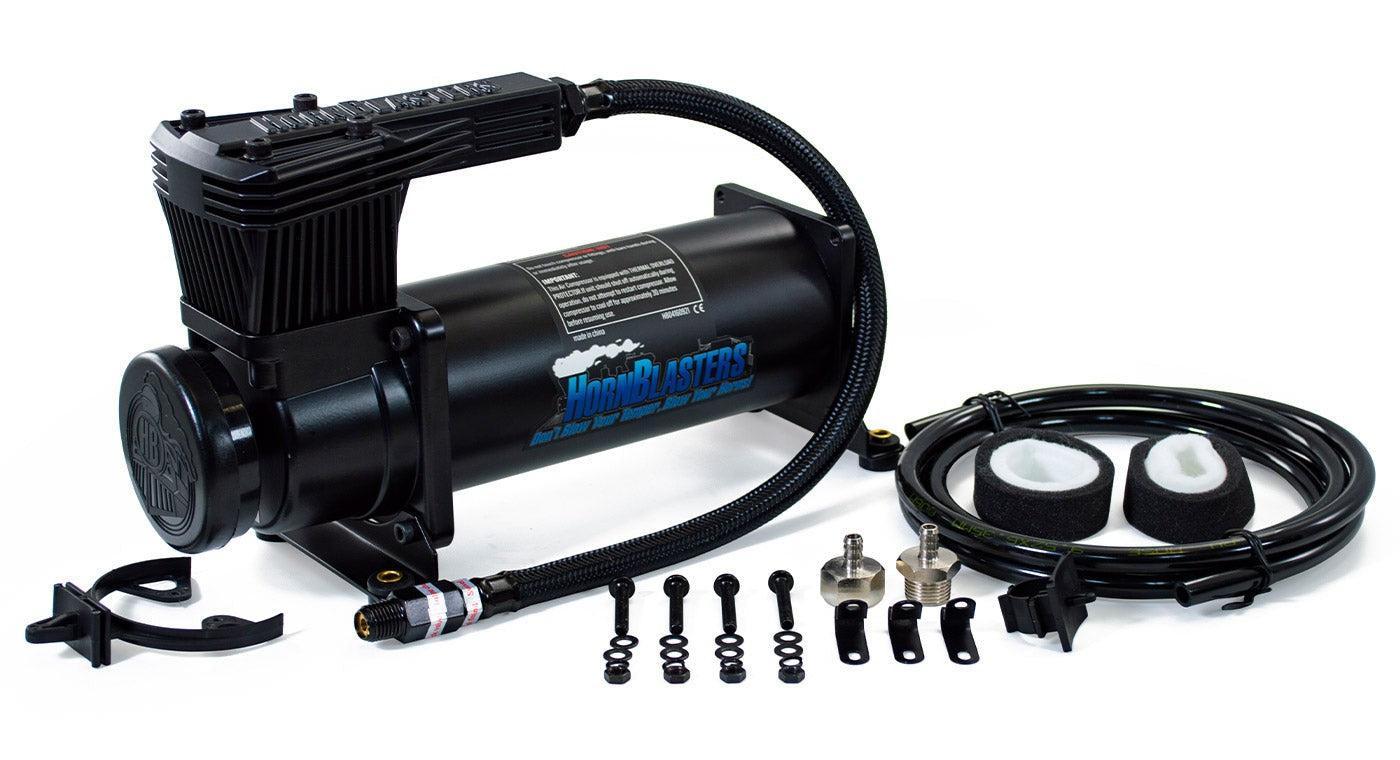

AC-1NM Stealth Black Air Compressor
- 110/150 PSI pressure switch w/ 40 amp relay
- Remote mountable intake filter
- Spare air filter elements
- 10ft of 5/16" D.O.T. approved air line
- 17ft of 1/2" D.O.T. approved air line
- 6 ft of 3/8" air line (for air compressors air intake)
- HornBlasters 200 PSI stainless steel liquid-filled air gauge
-
22ft of 10-gauge red wire
- 22ft of 18-gauge blue wire
- 22ft of 18-gauge grey wire

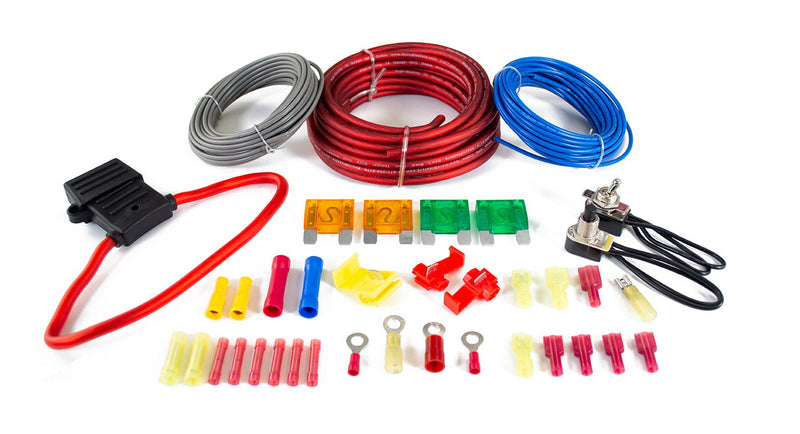

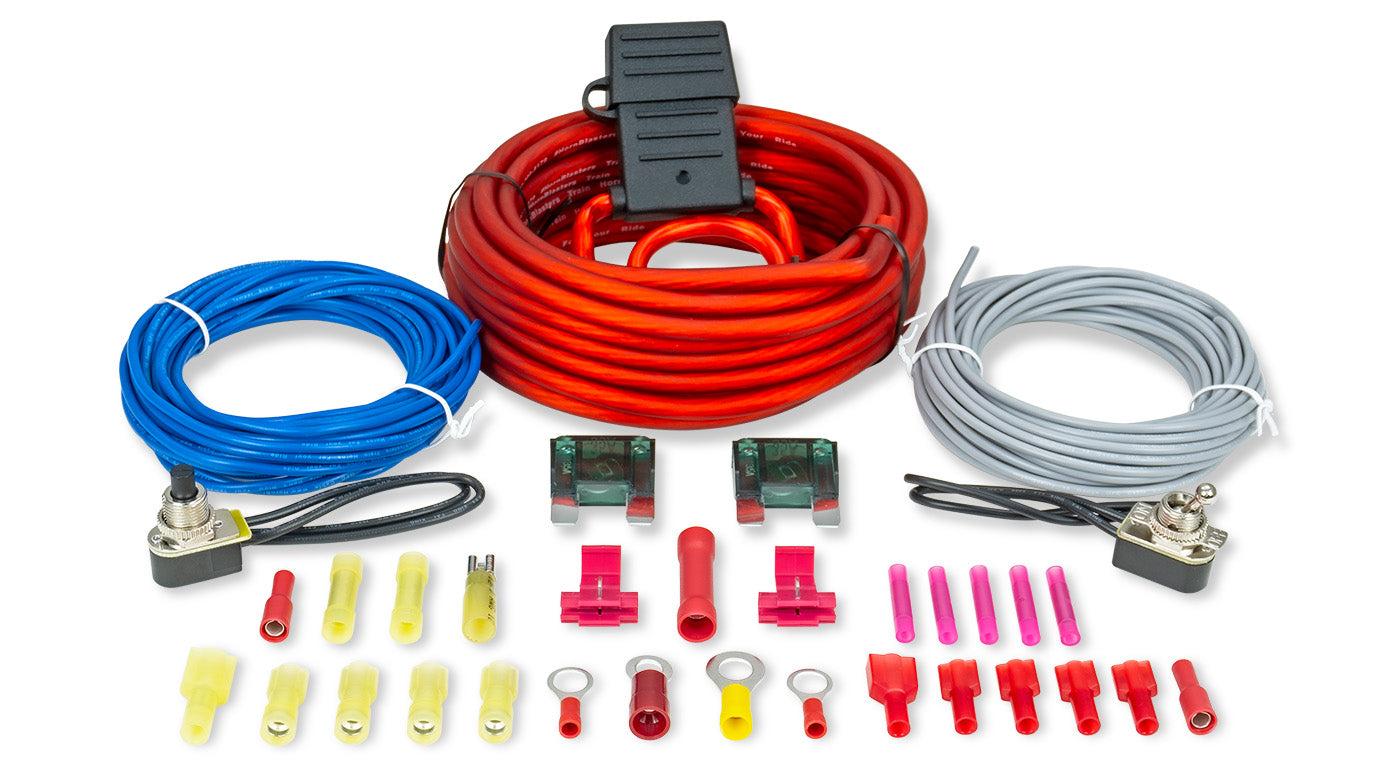

- Complete wiring kit with fuse holder & fuses
- Brass NPT fitting kit with safety blowoff & drain cock
- Mounting hardware
- Air line cutter
- Detailed instructions
- Earplugs
| Part Number | HK-BS165-544K |
| Operating Pressure | 150 PSI |
| Restart Pressure | 110 PSI |
| Voltage | 12-Volt DC |
| Horn | KM165 Destroyer Horn |
| Horn Length | 34" (864 mm) |
| Horn Width | 18" (457 mm) |
| Horn Height | 18" (457 mm) |
| Horn Weight | 31 lbs (14Kg) |
| Horn Material | Cast Aluminum |
| Air Tank | HornAir 5-gallon 8 port air tank |
| Tank Length | 20.5″ (520.7 mm) |
| Tank Diameter | 9.5″ (241.3 mm) |
| Tank Height | 11.5″ (292.1 mm) (With Legs) |
| Tank Weight | 20 lb (9.07 Kg) |
| Tank Ports | x7 1/2" NPT, x1 3/4" NPT |
| Air Compressor | AC-1NM Air Compressor |
| Max amperage | 25 Amps |
| Maximum duty cycle | 100% @ 100 PSI |
| Flow Rate @ 0 PSI | 1.75 CFM |
| Compressor length | 10.75″ (273.05 mm) |
| Compressor width | 4″ (101.6 mm) |
| Compressor height | 6.75″ (171.45 mm) |
| 5.0 GALLON TANK | FILL RATE |
|---|---|
| 0 to 150 PSI | 6 min. 45 sec. (± 10 sec.) |
| 110 to 150 PSI | 2 min. (± 05 sec.) |
* Supply Voltage: 13.8 Volts
5-Gallon Air Tank Dimensional Drawing
-
