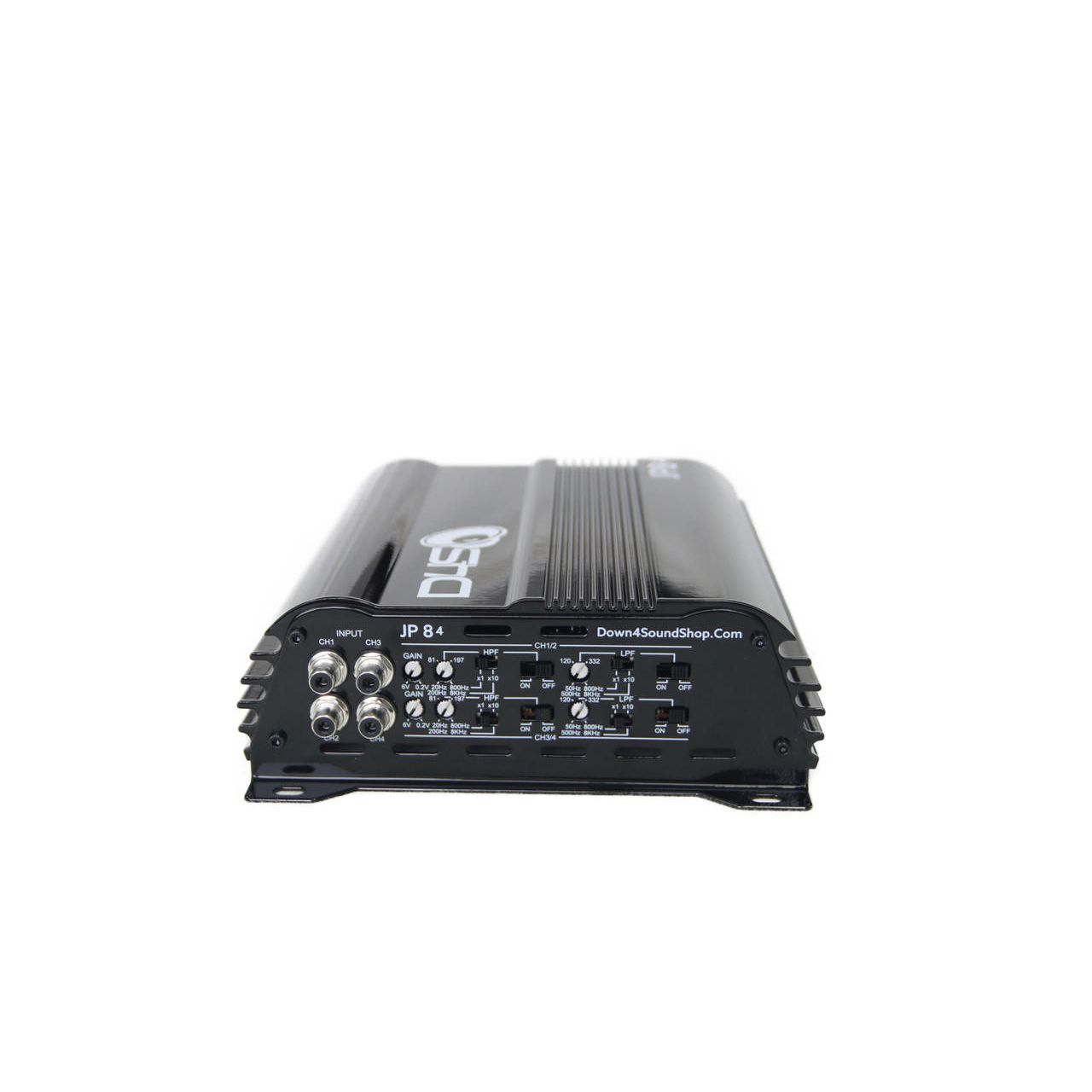

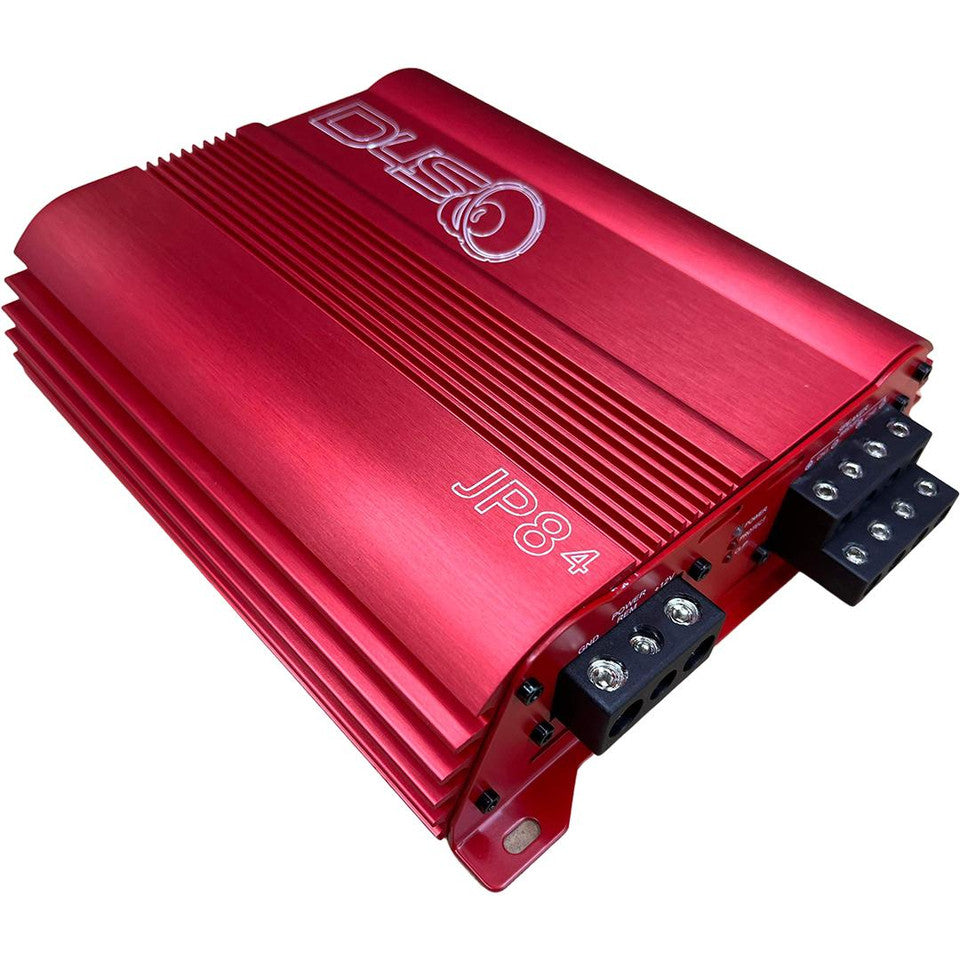

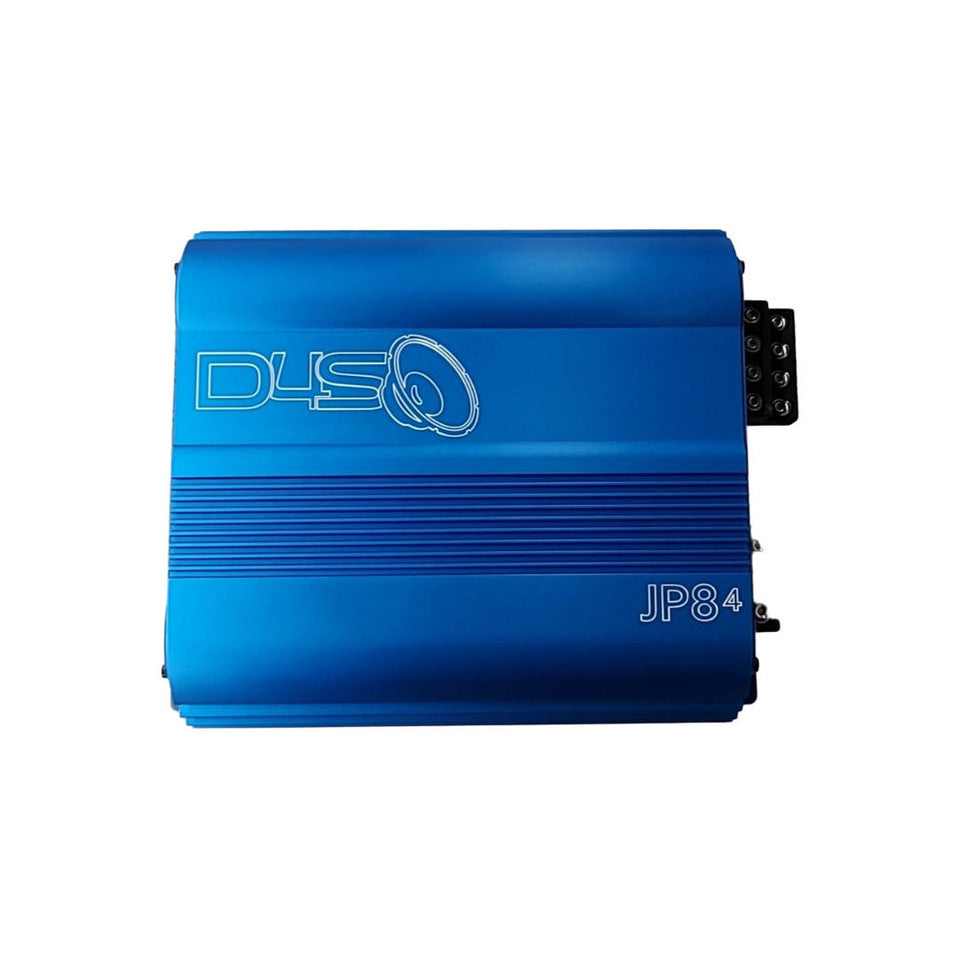

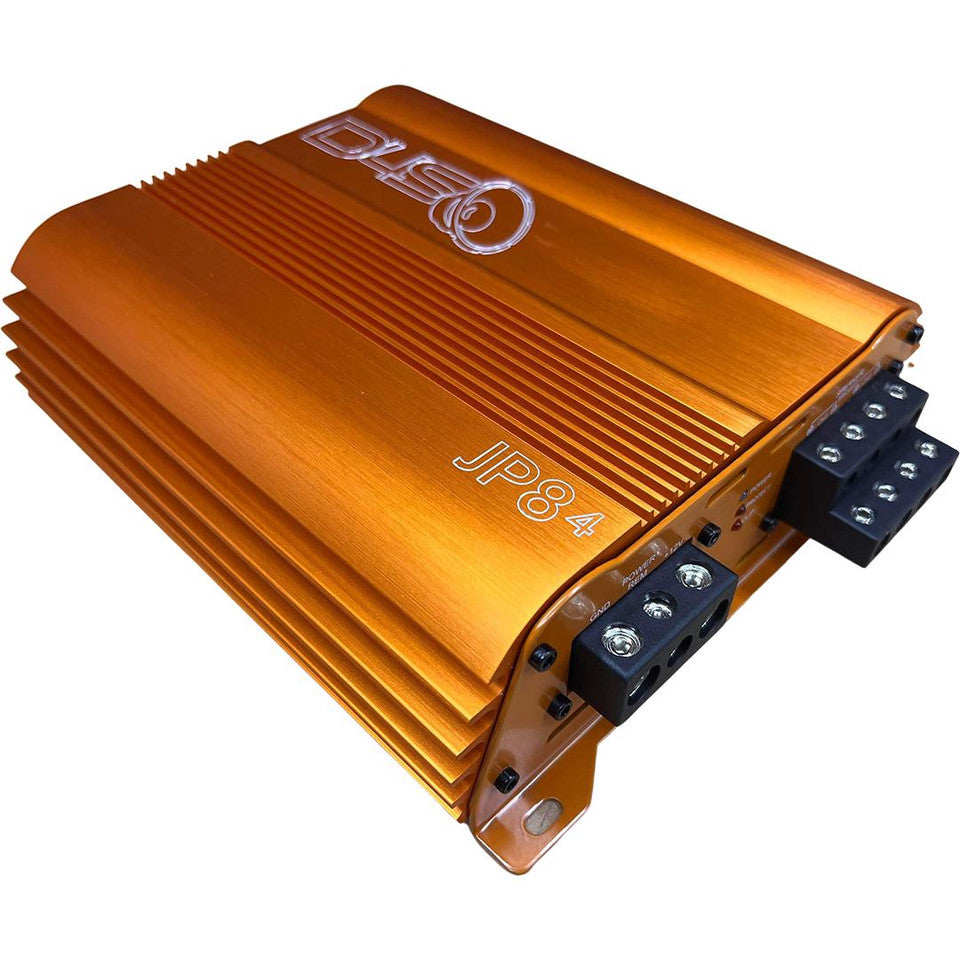

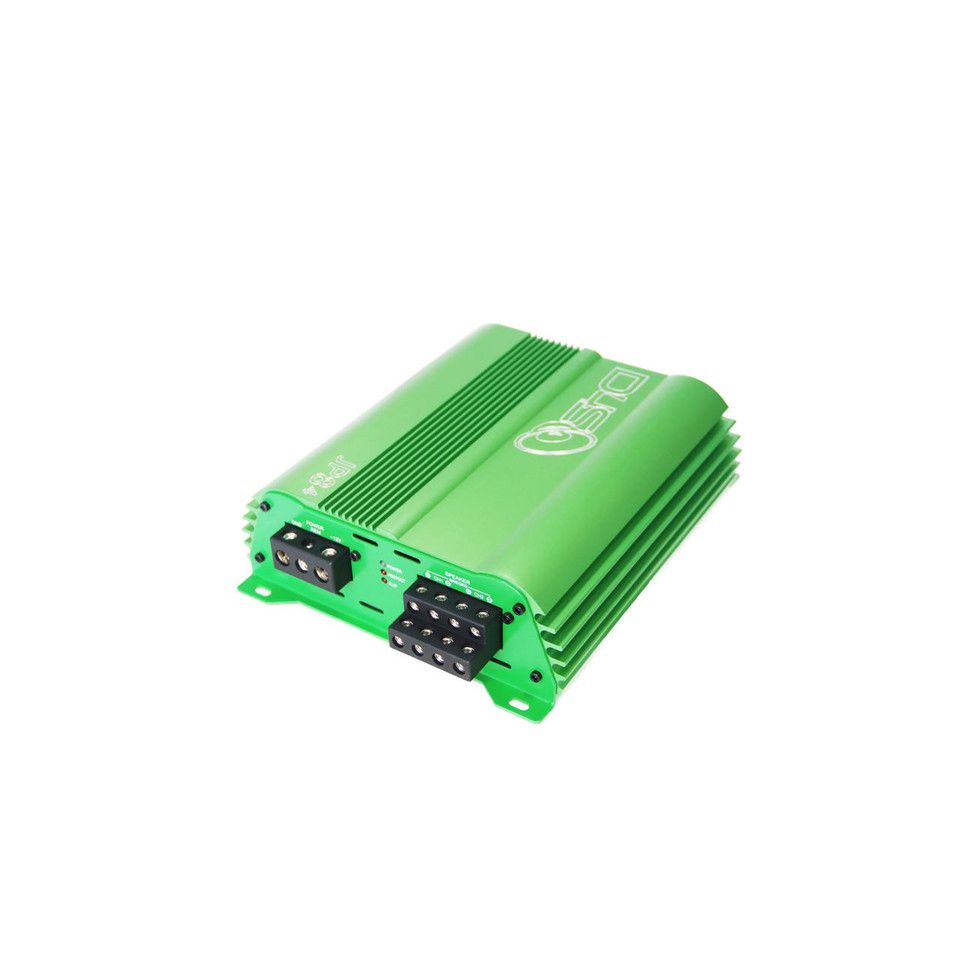

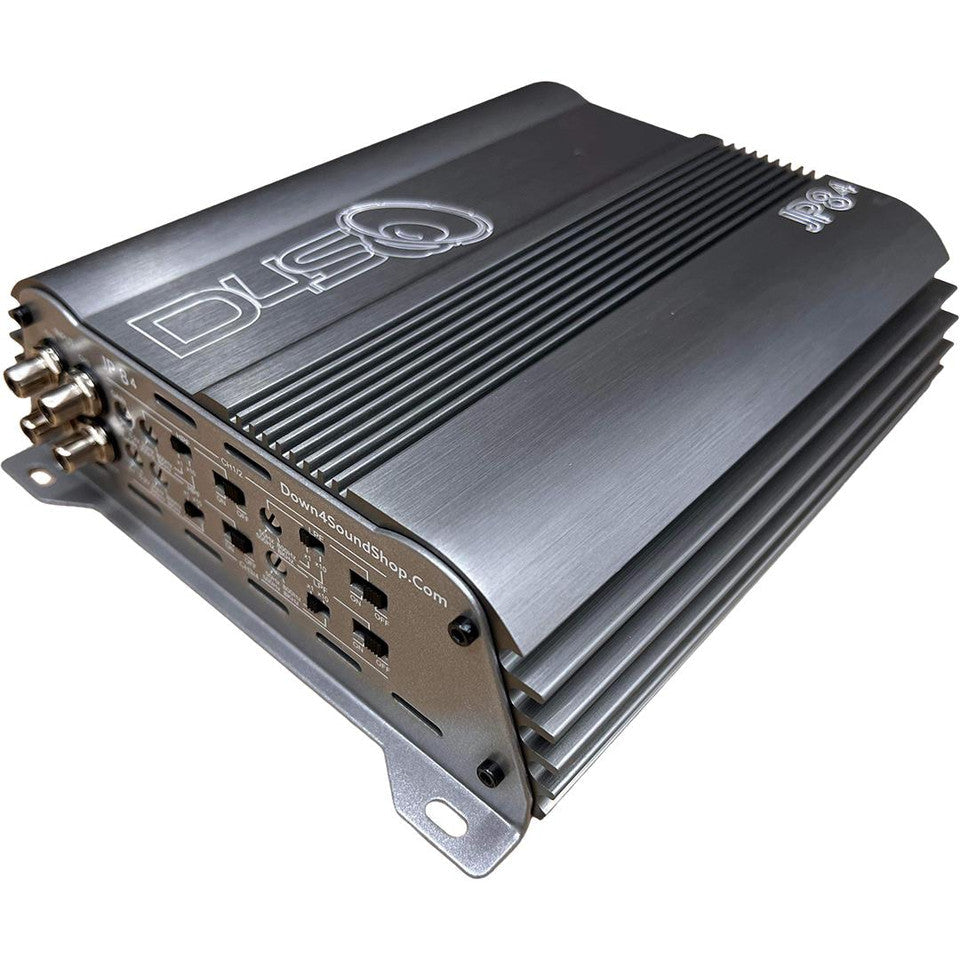

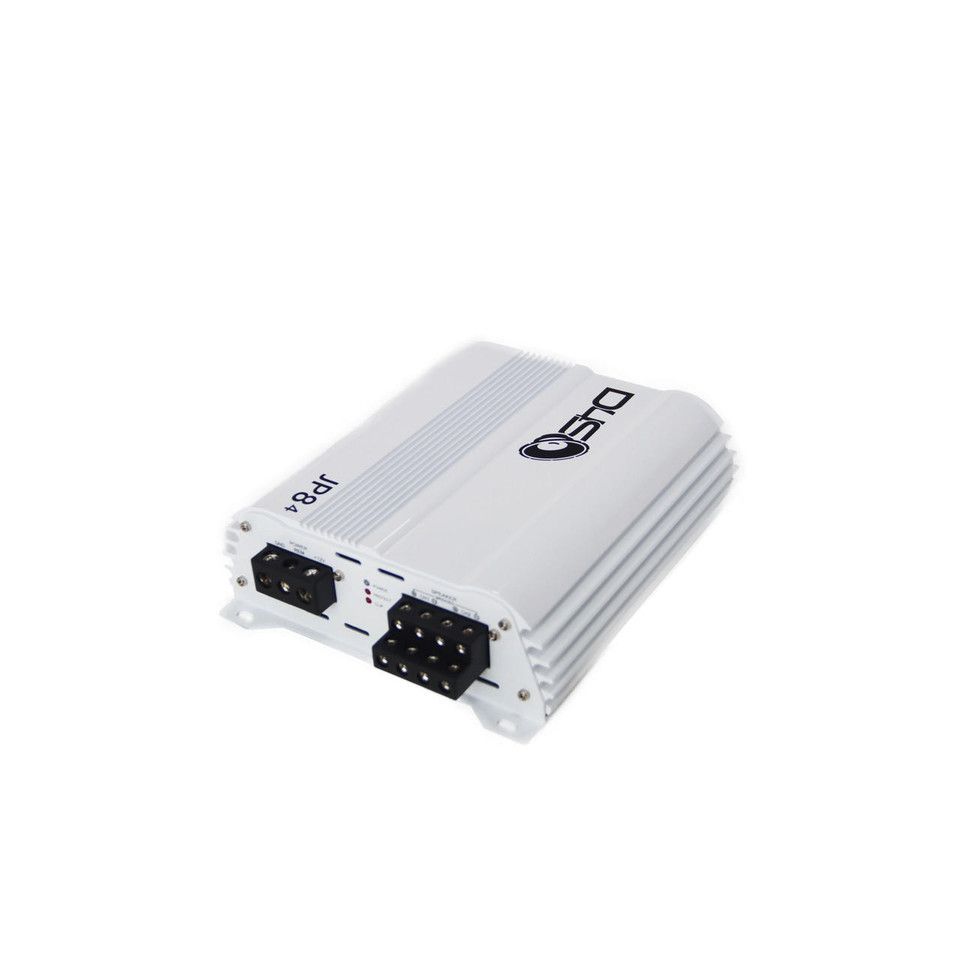

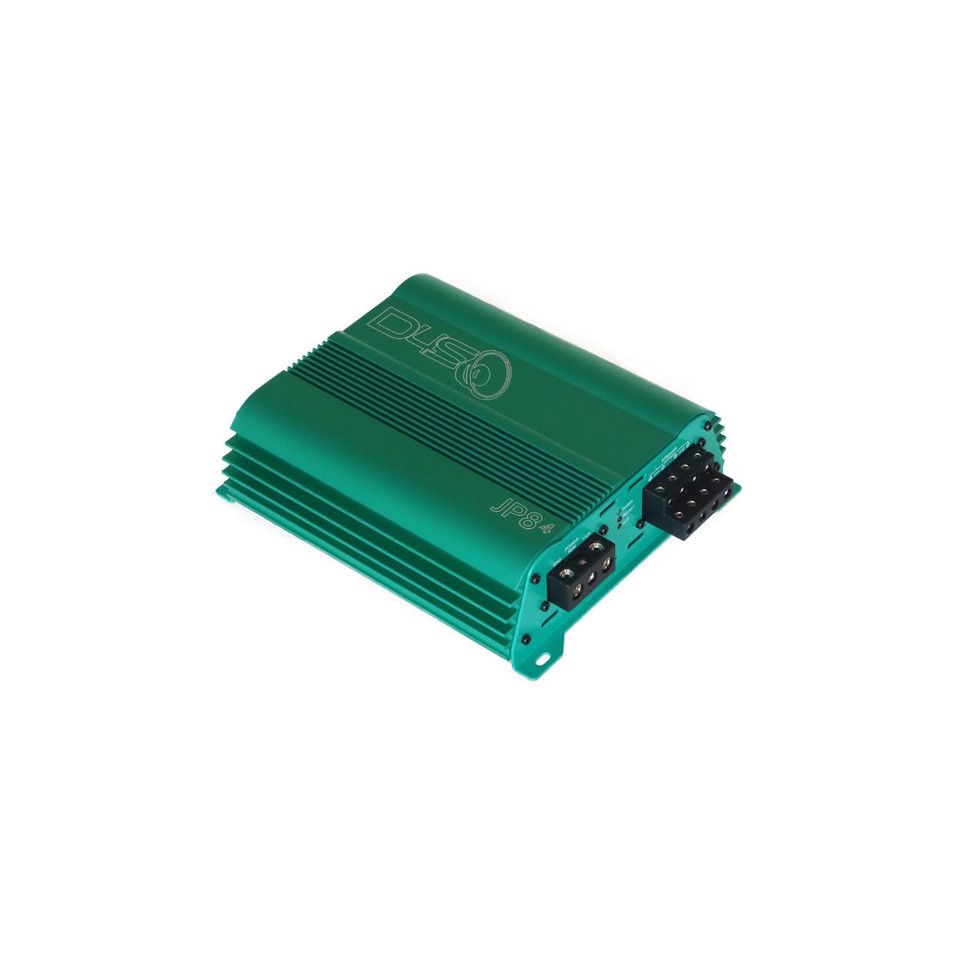

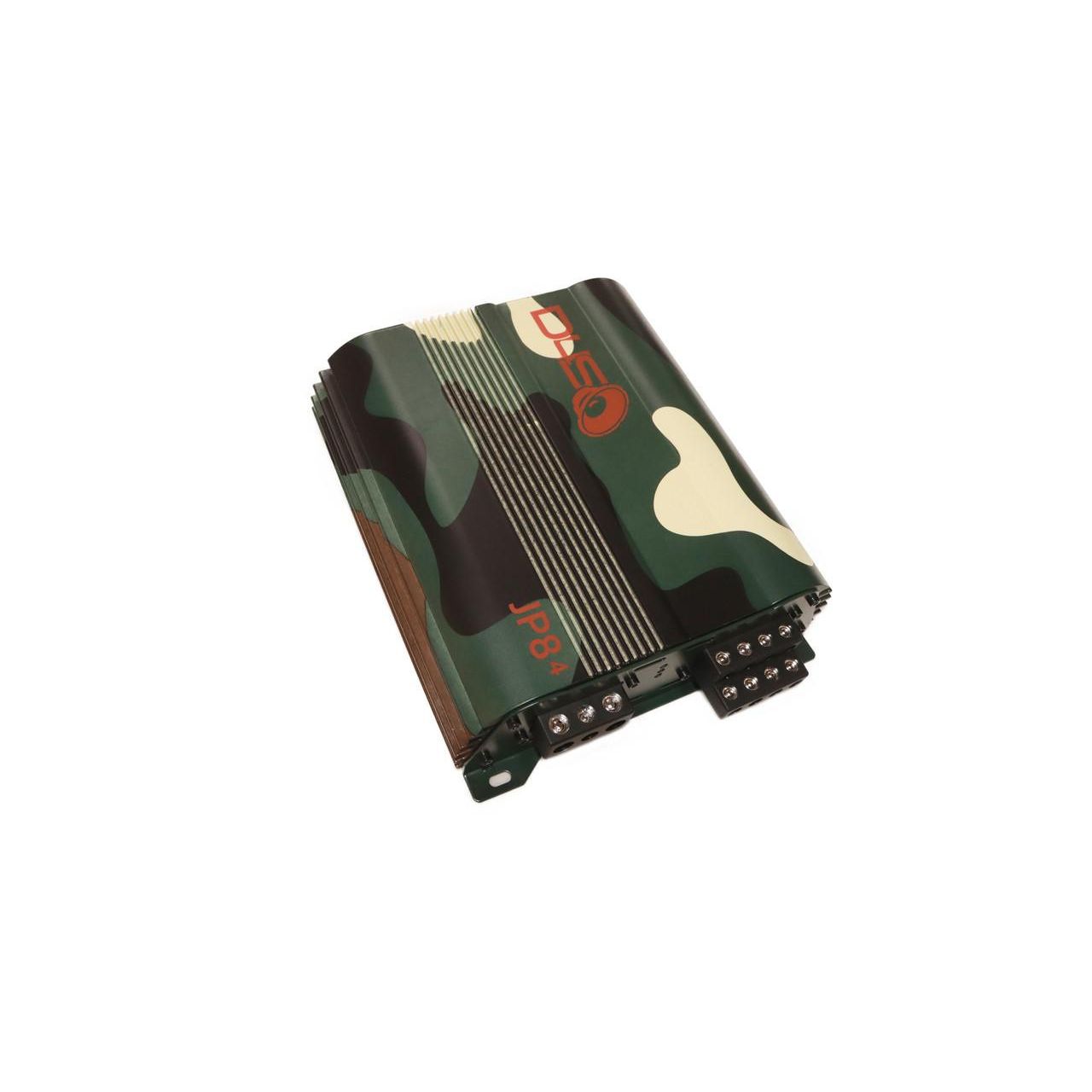

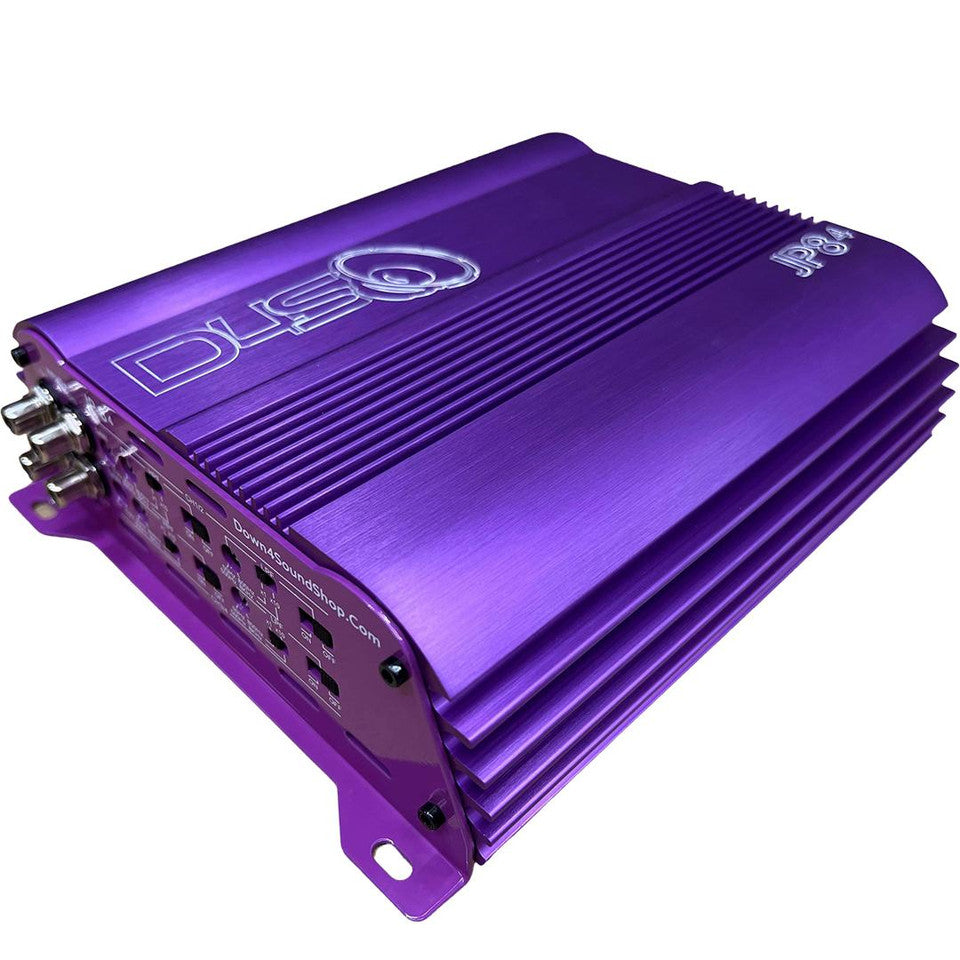

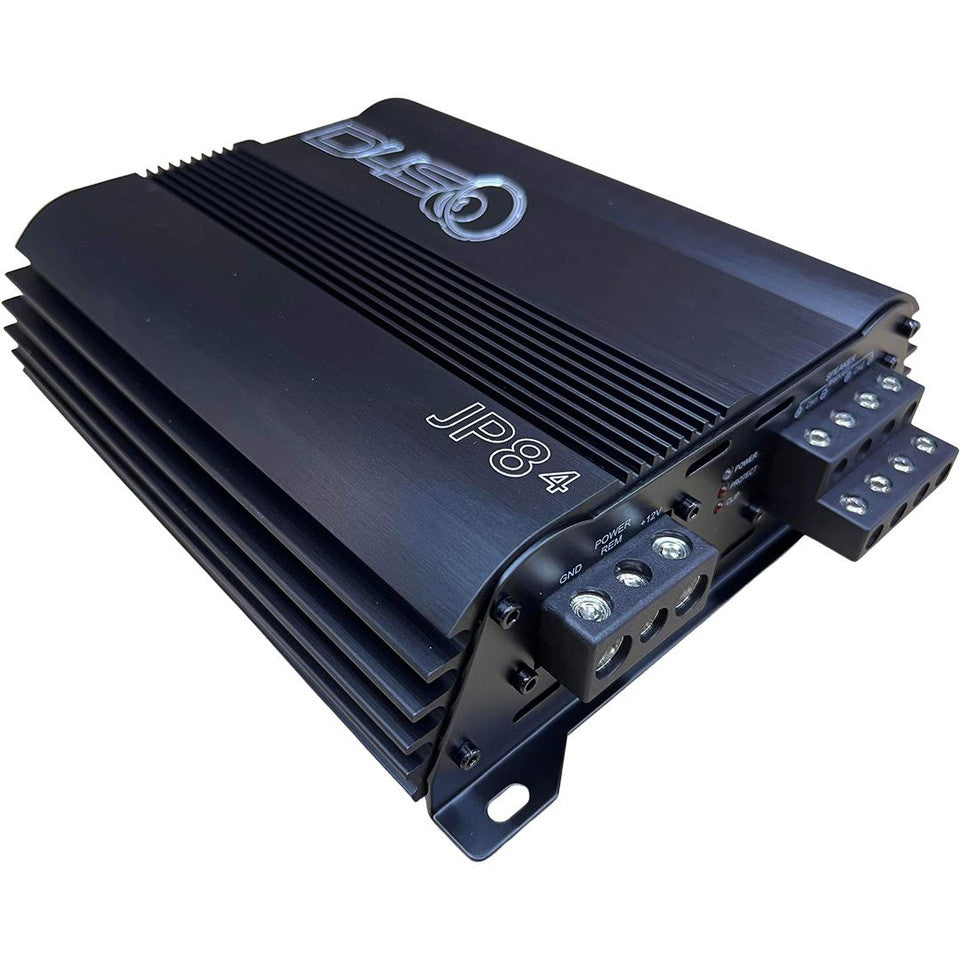

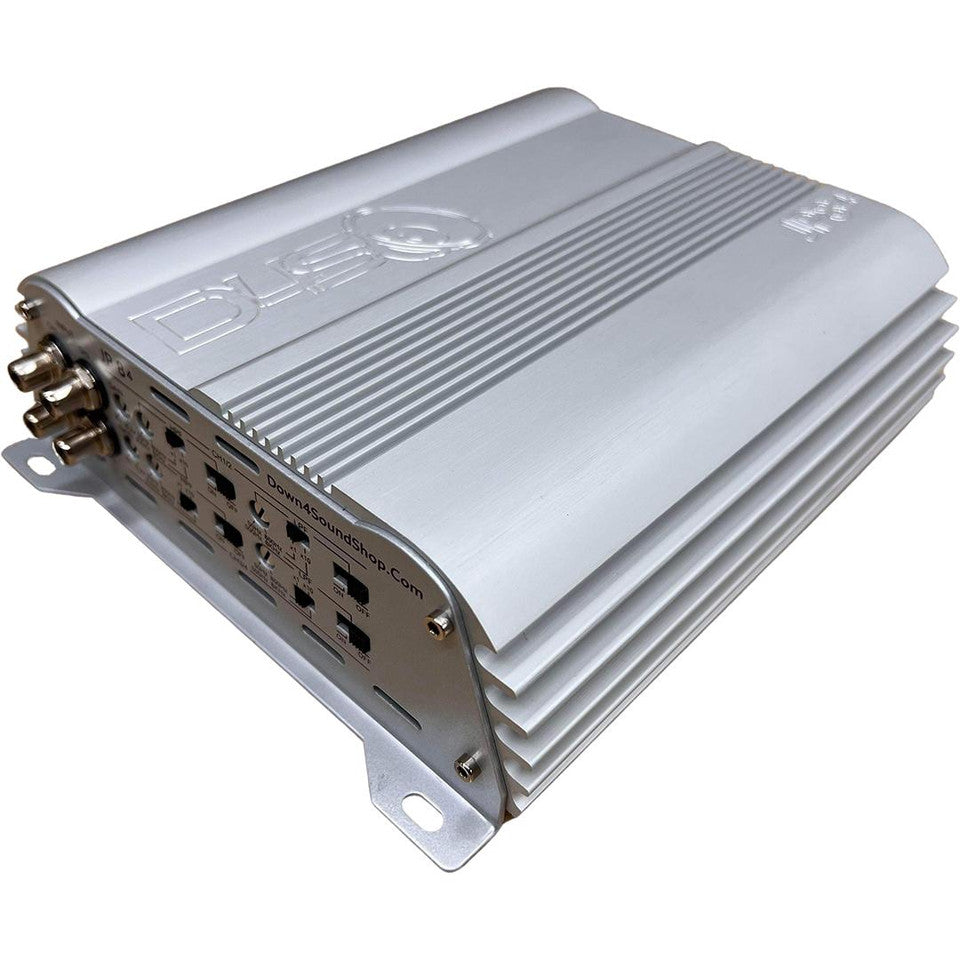

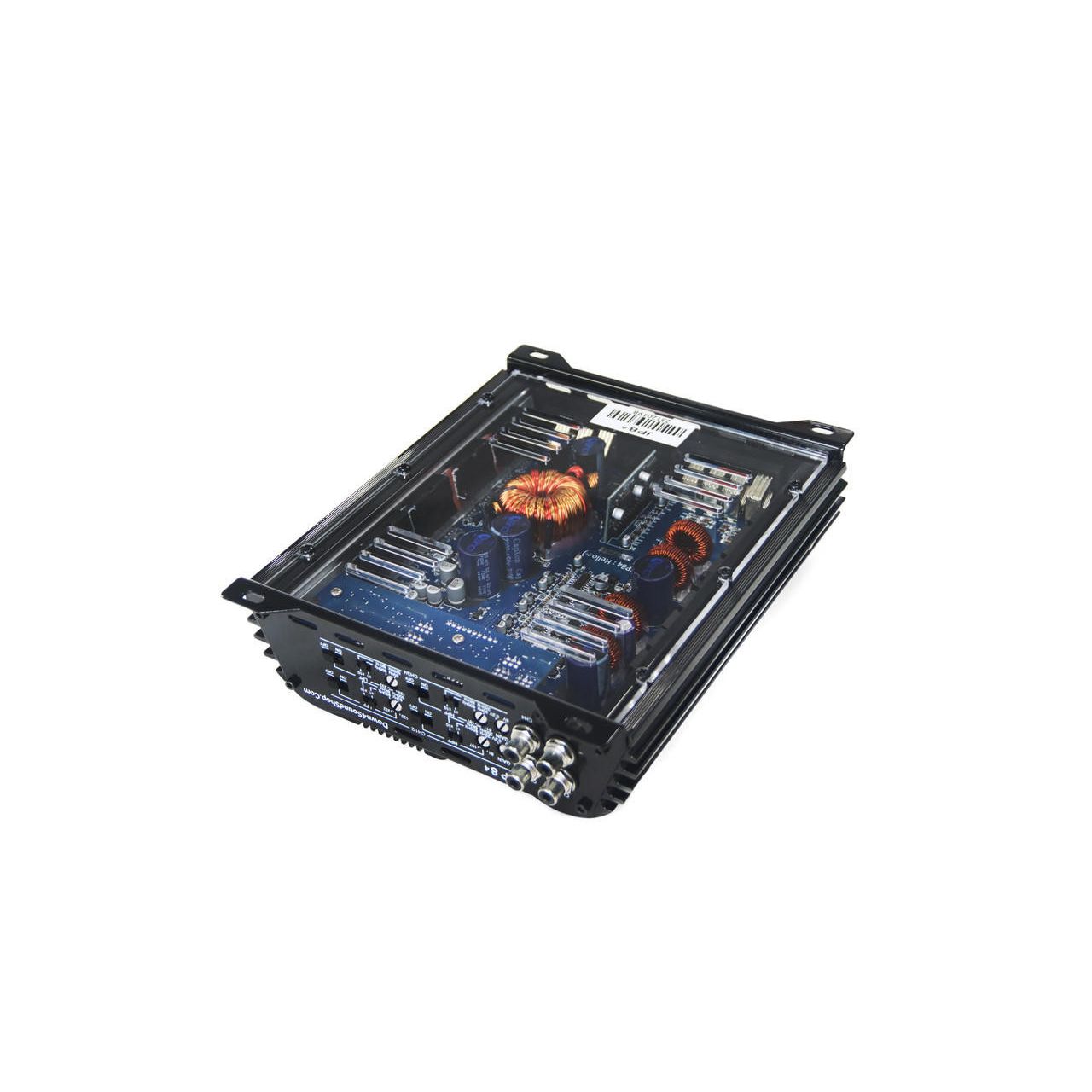

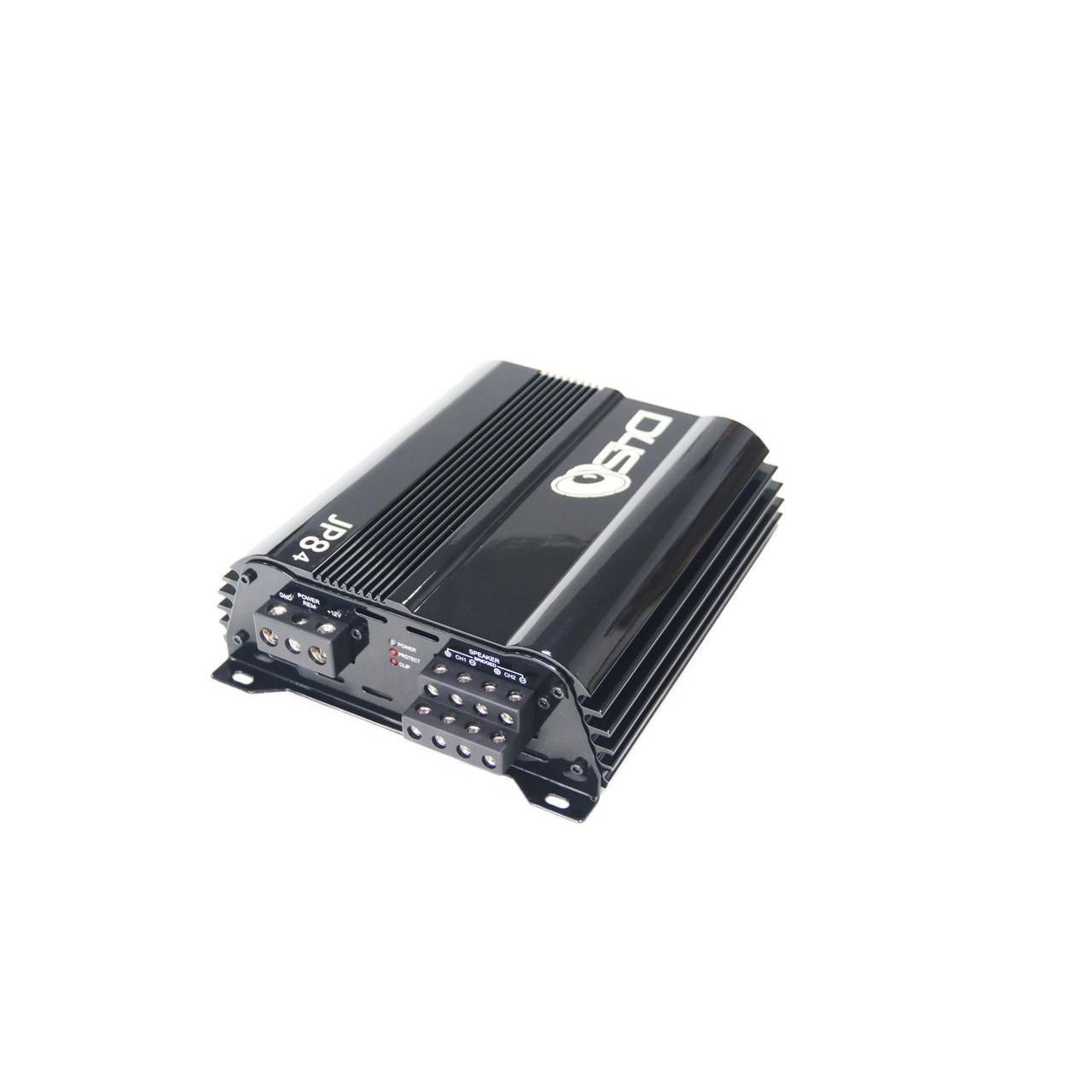

Down4Sound JP84 400W 4-Channel Amplifier

JP 84 - 4 Channel Amplifier Features:

• FULL RANGE DIGITAL MULTI-CHANNEL AMPLIFIER
• STABLE INTO 2 OHM STEREO OR 4 OHM BRIDGED
• HIGH SPEED MOSFET POWER SUPPLY
• VARIABLE HIGH PASS FILTER
• VARIABLE LOW PASS FILTER
• CROSSOVER MULTIPLY X10
• BAND PASS FILTER CAPABLE
• CLASS: D
• 4 WAY PROTECTION CIRCUITS

Independent 3rd Party Testing: Tested at 40 Hz PER Channel, which is the hardest test you can put on a 4 channel amplifier.

• 124 Watts Per Channel at 4 Ohms at 14.4V - CERTIFIED
• 163 Watts Per Channel at 2 Ohms at 14.4V - CERTIFIED

Our Ratings: (WHICH WE RATE FOR WORST CASE SCENARIO, THERE IS ALWAYS MORE)

• RMS POWER: 120W x 4 @ 14.4v - 2 ohms
• RMS POWER: 90W x 4 @ 14.4v - 4 ohms
• BRIDGE POWER: Range 180 - 284w x 2

JP - 84 TUNING

• Freq Response: 10Hz - 40KHz
• High Pass Filter: 20Hz - 800Hz
• High Pass Multipliers: 1x - x10 ( 200Hz - 8 kHz)
• Low Pass Filter: 50 Hz - 800 Hz
• Low Pass Multipliers : x1 - x10 ( 500Hz - 8kHz)
• Signal to Noise Ratio:  95dB <
• Fuse Rating: 60A
• Operating voltage : 9 to 16 Volts

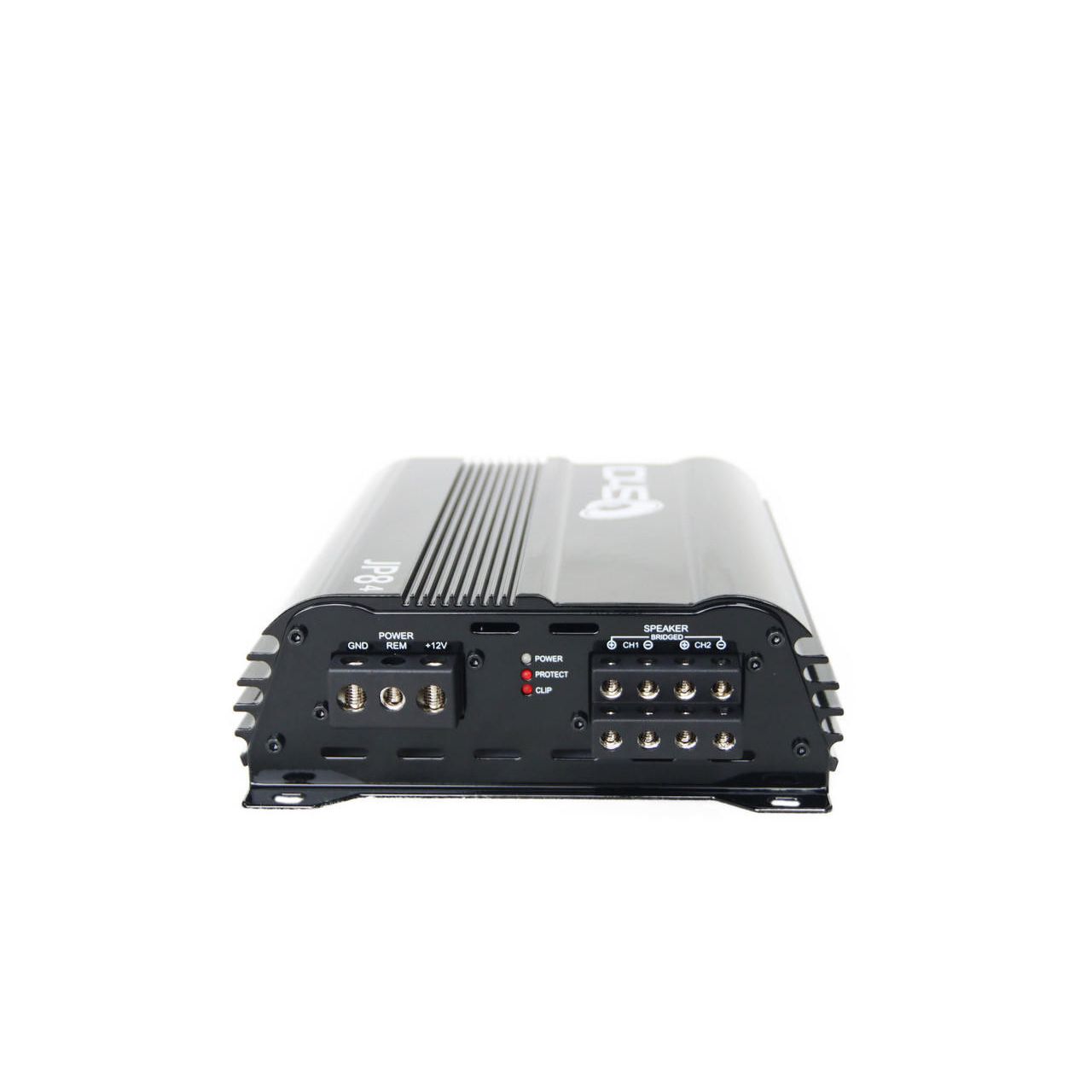

JP84 Inputs & Dimensions

• 4 GA input on Power Wire
• 8 GA input for Speaker Wire
• 7.87" x 7.4" W x 2.24"H
