Down4Sound EZY- Controller 1

Take full control of your DSP settings with the EZY CTRL1 Wired DSP Controller. Designed for precision tuning, this compact controller allows you to make real-time adjustments to volume, bass, and sound presets with ease. Featuring a 1.3-inch OLED screen, this controller provides a clear display of your settings while maintaining a sleek, professional appearance.

Key Features

• 1.3-inch OLED Display: Bright and clear interface for easy adjustments.
• Total Volume Adjustment: Fine-tune the master volume of your system.
• Ultra-Bass Control: Adjust bass levels for enhanced low-end performance.
• One-Button Mute Function: Instantly mute the audio output with a single press.
• Sound Source Switching: Easily toggle between different input sources.
• Preset Sound Calls: Save and recall your DSP preset sound settings.
• Rotary Knob Interface: Simple and intuitive navigation.
• RJ11 Connection: Quick and secure plug-in connection to your DSP unit.

Operating Instructions

1. Startup Interface – When powered, the controller automatically initializes and displays the dynamic DSP Audio screen.
2. Main Interface – Rotate the knob to adjust volume; long press to return to the main menu.

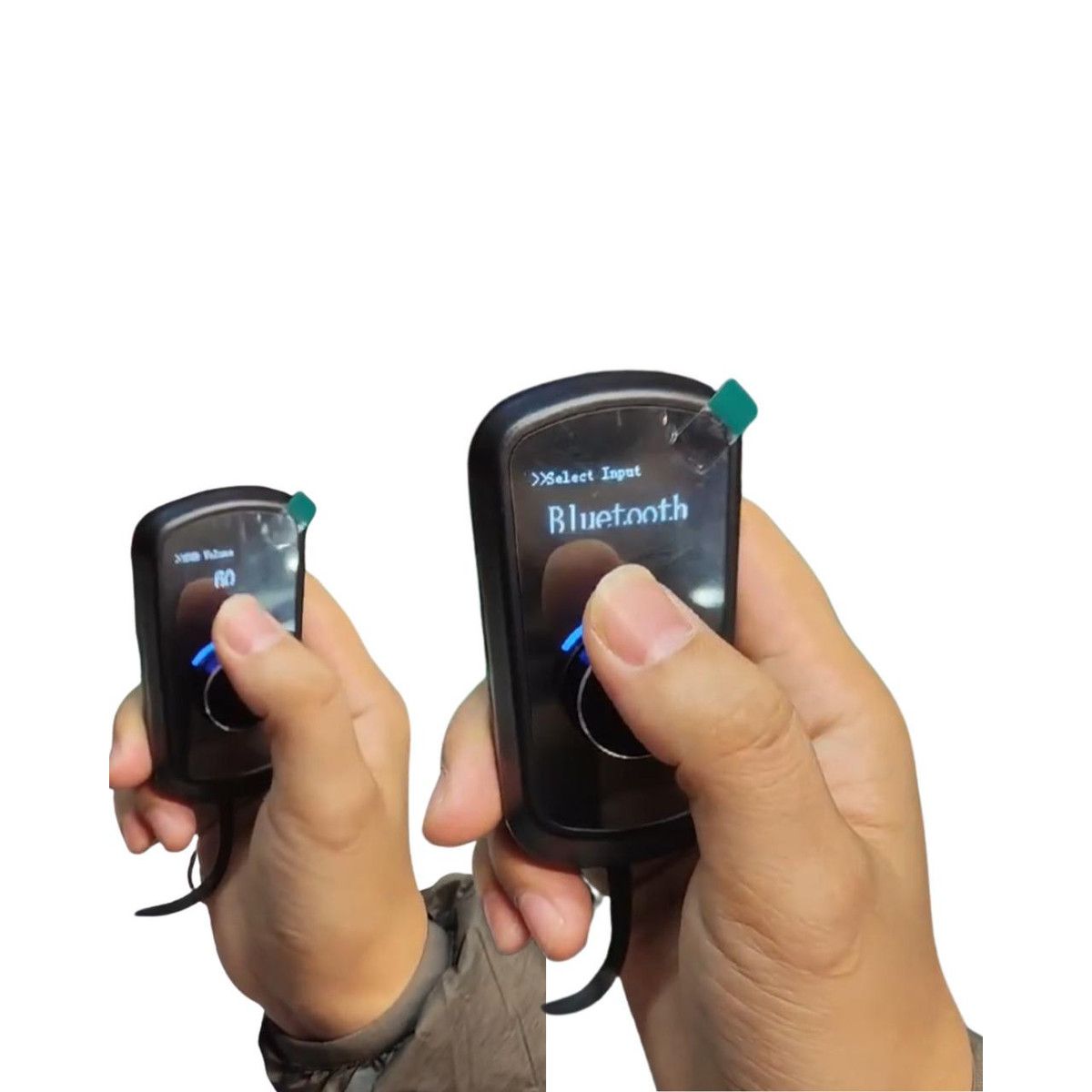

3. Sound Source Selection – Press the knob to access input sources and select the desired mode.
4. Ultra-Bass Adjustment – Short press the knob to access Super Bass Mode, with volume adjustments ranging from 0-60.
5. Preset Sound Selection – Quickly switch between saved DSP presets by pressing the knob.

Technical Specifications

• Display: 1.3-inch OLED screen
• Control Interface: Rotary knob + push-button selection
• Connection Type: RJ11
• Adjustment Range: 0-60 (volume & bass)
• Mounting Compatibility: Universal dashboard or under-dash mounting

Compatibility

The EZY CTRL1 is designed to integrate seamlessly with EZY DSP units and other compatible processors utilizing an RJ11 interface.

Note: This controller is wired and does not support Bluetooth connectivity.

Why Choose EZY CTRL1?

✔ Real-time DSP Adjustments – Tune your audio on the fly.
✔ Compact & Durable Design – Built for seamless integration into any vehicle.
✔ Intuitive User Interface – Easy-to-use rotary knob and button system.
✔ High-Quality Display – OLED screen for better visibility in all lighting conditions.

Upgrade your system control with the EZY CTRL1 and experience precision tuning at your fingertips!

EZY CONTROLLER MANUAL
