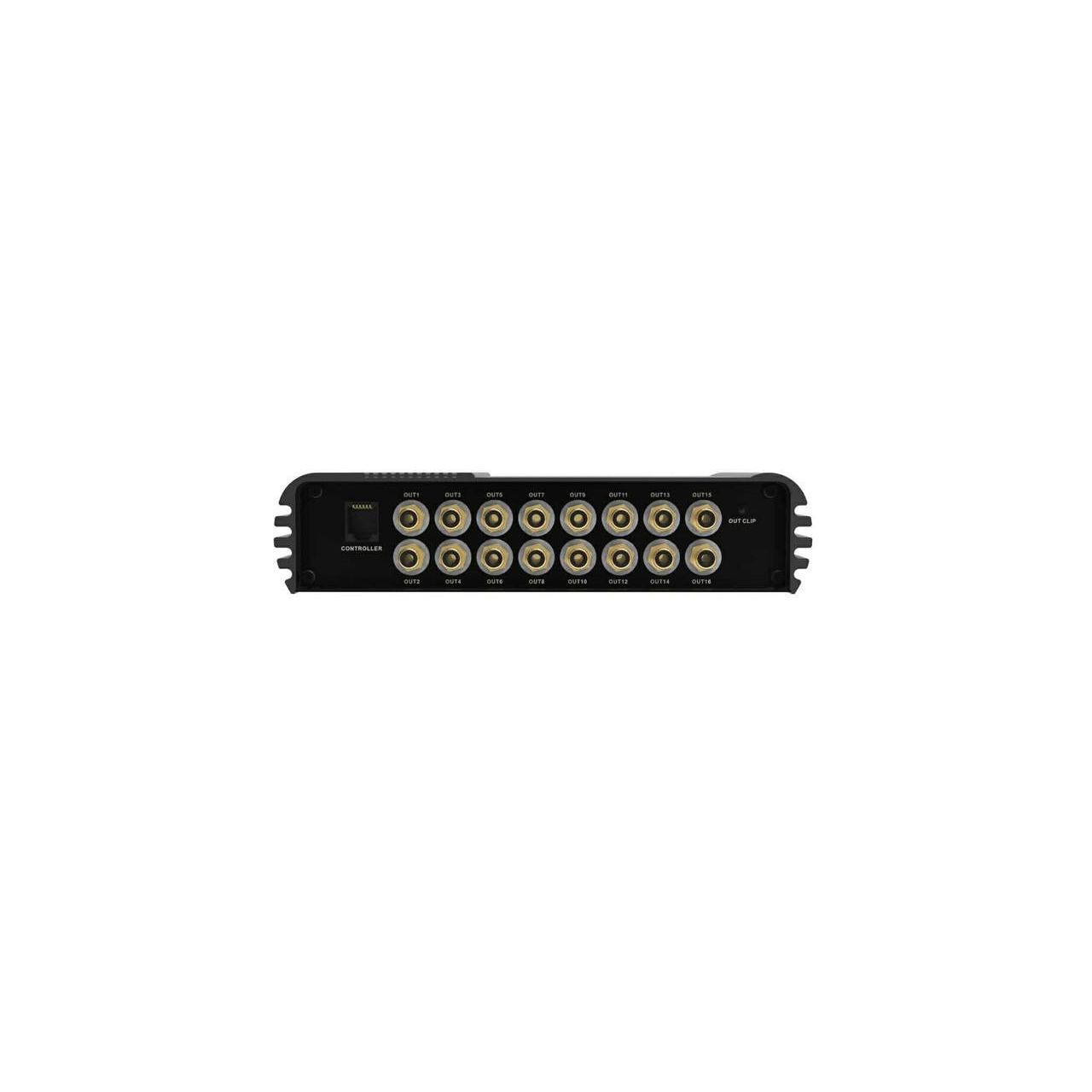

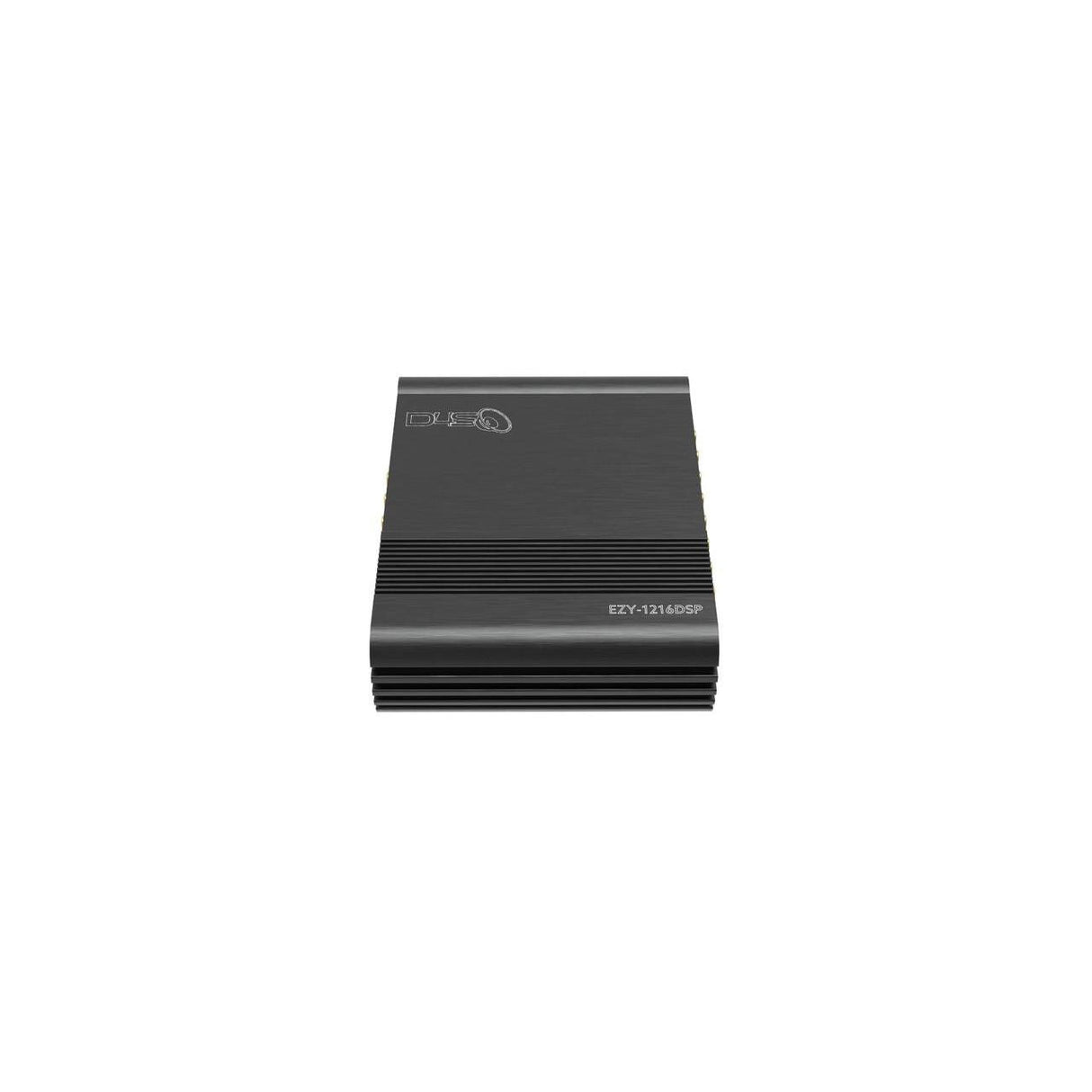

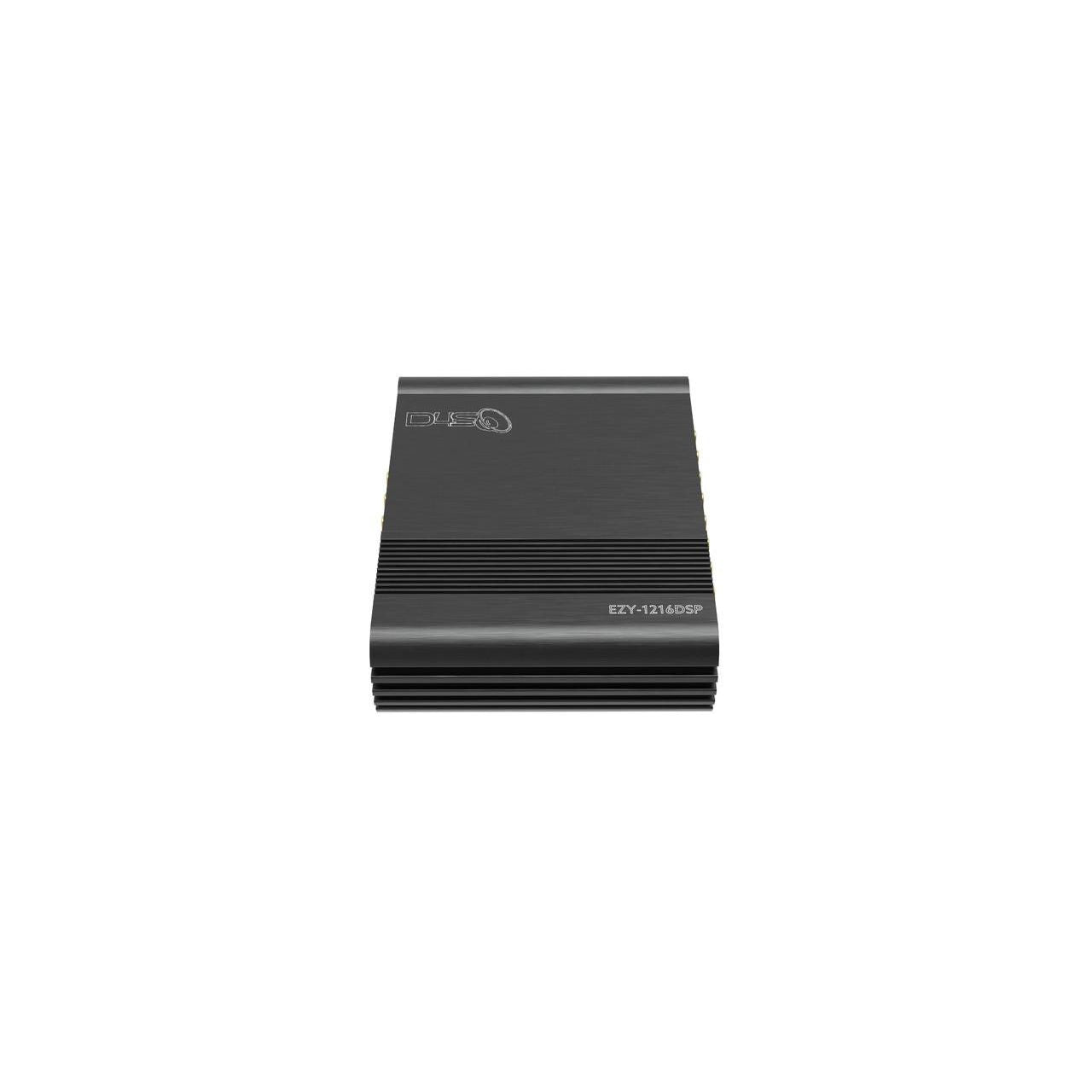

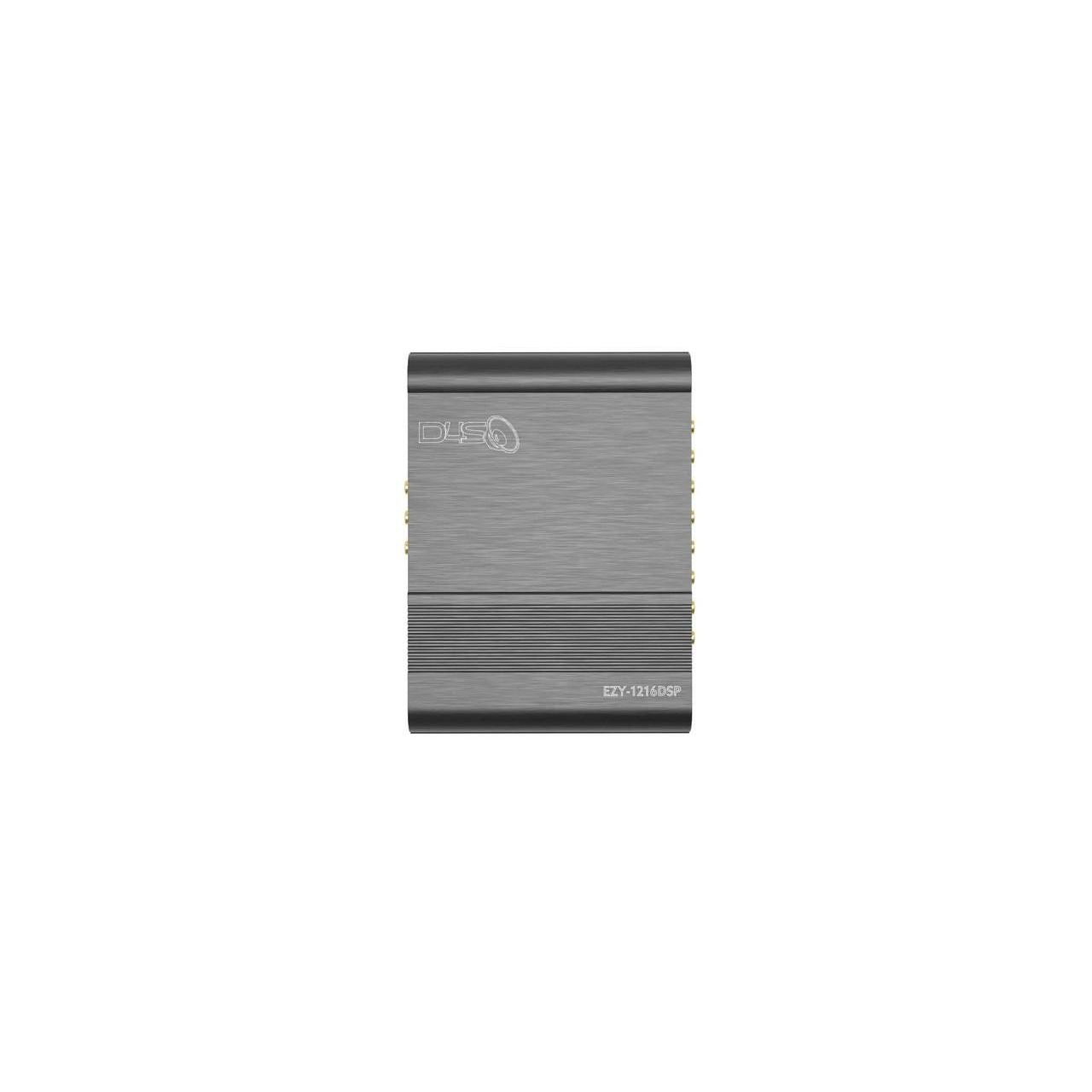

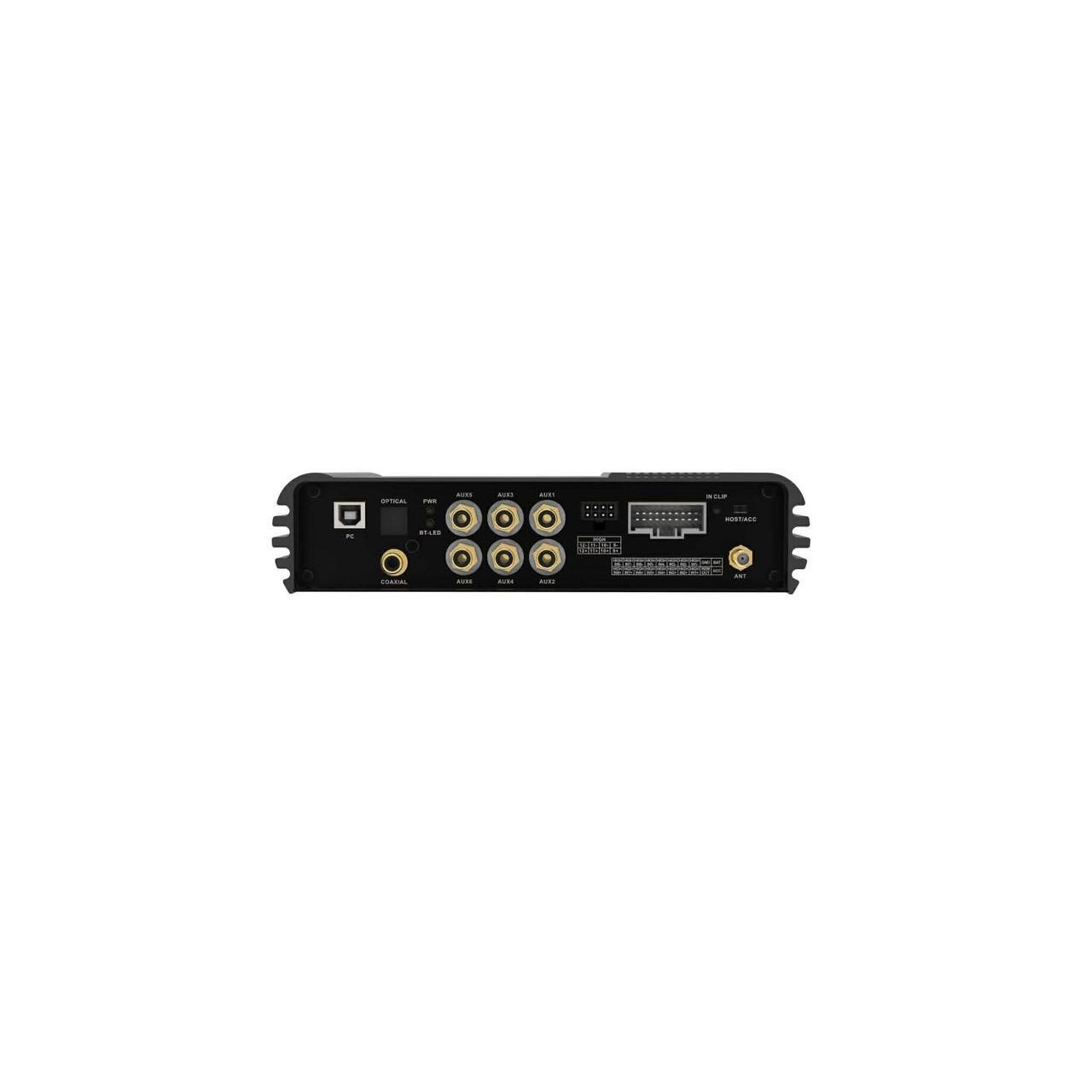

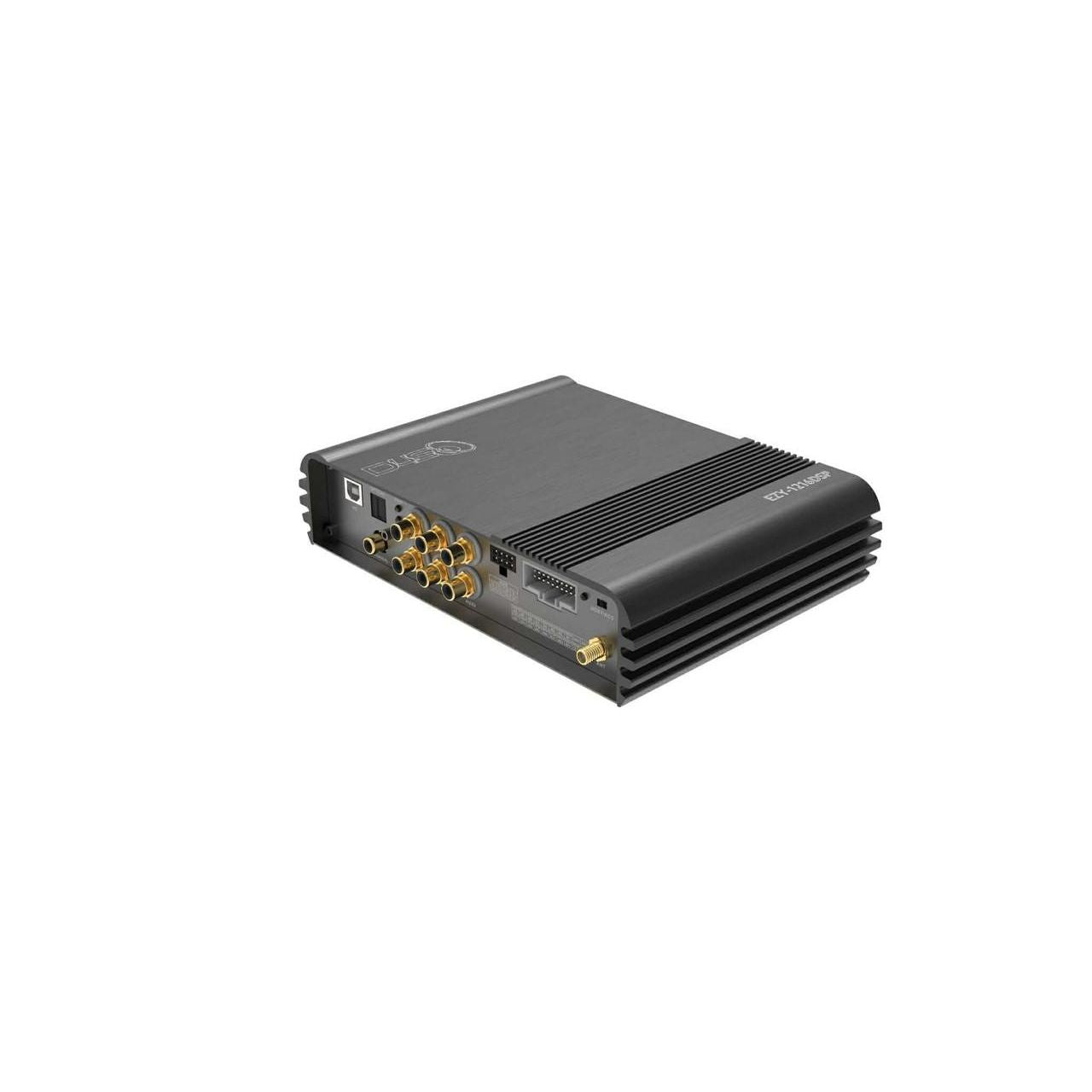

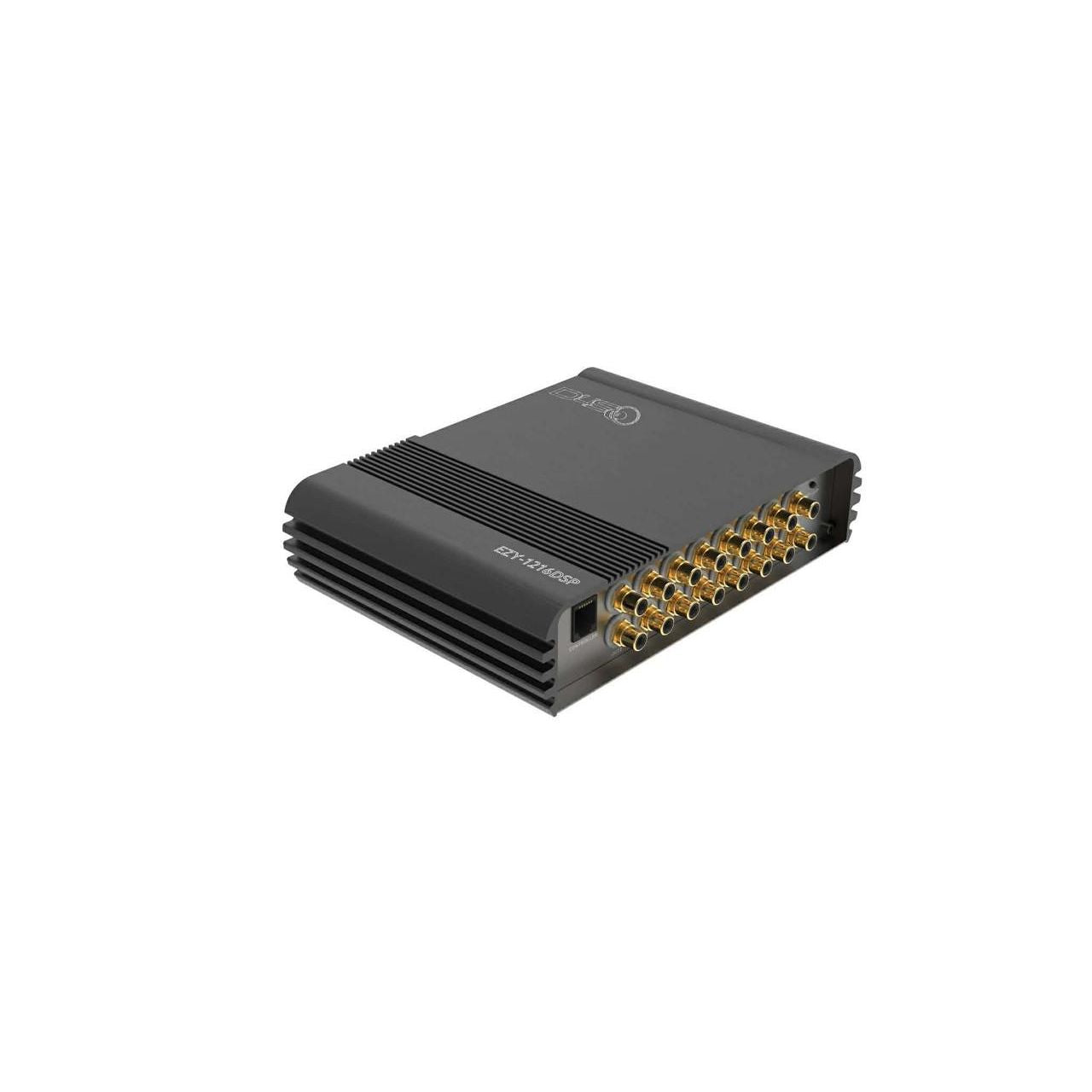

Down4Sound EZY-1216 DSP
Down4Sound EZY-1216 DSP is backordered and will ship as soon as it is back in stock.
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
Down4Sound EZY-1216 DSP
Down4Sound EZY-1216 DSP is backordered and will ship as soon as it is back in stock.
Highlight title
Text to highlight a key feature of your product
Description
Description
The EZY-1216DSP provides complete command over your audio system with high-precision digital tuning and outstanding sound clarity. Built for professional installers and demanding enthusiasts, it delivers audiophile-grade performance, flexibility, and seamless mobile control in one robust unit.
Key Features
Inputs
- 12-Channel High-Level or Low-Level Input (High Level: 28 Vpp / Low Level: 12 Vpp)
- Integrated ULTRA HD Bluetooth 5.0 with aptX HD
- RCA, Optical, and Coaxial Inputs with built-in limiter
Outputs
- 16-Channel Low-Level Output (12 Vpp)
- Premium Tiffany-Gold RCA Jacks
Digital Signal Processing
- High-Performance 32-bit / 148 MHz DSP IC
- Precise 31-Band EQ with 25 ms Delay per Channel
- 96 kHz / 32-bit Sampling Rate
- All-Pass Filter Function
- Customizable Channel Naming and Adjustable Output Types
Audio Performance
- Signal-to-Noise Ratio (RCA) > 100 dB
- Total Harmonic Distortion (THD + N) ≤ 0.05 %
- Noise Floor −95 dBu
- Intermodulation Distortion < 0.005 %
- Channel Separation > 95 dB
- Frequency Response: 20 Hz – 40 kHz
Power & Environmental
- Operating Voltage: DC 9 – 16 V
- Working Current: 500 mA – 1 A
- Dark Current: < 3 mA
- Operating Temperature: −30 °C to +70 °C (−22 °F to 158 °F)
- Do not in an mount area that has heavy vibration.
Mobile App Integration
- Real-Time RCA Output Voltage Display per Channel
- Tuning File Sharing and Backup Capability
