Dodge front dana 60 u bolt kit no plates.

OPTION 1

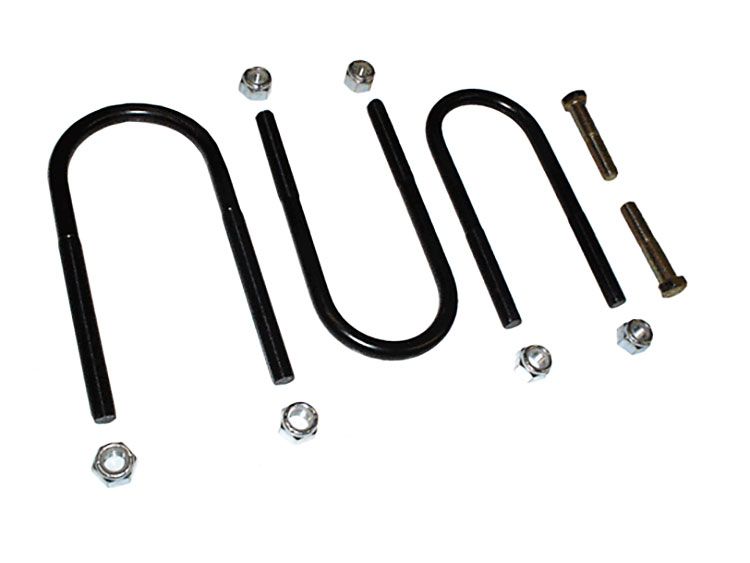

 U-bolts, studs, nuts and washers to replace your front leaf springs on a 93 and prior kingpin dana 60. These are all 5/8"
    Holes must be drilled and tapped to 5/8"  from the factory 1/2" for 9/16" to use this kit.
Comes with 5/8" u-bolts and 5/8" studs.

OPTION 2

 U-bolts, studs, nuts and washers to replace your front leaf springs on a 93 and prior kingpin dana 60. These are all 9/16"

Comes with 9/16" u-bolts and  9/16 bolts

No modification necessary

Bolt length notes;

   the threaded holes in your axle are approximately 1-1/4 deep. A typical leaf is about 3/8” thick. A typical skyjacker 5 leaf pack is 1-7/8” thick. A typical top plate is 3/8” thick. We ALWAYS suggest getting rid of the bottom shim that messes up your good driving positive caster. We usually recommend for most lifted trucks to run our offset spring plate to move the axle forward an inch, it’s 1/4” thick. We often suggest removing one or two leafs from the bottom of a 5 leaf pack to improve ride quality. These numbers along with a washer thickness can help determine the bolt length that would work best for you if not using the supplied studs.
