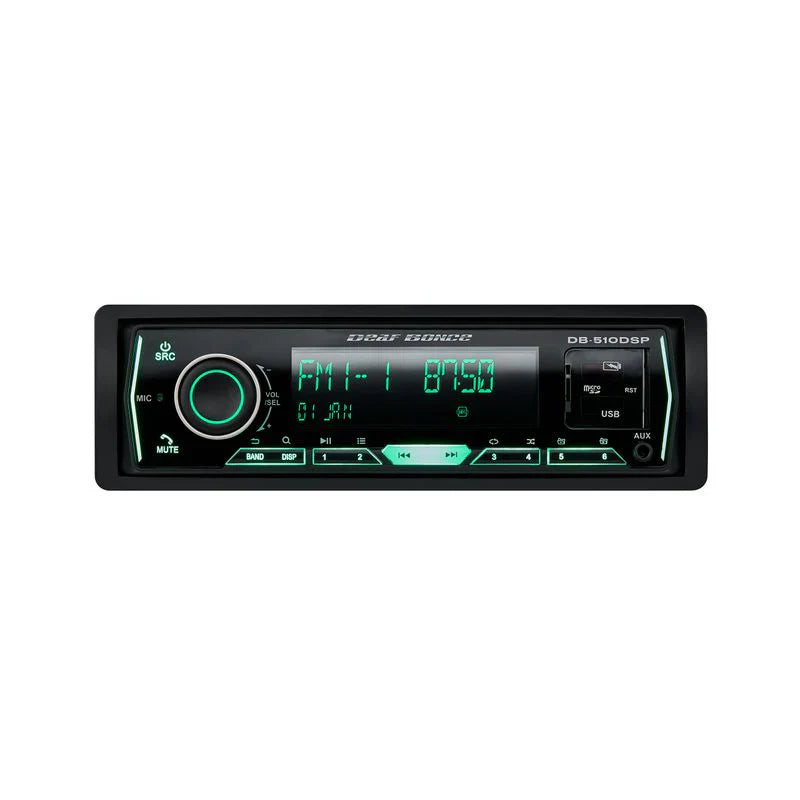

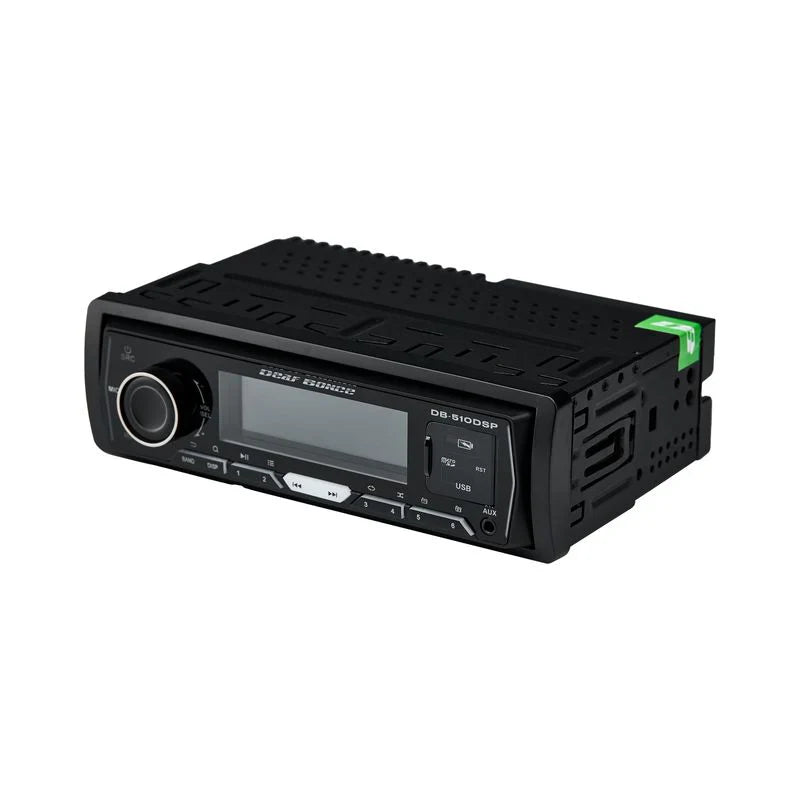

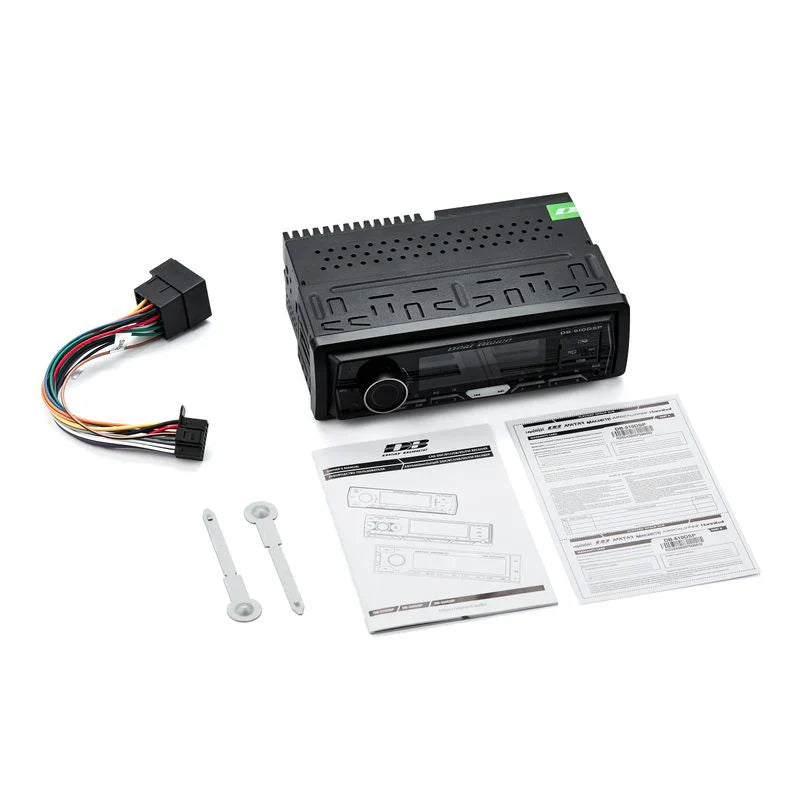

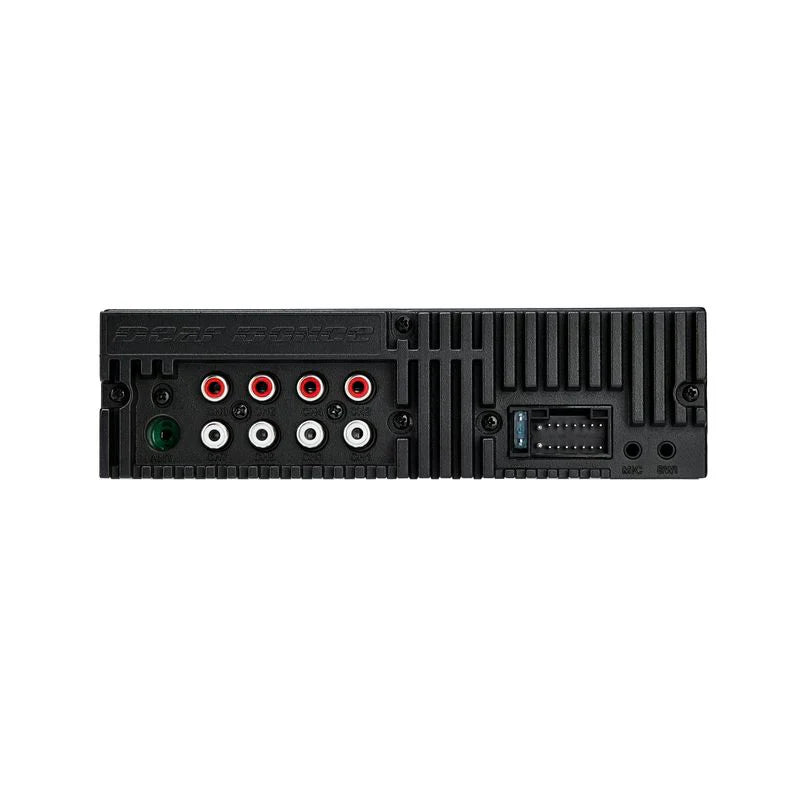

Deaf Bonce DB-510DSP
Deaf Bonce DB-510DSP is backordered and will ship as soon as it is back in stock.
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
Deaf Bonce DB-510DSP
Deaf Bonce DB-510DSP is backordered and will ship as soon as it is back in stock.
Highlight title
Text to highlight a key feature of your product
Description
Description
|
7. SPECIFICATIONS |
|
|
KEY FEATURES |
|
|
Power RMS 4 Ohm |
4x25 W |
|
Radio tuner type |
AM, FM, RDS |
|
Number of RCA outputs |
8 |
|
Number of radio stations |
18 FM, 12 AM |
|
AUX input |
3.5 mm mini-jack |
|
Card reader |
ME. 20 Sonly for models DB 510DSP and |
|
USB ports |
USB Type-A + USB charging port (5V, 1A) |
|
Supported audio playback formats |
MP3, WMA, AAC, FLAC, WAV |
|
Head Unit steering wheel control buttons learning (SWC) |
Yes |
|
Hands-Free support |
Yes |
|
CONNECTION |
|
|
Working voltage |
10-17 V |
|
Input terminal connection |
16 AWG |
|
Output terminal connection |
20 AWG |
|
Automatic turn on/off |
ACC |
|
Front panel backlight type |
ARGB, 7 colors |
|
Quantity of backlight zones |
2 |
|
Information screen type |
VA LCD |
|
Integrated fuse |
15A |
|
AUDIO |
|
|
Built in amplifier class AB |
|
|
Number of RCA outputs |
8 |
|
Number of full range RCA outputs |
6 |
|
Number of subwoofer RCA outputs |
2 |
|
RCA output voltage |
up to 4.5 V |
|
Bluetooth profile |
A2DP |
|
Frequency response for full range channels |
20 Hz- 20 kHz |
|
Frequency response for subwoofer channels |
20 Hz- 800 Hz |
|
Signal to noise ratio |
≥80 dB |
|
Minimum permissible load impedance on the single channel |
4 Ohm |
|
CROSSOVER |
|
|
Filter types for full range channels |
LPF, HPF |
|
Filter types for subwoofer channels |
LPF, HPF |
|
Crossover frequency for full range channels |
30 H2 - 12.5 KHZ |
|
Crossover frequency for subwoofer channels |
20 Hz- 800 Hz |
|
Filter slope for full range channels |
6-24 dB/Oct |
|
Filter slope for subwoofer channels |
6-24 dB/Oct |
|
TIME ALIGNMENT |
|
|
Time alignment, distance |
0 - 642 cm / 0 - 240 inch |
|
Time alignment, delay |
0 - 18 ms |
|
Time alignment, step |
0.1 ms, 3 cm, 1 inch |
|
SIZE |
|
|
Size (LxWxH) |
188x58x138 mm |
|
Size (LxWxH)| |
7.4x2.28x5.43 inch |
