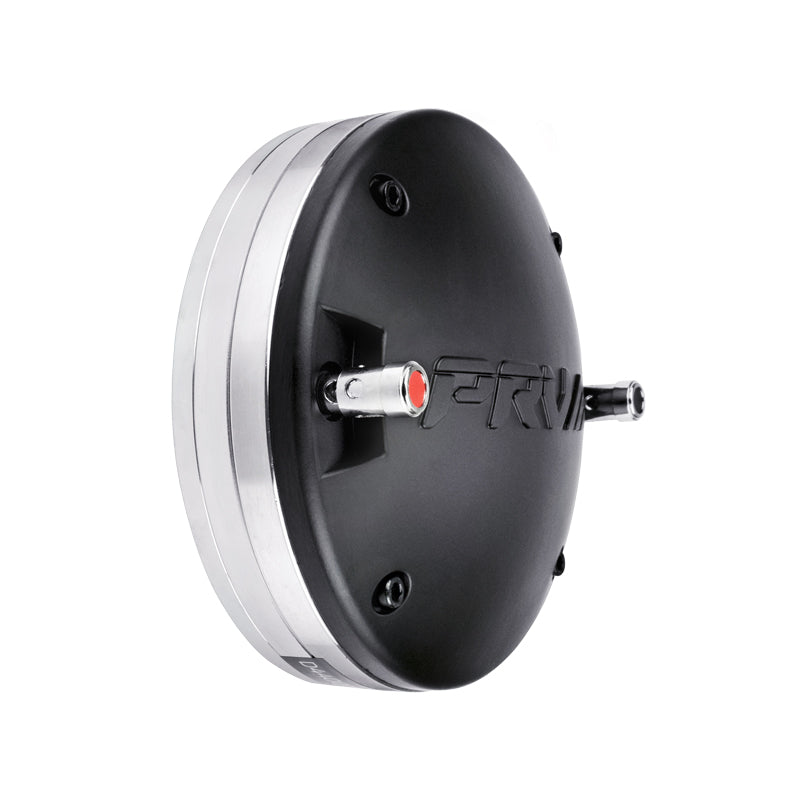

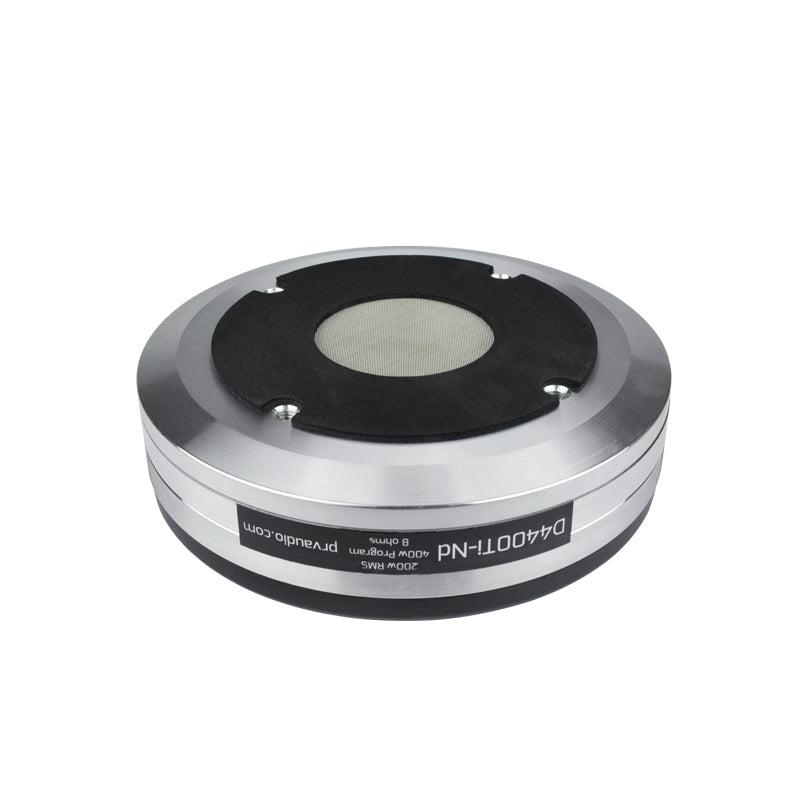

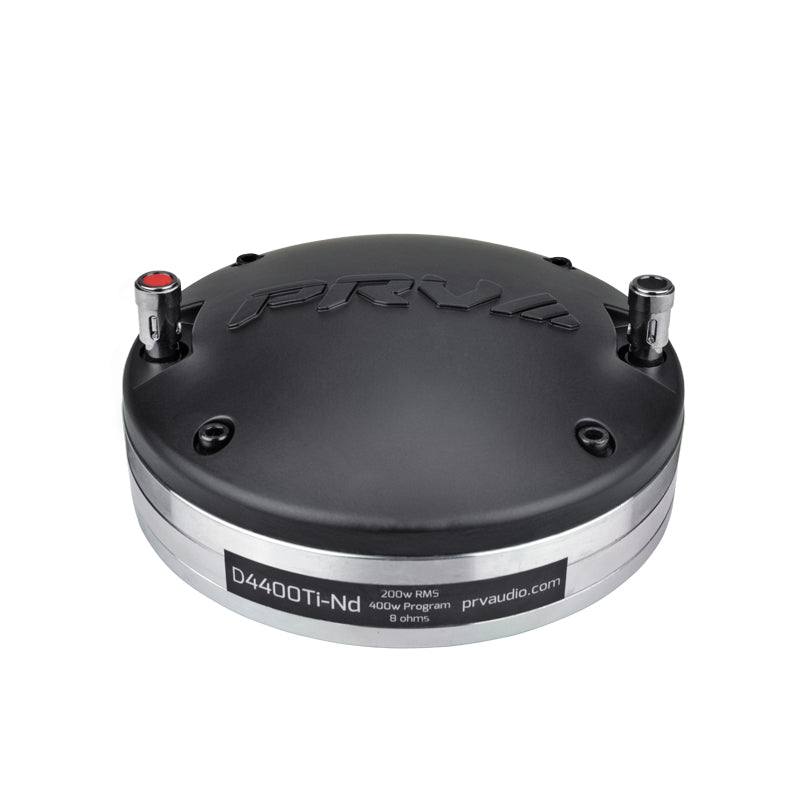

D4400Ti-Nd | 2" Exit High Frequency Compression Driver
D4400Ti-Nd | 2" Exit High Frequency Compression Driver is backordered and will ship as soon as it is back in stock.
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
D4400Ti-Nd | 2" Exit High Frequency Compression Driver
D4400Ti-Nd | 2" Exit High Frequency Compression Driver is backordered and will ship as soon as it is back in stock.
Highlight title
Text to highlight a key feature of your product
Description
Description
The newest addition to our product line, D4400Ti-Nd features a Compact 154 mm diameter ring Neodymium Magnet that reduces overall size and weight as well as a premium Titanium 4.0 in voice coil, making this 2″ exit High Frequency Driver popular among professional users as a “Compact yet very Powerful” Driver that solves the critical component spacing issue!
The D4400Ti-Nd is designed to ensure a quality sound and long lasting play in your large environment applications.
- Throat Diameter: 2″
- Type: Bolt-On
- Nominal Impedance: 8 Ohms
- Rated AES Power Handling (RMS): 200 Watts
- Program Power: 400 Watts
GENERAL SPECIFICATIONS
| Exit Throat Diameter | 2” (50 mm) |
| Nominal impedance | 8 Ohms |
| Rated AES Power Handling (RMS) | 200 Watts |
| Program Power | 400 Watts |
| Sensitivity 2.83V at 1m | 110 dB |
| Recommended Hi Pass Crossover** **For Full Power Handling | 1600 Hz** **12db Per Octave Crossover |
| Frequency Response at -10dB | 1,300 – 17,000 Hz |
| Voice Coil Diameter | 4”(101.6 mm) |
| Voice Coil Wire | CCAW |
| Voice Coil Former Material | Kapton |
| Diaphragm Material | Titanium |
| Flux Density | 1.90 T |
| Magnet Material | Neodymium |
EXTRA INFO
| Overall Diameter | 6.06” (154 mm) |
| Overall Depth | 2.48” (63 mm) |
| Mounting Bolt Circle | M6 x 4 4” (101.6 mm) |
| Net Weight | 8.82 lbs (4 kg) |
| Shipping Weight | 8.88 lbs (4.28 kg) |
| Carton Dimensions W x L x H | 6.89” x 6.89” x 3.74” (175 x 175 x 95 mm) |
