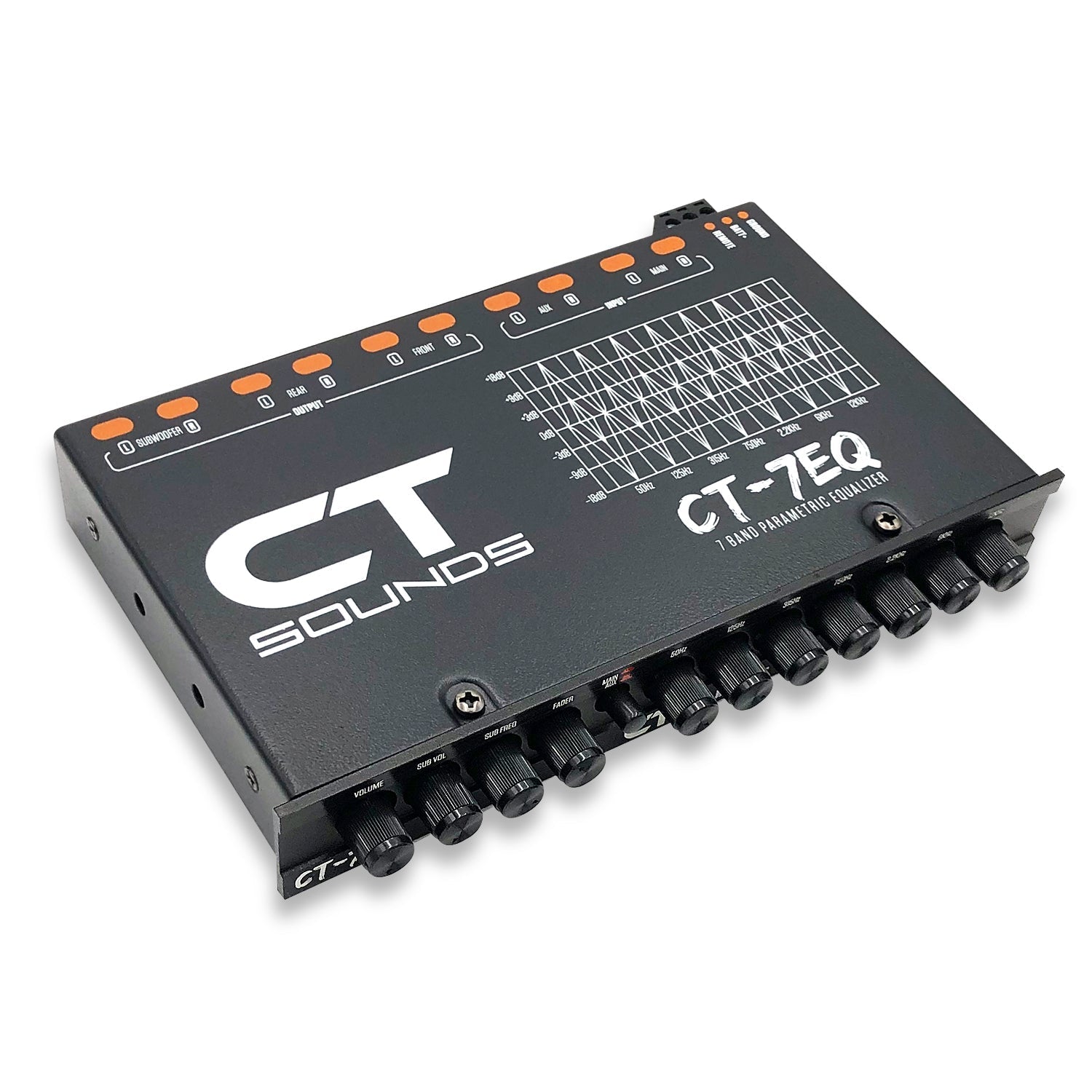

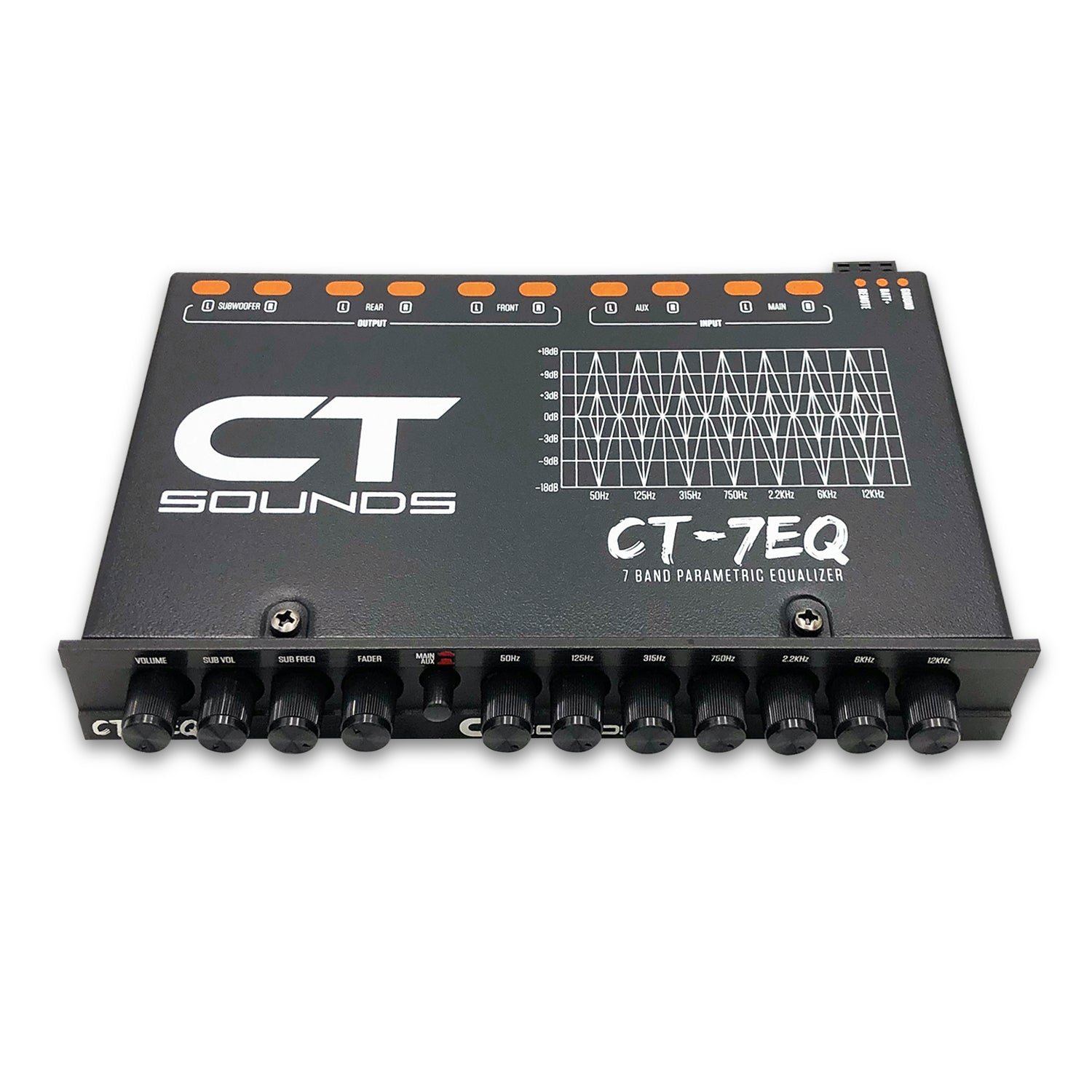

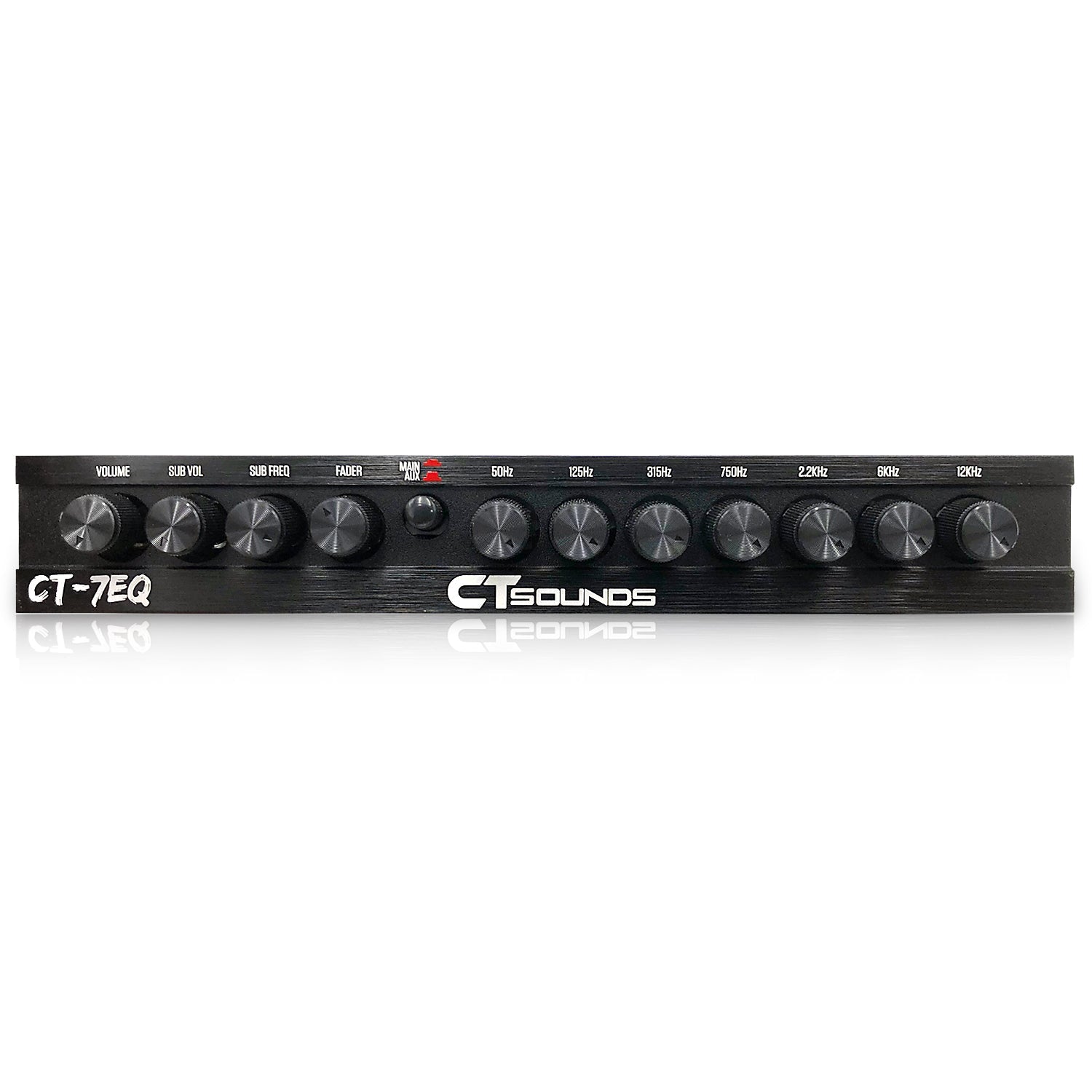

CT-7EQ // 7-Band 1/2 DIN Car Audio Equalizer with AUX Input
Save 24%
Original price
$79.00
Original price
$79.00
-
Original price
$79.00
Original price
$79.00
Current price
$60.00
$60.00
-
$60.00
Current price
$60.00
The CT-7EQ is a 7 band 1/2 din parametric car audio equalizer designed to divide and enhance the segment of frequency for your car audio application. The car audio equalizer features 7 bands that divide 20Hz - 20kHz into 7 segments. Each knob can control the volume of each segment so that you can take full control over your system.
Included with the car equalizer are installation brackets and hardware.
| General Specifications: | |
| Type: | Car Equalizer |
| Output: | 6-Channel RCA Output (Front, Rear, Subwoofer) |
| Input: | 4-Channel RCA Input (AUX & Main) |
| AUX Input: | RCA AUX Input with Variable Gain Adjustment |
| Main Input: | Balanced RCA Main Input |
| # of Frequency Bands: | 7 |
| Din Size: | 1/2 |
| Technical Specifications: | |
| Adjustable Frequency Bands: | 50 Hz, 125 Hz, 315 Hz, 750 Hz, 2.2 kHz, 12 kHz |
| Frequency Response: | 10 Hz - 30 kHz ±3 dB |
| Subwoofer Frequency (LPF): | 10 Hz - 95 Hz |
| Boost/ Cut Range: | ± 18 dB |
| Signal-To-Noise Ratio (S/N): | 90 dB |
| Output Level: | ± 16 dB |
| Bass Adjust: | ± 10 dB |
| Mid Adjust: | ± 10 dB |
| Treble Adjust: | ± 10 dB |
| Separation: | > 60 dB |
| Power Source: | 10V - 14.4V |
| Input Current: | 0.05A Max |
| Output Voltage: | 8.1V |
| Distortion: | 0.01% THD at 1V Output |
