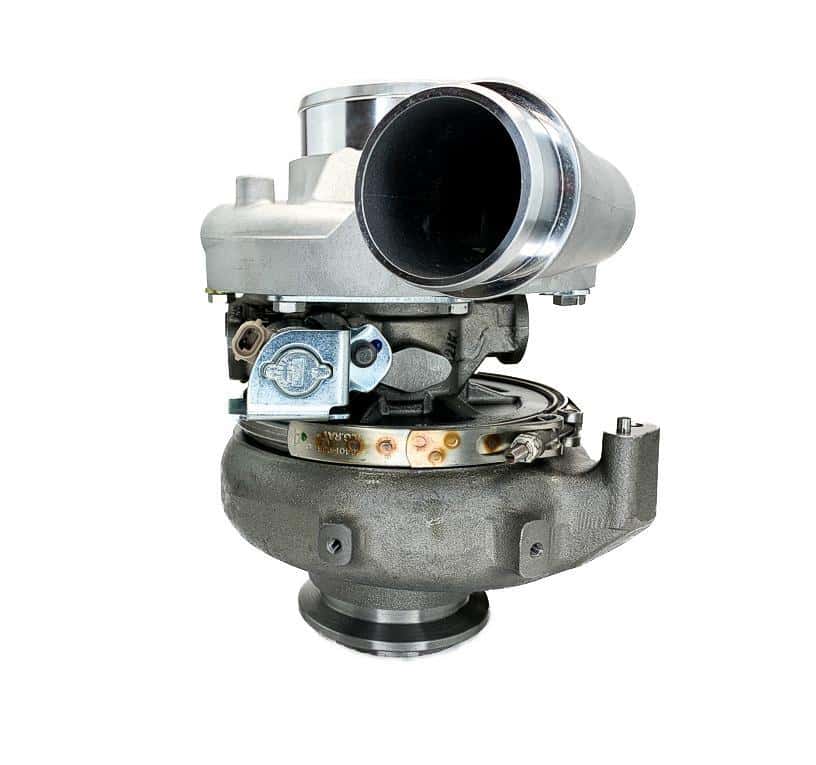

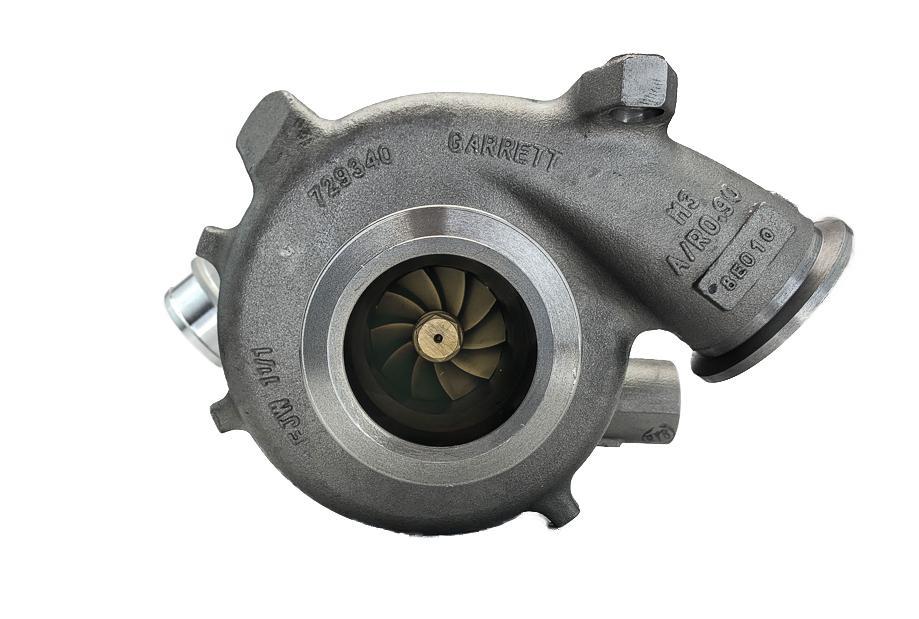

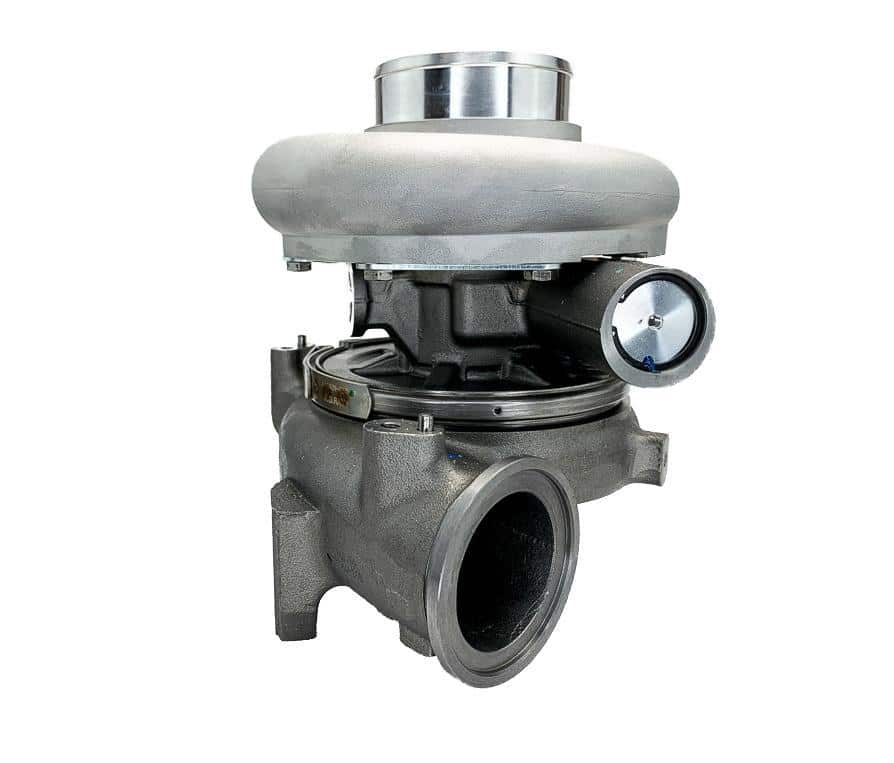

KC Stage 2 Turbo

Recommended injectors: 175cc/30%

Maximum injectors: 190cc/30%

Minimum injectors: 155cc/30%

Features & Details:

• 500 to 600 HP
• 64x88mm single plane GTX style billet wheel with extended tips to 94mm
• Upgraded .72ar race compressor cover with drilled hole surge ring for maximum air flow
• 72.5x66 10 blade turbine wheel
• New high flowing vanes
• Upgraded 360 thrust bearing
• 100% drop in (no modifications required)
• New VGT solenoid
• Requires NO CORE

Description:

This turbo works great on stock injectors, but to fully take advantage of all the extra air flow we recommend a 175/30 or 190/30 injector. This is a great turbo for those looking to push the limits of their truck. This turbo is made for those who are looking for more top end power but still want to have the ability to tow max weight. This turbo will tow max weight with ease as long as you watch your temps and keep your rpms up. This turbo has a very loud whistle.

**We highly recommend Custom SCT tuning to go with your turbo**

**Our polished covers require a 1-2 week lead time**

NOTE:  We build our stage 2 turbos from 2003 cores.  These come with the better turbine wheel, better vanes, and will bolt on ANY YEAR.  Some years you will only run 2 mounting bolts instead of 3.

**EXHAUST BRAKES:  We get asked a lot about exhaust brakes and if they work with our turbos.  We have found that some brands have clearance issues and might cause the brake to hinder performance, rub the turbine wheel, or cause other issues.  These brakes typically use some sort of flapper to close which causes extreme exhaust back pressure to aide in braking.  This can be hard on a turbo and motor and is not recommended.  It will be up to the customer to verify fitment and functionality.**

Here are a few video links to show the power potential and towing power of the turbo:

 6.0 KC Stage 2 turbo on a race tune with larger injectors

6.0 KC stage 2 towing
