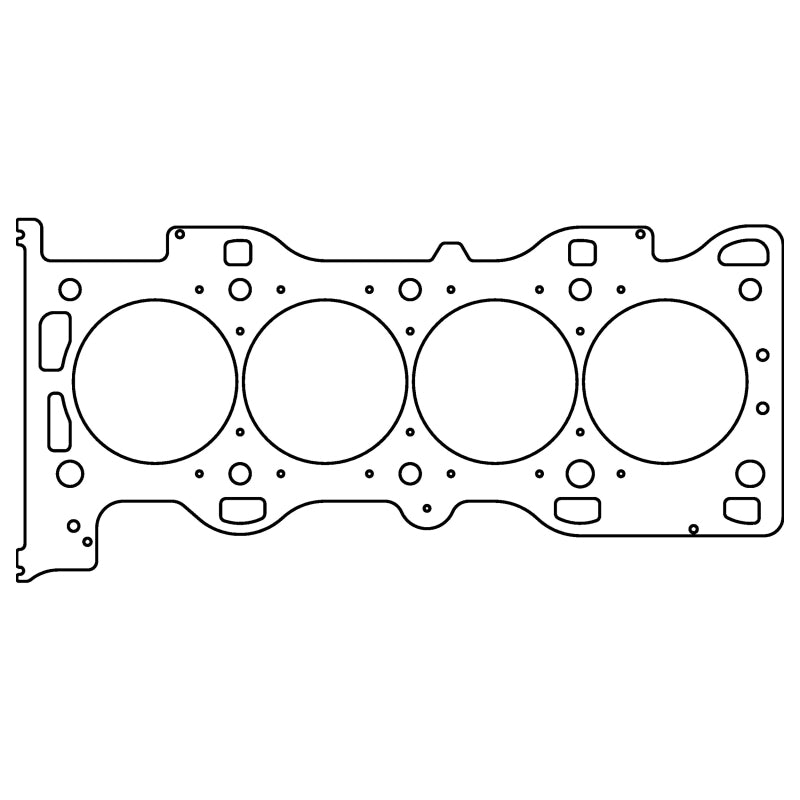

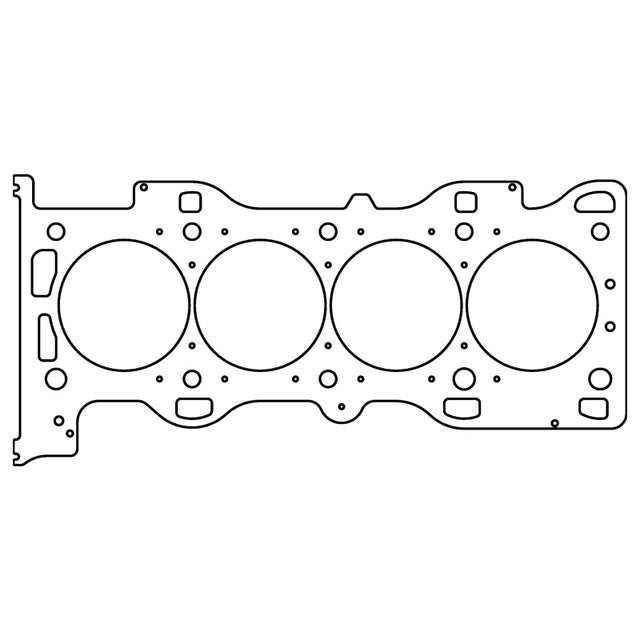

Cometic Mazda LF/L3 MZR Ford Duratec 20/23 .051in MLS Cyl Head Gasket-92mm Bore

Comprised of multiple embossed layers of stainless steel with the outer layers utilizing a Viton rubber coating. Compressed operating thickness is 0.098". Cometic MLS (Multi-Layer Steel) Head Gaskets provide maximum sealing performance for todays high output engines and require no sealants. MLS gaskets are ideal for both aluminum heads to aluminum blocks and aluminum heads to cast iron blocks. They can withstand the shearing force created by the two materials. MLS gaskets have increased strength because they are comprised of multiple layers of stainless steel; which also creates the ability to rebound and resist corrosion. The outer layers are embossed and coated on both sides with Viton (a flour elastomer rubber based material that is heat resistant to 250 C/ 482 F). Viton is designed to meet the demands of a variety of harsh sealing environments, load conditions, and surface finishes. The center or shim layer is uncoated stainless steel, which can be varied to accommodate multiple thickness requirements.

This Part Fits:

Year	Make	Model	Submodel
2005-2008	Ford	Escape	XLS
2005-2008	Ford	Escape	XLT
2005	Ford	Escape	XLT No Boundaries
2003-2004	Ford	Focus	LX
2007-2011	Ford	Focus	S
2003-2004,2007-2011	Ford	Focus	SE
2009-2011	Ford	Focus	SEL
2007-2011	Ford	Focus	SES
2007	Ford	Focus	ST
2003-2004	Ford	Focus	ZTS
2003-2004	Ford	Focus	ZTW
2003-2006	Ford	Focus	ZX3
2005-2006	Ford	Focus	ZX4
2005-2006	Ford	Focus	ZX4 ST
2003-2006	Ford	Focus	ZX5
2005-2006	Ford	Focus	ZXW
2009	Ford	Ranger	Sport
2007	Ford	Ranger	STX
2001-2011	Ford	Ranger	XL
2001-2011	Ford	Ranger	XLT
2010-2013	Ford	Transit Connect	XL
2010-2013	Ford	Transit Connect	XLT
2011-2013	Ford	Transit Connect	XLT Premium
2004-2005	Mazda	3	S
2002-2009	Mazda	B2300	Base
2001,2003-2004	Mazda	B2300	SE
2001	Mazda	B2300	SX
2005-2006,2008	Mazda	Tribute	i
2005,2008	Mercury	Mariner	Base
2006-2007	Mercury	Mariner	Convenience
