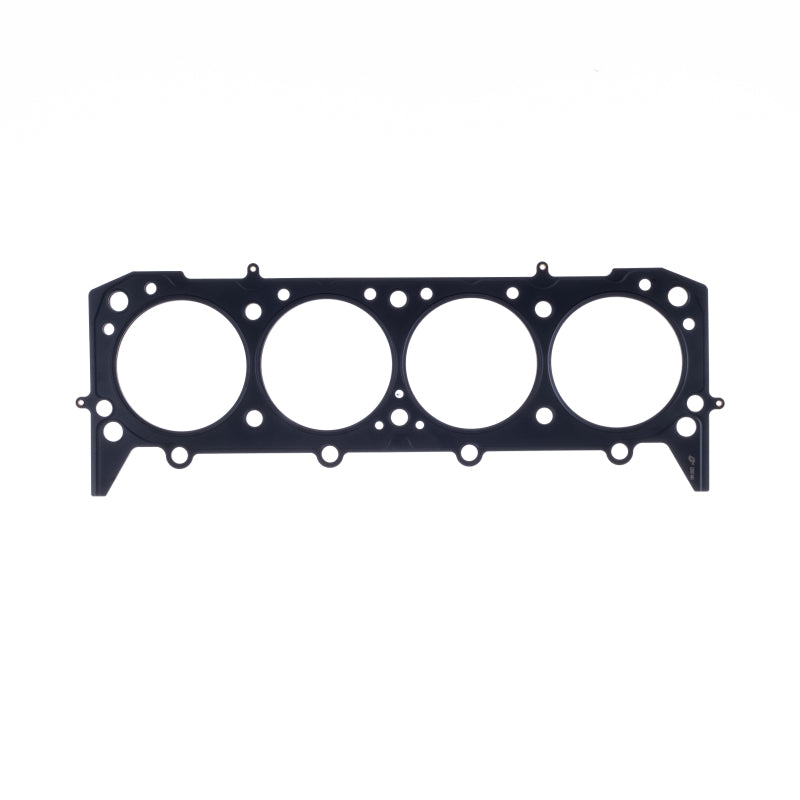

Cometic AMC 390/401 Gen-3 V8 .120in MLS Cylinder Head Gasket - 4.250in Bore

Comprised of multiple embossed layers of stainless steel with the outer layers utilizing a Viton rubber coating. Compressed operating thickness is 0.098". Cometic MLS (Multi-Layer Steel) Head Gaskets provide maximum sealing performance for todays high output engines and require no sealants. MLS gaskets are ideal for both aluminum heads to aluminum blocks and aluminum heads to cast iron blocks. They can withstand the shearing force created by the two materials. MLS gaskets have increased strength because they are comprised of multiple layers of stainless steel; which also creates the ability to rebound and resist corrosion. The outer layers are embossed and coated on both sides with Viton (a flour elastomer rubber based material that is heat resistant to 250 C/ 482 F). Viton is designed to meet the demands of a variety of harsh sealing environments, load conditions, and surface finishes. The center or shim layer is uncoated stainless steel, which can be varied to accommodate multiple thickness requirements.

This Part Fits:

Year	Make	Model	Submodel
1968-1970	American Motors	Ambassador	Base
1971-1974	American Motors	Ambassador	Brougham
1968-1971	American Motors	Ambassador	DPL
1968-1972	American Motors	Ambassador	SST
1968-1970	American Motors	AMX	Base
1971-1974	American Motors	Javelin	AMX
1968-1974	American Motors	Javelin	Base
1968-1972	American Motors	Javelin	SST
1970	American Motors	Javelin	SST Mark Donohue
1970	American Motors	Javelin	SST Trans Am
1971-1976	American Motors	Matador	Base
1974	American Motors	Matador	Brougham
1974	American Motors	Matador	X
1969	American Motors	Rambler	Hurst SC/Rambler
1969	American Motors	Rambler	Rogue
1968	American Motors	Rebel	550
1968	American Motors	Rebel	770
1970	American Motors	Rebel	Base
1968-1970	American Motors	Rebel	SST
1970	American Motors	Rebel	The Machine
1974-1978	Jeep	Cherokee	Base
1974-1977	Jeep	Cherokee	S
1978	Jeep	Cherokee	Wide Track
1974-1978	Jeep	J10	Base
1974-1978	Jeep	J20	Base
1974-1978	Jeep	Wagoneer	Base
1974-1976	Jeep	Wagoneer	Custom
