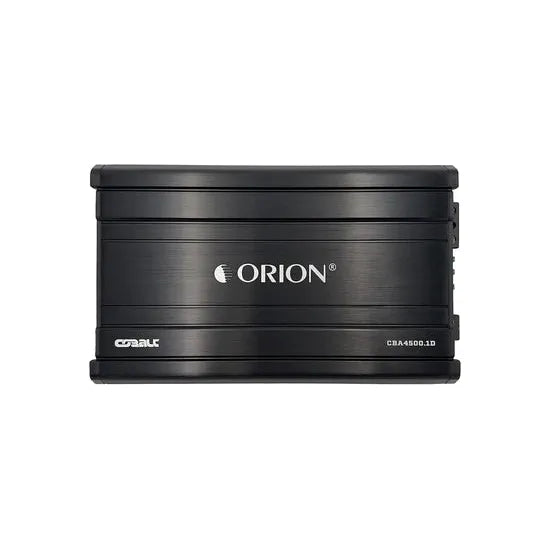

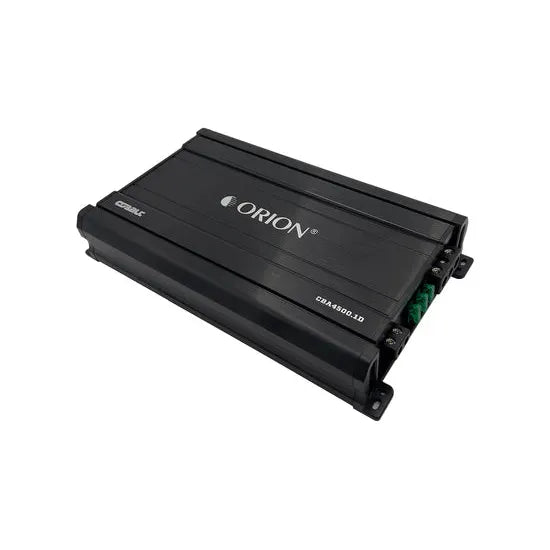

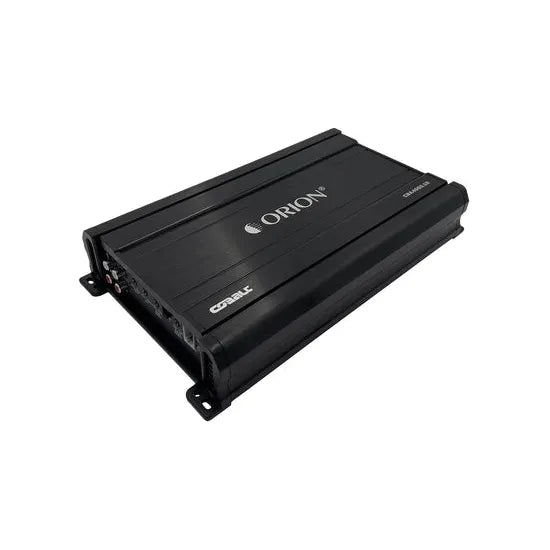

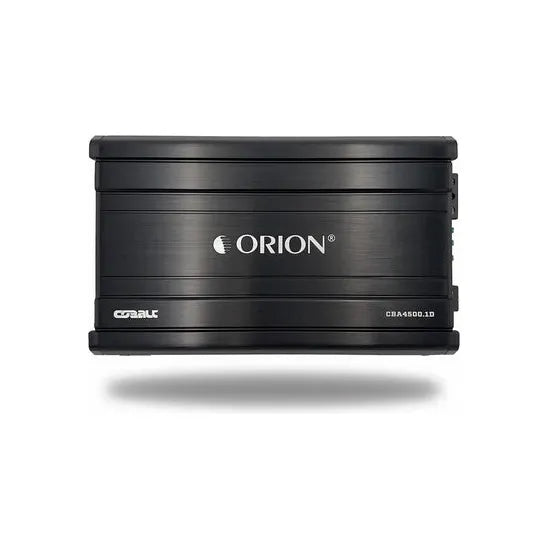

Orion CBA4500.1D 4500W MAX Monoblock Amplifier
Orion CBA4500.1D 4500W MAX Monoblock Amplifier is backordered and will ship as soon as it is back in stock.
Highlight title
Text to highlight a key feature of your product
Description
Description
ORION CBA4500.1D COBALT Series 4500 Watts MAX 1-Channel Class D Amplifier
Unleash Auditory Excellence
The ORION CBA4500.1D COBALT Series 4500 Watts MAX 1-Channel Class D Amplifier epitomizes the pinnacle of audio excellence. Through advanced features and precision engineering, this amplifier transcends conventional boundaries, delivering an extraordinary fusion of power, accuracy, and control to your car audio system.
Immersive Sound Reproduction
Rediscover your music with the ORION CBA4500.1D COBALT Series Amplifier. Every note, beat, and melody – from the softest to the most dynamic – is meticulously reproduced for an engaging and authentic listening experience.
Empower Your Audio Landscape
Experience your music in a new dimension. The ORION CBA4500.1D COBALT Series Amplifier seamlessly integrates raw power with unmatched audio quality, creating a symphony of sound that resonates deeply.
Elevate Your Drive
Enter the realm of sonic perfection with the ORION CBA4500.1D COBALT Series 4500 Watts MAX 1-Channel Class D Amplifier. Elevate your audio journey, redefine your driving soundtrack, and immerse yourself in an elevated level of musical sophistication. It's time to embrace sound in its purest form.
Class D Amplification - Harness the efficiency and precision of Class D amplification for commanding and accurate sound reproduction.
4500 Watts Max Power - Immerse yourself in a symphony of sound with a maximum power output of 4500 Watts, delivering unparalleled auditory magnificence.
Precision Audio Control - The adjustable built-in crossover allows meticulous calibration of audio frequencies, optimizing speaker performance.
Customized Bass Enhancement - Elevate your low frequencies with the adjustable bass boost feature, delivering impactful and resonant bass notes.
Advanced Protection Measures - Equipped with protection circuitry, the amplifier ensures longevity by safeguarding against overheating and short circuits.
Compact and Efficient Design - The amplifier's compact design offers versatile installation options without compromising performance.
Engineered Excellence - Meticulously engineered for optimal audio precision, power efficiency, and steadfast operation.
All MOSFET Power Supply & Output Stage
Heavy Gauge / High Current Custom Power and Speaker Terminals
1-Ohm Stable
Remote Gain Controller Included
RCA Out Throughput
12dB Octave Low-Pass Filter
Electronic Crossover Network
Bass Boost Circuit
Intelligent Power and Protection LED Indicator
Soft Turn-on/Turn-off Turn-On Delay
Fault and Protection Monitoring
4-Way Protection: Thermal, DC offset, Short Protection, under & over voltage
- MAX MUSIC POWER 4500W

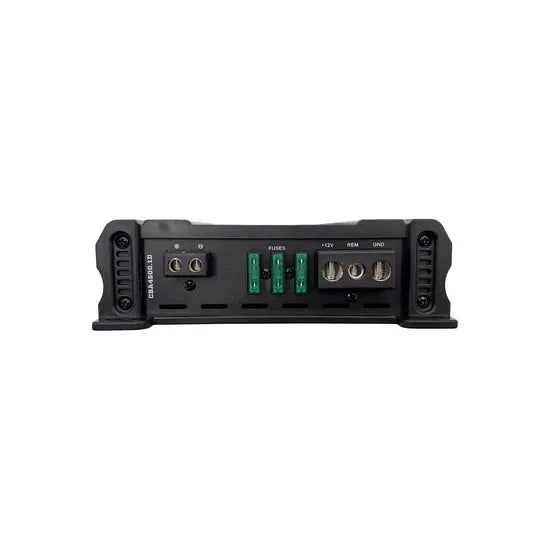

POWER TERMINAL MANAGEMENTPositive Terminals: 1 x 4 AWG.
Negative Terminals: 1 x 4 AWG.
Remote Turn-ON Signal: 10 AWG.
Speaker Output Terminals: 10 AWG.

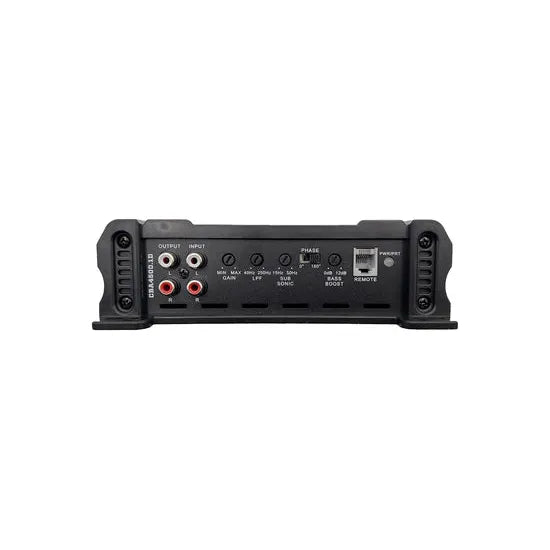

- Frequency Response: 10Hz - 250Hz
- Subsonic (15 - 50Hz)
- Low Pass Crossover Continuously variable (40-250Hz)
- Supply Voltage: 10 - 16V
- Input Impedance: 22kOhm - Signal to Noise Ratio: >90dB
- Phase Shift: 0/180 Degrees
- Bass Boost: 0 - 12dB Variable
- Variable Input Level Control: 0.2V - 6.0V
- Fuses: 105A recommended (3 x 35A ATC)
- Dimensions (L x W x H): 12.28" x 7.09" x 2.13" (312x180x54mm)
