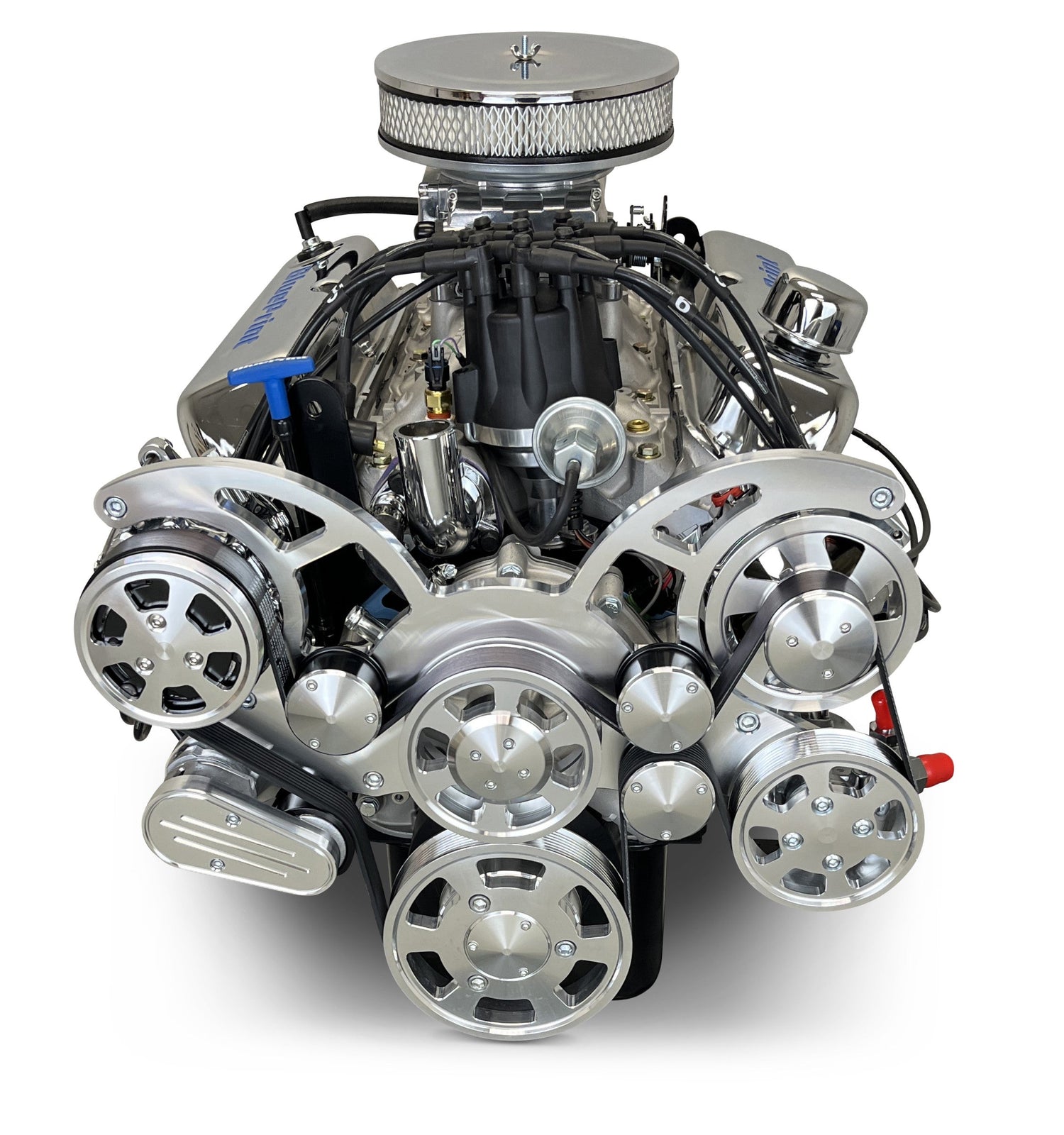

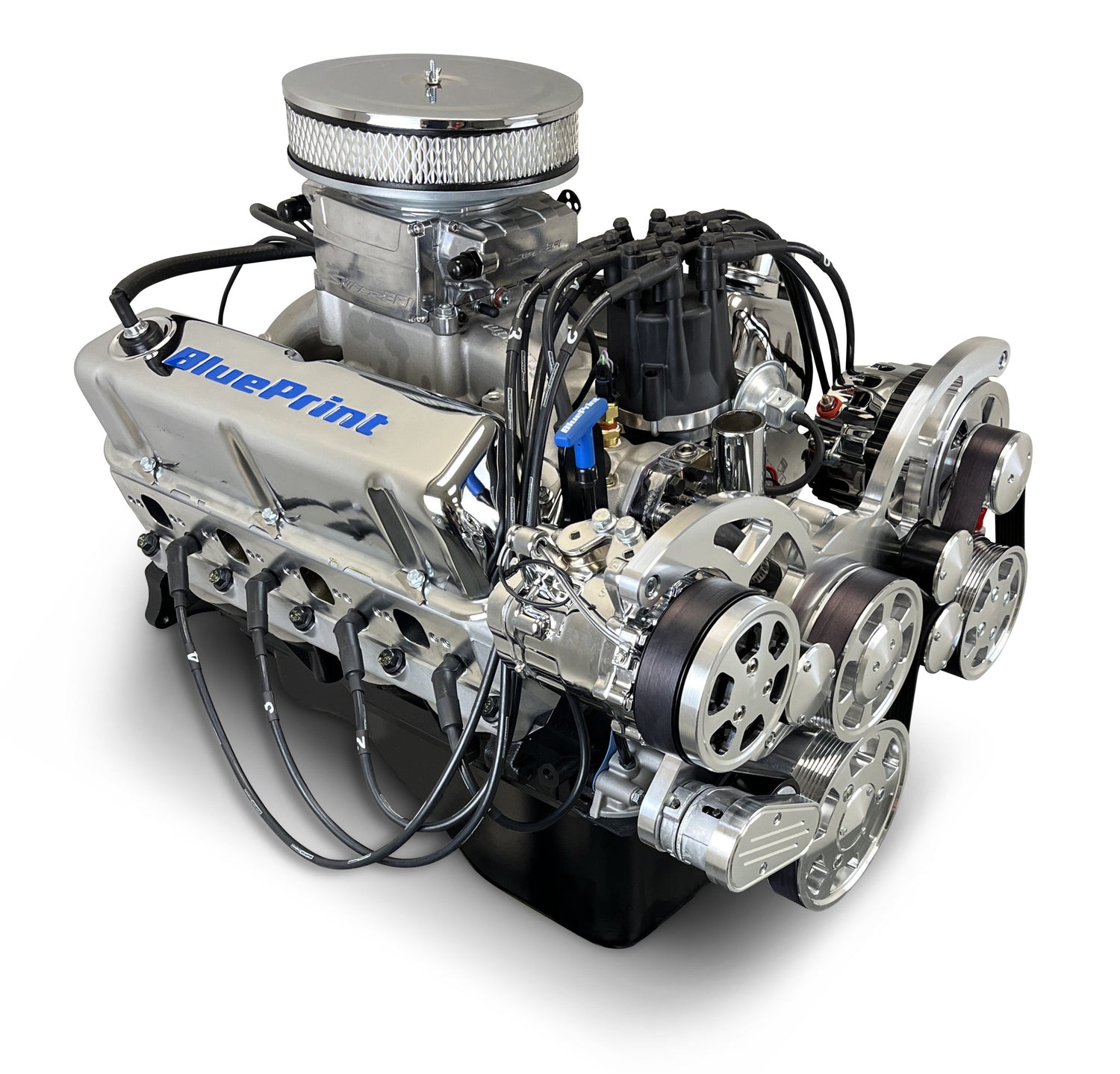

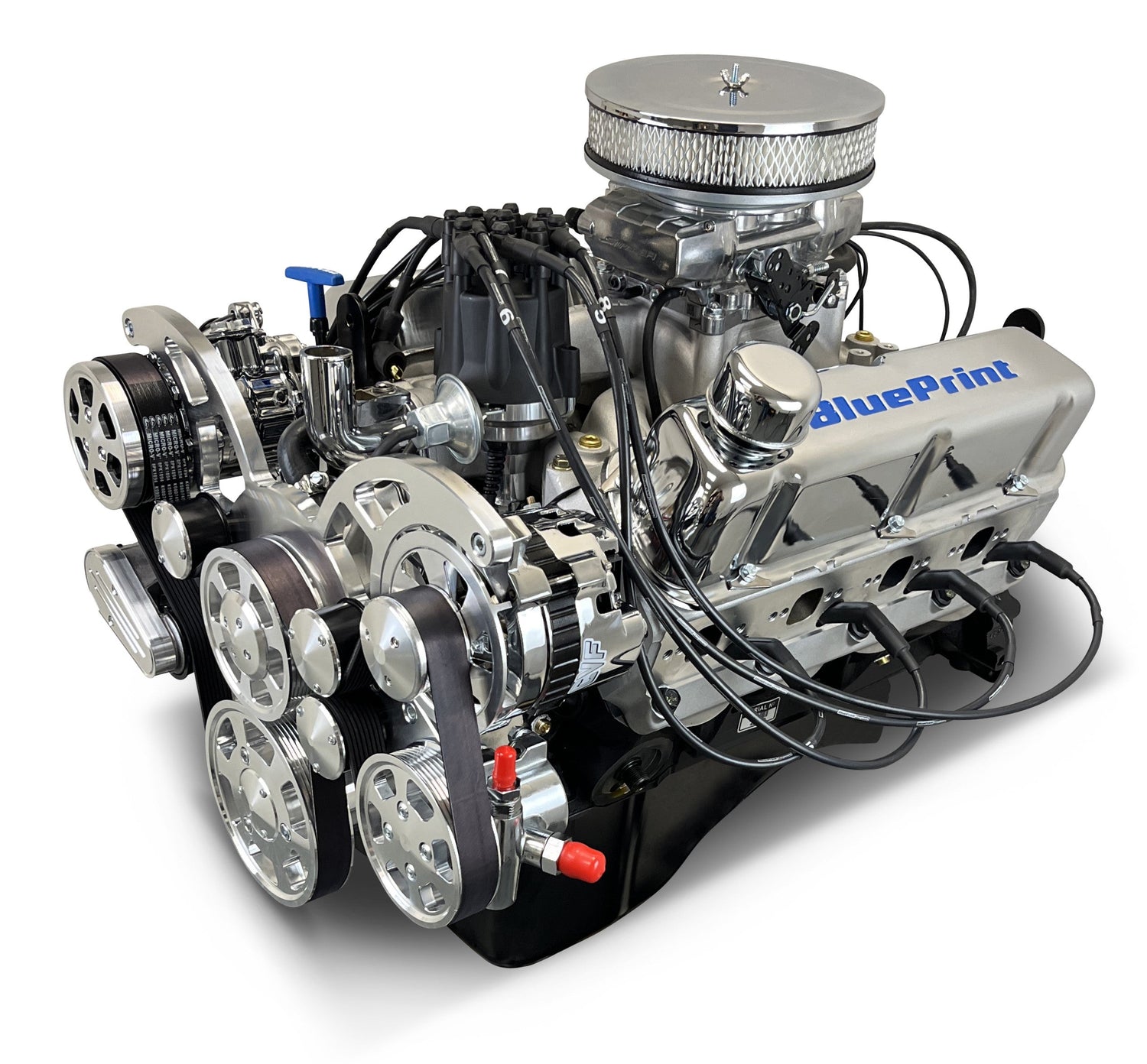

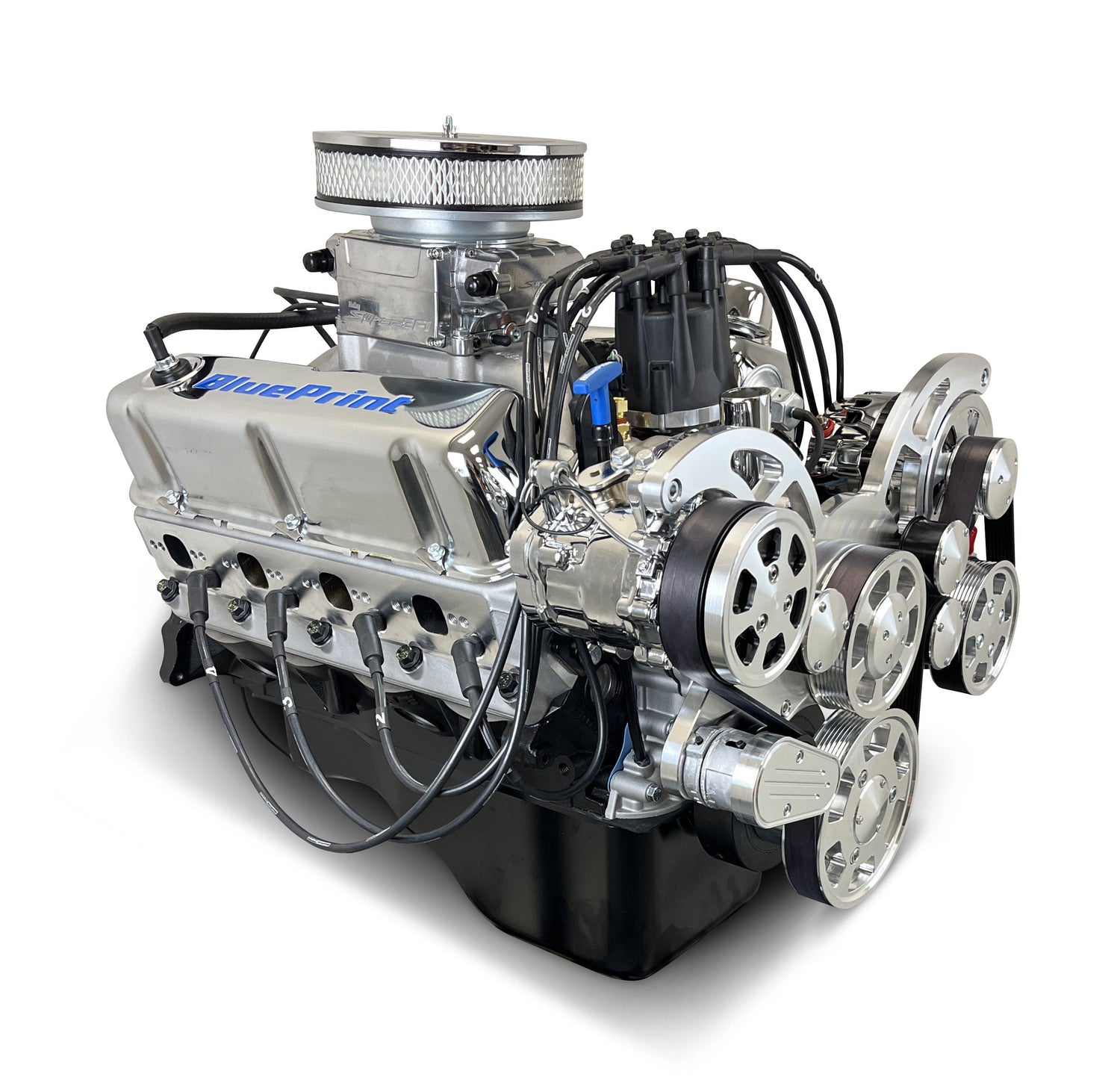

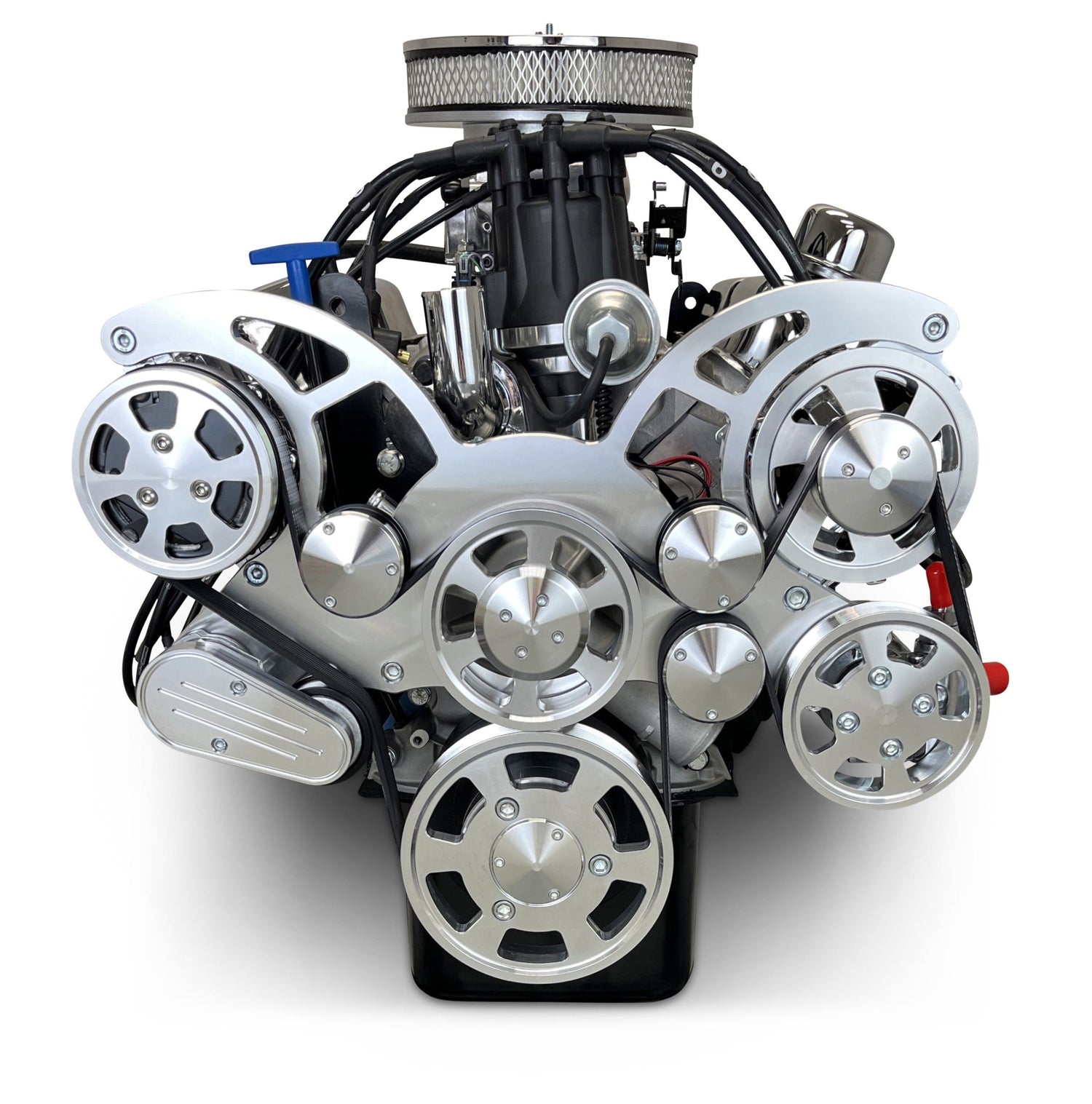

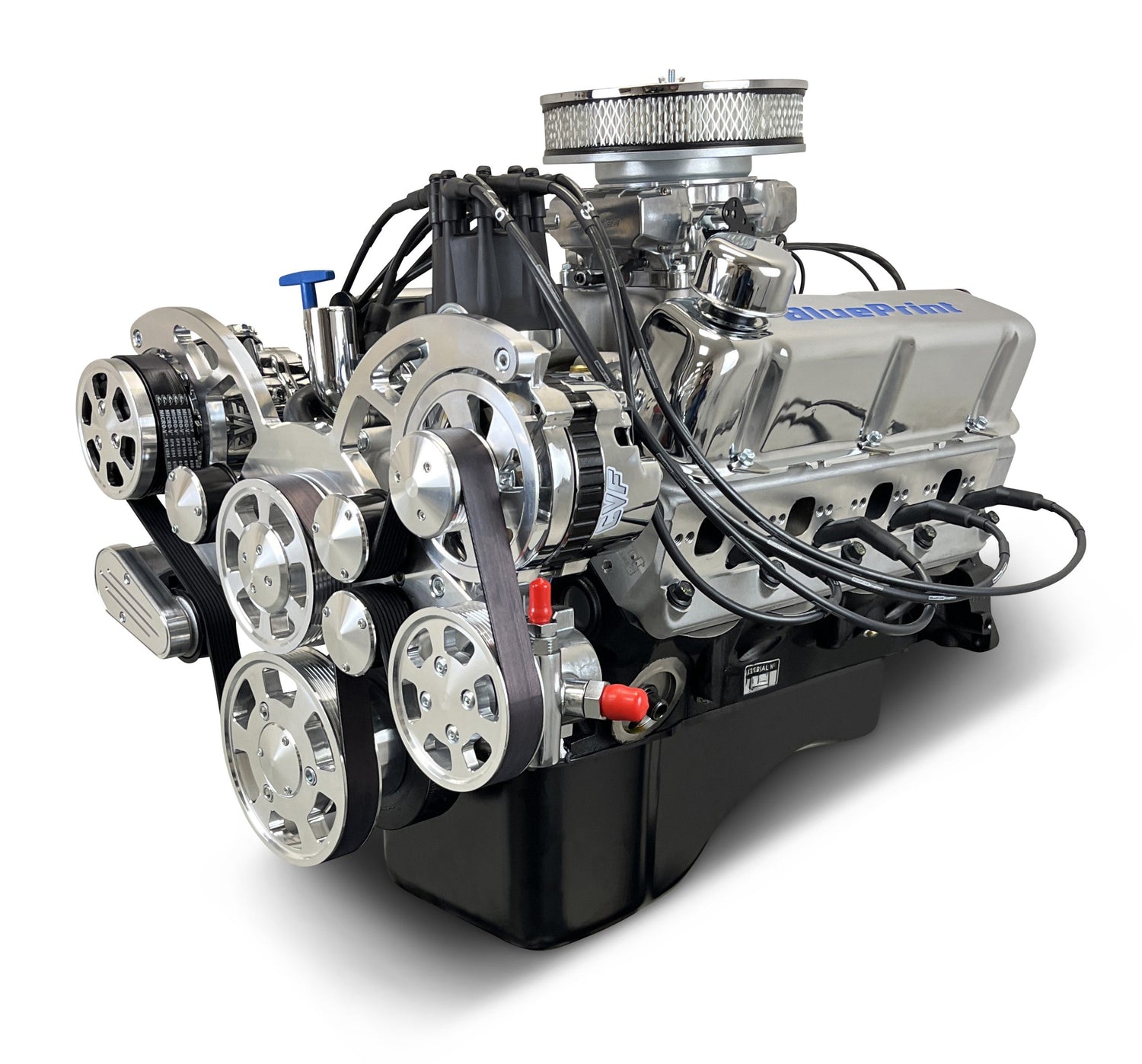

Ford Small Block Compatible 302 c.i. Engine - 361 Horsepower - Deluxe Dressed - Polished Pulley Kit - Fuel Injected

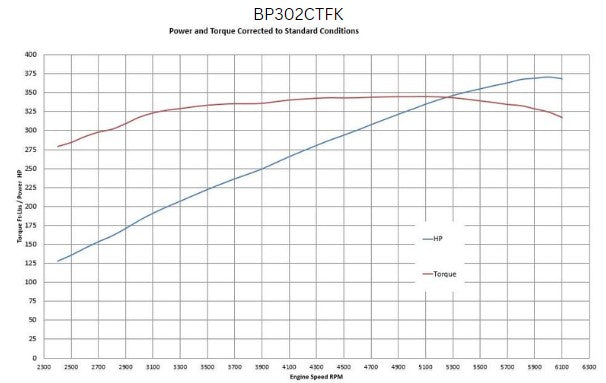

• Horsepower & Torque: 361 Horsepower / 334 FT LBS. Torque
• Compression Ratio: 9.4:1
• Aluminum Heads
• Hydraulic Roller Cam
• Cast Crank
• Hypereutectic Pistons

Block:

• BluePrint Engines High Strength Cast Iron Block
• Increased Deck Thickness and Strength Webbing
• Priority Main Oiling
• 4.000" Bore

• 4-Bolt Main
• 1-Piece Rear Main Seal
• Improved Water Jacket Design

Rotating Assembly:

• Cast Crank
• 3.000" Stroke
• OEM type 5.090" Connecting Rods
• Hypereutectic Pistons
• 50oz External Balanced Front and Rear

Cylinder Heads:

• BluePrint Aluminum Cylinder Heads - HP9008
• 60cc Chamber
• 2.02" Intake / 1.60" Exhaust Valves
• 190cc Intake / 60cc Exhaust Runners

Cam Specs:

• Hydraulic Roller Cam
• .533 Intake / .544 Exhaust Lift
• 215 Intake / 220 Exhaust Duration
• @.050–114 Degree Lobe Separation

Ignition Timing:

• 10-16 Degrees Initial, 32-34 Total

Also Includes:

• Front Sump Oil Pan
• Intake Manifold
• Holley Sniper 2 EFI System
• Distributor
• Harmonic Balancer
• Valve Covers
• Timing Cover

• Thermostat and Thermostat Housing
• Polished Front Accessory Drive - BPP302FDACPS4
  • Driver Side Standard Rotation Water Pump
  • Type II Power Steering Pump
  • Remote Power Steering Pump Reservoir
  • 140amp 1-wire Alternator
  • 7B10 Peanut Air Conditioning Compressor

Notes:

• Engine timing cover is designed for standard rotation water pump and pulley kit ONLY.
• The front accessory drive on this engine fits many vehicles, however it is the customer responsibility to accurately measure and confirm fitment.  Note this is a low-profile design, but things such as power steering hoses, alternator wiring, and additional fittings/fabrication may be required on some vehicles.
• This engine is an excellent cruiser and daily driver engine.  This engine makes up to 13 inches of vacuum, and is designed to work excellent with power brakes, stock torque converter, stock gearing, and run on 87 octane fuel
