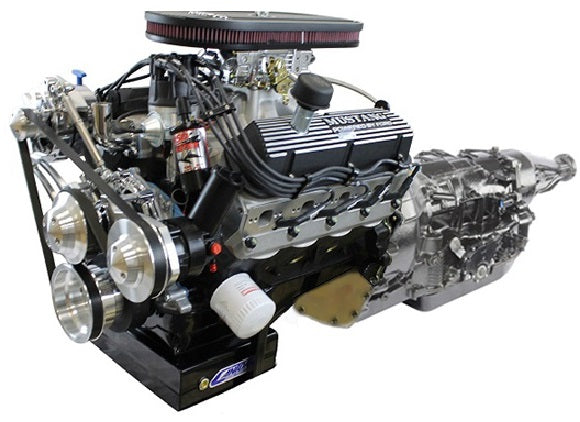

Ford Small Block Compatible 347 c.i. Engine and 4R70W Automatic Transmission - 415 Horsepower - Mustang Edition Builder Series - Polished Pulley Kit - Fuel Injected

Description:

• Horsepower & Torque: 415 Horsepower / 415 ft. lbs. Torque
• Compression Ratio: 10.0:1
• Aluminum Heads
• Hydraulic Roller Cam
• Cast Crank
• Forged Pistons

Block:

• BluePrint Engines High Strength Cast Iron Block
• Increased Deck Thickness and Strength Webbing
• Priority Main Oiling
• 4.000" Bore
• 4-Bolt Main
• 1-Piece Rear Main Seal
• Improved Water Jacket Design

Rotating Assembly:

• BluePrint Cast Crankshaft
• 3.400" Stroke
• Forged I-Beam 5.400" Connecting Rods
• Forged Pistons
• 28oz Externally Balanced Front and Rear

Cylinder Heads:

• BluePrint Aluminum Cylinder Heads - HP9009
• 60cc Chamber
• 2.02" Intake / 1.60" Exhaust Valves
• 190cc Intake / 65cc Exhaust Runners

Cam Specs:

• Hydraulic Roller
• .543 Intake / .554 Exhaust Lift
• 218 Intake / 226 Exhaust Duration
• @.050-112 Degree Lobe Separation

Ignition Timing:

• 34 Degrees Total at 3500 RPM

Also Includes:

• Dual Plane, Satin Aluminum Intake Manifold
• Holley Sniper 2 EFI System - BPP550-510-3XX
• EFI Fuel Pump Kit - BPP5267

• Pro Billet Distributor
• Mustang Style Valve covers *Mustang scripted valve cover may be different than pictured based on availability*
• 7 Quart Oil Pan
• Thermostat and Thermostat Housing

• Polished Front Accessory Drive - BPP302FDACPS4
  • Driver Side Standard Rotation Water Pump
  • Type II Power Steering Pump
  • Remote Power Steering Pump Reservoir
  • 140amp 1-wire Alternator
  • 7B10 Peanut Air Conditioning Compressor


Assembled with Complete 4R70W Automatic Transmission Package:

• Includes Electronic Transmission Controller
• Transmission Built to 650 HP
• 2200-2600 Stall Torque Converter
• Flex Plate
• Starter
• TPS Harness Included for Integration with Transmission Controller and EFI.
• 4 Speed, Overdrive Transmission w/Lockup
• GEAR RATIOS
• First: 2.84 :1.
• Second: 1.55 :1.
• Third: 1.00 :1.
• Overdrive: 0.70 :1.
• Reverse: 2.32 :1.

Notes:

• Package Ships assembled as pictured.
• The front accessory drive on this engine fits many vehicles, however it is the customer responsibility to accurately measure and confirm fitment.  Note this is a low-profile design, but things such as power steering hoses, alternator wiring, and additional fittings/fabrication may be required on some vehicles.
• IF THIS IS BEING ORDERED FOR A FACTORY FIVE VEHICLE, STOP AND CALL US AT 1-800-483-4263 FOR PROPER FITMEN, OR VISIT FACTORYFIVEENGINES.COM
