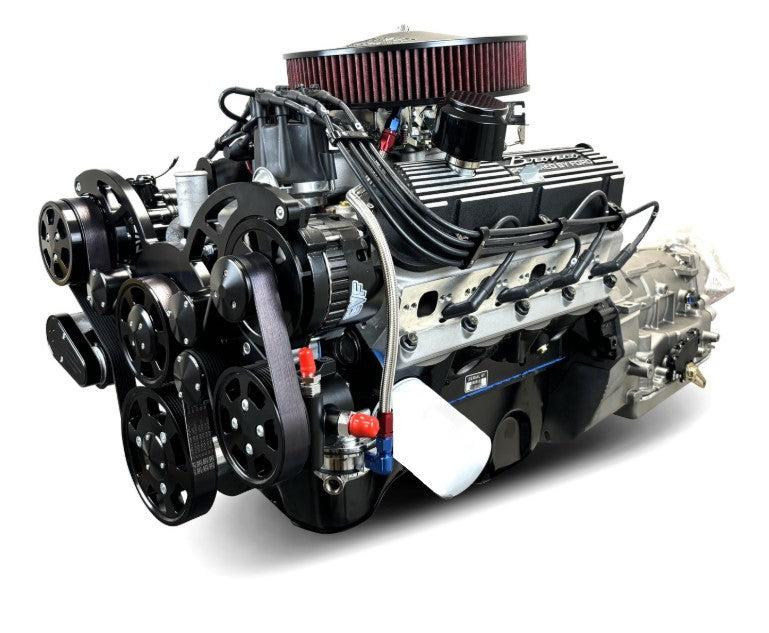

Ford Small Block Compatible 302 c.i. Engine and 4R70W Automatic Transmission - 365 Horsepower - Bronco Edition Builder Series - Black Pulley Kit - Carbureted

Description:

• Horsepower & Torque: 365 Horsepower / 365 ft. lbs. Torque
• Compression Ratio: 9.5:1
• Aluminum Heads
• Hydraulic Roller Cam
• Hypereutectic Pistons

Block:

• BluePrint Engines High Strength Cast Iron Block
• Increased Deck Thickness and Strength Webbing
• Priority Main Oiling
• 4.000" Bore
• 4-Bolt Main
• 1-Piece Rear Main Seal
• Improved Water Jacket Design

Rotating Assembly:

• Cast Crankshaft
• 3.000" Stroke
• OEM Type 5.090" Connecting Rods
• Hypereutectic Pistons
• 50oz Externally Balanced

Cylinder Heads:

• BluePrint Aluminum Cylinder Heads - HP9009
• 60cc Chamber
• 2.02" Intake / 1.60" Exhaust Valves
• 190cc Intake / 60cc Exhaust Runners

Cam Specs:

• Cam Type: Roller
• .533 Intake / .544 Exhaust Lift
• 215 Intake / 220 Exhaust Duration
• @.050-114 Degree Lobe Separation

Ignition Timing:

• 34 Degrees Total at 3500 RPM

Also Includes:

• Holley 600 CFM Street Warrior Carburetor - BPP080457SA

• Dual Plane, Satin Aluminum Intake Manifold

• Distributor
• Valve Covers
• Dual/Rear Sump Oil Pan
• Electric Fuel Pump Included

• Thermostat and Thermostat Housing
• Black Front Accessory Drive - BPP302FDACPS4BK
  • Driver Side Standard Rotation Water Pump
  • Type II Power Steering Pump
  • Remote Power Steering Pump Reservoir
  • 140amp 1-wire Alternator
  • 7B10 Peanut Air Conditioning Compressor

Assembled with Complete 4R70W 4WD Ready – Automatic Trans Package:

• Includes Electronic Transmission Controller
• THROTTLE POSITION SENSOR NOT INCLUDED
• Transmission Built to 650 HP
• 2200-2600 Stall Torque Converter
• Flex Plate
• Starter
• 4 Speed, Overdrive Transmission w/Lockup
• Specifically Prepped for Dana 20 Transfer Case (1966-1976). Transfer case is NOT included
• GEAR RATIOS
  • First: 2.84 :1.
  • Second: 1.55 :1.
  • Third: 1.00 :1.
  • Overdrive: 0.70 :1.
  • Reverse: 2.32 :1.

Notes:

• Does not include TPS sensor, as varies with each install.
• Package Ships assembled.
• Note that 4R70W transmission may require modifications/replacement of driveshaft, transmission mount, exhaust routing, etc.
• The front accessory drive on this engine fits many vehicles, however it is the customer responsibility to accurately measure and confirm fitment.  Note this is a low-profile design, but things such as power steering hoses, alternator wiring, and additional fittings/fabrication may be required on some vehicles.
