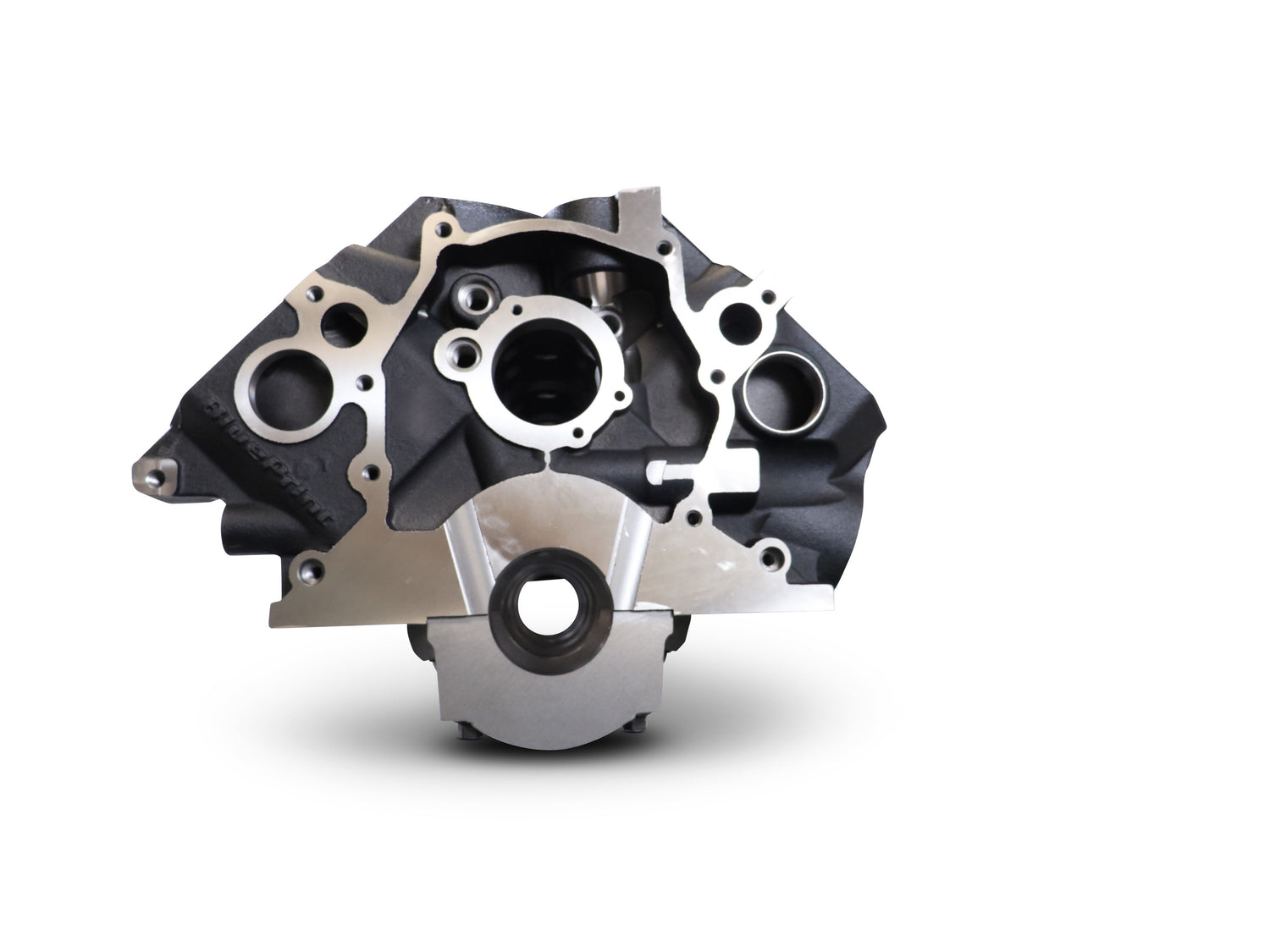

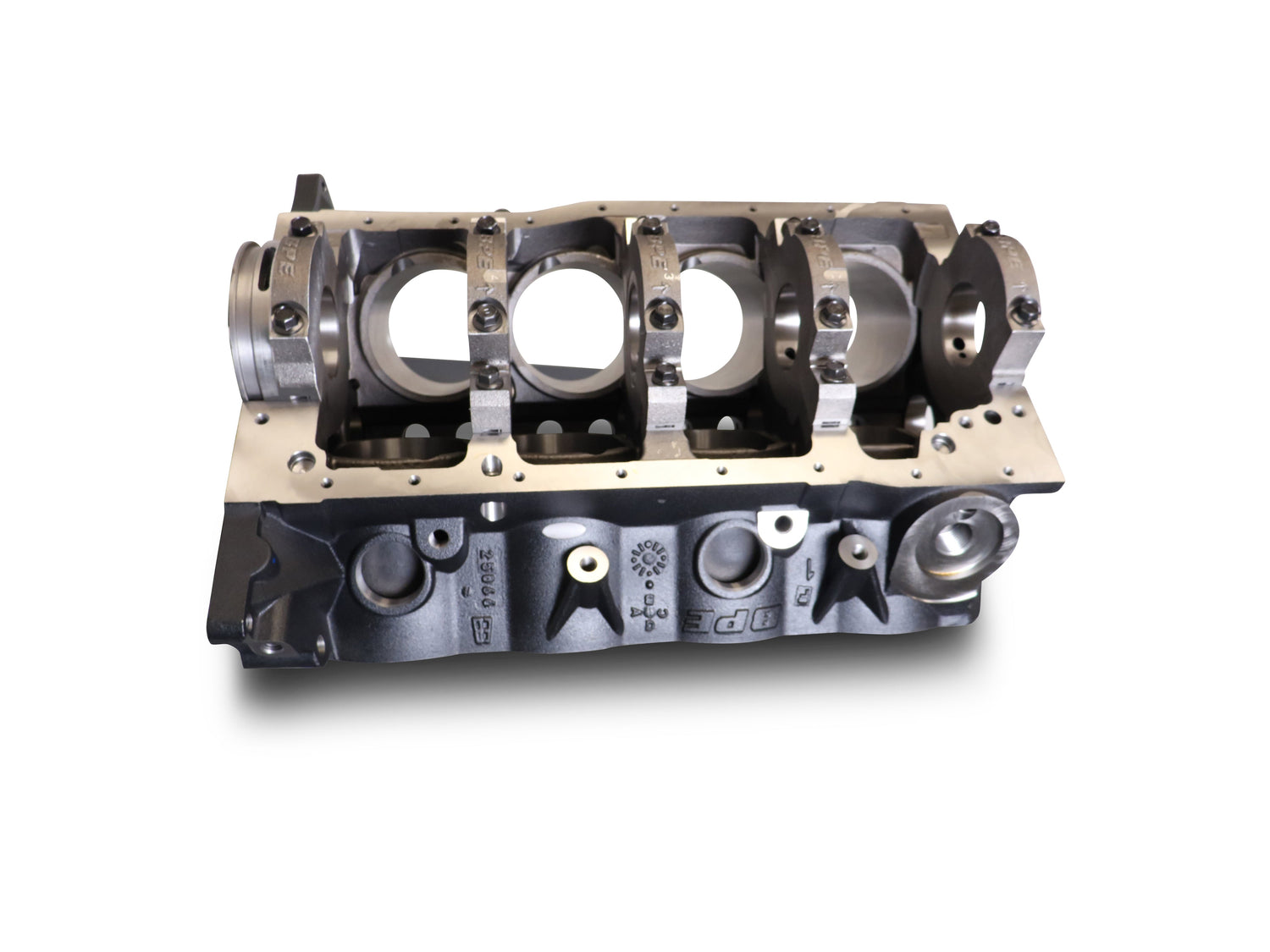

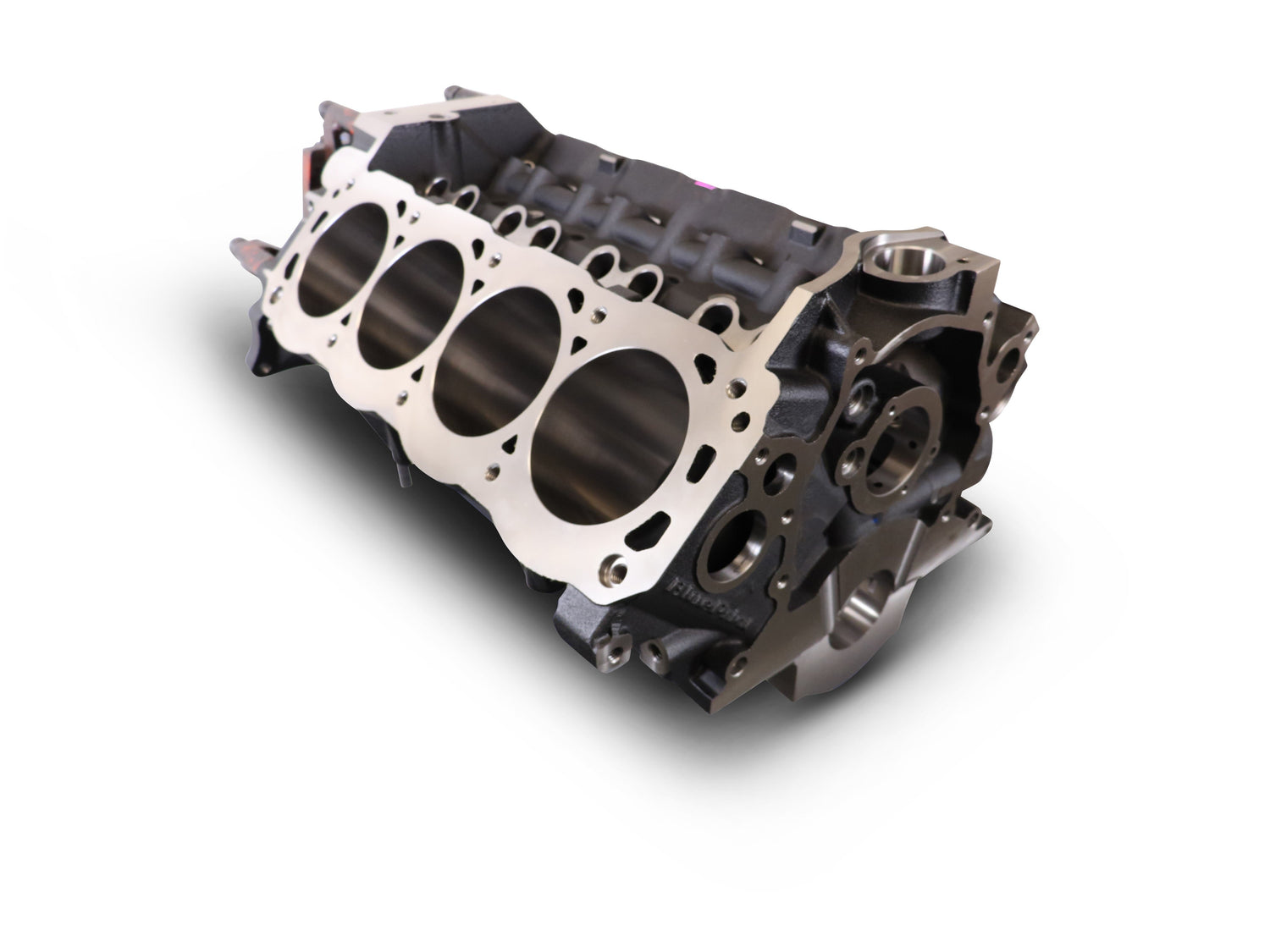

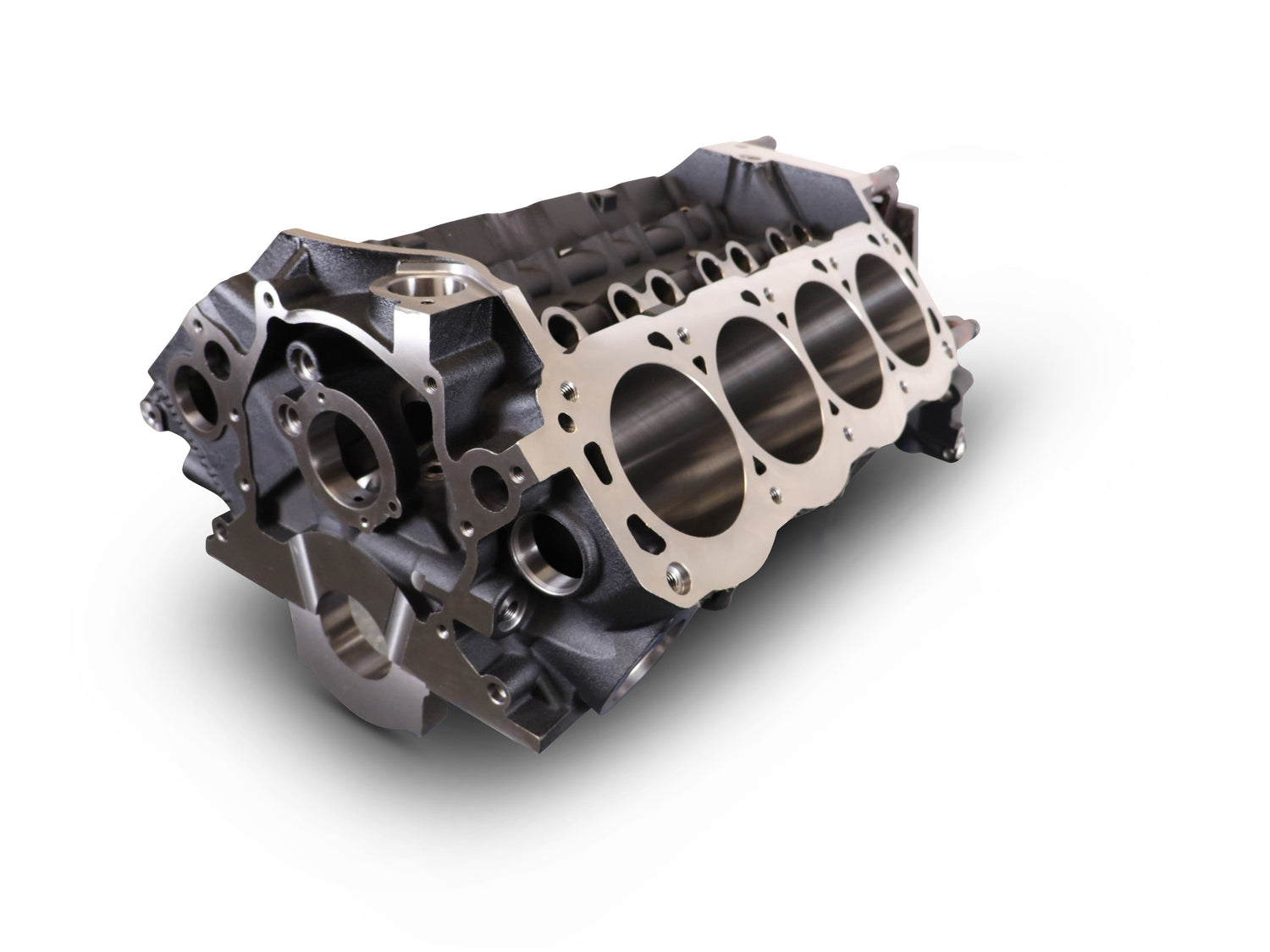

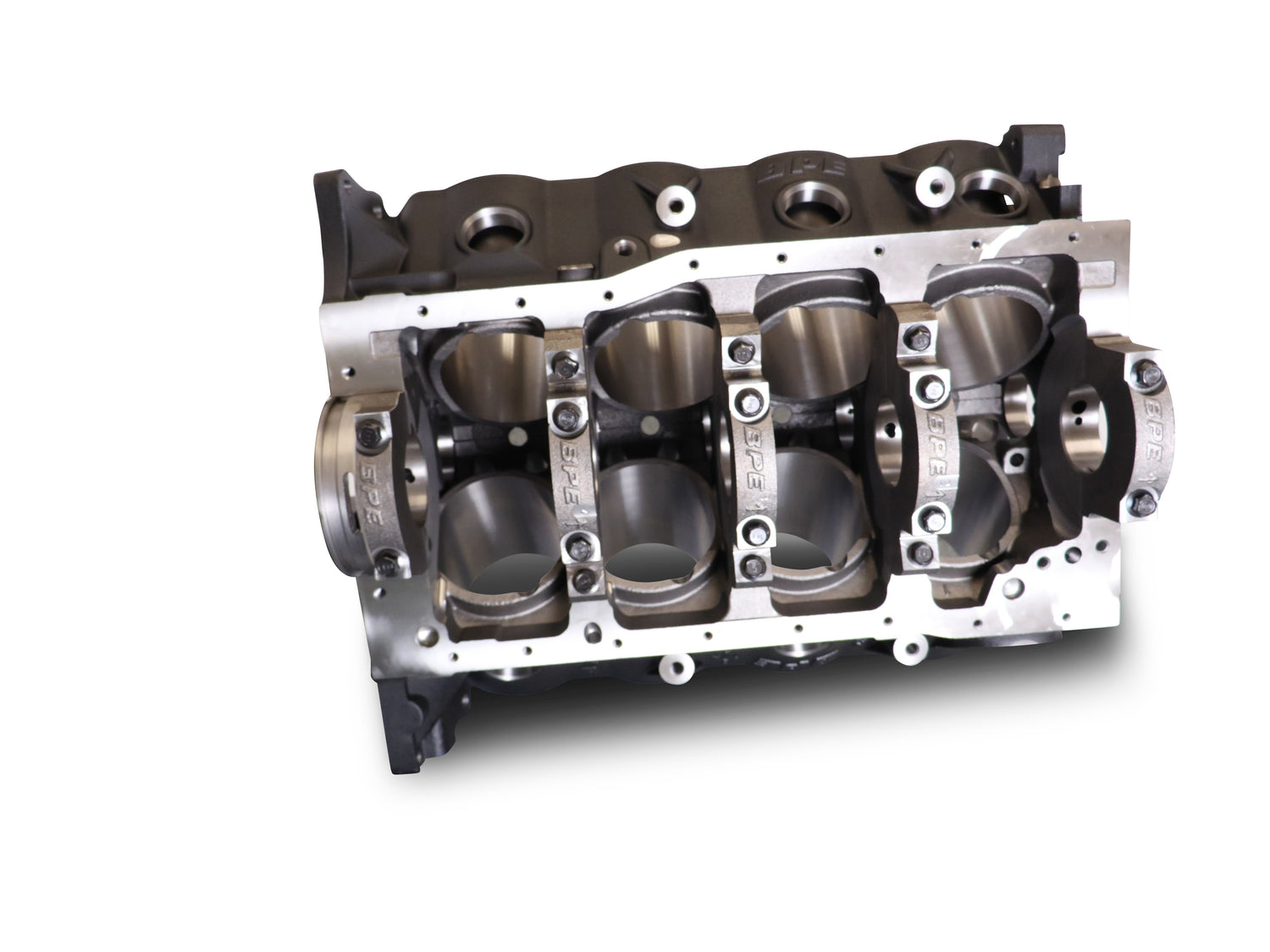

BluePrint Engines Bare Block - 363 c.i. - SBF 302, SIAM, 8.200 x 4.125, CAST MC

Overview:

Configuration:

• 302

Cylinder Bore (Rough):

• 3.889" to 3.991"

Cylinder Bore (Max):

• 4.165"

Cam Bearings:

• Durabond 351HP

Cam Bearing Bore ID:

• 2.2046"+/- .0005"

Camshaft Position:

• OEM

Cam Drive / Timing Set:

• OEM equivalent

Cam Retaining Plate:

• OEM

Cubic Inch (Max):

• 363

Cylinder Wall Thickness:

• .160" Nominal @ 4.165" Bore

Water Jacket Style:

• Siamese

Cylinder Skirt Length:

• 5.090" Nominal

Deck Height:

• 8.200" +.005" / -.000"

Deck Thickness:

• .600" Nominal

Freeze / Core Plugs:

• 1-5/8" x 10 BPE # 10110016

Head Bolt / Stud Threads:

• 7/16-14 x 1.35 Deep

Lifter Bores:

• .8757" +/- .0005"

Lifter Retainer (If not using tie car lifters):

• OEM W/Roller Provisions

Main Bearing Bore (Line Honed):

• 2.4420"-2.4412"

Main Bearing Caps:

• Cast Iron 4-Bolt Splayed

Main Cap Bolts:

• 7/16-14 Inner / 3/8-16 splayed

Main Fastener Tensile Strength:

• 180,000 to 210,000 PSI

P1 Main Stud Kit P/N:

• TBD

ARP Main Stud Kit P/N:

• TBD

Material (Block):

• EN-GJL-250 Iron

Oil System:

• Priority Main

Oil Pump:

• OEM

Oil Filter:

• OEM

Oil Pan:

• OEM

Fuel Pump:

• OEM

Starter:

• OEM

Stroke (Max):

• 3.400"

Timing Cover:

• OEM

Approx. Weight with Main Caps:

• 170-190lbs
