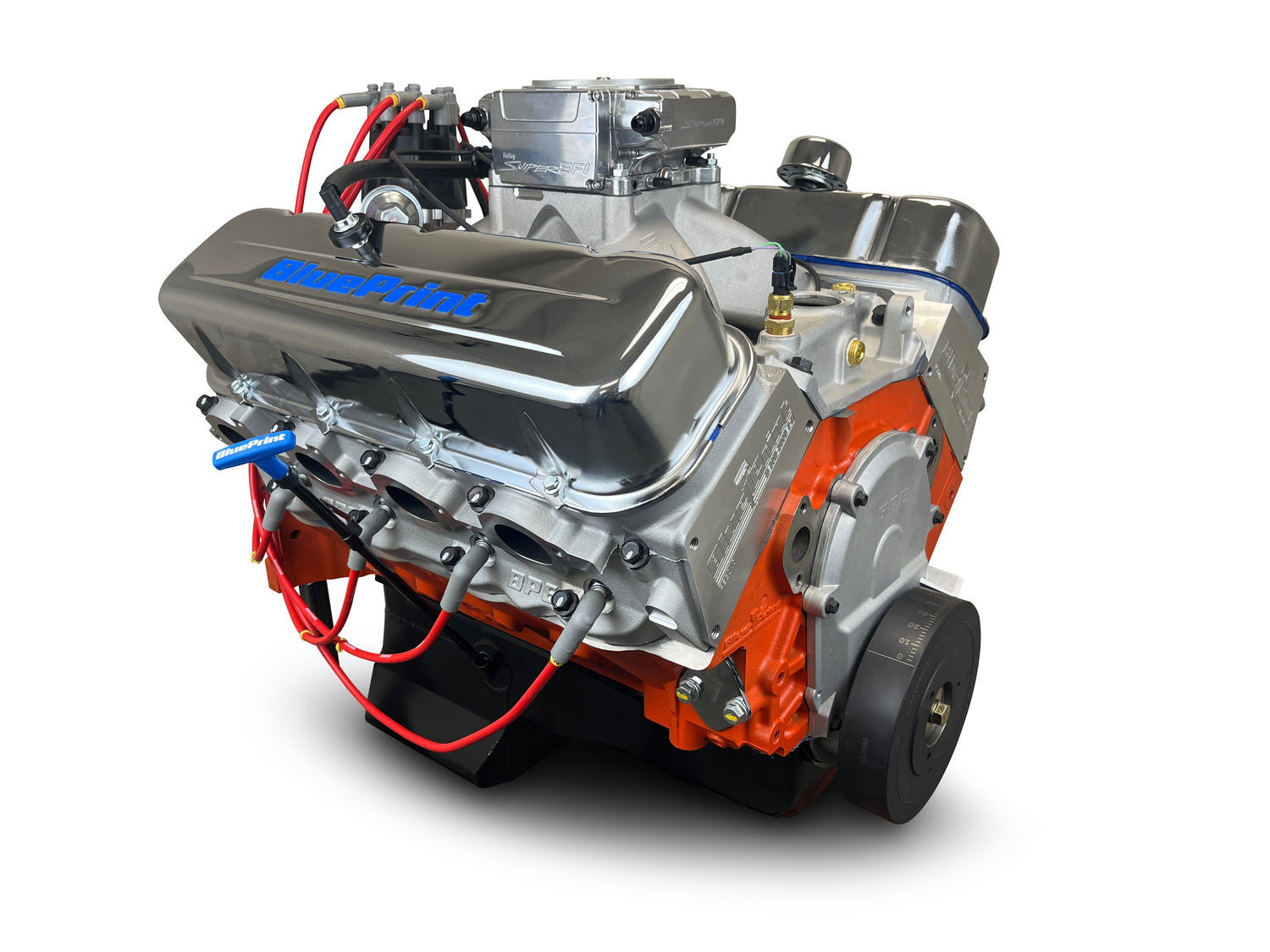

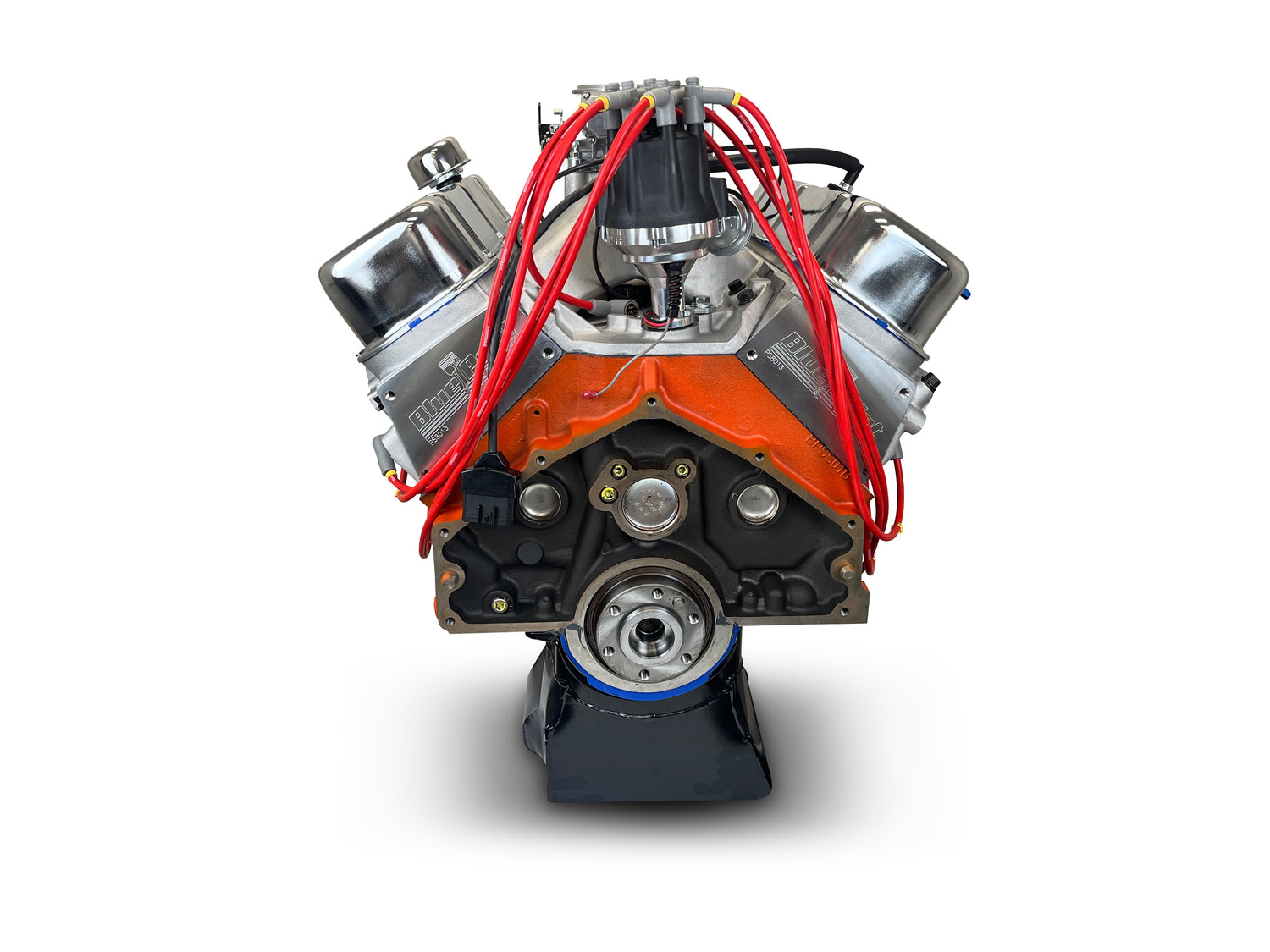

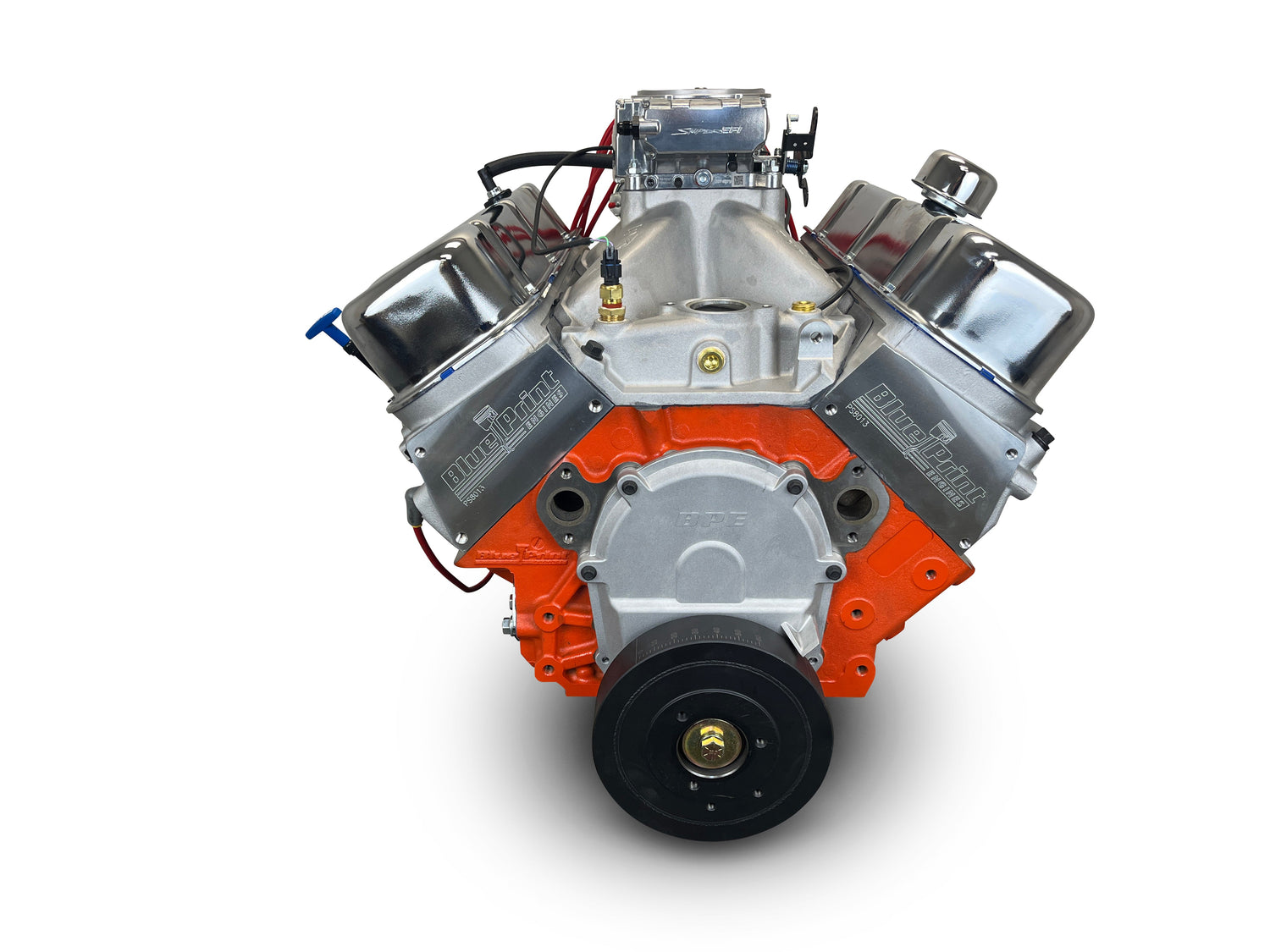

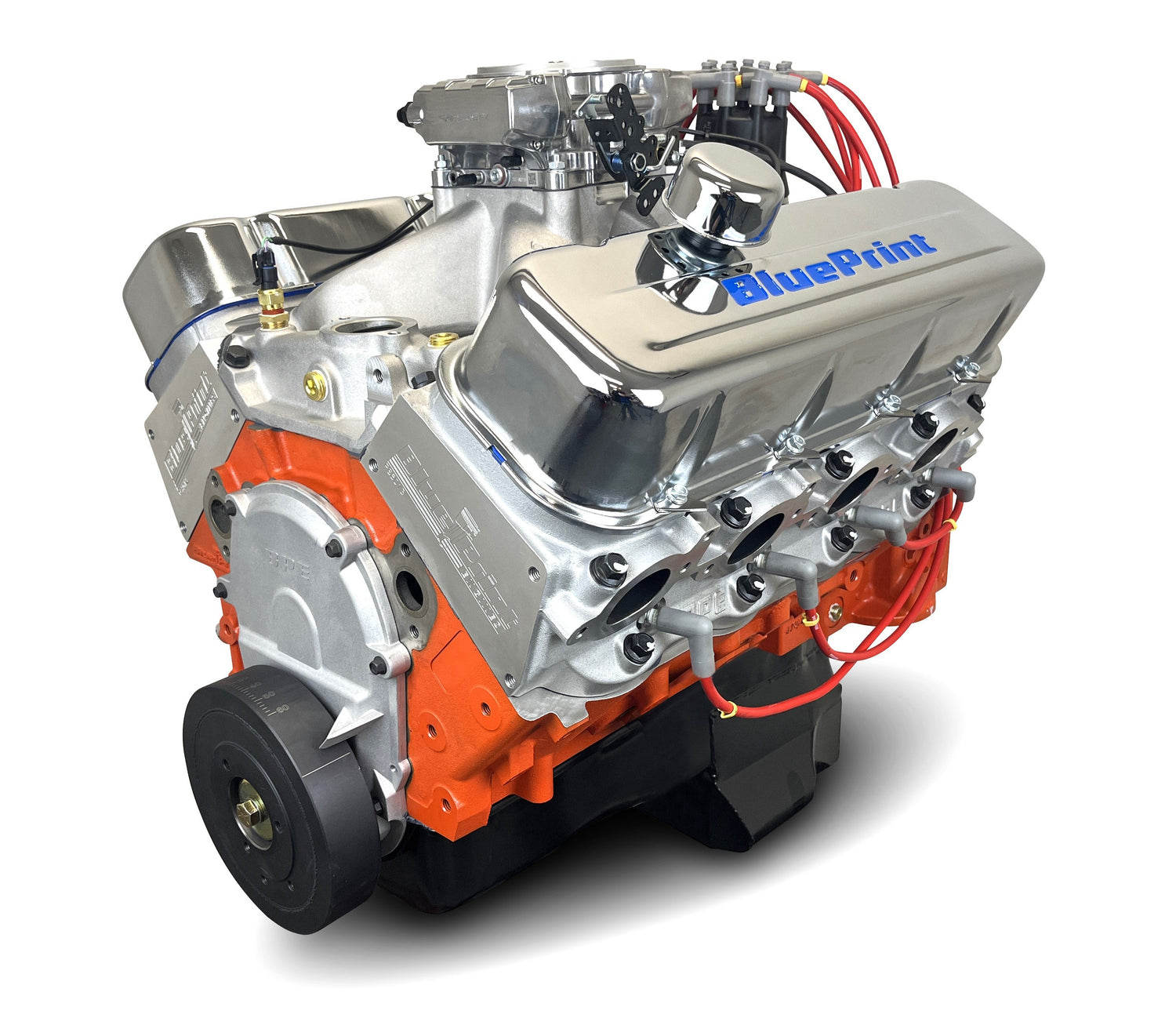

GM Big Block Compatible 502 c.i. Pro Series Engine - 627 Horsepower - Base Dressed - Fuel Injected
GM Big Block Compatible 502 c.i. Pro Series Engine - 627 Horsepower - Base Dressed - Fuel Injected is backordered and will ship as soon as it is back in stock.
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
GM Big Block Compatible 502 c.i. Pro Series Engine - 627 Horsepower...
GM Big Block Compatible 502 c.i. Pro Series Engine - 627 Horsepower - Base Dressed - Fuel Injected is backordered and will ship as soon as it is back in stock.
Highlight title
Text to highlight a key feature of your product
Description
Description
Description:

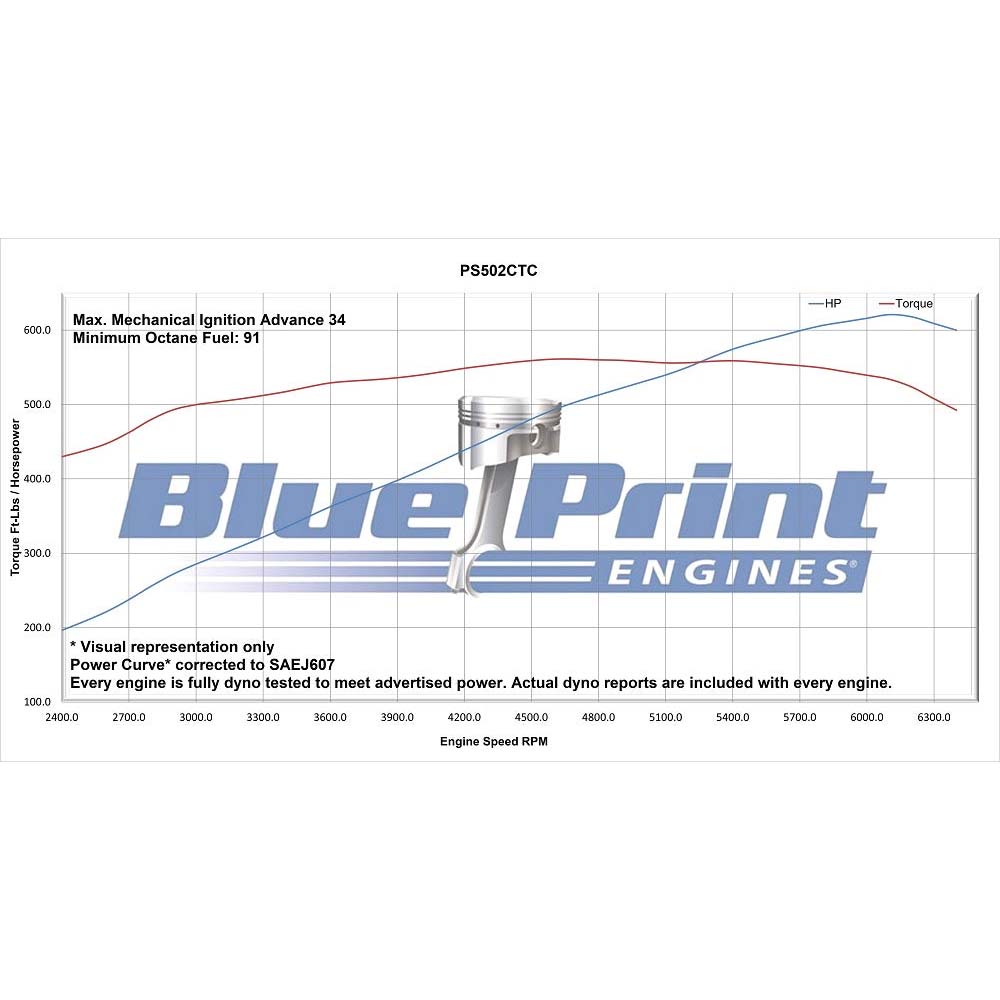

- Horsepower & Torque: 627 Horsepower / 569 FT. LBS. Torque
- Compression Ratio: 10.1:1
- BluePrint Engines Aluminum Heads
- BluePrint Engines Hydraulic Roller Cam
- BluePrint Engines Forged Crank
- BluePrint Engines Forged Pistons
Block:
- BluePrint High Strength Cast Iron Block
- Manufactured and Machined in the USA!
- Mech Fuel Pump Provision: Yes
- 1-Piece Rear Main Seal
- Standard Deck
- 4-Bolt Main
- 4.466" Bore
Rotating Assembly:
- BluePrint Forged Crankshaft
- 4.000" Stroke
- Forged H-beam 6.385" Connecting Rods
- Forged Pistons
- Internally Balanced Front and Rear
Cylinder Heads:
- BluePrint Aluminum Cylinder Heads -PS8013
- 119cc Chamber
- 2.30" Intake / 1.88" Exhaust Valves
- 316cc Intake / 124cc Exhaust Runners
- Cylinder Heads Feature a .300 in. Raised Exhaust Port vs an OEM Casting
- Must Verify Header / Exhaust Clearance
Cam Specs:
- Hydraulic Roller
- .647 Intake / .647 Exhaust Lift
- 248 Intake / 254 Exhaust Duration
- @ .050-112 Degree Lobe Separation
Also Includes:
- Pro Series Ready Run Distributor - BPP3503BK
- Holley Sniper 2 EFI System - BPP550-510-3XX
- Harmonic Balancer - BPP454I
- Spark Plugs and Wires
- Timing Cover
- Valve Covers
- Oil Pan
Notes:
- Not for use in pollution-controlled vehicles
