GM Small Block Compatible 383 c.i. Engine - 432 Horsepower - Power Adder - Short Block Plus
GM Small Block Compatible 383 c.i. Engine - 432 Horsepower - Power Adder - Short Block Plus is backordered and will ship as soon as it is back in stock.
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
GM Small Block Compatible 383 c.i. Engine - 432 Horsepower - Power ...
GM Small Block Compatible 383 c.i. Engine - 432 Horsepower - Power Adder - Short Block Plus is backordered and will ship as soon as it is back in stock.
Highlight title
Text to highlight a key feature of your product
Description
Description
Overview:

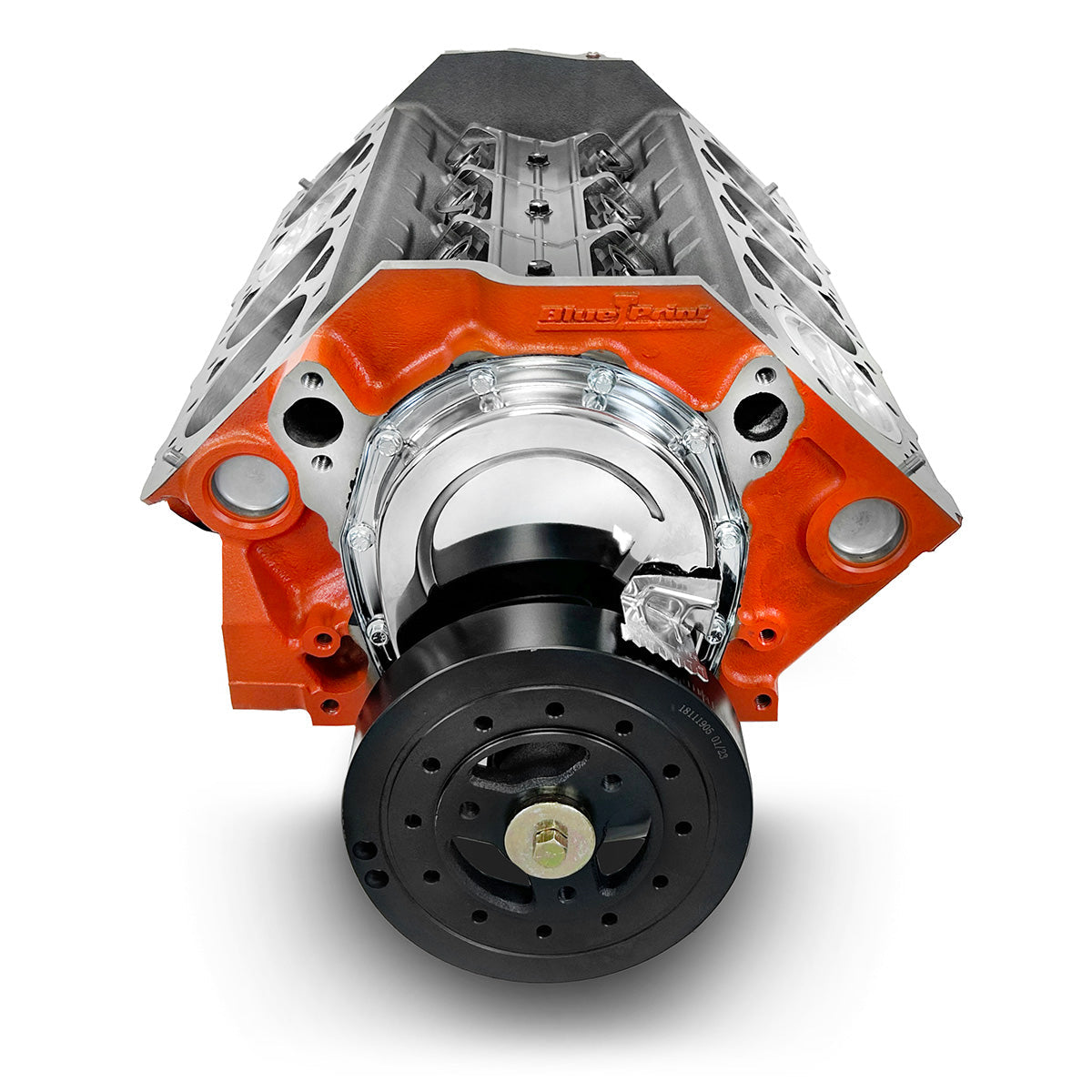

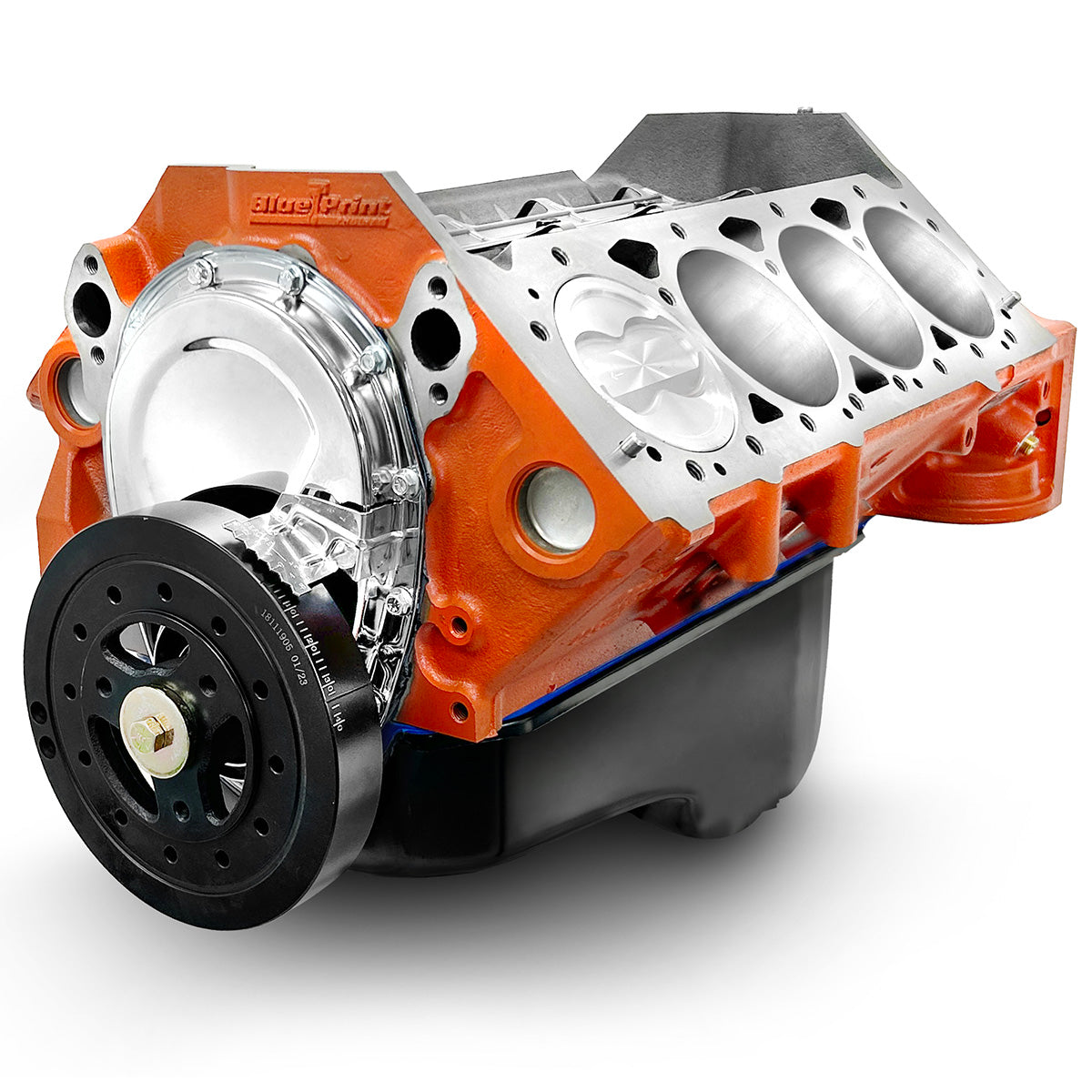

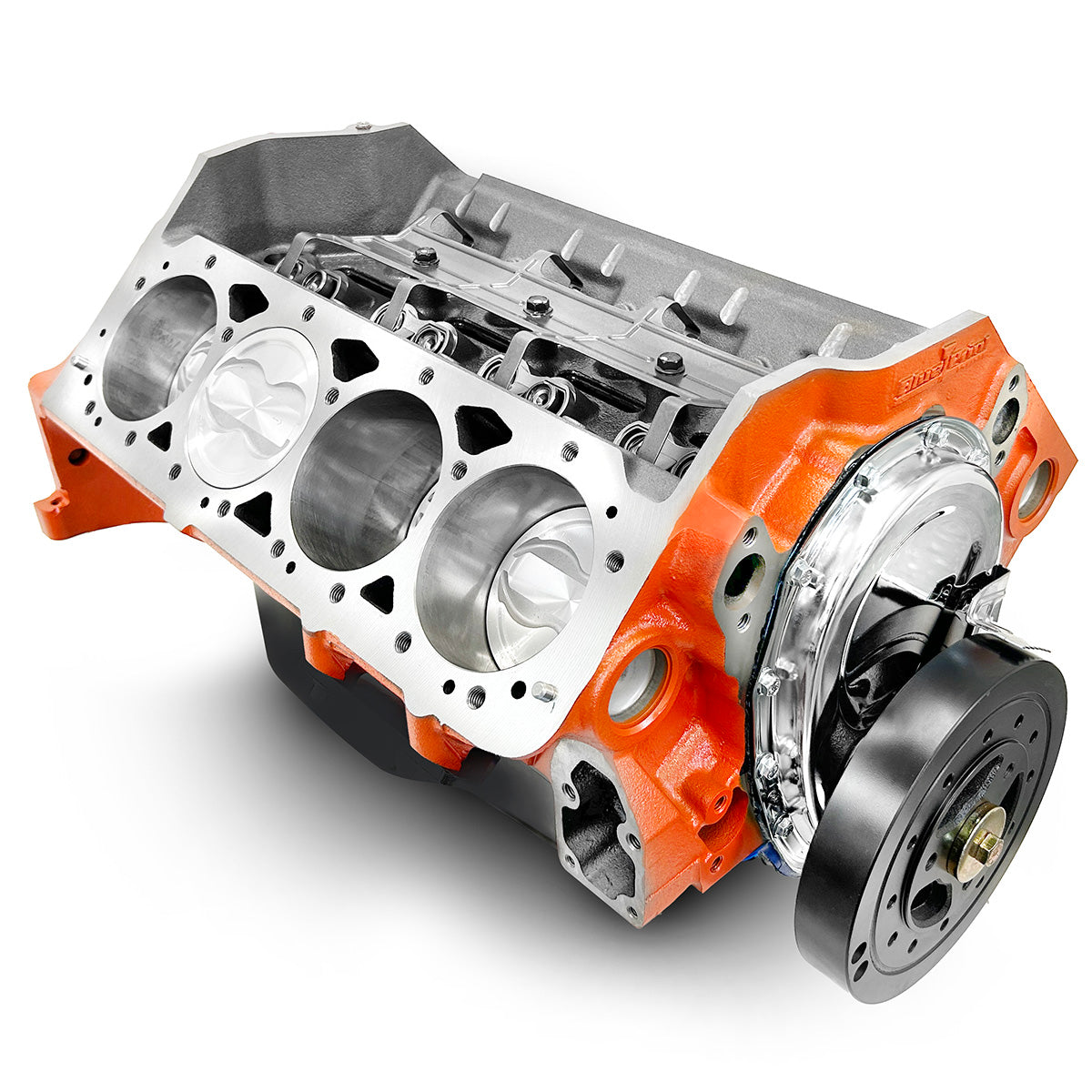

BluePrint BP38321SP GM Small Block Compatible performance short block engine has been dyno tested at our factory with a Holley Classic 750cfm Carburetor and H8002K Cylinder Heads and produced 436 horsepower and 443 minimum torque. Not every BP38321SP is Dyno tested. This performance shows the capabilities of this engine. Performance may vary depending upon what cylinder heads, fuel system and intake manifold you choose. This engine features a 4-inch bore which mathematically yields a 377ci with a 3.75-inch stroke. This customizable engine comes with timing cover, harmonic balances, oil pan, hydraulic roller cam, and a high-volume oil pump. This power adder engine is engineered to handle any type of forced induction. Whether you’re adding nitrous, a supercharger, or turbos, this short block has the strength and reliability to take the boost.
Description:
- Horsepower & Torque: 432 Horsepower / 450 ft. lbs. Torque
- Compression Ratio: 9.5:1
- BluePrint Engines Hydraulic Roller Cam
- BluePrint Engines Forged Pistons
- BluePrint Engines Forged Crank
Block:
- BluePrint Engines High Strength Cast Iron Block
- Cylinders Honed on Computer-Controlled Machine to Within .0002 Straightness and Roundness
- Cylinders are Sonic Tested for Thickness
- Align Honed Main Bearing Bore
- Passenger Side Dipstick
- 1 Piece Rear Main Seal
- 4 Bolt Main
- 4.00" Bore
Rotating Assembly:
- New Forged Crankshaft
- 3.75" Stroke
- Forged Pistons, 18cc Dish
- Forged Rods with 150,000 PSI Bolts
Cam Specs w 1.5 Rocker Ratio:
- Hydraulic Roller
- .495 Intake / .502 Exhaust Lift
- 220 Intake / 224 Exhaust Duration
- @ .050-114 Degree Lobe Separation
Ignition Timing:
- 34 Degrees Total (at 3500 RPM)
Also Includes:
- Heavy Duty Double Roller Timing Set
- High Volume Oil Pump
- Harmonic Balancer
- Timing Cover
- Oil Pan
Notes:
- This engine features a true 4-inch bore, which mathematically yields 377 CID with a 3.75-inch stroke.
- This engine requires a non-weighted 8" harmonic balancer (included), and late 350ci weighted flexplate/flywheel.
- The HP and Torque numbers were derived from dyno testing with a 750cfm carb, and with H8002K cylinder heads installed.
- Not for use in pollution-controlled vehicles.
*A Bronze Distributor Gear is NOT Recommended on this Engine.
