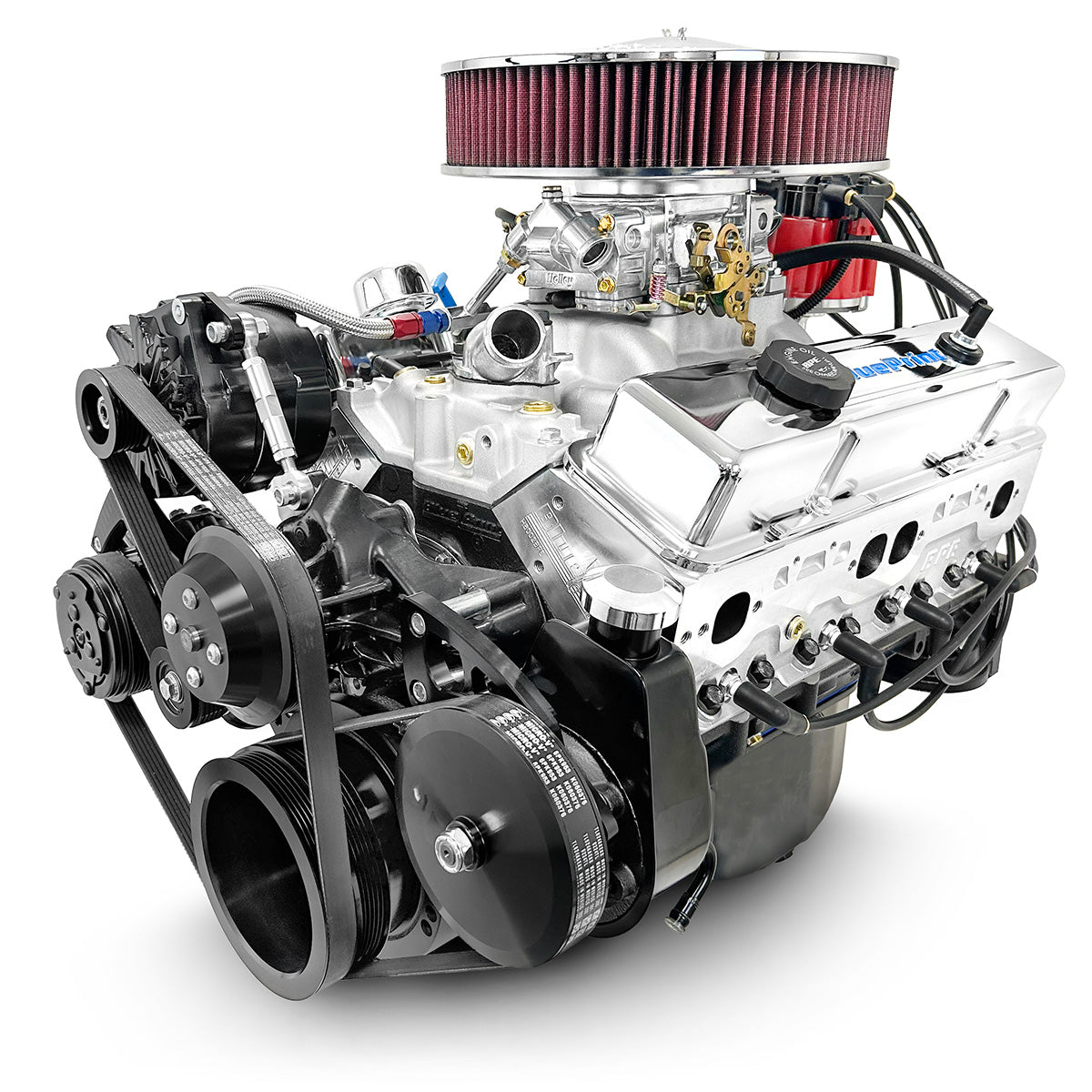

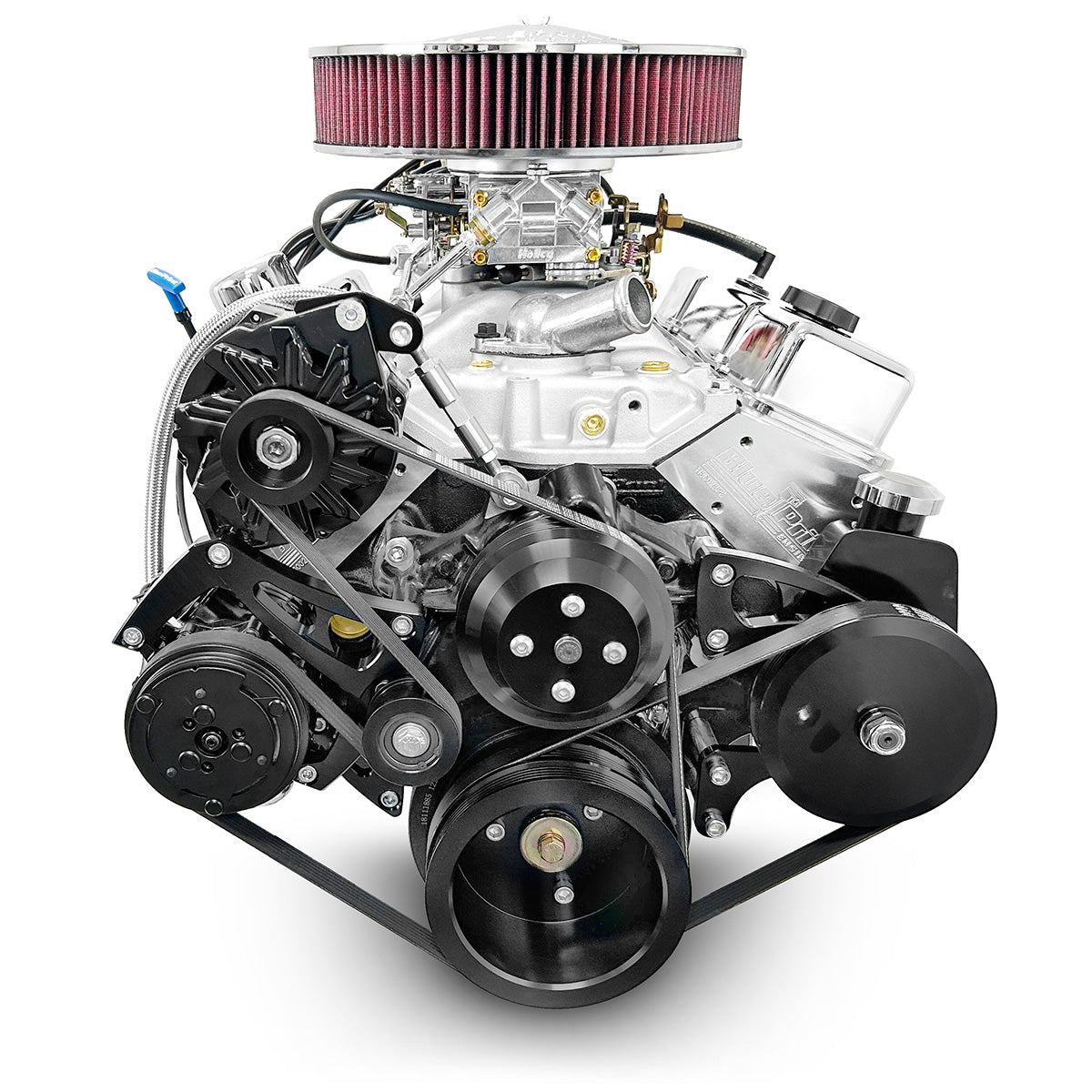

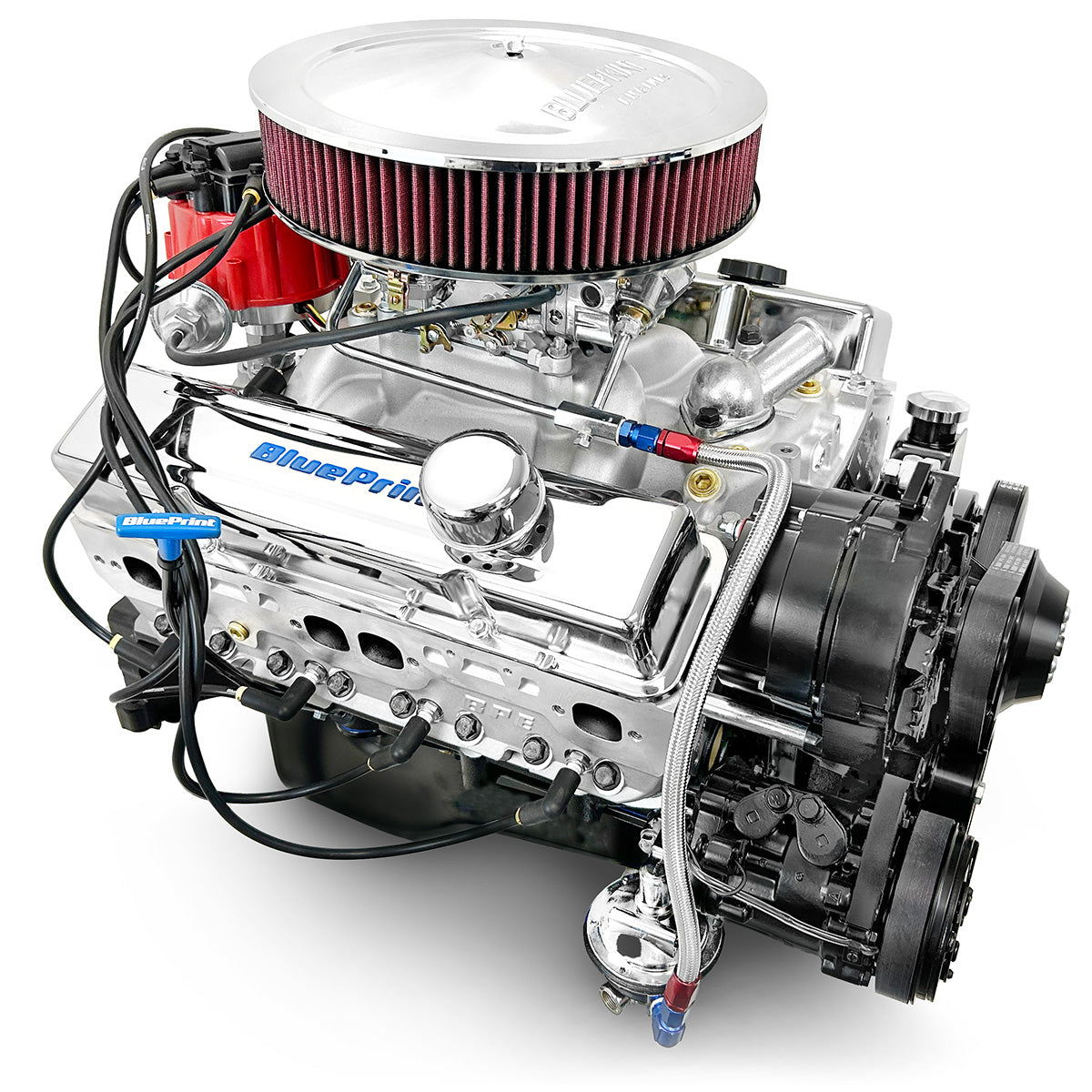

GM Small Block Compatible 383 c.i. Engine - 436 Horsepower - Deluxe Dressed - Black Pulley Kit - Carbureted

Description:

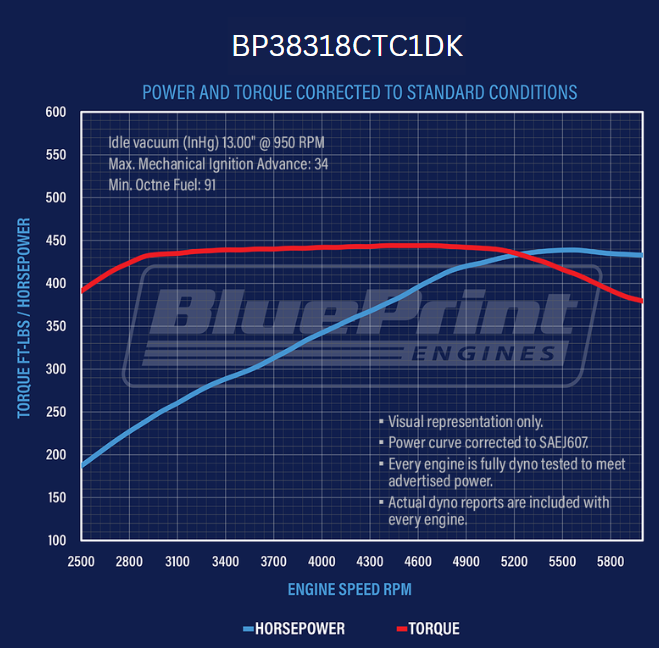

• Horsepower & Torque: 436 Horsepower / 443 ft. lbs. Torque
• Compression Ratio: 10.0:1
• BluePrint Engines Aluminum Heads
• BluePrint Engines Hydraulic Roller Cam
• BluePrint Engines Cast Crankshaft
• BluePrint Engines Hypereutectic Pistons


Block:

• BluePrint Engines High Strength Cast Iron Block
• Manufactured and Machined in the USA!
• Drilled and Tapped for Clutch Linkage
• Mech Fuel Pump Provision: Yes
• Passenger Side Dipstick
• 1-Piece Rear Main Seal
• 4-Bolt Main
• 4.000" Bore


Rotating Assembly:

• Cast Crankshaft
• 3.750" Stroke
• OEM Type 5.700" Connecting Rods w/ 150,000 PSI Bolts
• Hypereutectic Pistons
• Externally Balanced Front and Rear


Cylinder Heads:

• BluePrint Aluminum Cylinder Heads - H8002K
• 64cc Chamber
• 2.02" Intake / 1.60" Exhaust Valves
• 195cc Intake / 75cc Exhaust Runners

Cam Specs:

• Hydraulic Roller
• .544 Intake / .555 Exhaust Lift
• 230 Intake / 236 Exhaust Duration
• @ .050-110 Degree Lobe Separation

Ignition Timing:

• 34 Degrees Total at 3500 RPM

Also Includes:

• Black Front Accessory Drive with Water Pump, A/C Compressor, Alternator, and Power Steering Pump

• Holley Classic 750cfm Vacuum Secondary Carburetor w/ Manual Choke
• Aluminum Intake Manifold - BPP350VINT

• Thermostat and Thermostat Housing
• Mechanical Fuel Pump - BPP61073
• HEI Distributor - BPP350RBK
• Valve Covers - BPP9518

• Spark Plugs and Wires

• Harmonic Balancer
• Timing Cover
• Oil Pan


Notes:

• This engine features a true 4-inch bore, which mathematically yields 377 CID with a 3.75-inch stroke.
• Front Accessory Drive does NOT fit Corvette
• The front accessory drive on this engine fits many vehicles, however it is the customer responsibility to accurately measure and confirm fitment.  Note this is a low-profile design, but things such as power steering hoses, alternator wiring, and additional fittings/fabrication may be required on some vehicles.
• Not for use in pollution-controlled vehicles.

• The performance aluminum cylinder heads on this engine feature a .500 raised port vs OEM.
