Banda Electra Bass 3K2 Amplifier Module 3000 Watts RMS 2 ohms
Banda Electra Bass 3K2 Amplifier Module 3000 Watts RMS 2 ohms is backordered and will ship as soon as it is back in stock.
Highlight title
Text to highlight a key feature of your product
Description
Description
The ELECTRA line was developed especially for those looking for incomparable bass. It has a frequency response of 5 to 500Hz (-3dBs). Due to this, the ELECTRA will only play Subwoofers , Bass and part of the mid frequencies. The BASS BOOST @ 45Hz feature is a differentiator, further reinforcing the bass of your system.

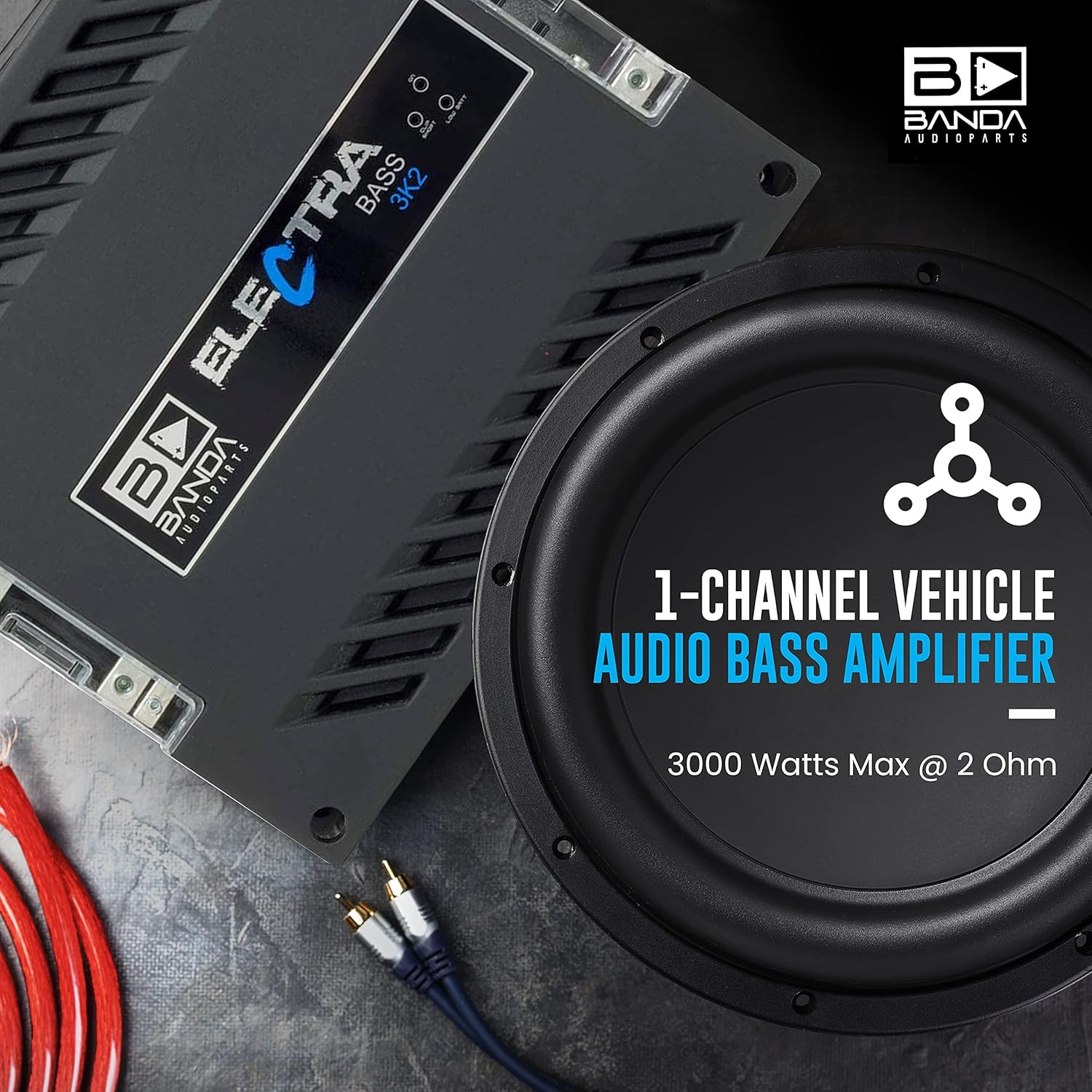

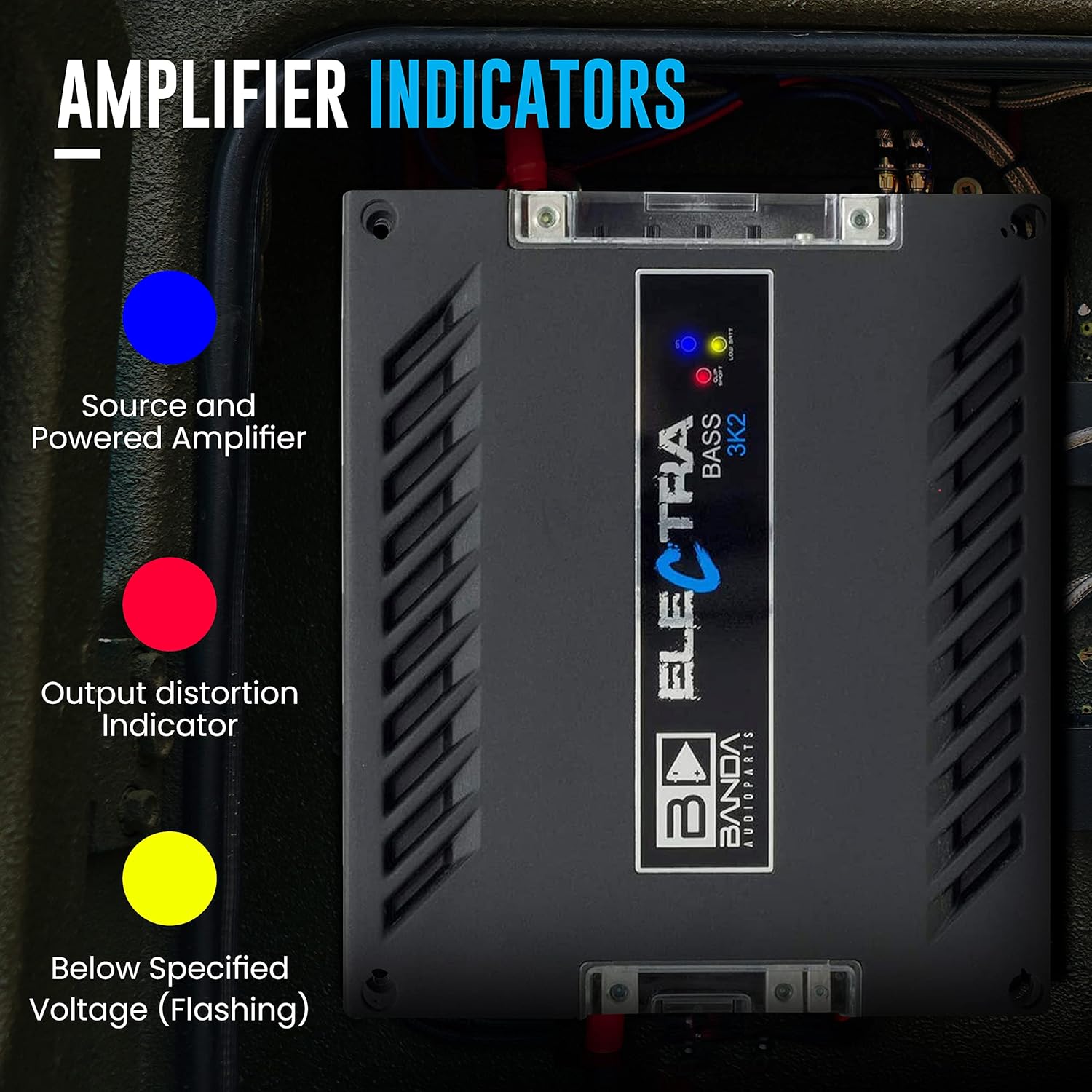

Designed on a 100% aluminum chassis , it works with a power of 3000 WRMS with 1 input channel for connection and an impedance of 2 Ohms. It has very low harmonic distortion (less than 1%) and Clipping indicator, forced ventilation and short circuit protection. Furthermore, it has a bold and clean design, matching any sound system.
Technical specifications
|
Maximum Power 14.4v @ 2 Ohms |
3700 WRMS |
|
Maximum Power 14.4v @ 4 Ohms |
2300 WRMS |
|
Maximum Power 12.6v @ 2 Ohms |
3000 WRMS |
|
Maximum Power 12.6v @ 4 Ohms |
1700 WRMS |
|
Efficiency @ 4 Ohms |
84% |
|
Efficiency @ 2 Ohms |
80% |
|

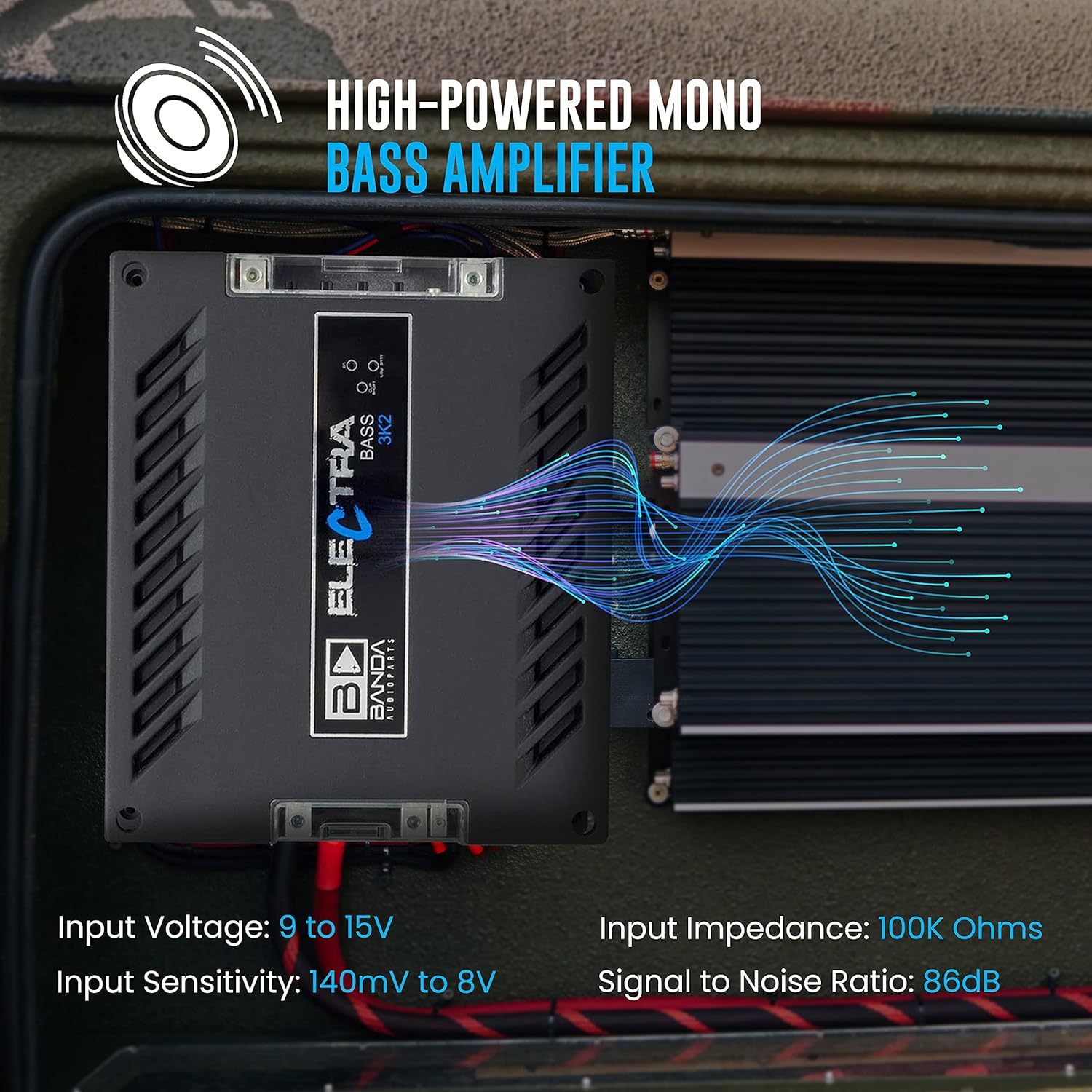

Input Voltage |
9 – 15V |
|
Input Impedance |
100K Ohms |
|
THD+N |
0.10% |
|
Input Sensitivity |
140mV – 8V |
|
Signal to Noise Ratio |
86dB |
|
Frequency Response (Switch OFF) |
5 to 500Hz (-3dBs) |
|
Frequency Response |
20 to 500Hz (-3dBs) |
|
Bass Boost @ 45Hz |
Variable 0 to +18dBs |
|
HPF (Subsonic) |
20 to 80Hz @ 12dB/octave Linkwitz-Riley |
|
LPF (Crossover) |
80 to 500Hz @ 12dB/octave Linkwitz-Riley |
|
Recommended Fuse |
150 A |
|
Rest Current |
2A |
|
Maximum Current (sine signal) |
315A |
|
Maximum Current (musical signal) |
155A |
|
Power Cables (recommended min.) |
21mm / 4 AWG |
|
Output Cables (recommended min.) |
2 x 4mm / 2 x 11 AWG |
|
Weight (kg) |
4.9 |
|

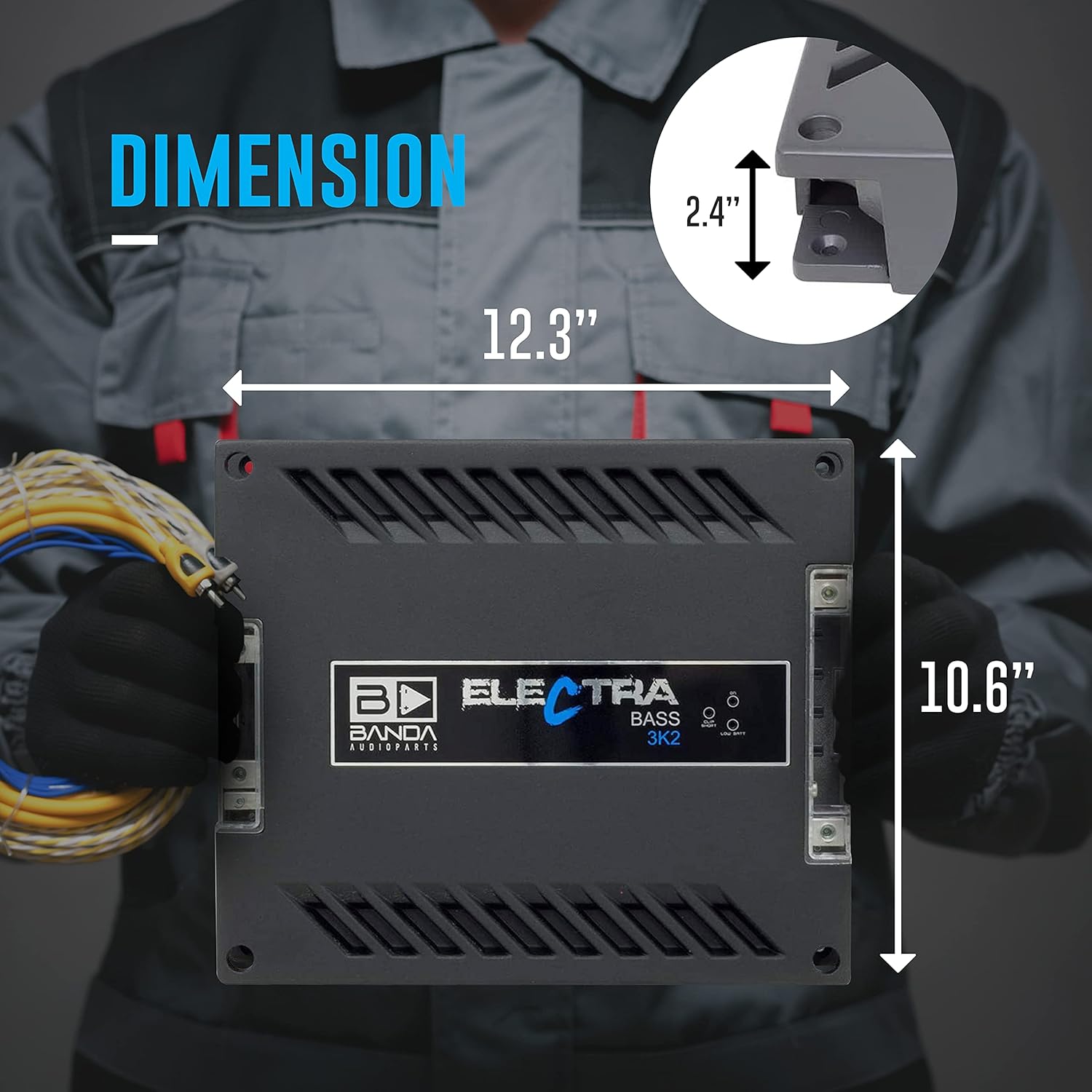

Height (mm) |
60 |
|
Width (mm) |
264 |
|
Depth (mm) |
308 |
