SKU: 297801

Baja Designs LP4 Pro LED Auxiliary Light Pod Pair

Regular price $1,244.00
Shipping calculated at checkout.

Light Pattern
Lens Color

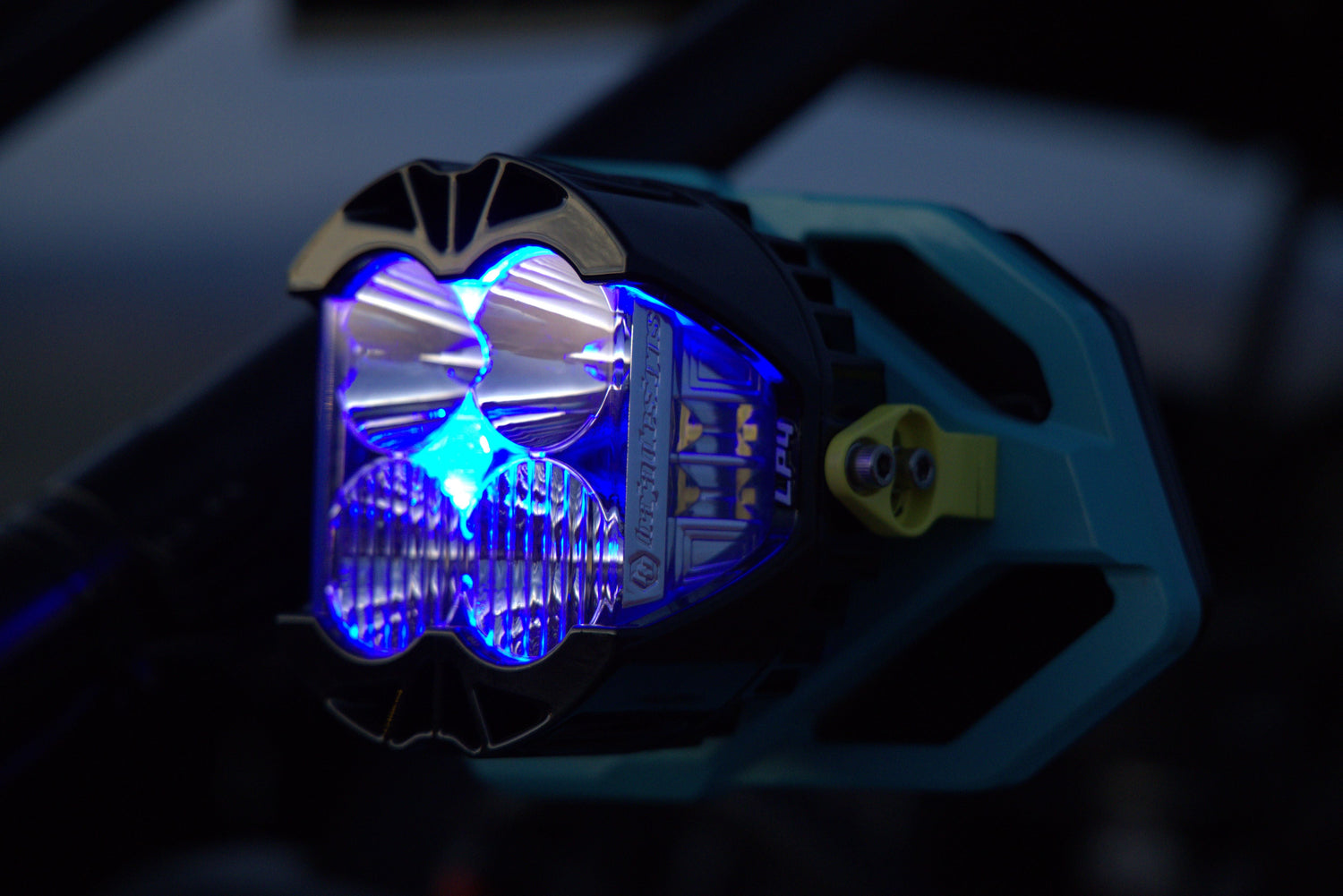

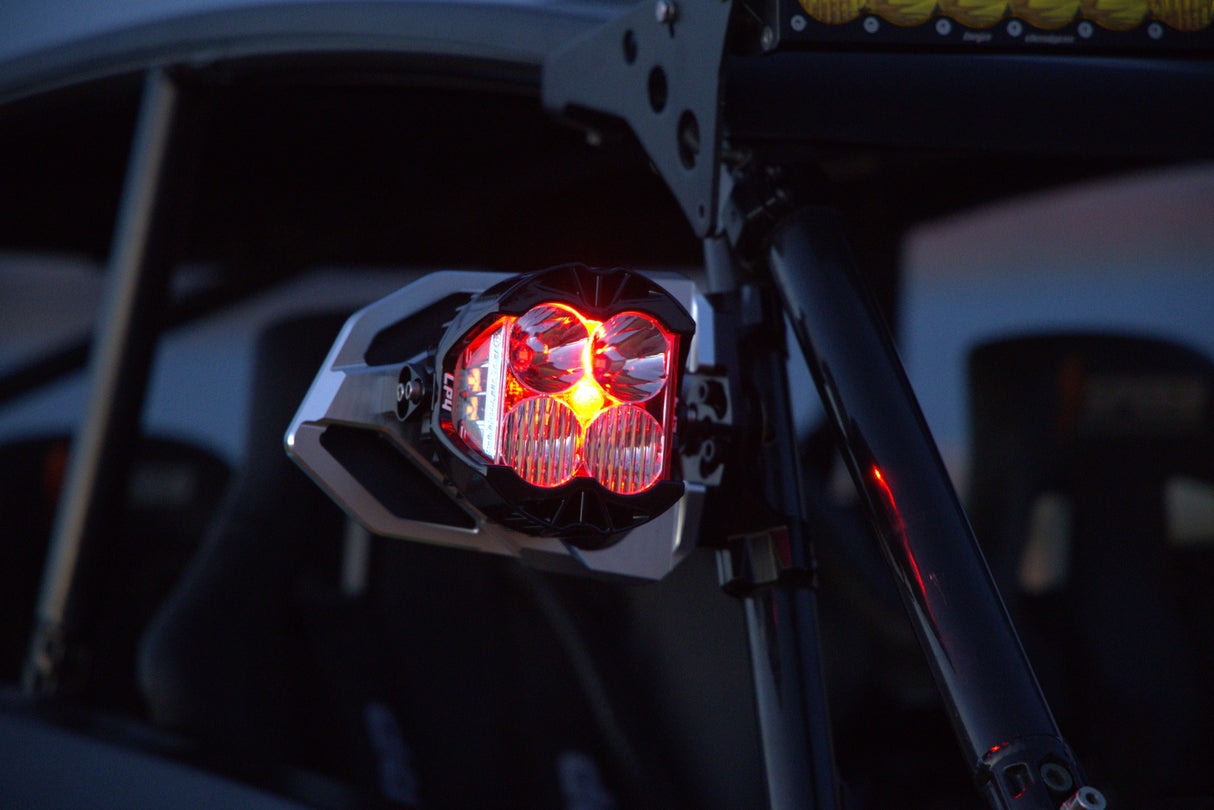

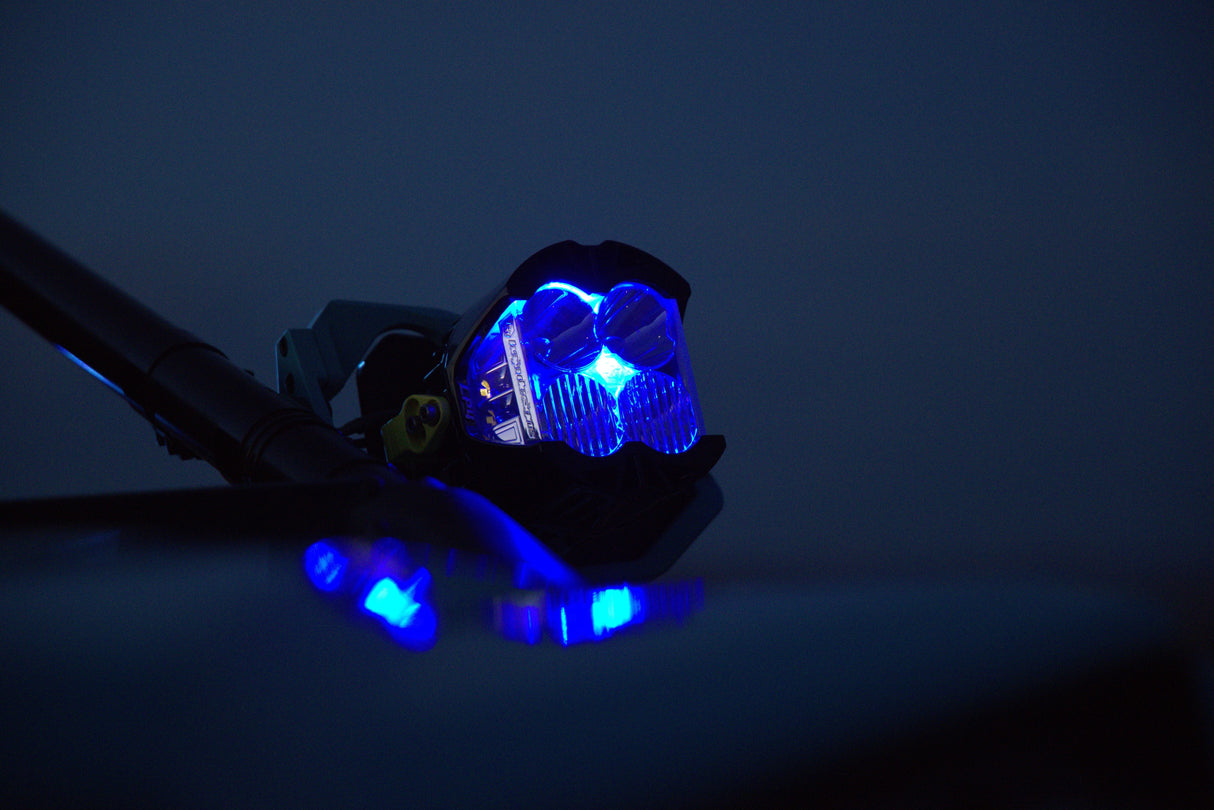

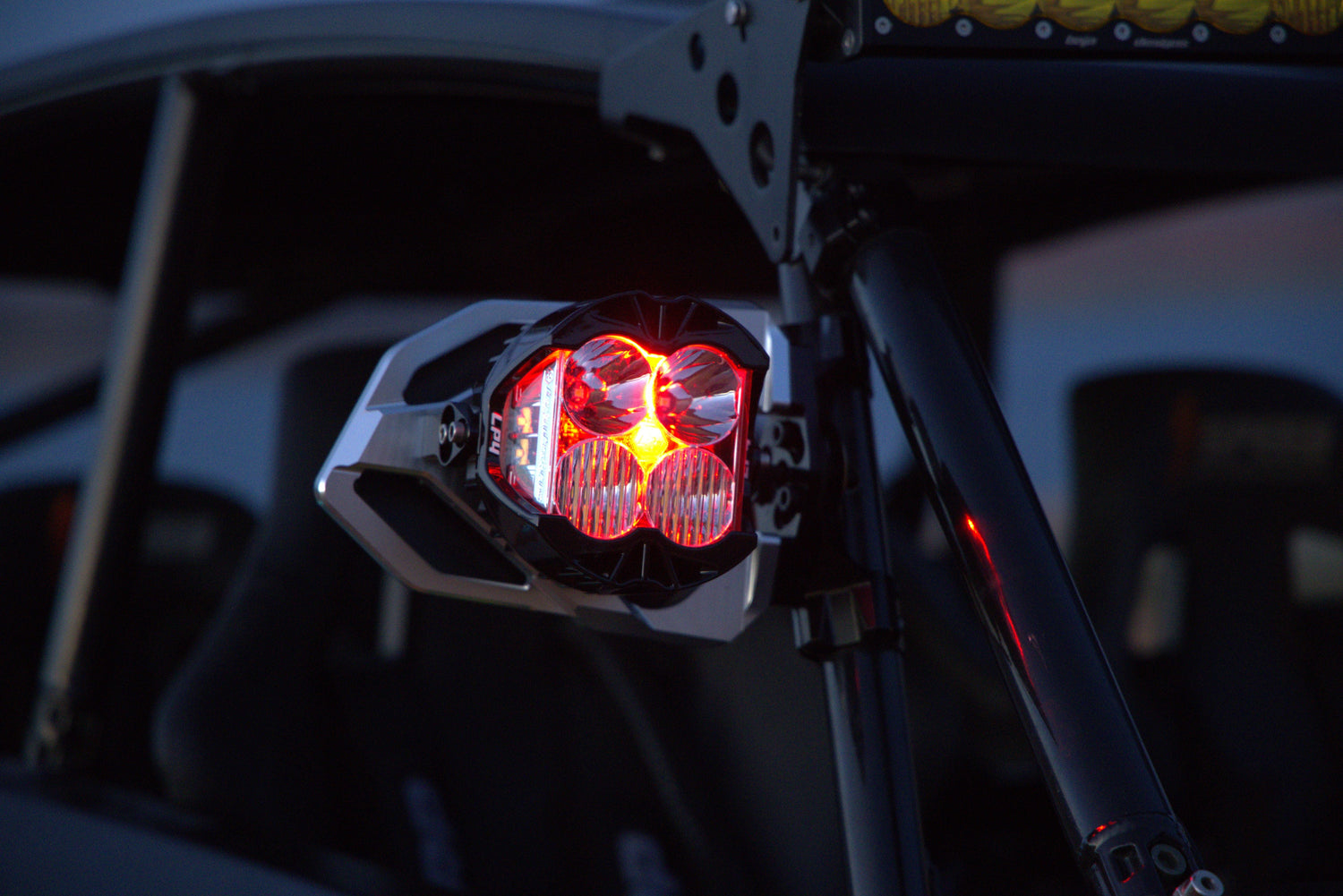

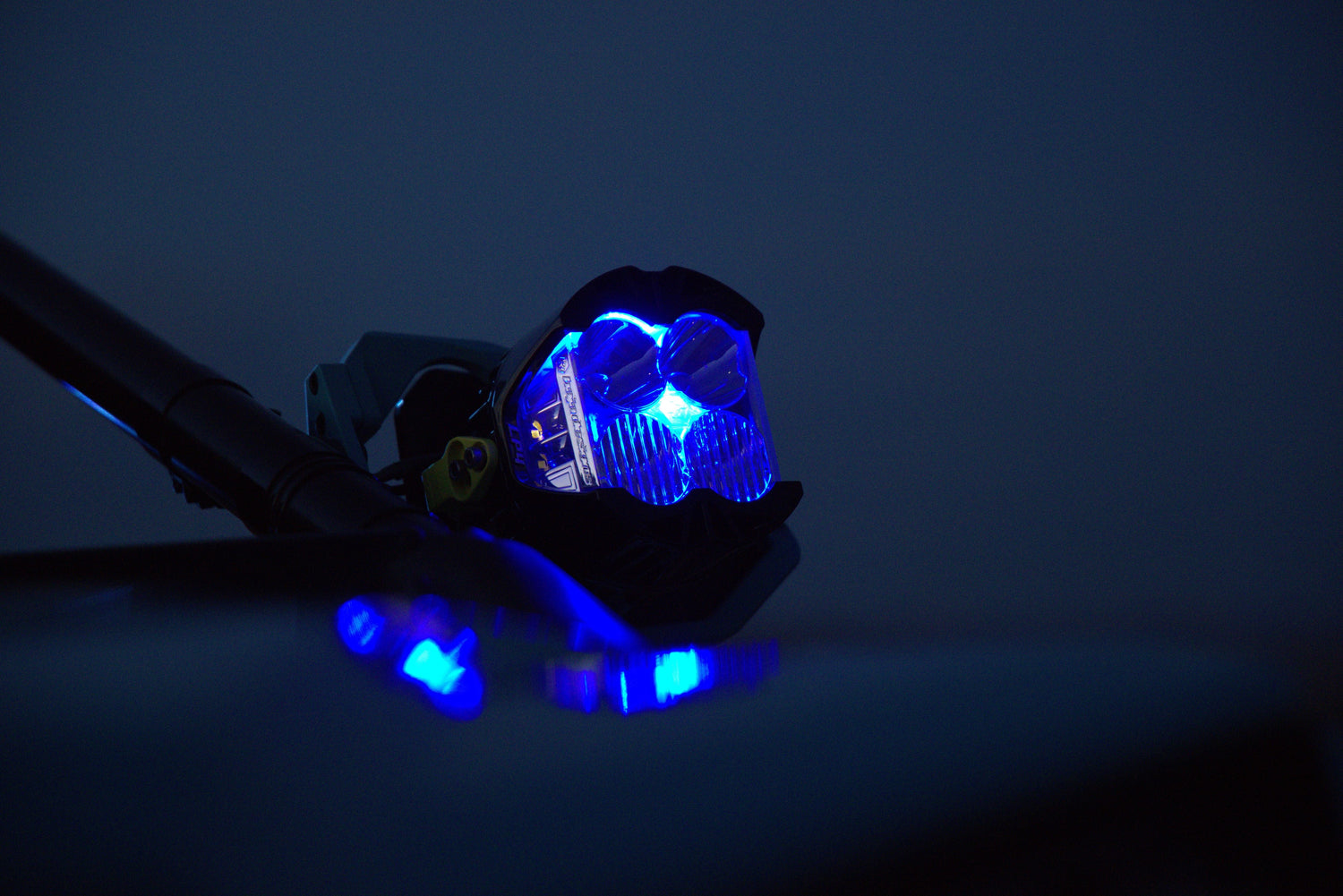

Backlight

Care information

Display general product information or specific product information using metafields.

Delivery and Shipping

Add some general information about your delivery and shipping policies.

Add a stand out message for your customers

Highlight title

Text to highlight a key feature of your product

Description

The LP4 is the smallest variant in the LP line up but maintains all of the power and features of its siblings. The LP4  features a total of 8,750 lumens and a 200° spread of useable LED light. This light pumps out 7,050 forward projecting lumens and 1,700 lumens of dedicated peripheral lighting courtesy of our patented Integrated Peripheral Technology (IPT).

To keep your light performing at its highest potential, the LP4 integrates our proprietary Direct Ducted Cooling (DDC) technology. This feature allows air to travel through the front of the housing, over the rear heat sinks - drastically improving cooling capacity and performance.

With an amber day-time running light, the LP4 will fulfill all your lighting needs

Download Instructions HERE!

Baja Designs Features:
Satisfaction Guarantee – 30 Day Money Back
Guarantee
Limited Lifetime Warranty – Complete Purchase Protection
uService® – Replaceable Lenses And Optics
ClearView® – All The Light, Right Where You Need It.
MoistureBlock™ – Waterproof, Rain Proof, Submersible
CopperDrive® – Only LED Driven At 100%
5000K Daylight – Less Driver Fatigue, Natural Color

Specifications:
Forward Projecting Lumens: 7,050 Utilizing 4 LEDs
Forward Projecting Wattage/Amps:  60W / 6.5A

IPT Lumens: 1,700 Utilizing 4 LEDs
IPT Wattage/Amps: 15W / 1.0A

Backlight Wattage/Amps: 4.83W / 0.35A

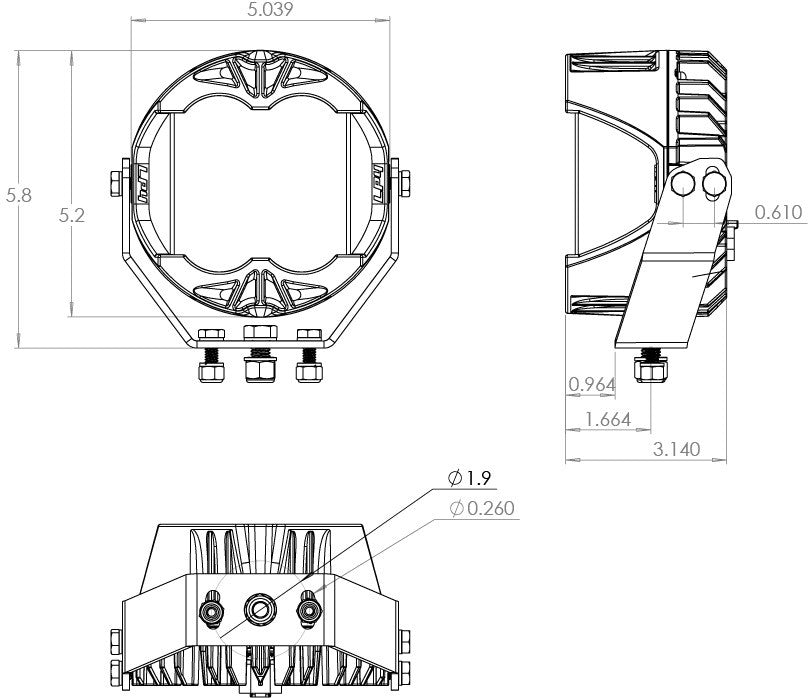

Dimensions: 5.1" Height / 5.1" Width / 3.2" Depth
Weight: 2.8lbs

Mating Connector: DT06-4S Deutsch
LED Life Expectancy: 49,930 Hours
Front Lens:  Hardcoated Polycarbonate
Housing:  Hard Anodized Cast Aluminum
Bezel: Hard Anodized Cast Aluminum
Hardware & Bracket Material: Stainless Steel
Exceeds MIL-STD810G (Mil-Spec Testing)
Built-In Overvoltage Protection
IP69K (Waterproof up to 9ft & Pressure Washable)

IK10 Compliant (Mechanical Impact Testing)

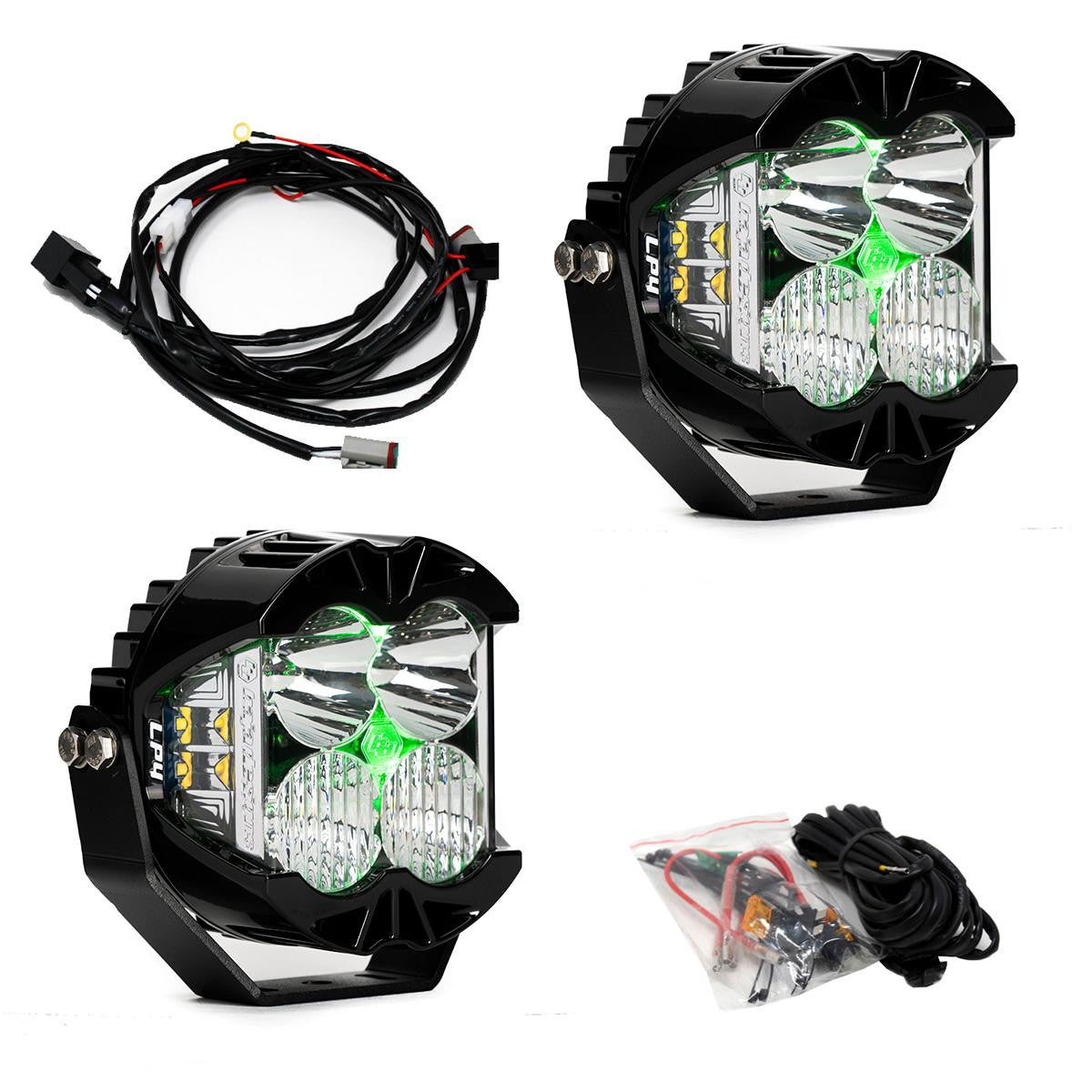

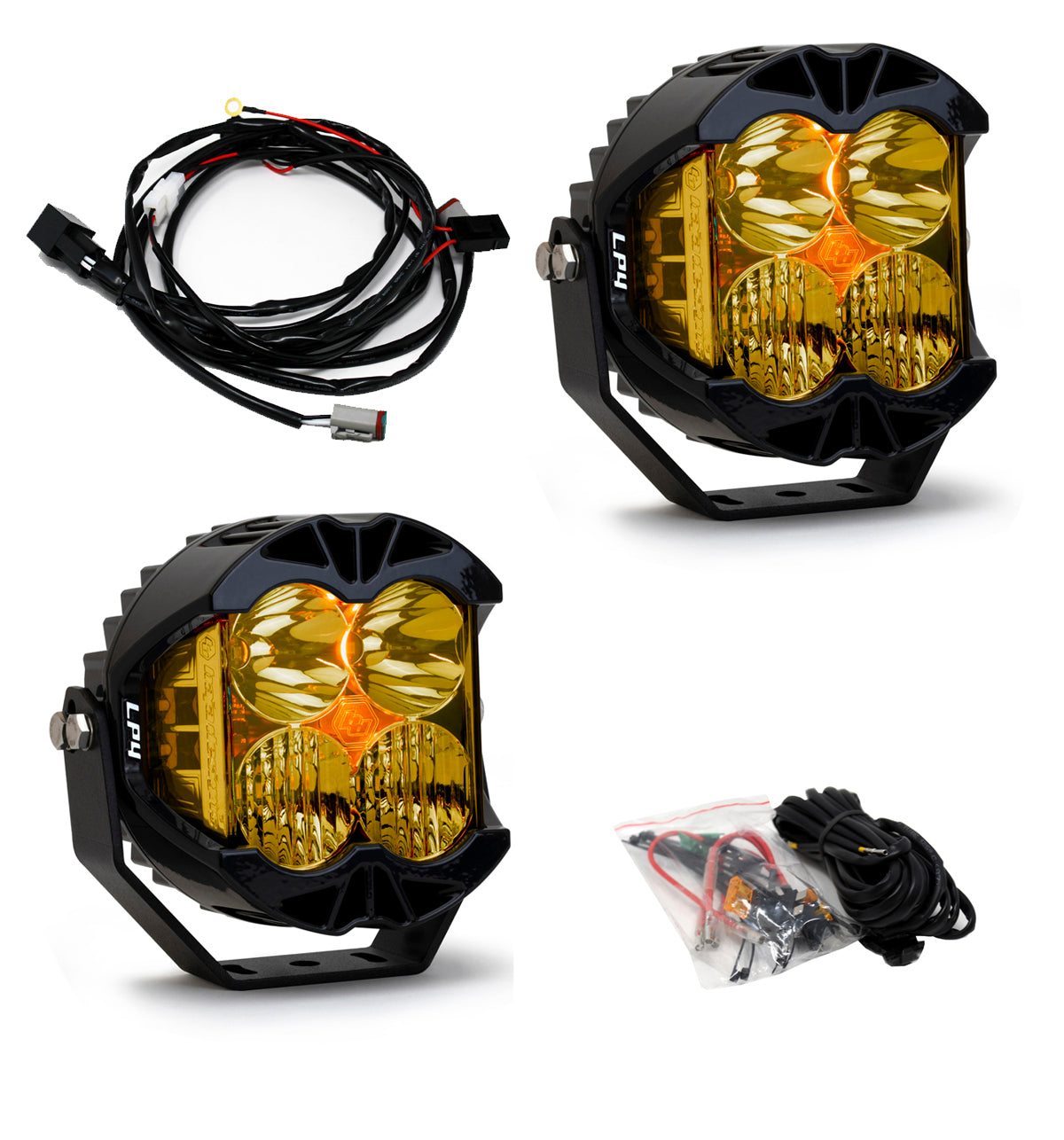

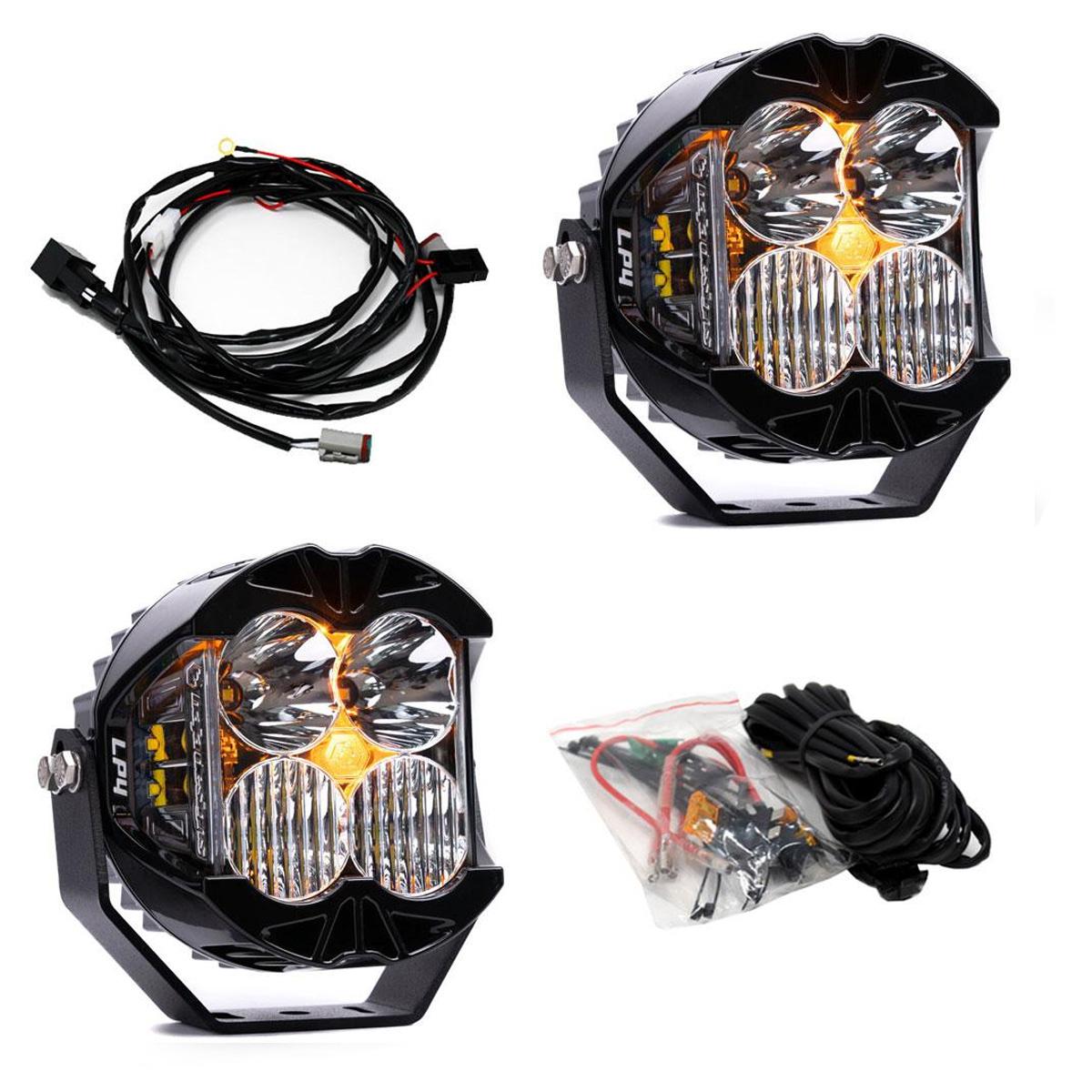

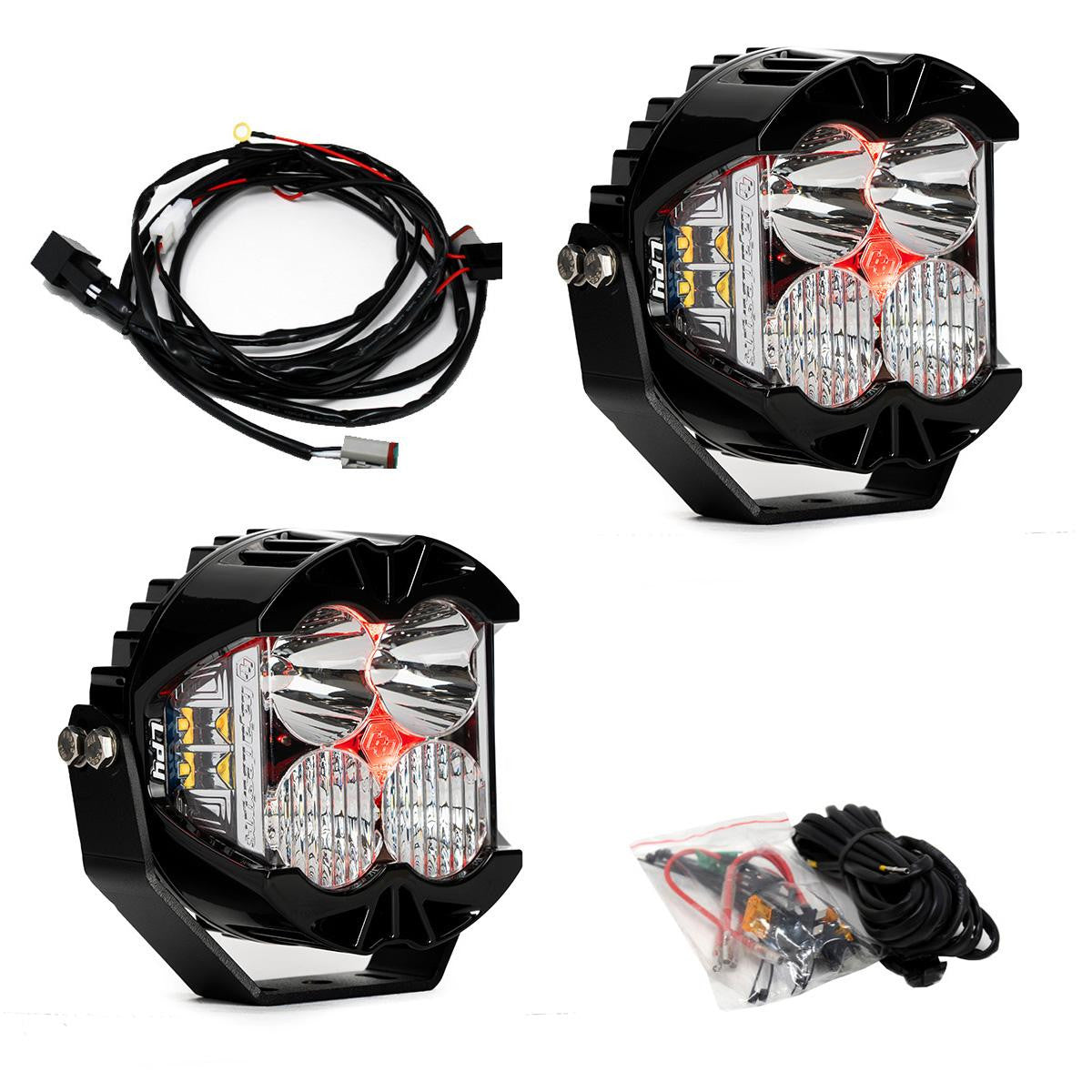

Includes:
  • QTY (2) LP4 LED Light
  • QTY (1) Wiring Harness

Patterns:

Driving/Combo: Maximum trail coverage in a single light.  The Driving/Combo pattern is equipped with both Wide Driving (42°) and the spot (6°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)

High Speed Spot: A longer and narrower 6° beam focus for illumination further down the trail or road.  The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5)
