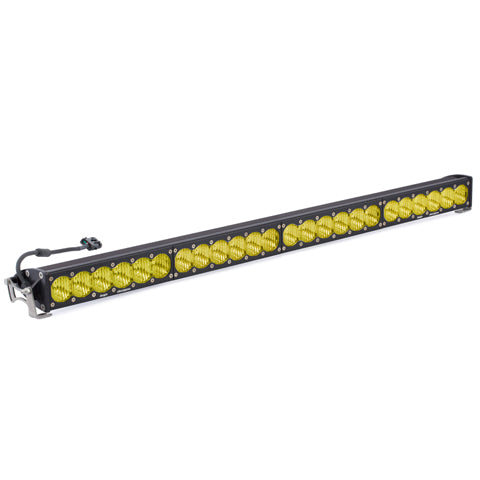

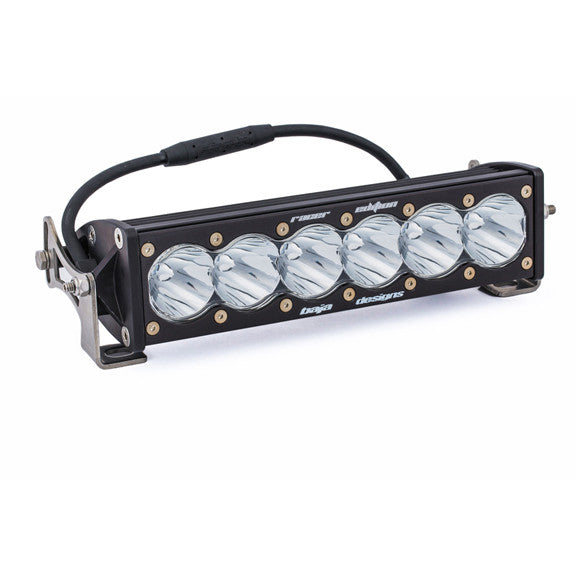

BAJA DESIGNS OnX6+ Straight LED Light Bar - Universal
BAJA DESIGNS OnX6+ Straight LED Light Bar - Universal - SPOT / CLEAR / 10 Inch is backordered and will ship as soon as it is back in stock.
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
BAJA DESIGNS OnX6+ Straight LED Light Bar - Universal
BAJA DESIGNS OnX6+ Straight LED Light Bar - Universal - SPOT / CLEAR / 10 Inch is backordered and will ship as soon as it is back in stock.
Highlight title
Text to highlight a key feature of your product
Description
Description
Description

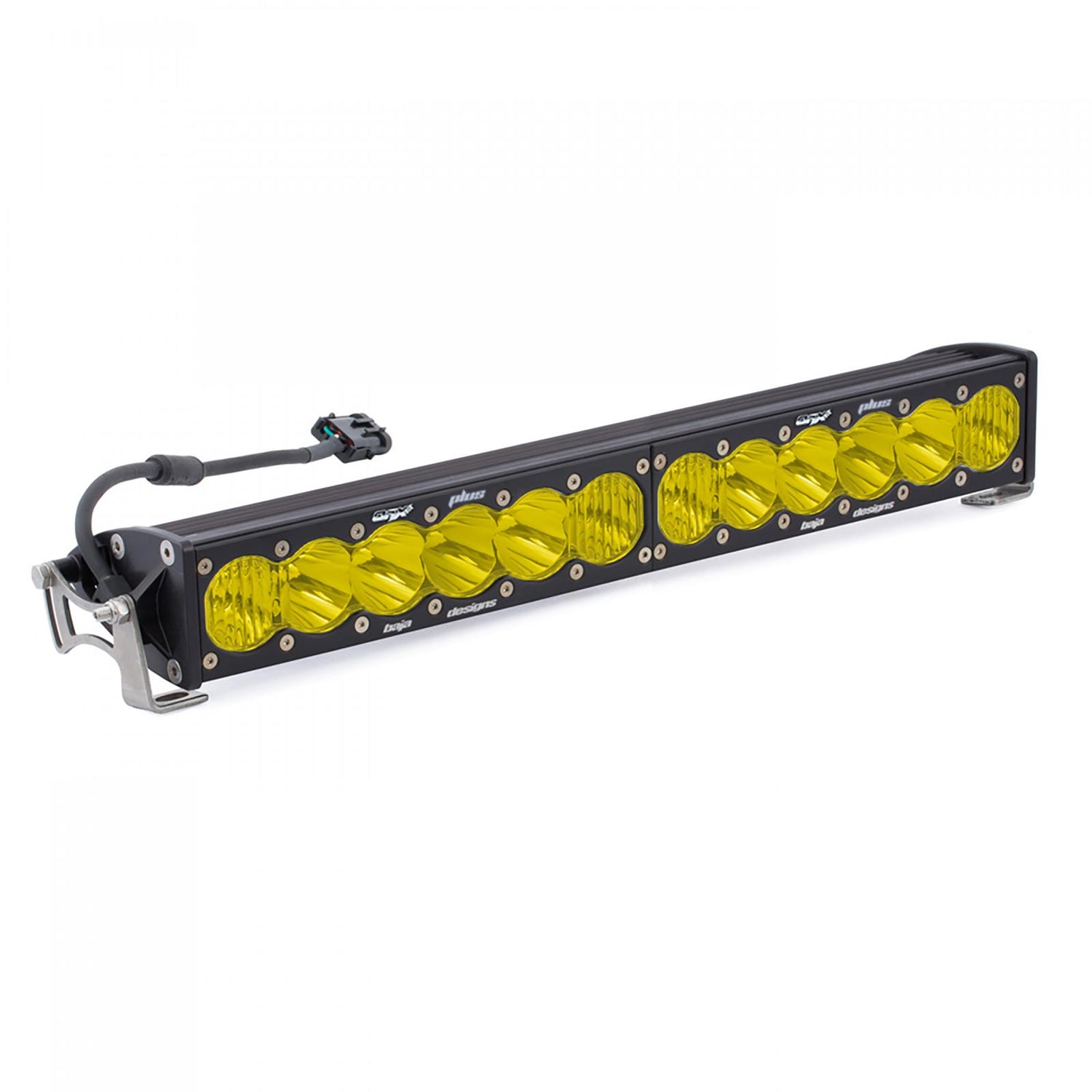

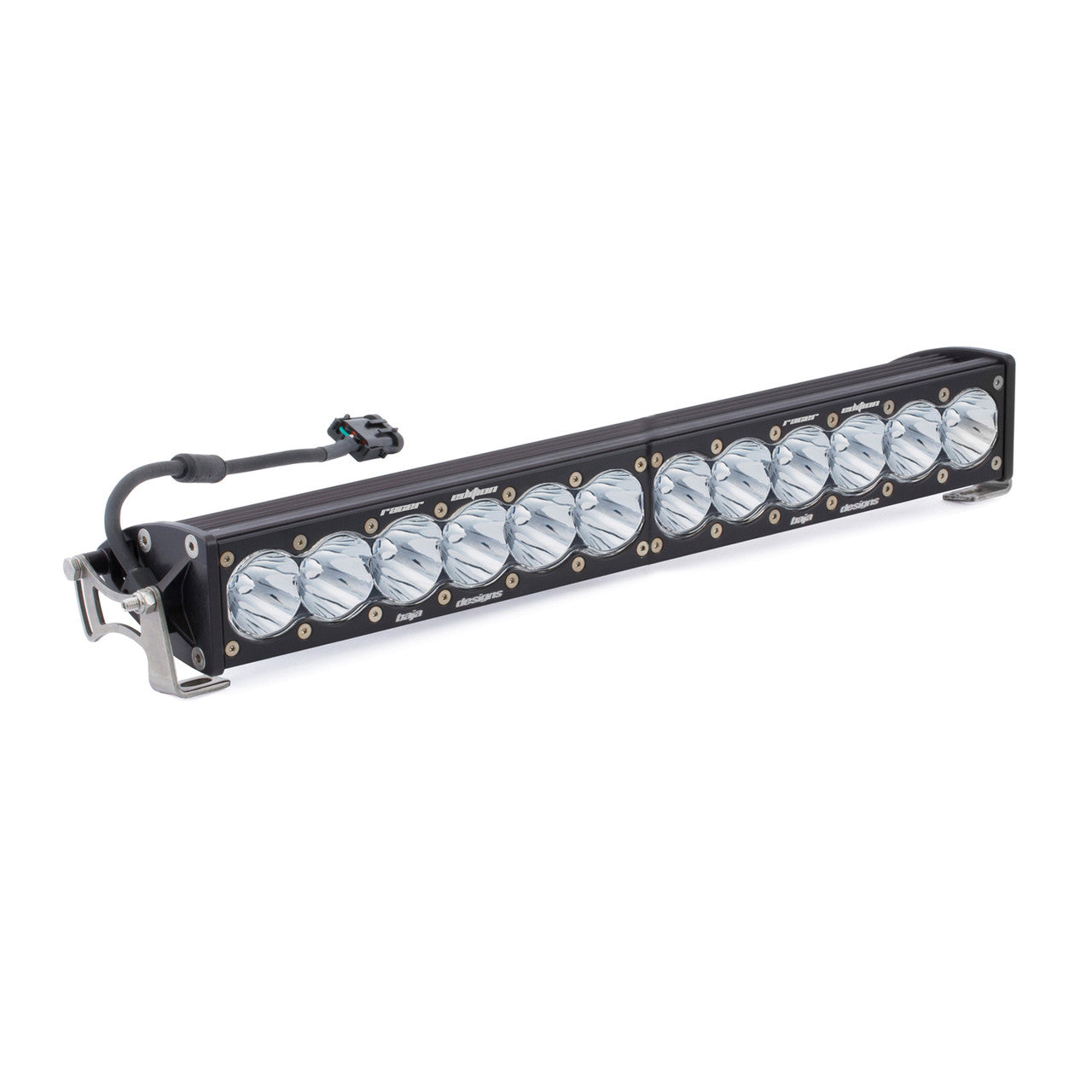

The Baja Designs OnX6+ LED light bar is the pinnacle of off-road lighting. Integrating our trademarked high-speed spot reflectors along with our next-generation LED technology for increased performance and versatility with superior efficiency, the OnX6+ is ready to illuminate the trails or take you to the win at the Baja 1000. The OnX6+ is offered in multiple sizes ranging from 10-inch bars providing 10,817 total raw lumens to 50-inch bars that push out 39,430 total raw lumens illuminating lighting zones 1, 2, 3, 4 simultaneously while pushing into zone 5. Vertical adjustments can be made and locked in, offering the best beam pattern in front of the vehicle no matter where it is mounted. Race proven, the mil-spec aluminum housing of the OnX6+ has been designed to withstand rugged conditions that off-roaders will endure. Our exclusive MoistureBlock technology ensures the light bar remains waterproof and dustproof even in the harshest conditions. Customize your beam pattern or change damaged lenses without voiding the warranty on the OnX6+ with our uService technology. Installation of the OnX6+ is easy and comes with mounting brackets that can be used in any application. When you need an LED light bar that offers high-output LEDs with exceptional intensity, improved visibility and safety in various conditions, the OnX6+ LED light bar is the only choice for those that demand the best in lighting. Backed by our 30-Day Satisfaction Guarantee and Lifetime Limited Warranty for the ultimate in purchase protection.
NOTE: Wiring harness not included. Please use 640115 = OnX6+ 10-20in. 640119 = OnX6+ 30-50in.
Satisfaction Guarantee – 30-Day Money Back Guarantee
Limited Lifetime Warranty – Complete Purchase Protection
uService – Replaceable Lenses And Optics
ClearView – All The Light, Right Where You Need It
MoistureBlock – Waterproof, Rain Proof, Submersible
CopperDrive – Only LED Driven At 100 Percent
5000K Daylight – Less Driver Fatigue, Natural Color
SKU: 451001
Dimensions
| Depth (in.) | 4.290 |
| Height (in.) | 2.690 |
| Length (in.) | 10 |
| Weight (lbs.) | 4.250 |
Specifications
| Amperage Rating (A) | 7.700 |
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Spot |
| Bezel Material | Billet Machined Aluminum |
| Brightness (Lumens) | 10,817 (High); 9,230 (Low) |
| Description | Straight; Spot; Clear |
| Housing Color | Black |
| Housing Material | Aircraft Grade Aluminum with Mil-Spec Hard Anodize |
| Lens Color | Clear |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lighting Modes | High Beam/Low Beam |
| Lighting Quantity | 6 |
| Lighting Technology | LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Description | Mounting Brackets |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | OnX6+ 10 Inch LED Light Bar |
| Universal or Specific | Universal |
| Wattage (W) | 106.260 |
| Wiring Harness Description | Hi-Low Dongle |
| Wiring Harness Included | No |
Standards & Compliance
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
